Description

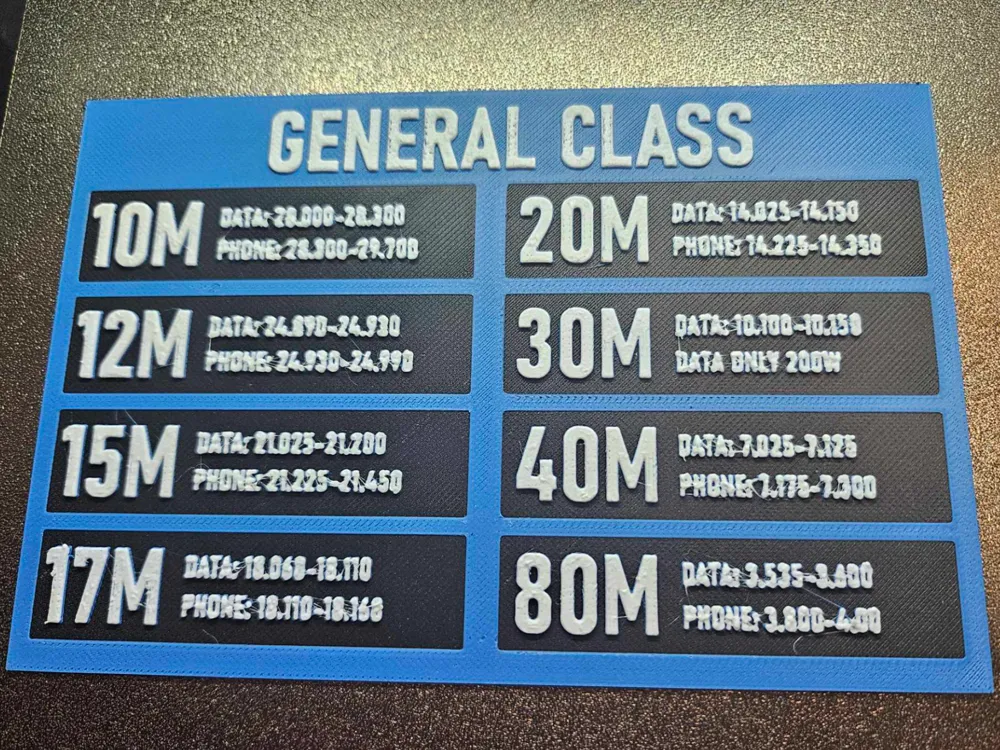

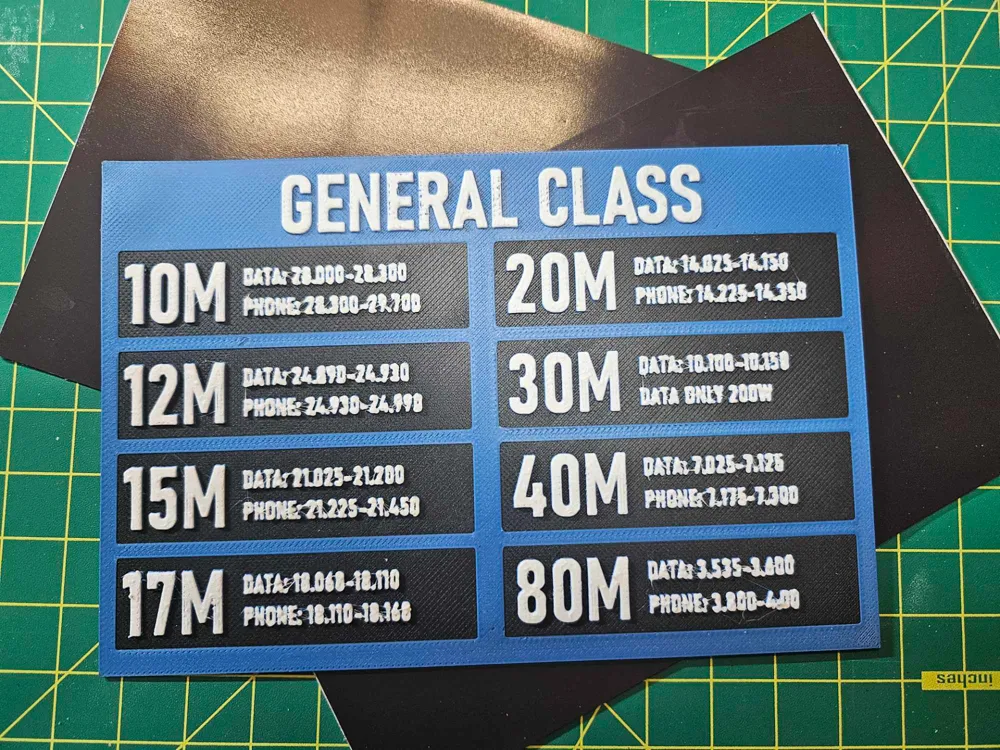

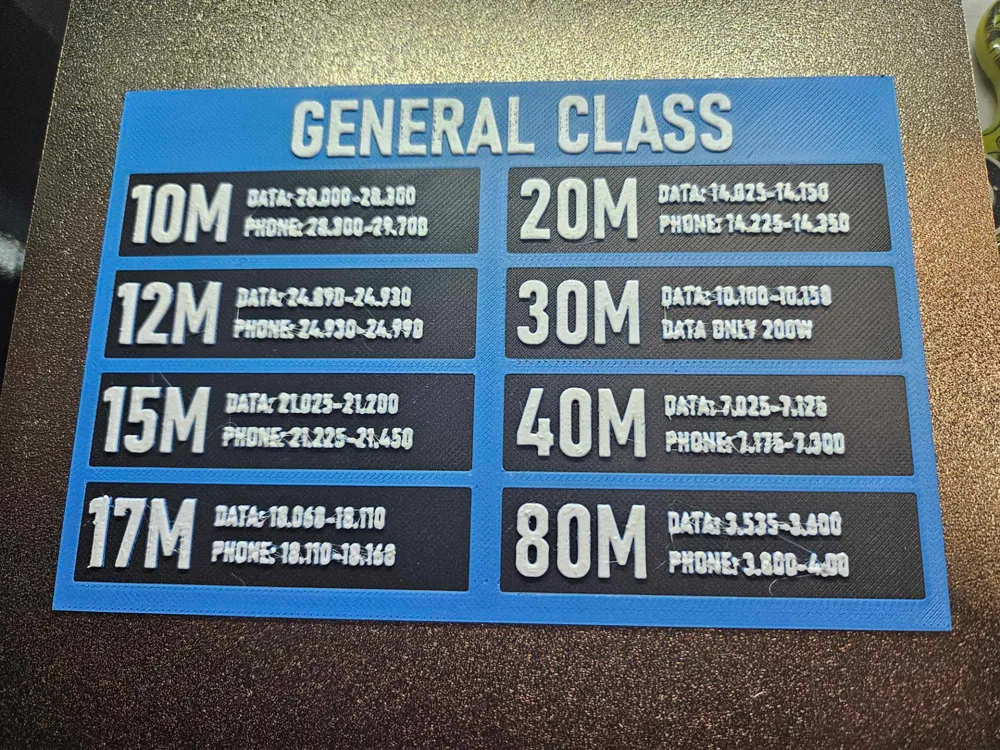

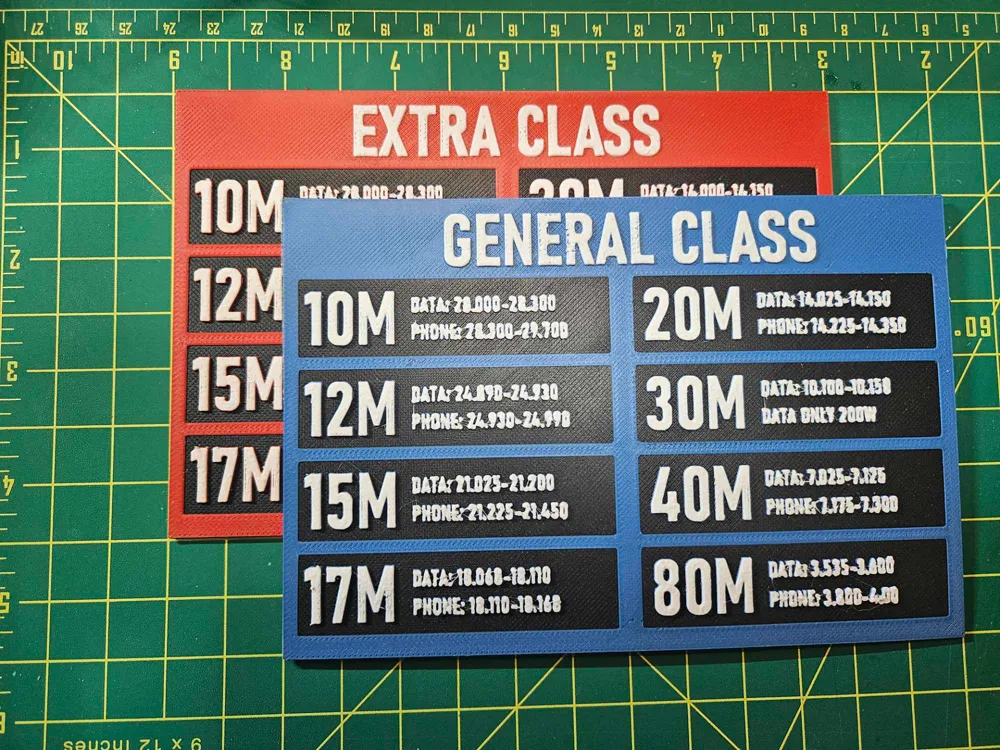

My version of a General Band Plan, sized to be used with a 4x6 magnet sheet. Designed in InkScape and HueForge.

Project: General Class Band Plan.hfp
Print at 100% infill with a layer height of 0.08mm with a base layer of 0.16mm

The Model is 152.4x101.6mm in size
You may print at higher layer heights below the Min Depth of 0.48mm
The Max Depth is 2.2mm and the Actual Depth is 1.4mm

Filaments Used:
    PLA PolyTerra Charcoal Black Transmission Distance: 0.3
    PLA PolyTerra Sapphire Blue Transmission Distance: 0.3
    PLA PolyTerra Cotton White Transmission Distance: 2.5
This print uses 3 unique filaments

Swap Instructions:
    Start with Charcoal Black
    At layer #6 (0.56mm) swap to Sapphire Blue
    At layer #10 (0.88mm) swap to Cotton White for the rest.
