RT-95 Manpack Rails and BNC bulkhead antenna mount

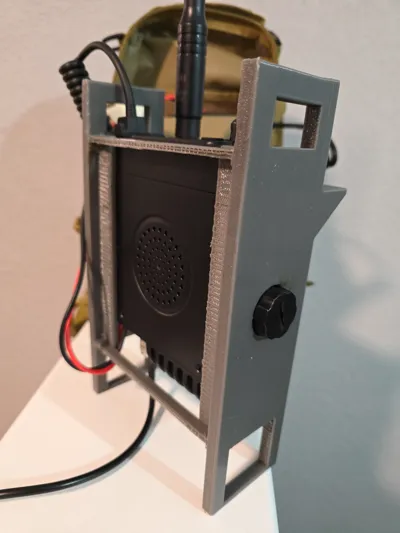

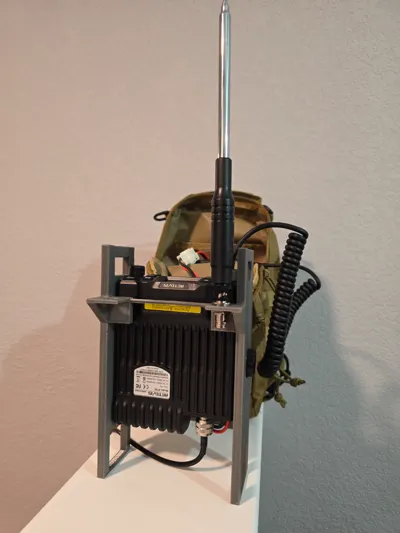

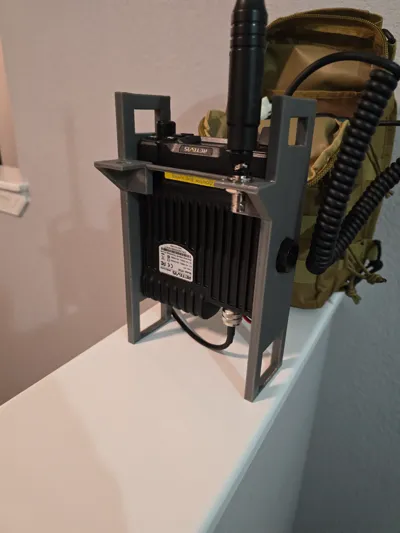

Manpack Rail System for RT95/AT-778UV – 3D Printable File

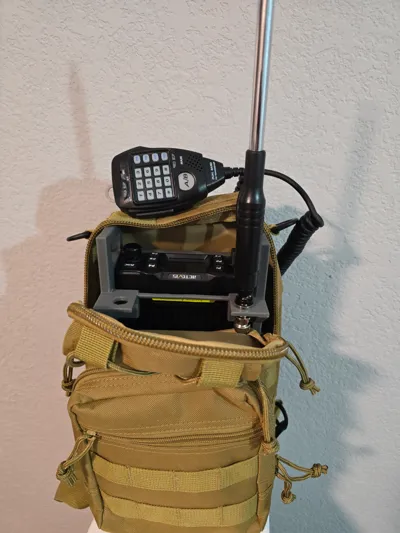

Hey everyone, I’m excited to share my latest 3D design—the Manpack Rail System for the RT95/AT-778UV! As a passionate Ham radio operator and off-roading enthusiast, I wanted a more practical and powerful solution for field communication.

Typical handheld radios are limited to around 8W of output power, which can be a challenge in remote areas or when trying to reach distant repeaters. The RT95/AT-778UV, however, offers up to 25W, making it a far more effective option for off-roading, emergency comms, and extended range operations.

I took some inspiration from the Side Rails for the AnyTone 778UV, but this is an entirely original file that I designed from scratch. My goal was to create a secure and durable rail system that makes it easier to mount, carry, and operate the RT95/AT-778UV in the field.

If you’re into Ham radio, off-roading, or need a reliable mobile setup, I’d love to hear your thoughts on this design!

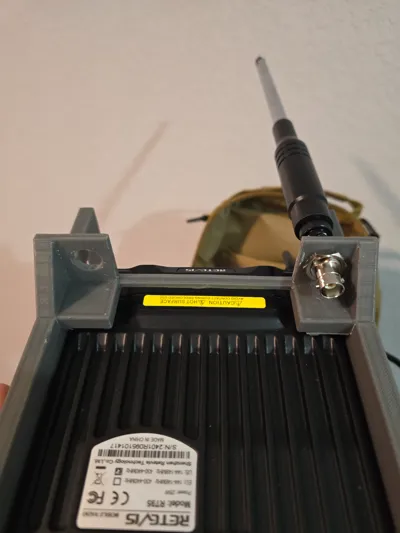

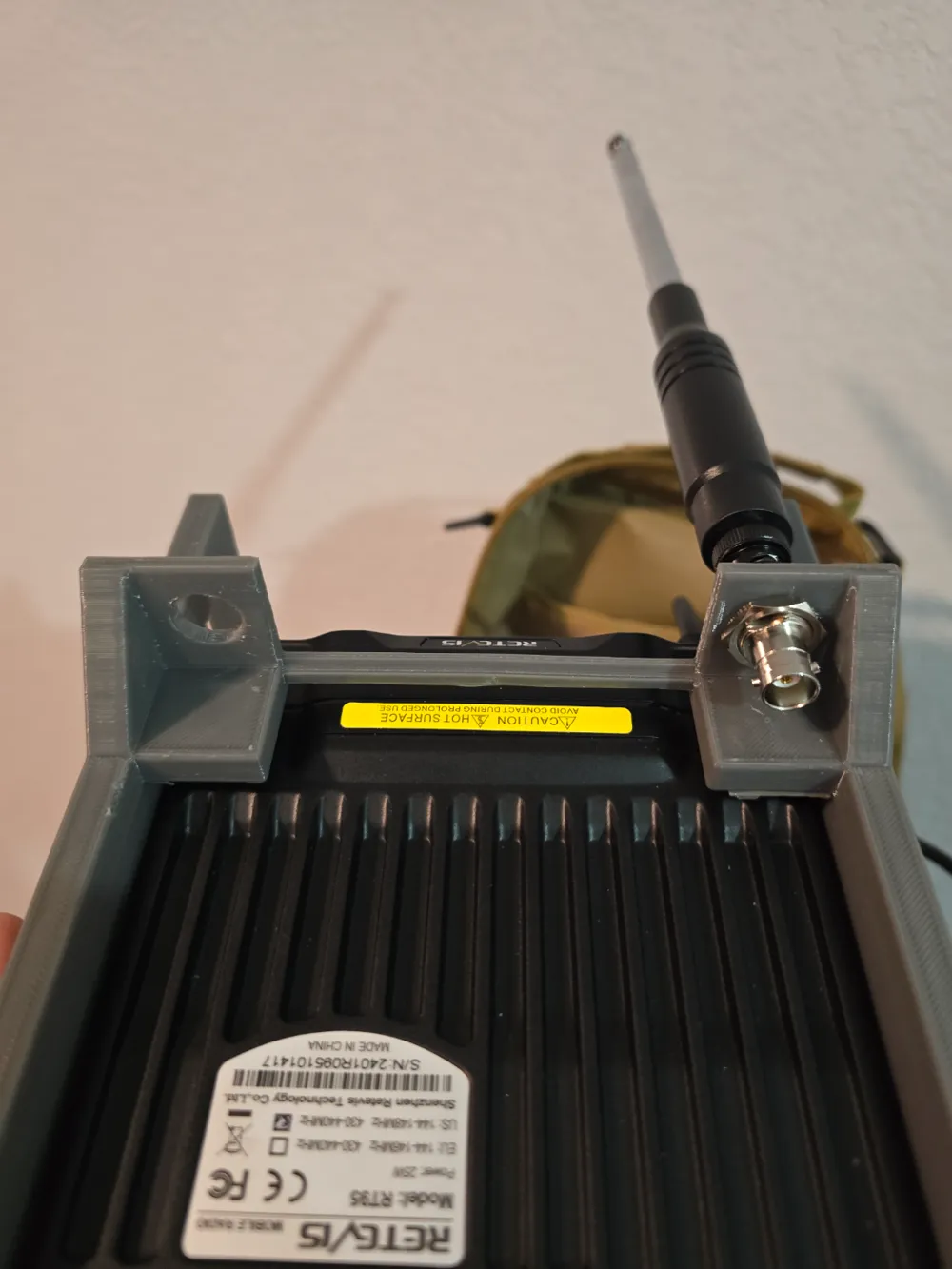

📌 Note: This file may require some post-processing, as the holes were designed to be a bit tight to ensure a secure fit.

73s,
KJ7COR

Parts List:

🔹 BNC Female to Female Adapter Bulkhead Connector Coax Extension BNC Coupler
Amazon Link

🔹 HYS-771N BNC Antenna – VHF/UHF 2M/70CM for Handheld Radios
Amazon Link

🔹 Eightwood UHF PL259 Male to BNC Male Cable RG58 Coax (3 Feet)
Amazon Link

🔹 Retevis RT95 Mobile Ham Radio, Dual Band Mobile Radio
Amazon Link

🔹 Qcute Tactical Backpack, Waterproof Military Cross-body Molle Sling Shoulder Backpack Chest Bag for Outdoor Every Day Carry
Amazon Link
