Description

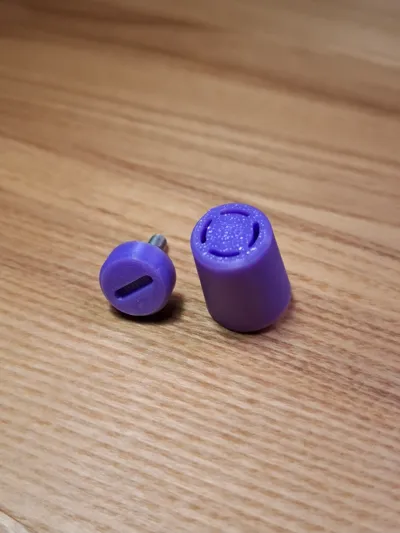

So if Ikea won't make them screws in the same color as their pegboards, then you can do it yourself! Or any other color actually.

You just gonna need few M4x16 (bit shorter will do also) screws with hexagonal heads (7mm). They sit quite tight, just push them in. The washer comes on the inside of the top part, after you put the screw in obviously. Also obviously you have to glue it all together - cyanoacrylate glue will do, tho sometimes it leaves white marks while the solvent (or whatever else) is evaporating.

The support thingy has M4x0.7 thread with 0.1mm offset so your screws will screw in with ease. Mind not to break of those little legs of theirs. Because of this hobbit sized thread, the layer height in the print profile is set to 0.12mm. Feel free to tinker with it if you can't wait that long for it to print - I didn't test any other layer height tho.
