Profile System Collection with Extensive Accessories in Various Sizes
Print Profile(1)
Description

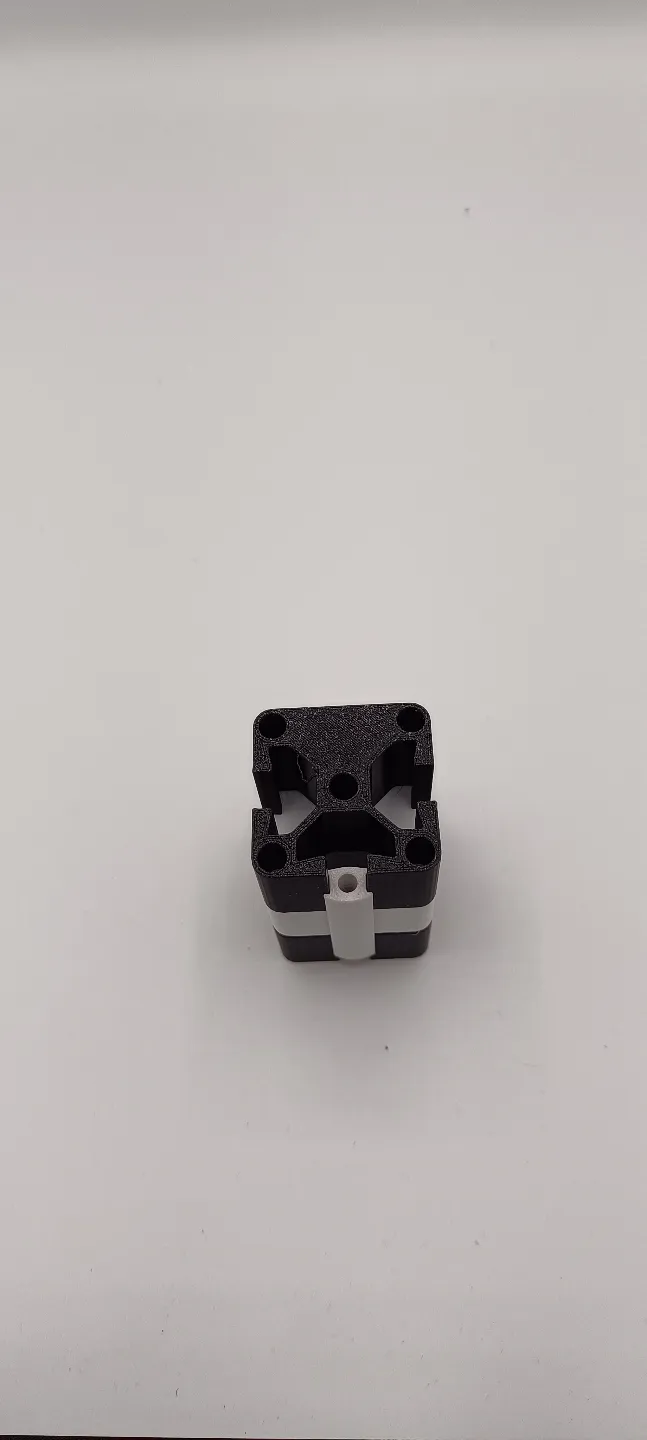

This comprehensive profile collection offers a flexible alternative to conventional aluminum profiles and is ideally suited for a wide variety of construction projects. The models are precisely matched to the usual standard dimensions and allow for easy integration into existing structures.
Available Profile Types:
40x40 Curved Profile
- 40x40 Curved Base Profile
- 40x40 Curved End Cap
- 40x40 Curved Corner Piece (90°, 2-sided)
- 40x40 Curved Corner Piece (3-sided)
- 40x40 Curved Connectors
- 40x40 Curved Nut Inserts for Attachments
- 40x40 Groove Cover for Stabilization
40x40 Standard Profile
- 40x40 Single-Sided Profile
- 40x40 Double-Sided Profile (Corner Version)
- 40x40 Three-Sided Profile
- 40x40 Four-Sided Profile
- 40x40 Connector for all Profile Types
- 40x40 Corner Pieces (2-sided, 3-sided)
- 40x40 End Cap
- 40x40 Groove Cover
- 40x40 Nut Plate Holder (3mm, 5mm, 8mm, 10mm)
- 40x40 Nut Insert for M5 Melt-in Thread
- 40x40 Nut Insert for M5 Cylinder Screw
- 40x40 Angle Connector
- 40x40 Spacer
Larger Versions:
- 50x50 mm (all components like 40x40, only adapted)
- 60x60 mm (all components like 40x40, additionally solid)
Special Profiles:
- 40x80 mm (including matching accessories and connecting elements)
- 50x100 mm (like 40x80 mm, only adapted)
- 60x60 mm Solid Profile with reinforced components
Printing and Application Notes:
- All parts have been tested and meet common standards.
- Minor deviations may occur due to temperature fluctuations.
- Durable FDM material is recommended for high loads.
- Groove covers increase stability and should be used for load bearing.
- Main profiles should be printed vertically and can be scaled in the Z-direction.
- Connectors have a fixed thickness of 10 mm and should not be scaled.
- Groove covers can be scaled vertically and should ideally be printed with a brim and without supports.
- Some parts are provided with supports in the project file. Please note.
- Print with 3 wall lines due to the expected load.
This profile collection offers a modular construction kit system for everyone who wants to realize individual and stable constructions!
