Bike Lock Mount – Attaches to Bottle Cage Mounts

Keeping your bike lock securely attached without it getting caught in the wheels? ✅ Done!

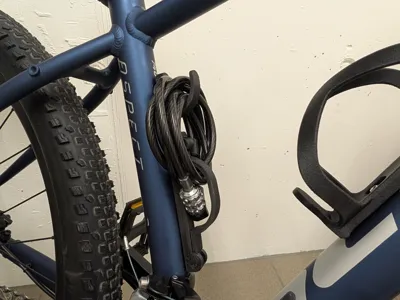

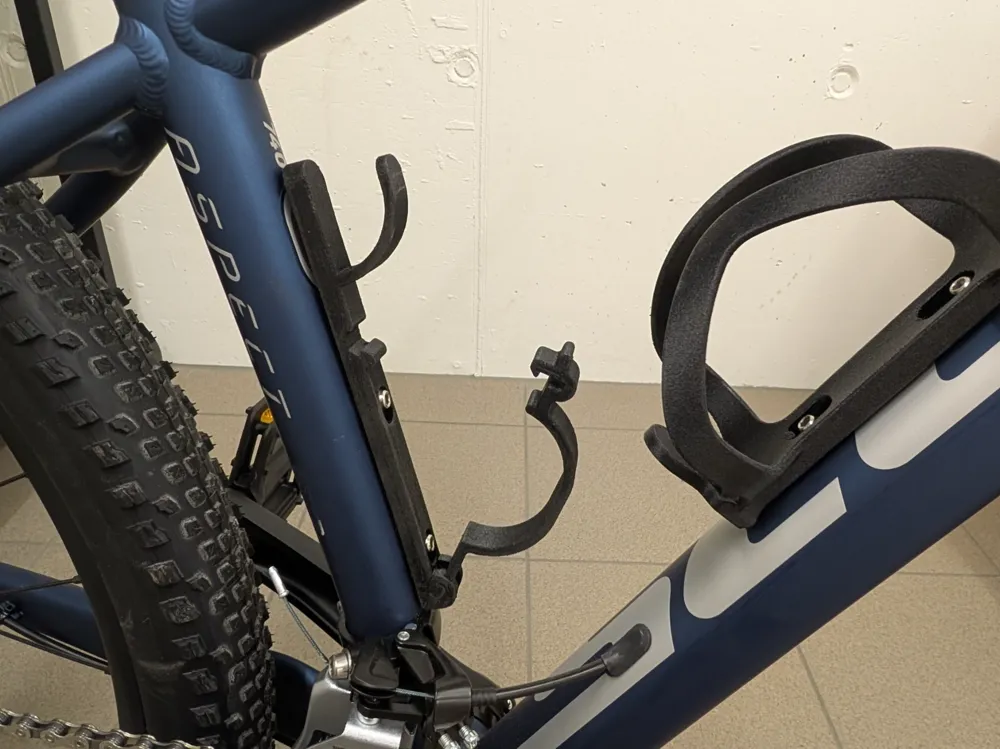

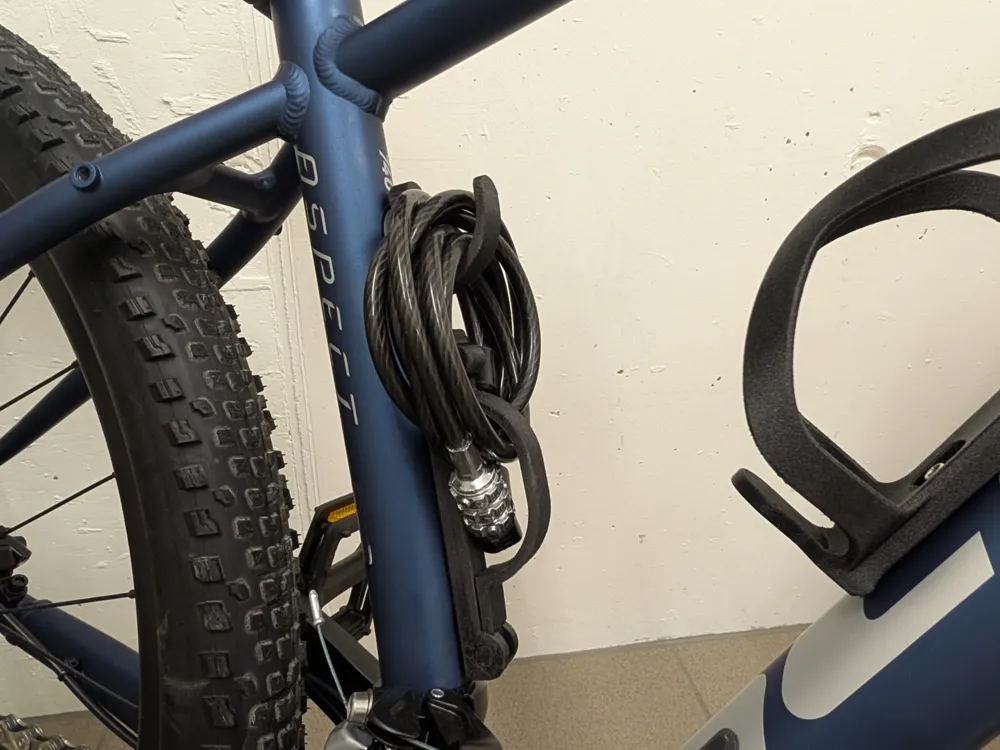

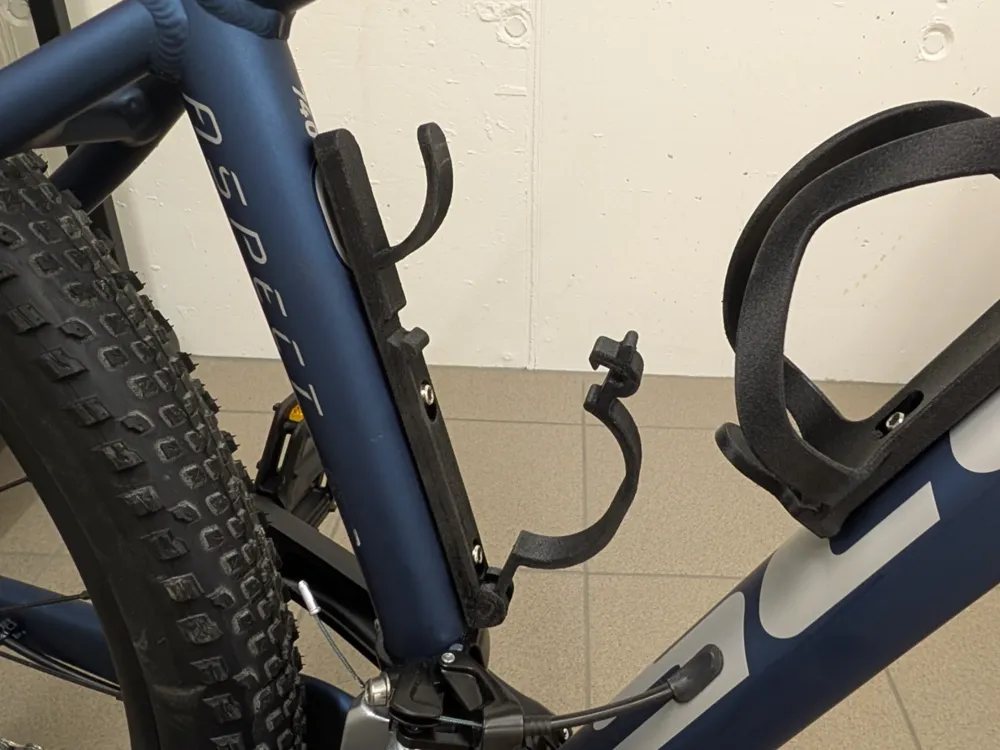

This bike lock mount is designed to be installed on standard bottle cage mounts and is particularly well-suited for vertical seat tubes. It provides a practical and secure way to transport small bike locks without them swinging around or getting in the way.

🔹 How it Works:

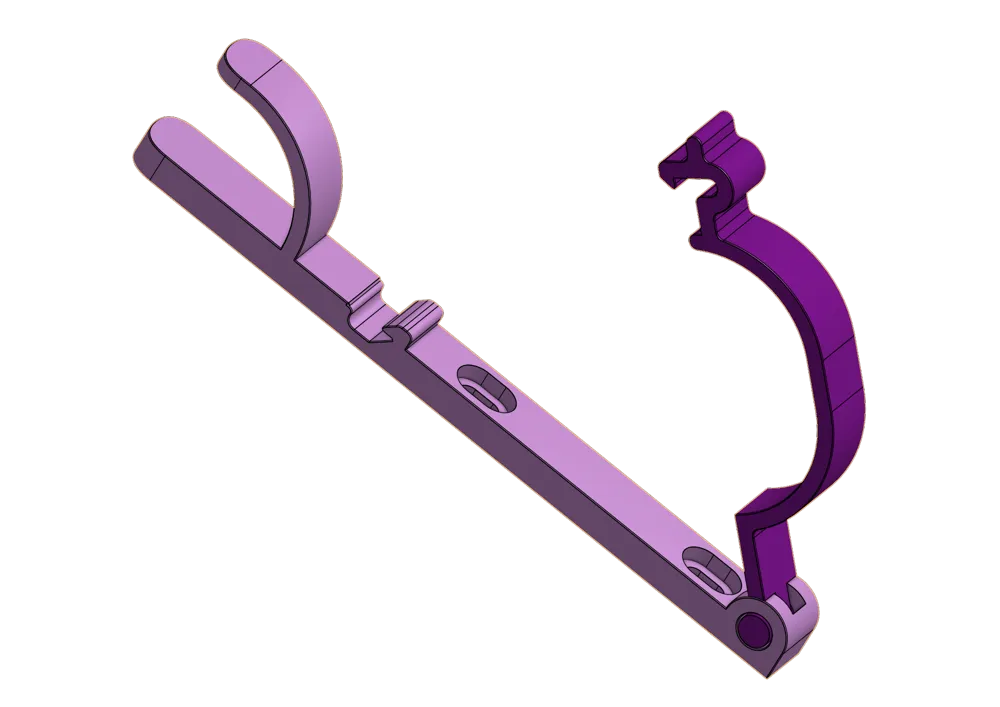

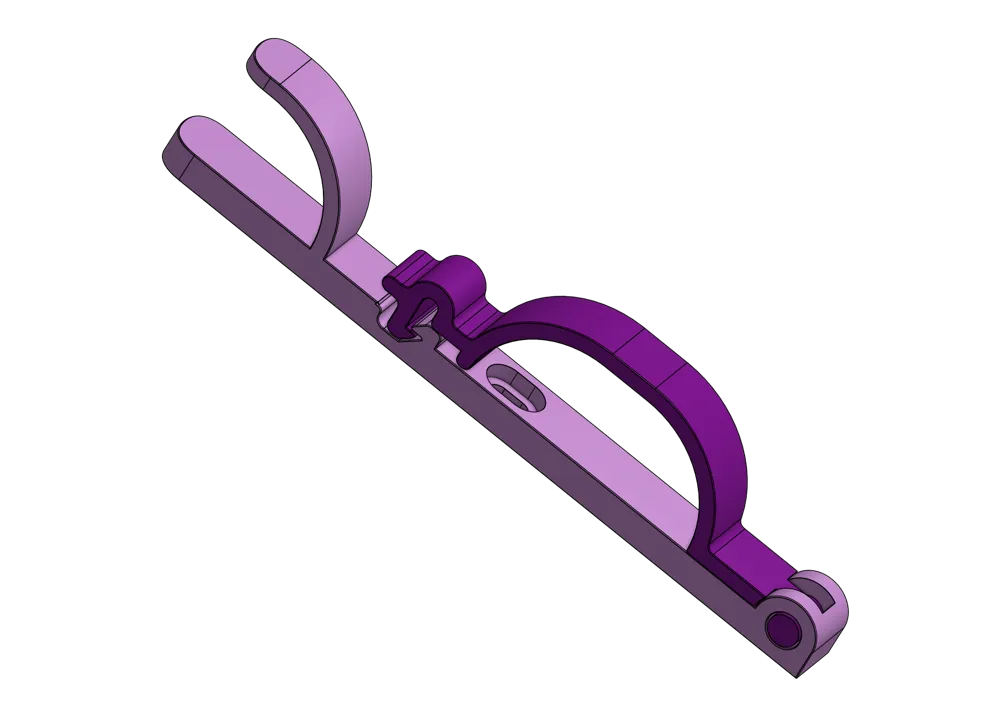

• The lock is hooked into the top and secured by the closing latch.
• A light press on the latch releases the lock, making it easy to access when needed.
• Keeps your lock stable while riding and ensures quick access when parking.

🔹 Printing & Post-Processing:

• Printed in Bambu Lab PA6-GF for high strength, durability, and lightweight performance.
• Due to PA6-GF properties, the model has increased tolerances to prevent fusing.
• Brims were added for better bed adhesion (essential for PA6-GF).
• Only minimal supports are required.
• After printing, some post-processing is needed to free up the hinge.
• I recommend sanding the part for a smoother finish and better handling. (Wear gloves & a respirator when sanding GF/CF filaments!)

🔹 Customization & Feedback:

• If you'd like a version with tighter tolerances for printing in other materials, let me know—I’d be happy to adjust it!
• I’d love to see your prints in action, so feel free to share photos and feedback!
