Sneaky Geocache - Fake Bolt Puzzle

Print Profile(3)

All
P1S
P1P
X1
X1 Carbon
X1E
A1
H2D
H2D Pro
H2S
P2S
H2C
X2D
A2L

Flat Base with 4 Bolts and Logbook Holder
Flat Base with 4 Bolts and Logbook Holder
Designer
6.3 h
1 plate
5.0(1)

Base for Circular Magnets, 4 bolts and Logbook Holder
Base for Circular Magnets, 4 bolts and Logbook Holder
Designer
6.4 h
1 plate

Base for Magnetic Strip, 4 bolts and logbook holder
Base for Magnetic Strip, 4 bolts and logbook holder
Designer
5.6 h
1 plate

Open in Bambu Studio
Boost
11
61
2
1
24
10
Released

Bill of Materials

Maker's Supply Kits and Parts
Select all
D12x3 mm Round Magnet (20PCS) - CA010

Description

A new sneaky geocaching field puzzle - One of my first projects as I was learning the basics of Fusion 360.

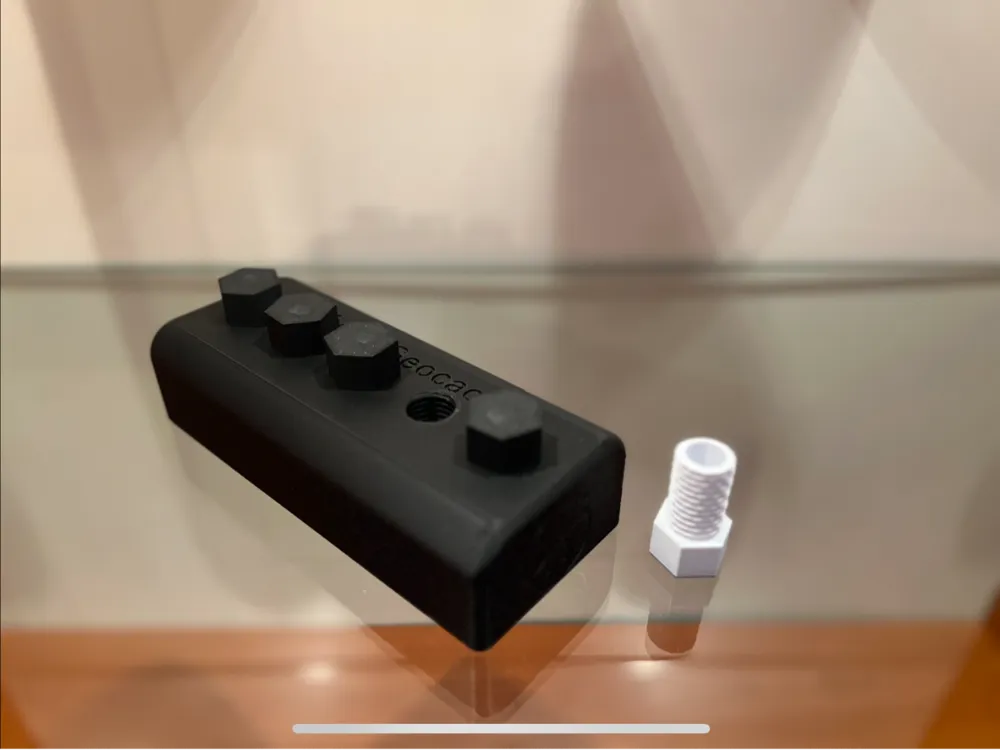

Finders must choose the correct bolt (the white bolt in the picture is only to illustrate the logbook holder.). All bolts can be screwed and unscrewed easily.



The bolt threads are 30mm long with the head measuring 10mm high.

The logbook holder hole is 35mm long x 13mm wide





There are three print profiles:

‘Plain base’ - Can be attached in any way in which you wish.

'Magnet Strip' - This will fit a magnetic tape strip of 160x16x1.8mm

‘Circular Magnets’ - This has three holes for 12x3mm magnets that can glued in place.



Supports will likely be needed for the two magnet options.



The printing tolerances on the screw threads are 0.2mm to allow easy screwing and unscrewing.
