Skadis upper bracket for shelving system

Print Profile(1)

All
P1S
P1P
X1
X1 Carbon
X1E
A1
A1 mini
H2D
H2D Pro
H2S
P2S
H2C
X2D
A2L

0.2mm layer, 2 walls, 15% infill
0.2mm layer, 2 walls, 15% infill
Designer
1.3 h
1 plate
5.0(1)

Open in Bambu Studio
Boost
12
66
1
0
10
4
Released

Description

Content has been automatically translated.
Show original

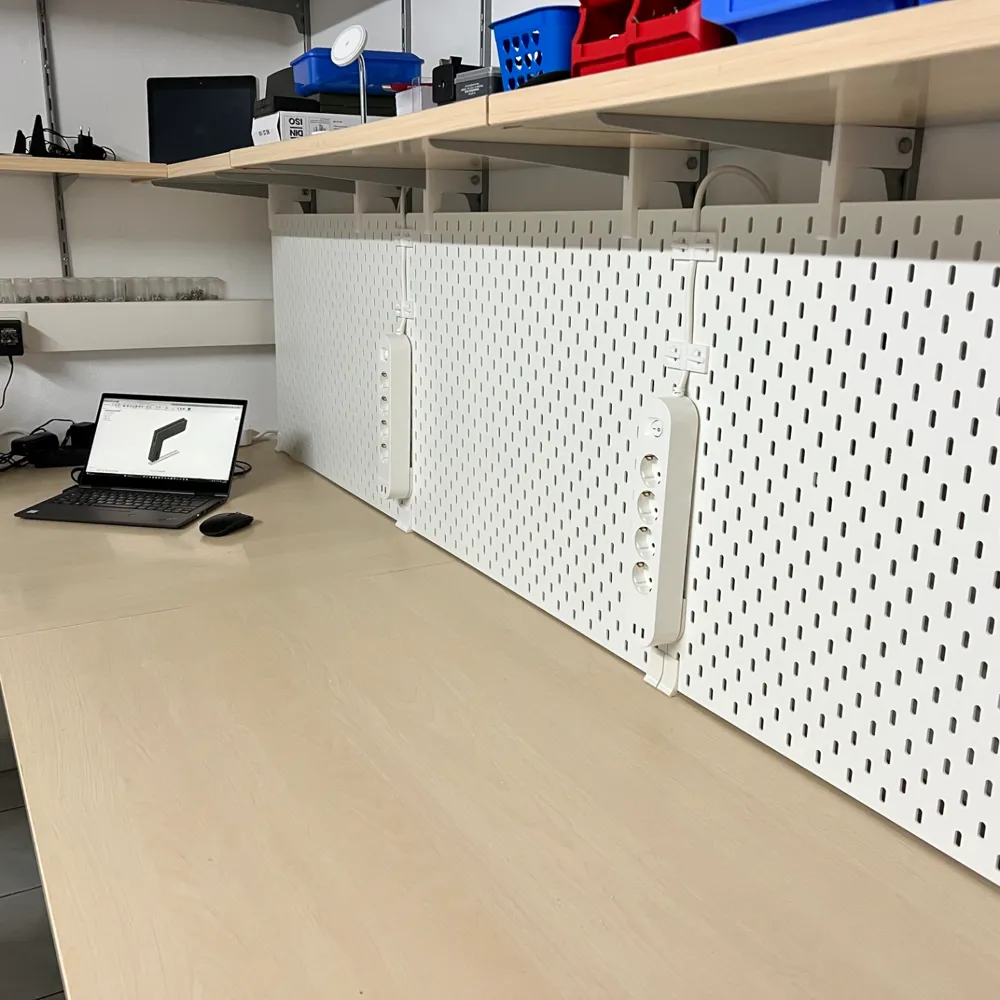

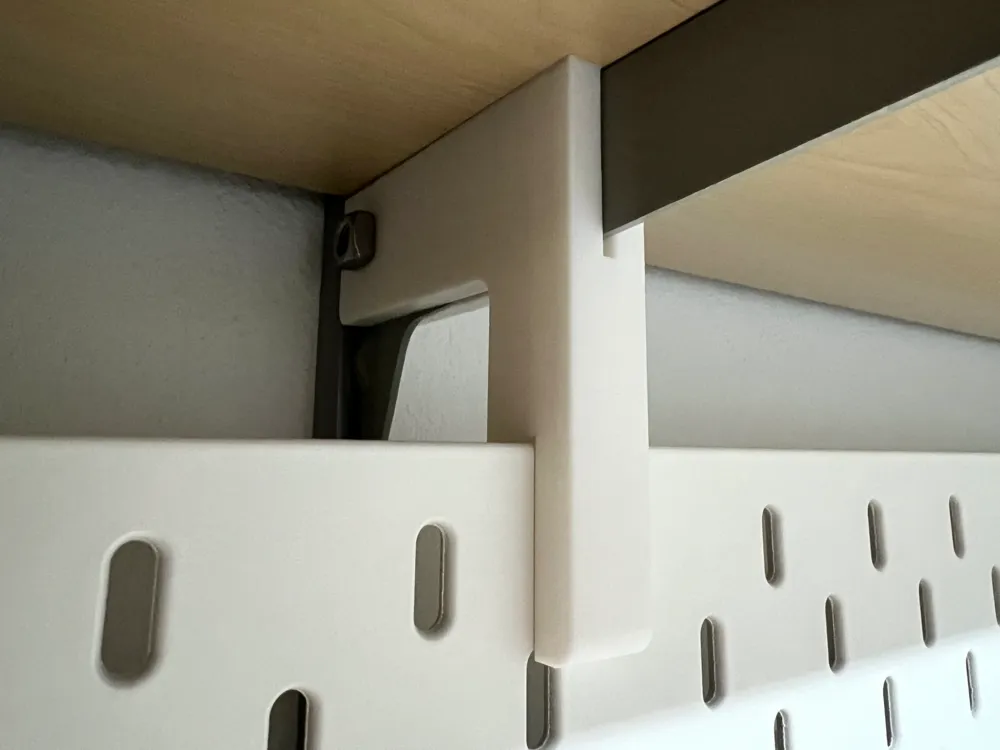

I was looking for a way to mount Skadis panels as the back panel of my workbench in the workshop, even though there is a cable duct with sockets on the wall. So I couldn't mount the Skadis directly to the wall, but had to keep a distance of about 10 cm from the wall. I found the solution in the holders for vertical mounting of Skadis (https://makerworld.com/de/models/781082#profileId-718200) for the underside of the panels (fixed with power strips). My brackets, which I attached to the supports of my shelving system above the desk, ensure stability. Admittedly, somewhat specialized, but perhaps it will still help someone - even if only as inspiration.


A collection of my models for Carrera Hybrid can be found here.
