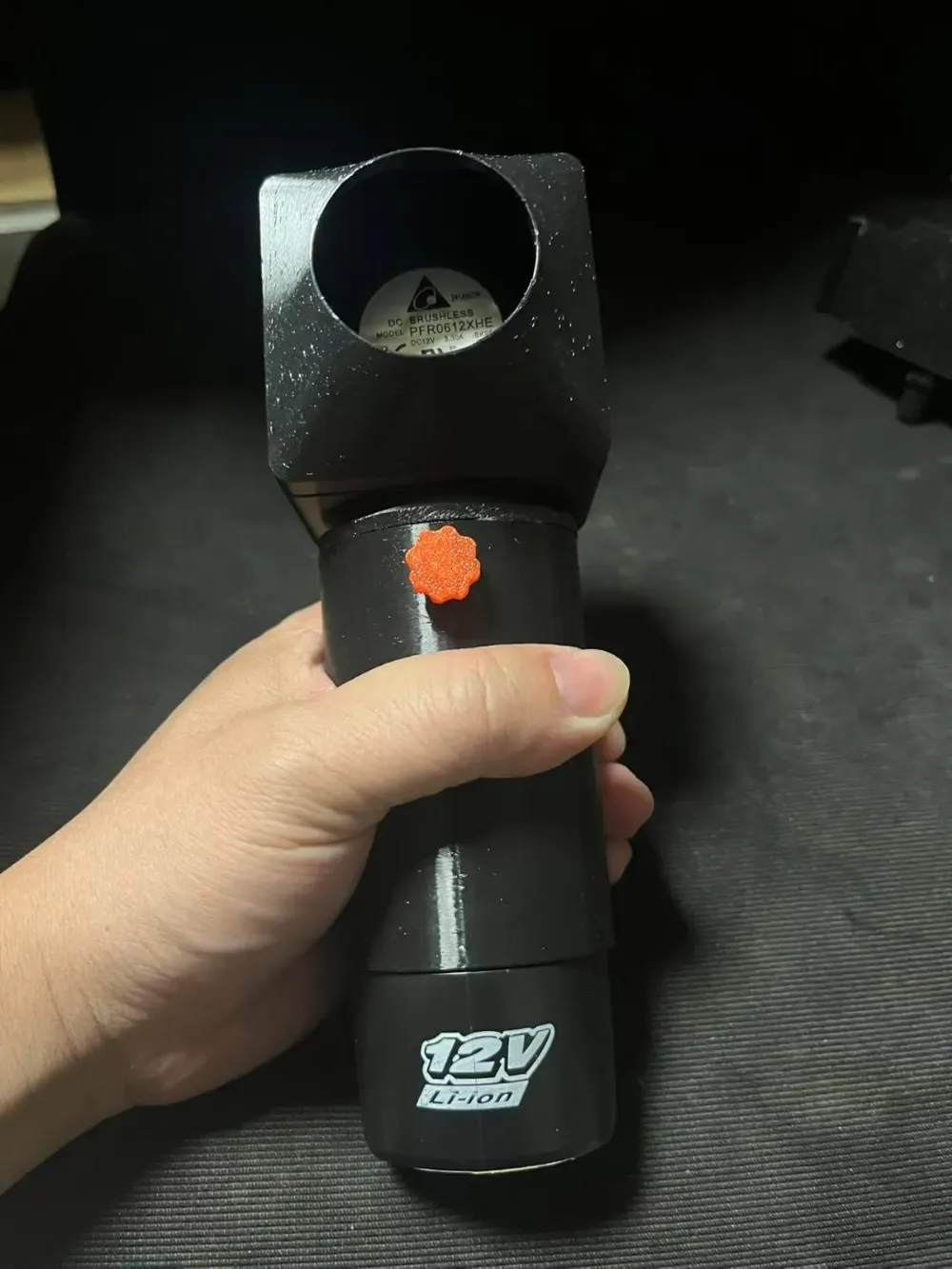

6038 fan powered by 12V B-type battery
IP Report
Print Profile(0)
Add the first print profile to earn points
Boost
6
8
1
0
12
0
Released
Description
Content has been automatically translated.

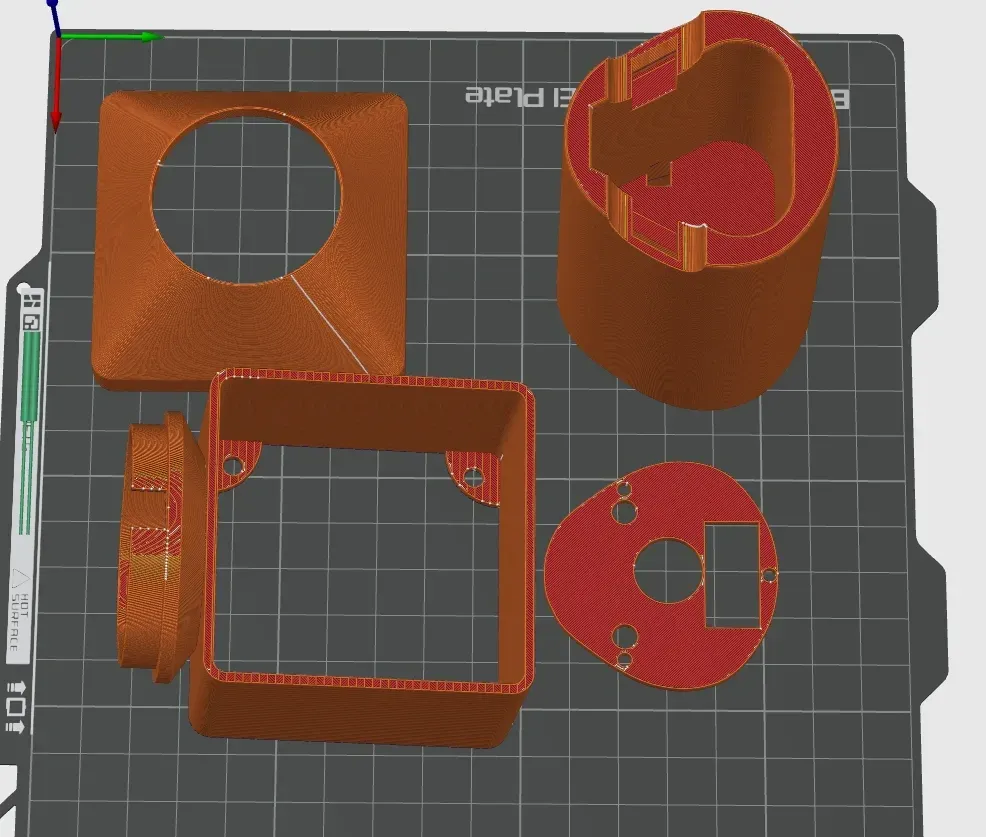

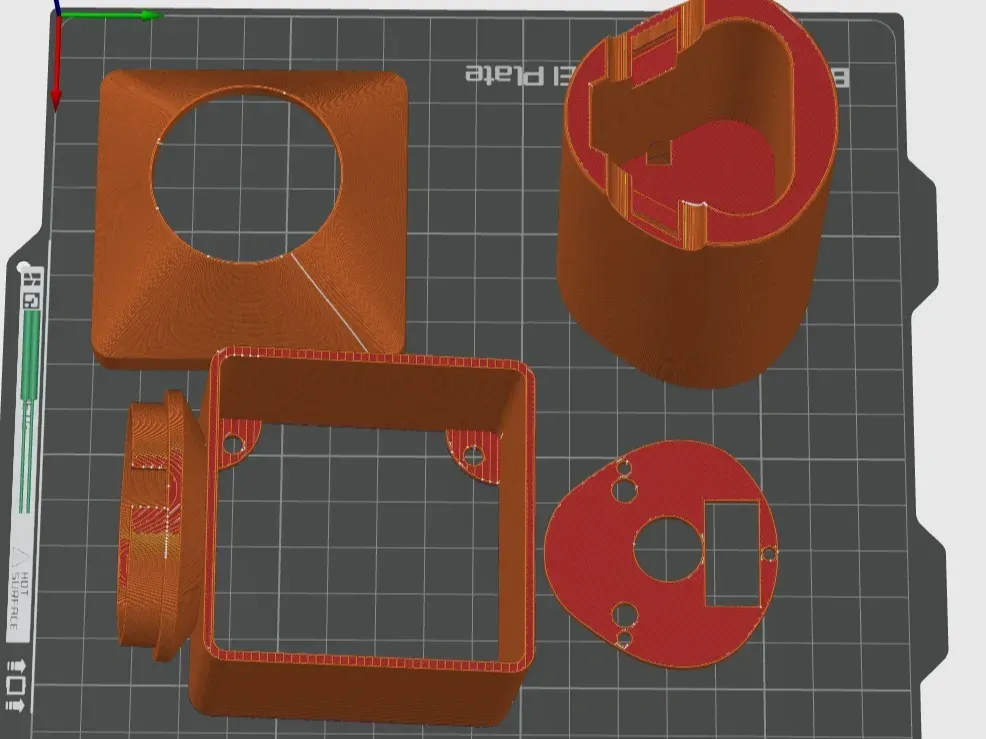

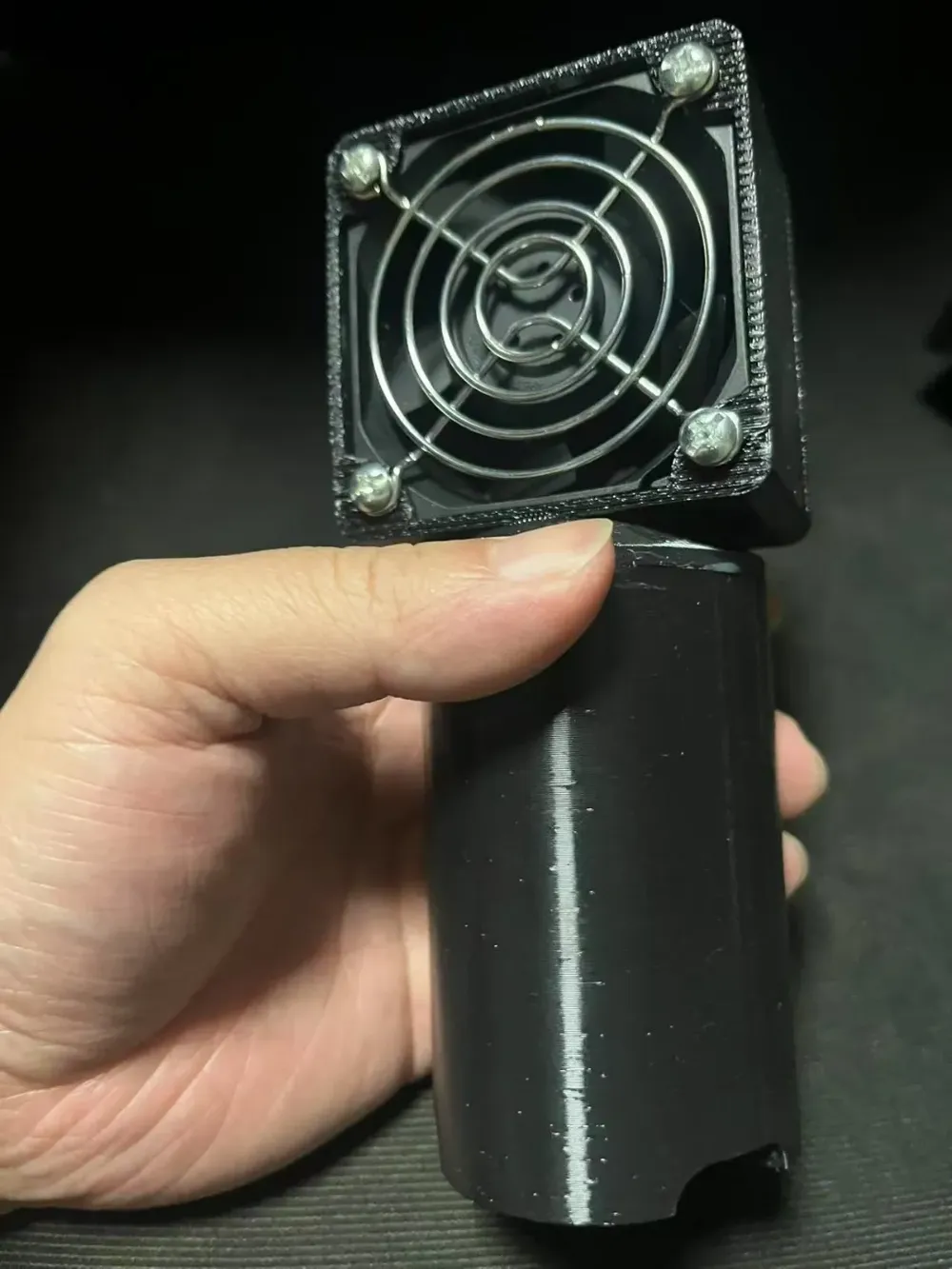

I purchased a 6038 fan, rated at 12V 3.3A—impressive specifications! Having a Type B electric drill, I wanted to utilize its battery. A search revealed no existing designs for powering this fan in this manner, so I designed a fan housing and nozzle after finding a suitable handgrip model. I apologize for listing this as original, as I've unfortunately lost the link to the original handgrip model. The screws and the rear intake cover are included with the fan, so I omitted those in my design, even though the included metal cover is somewhat aesthetically unappealing.

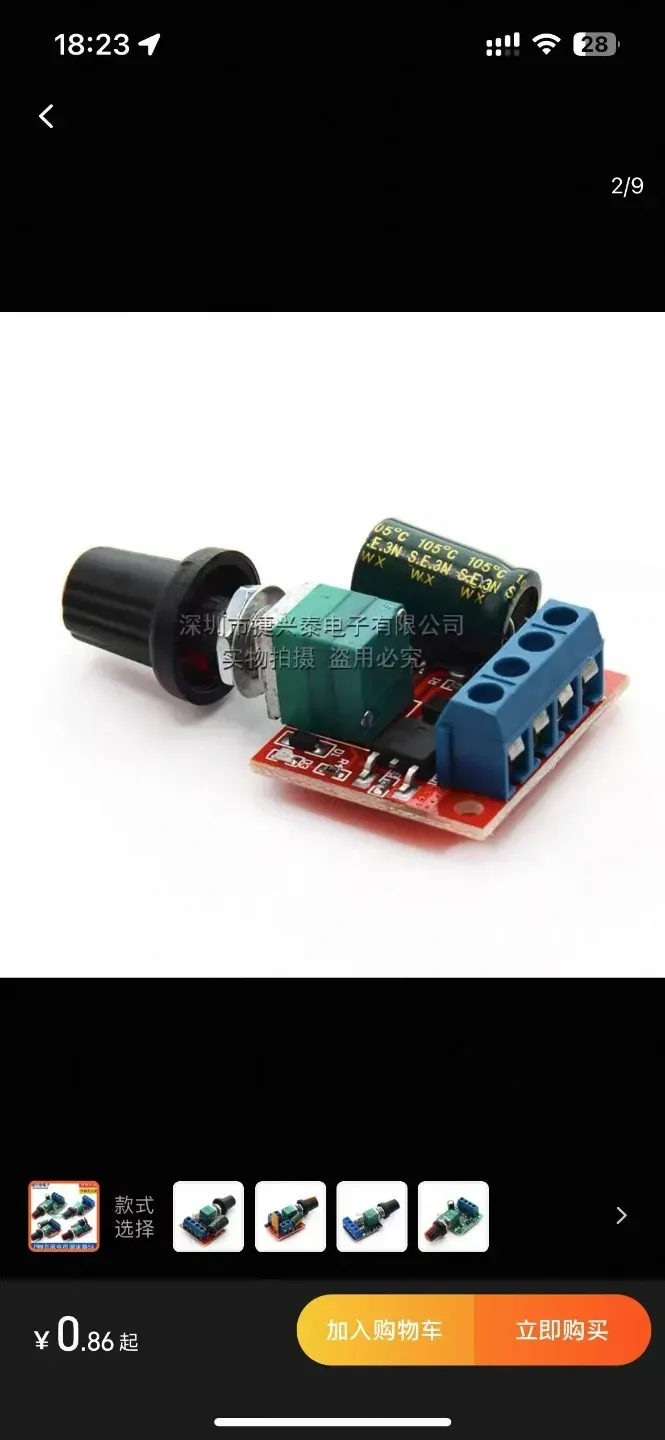

Few additional parts are required: 1 fan, 2 speed control modules, 3 power connector.
