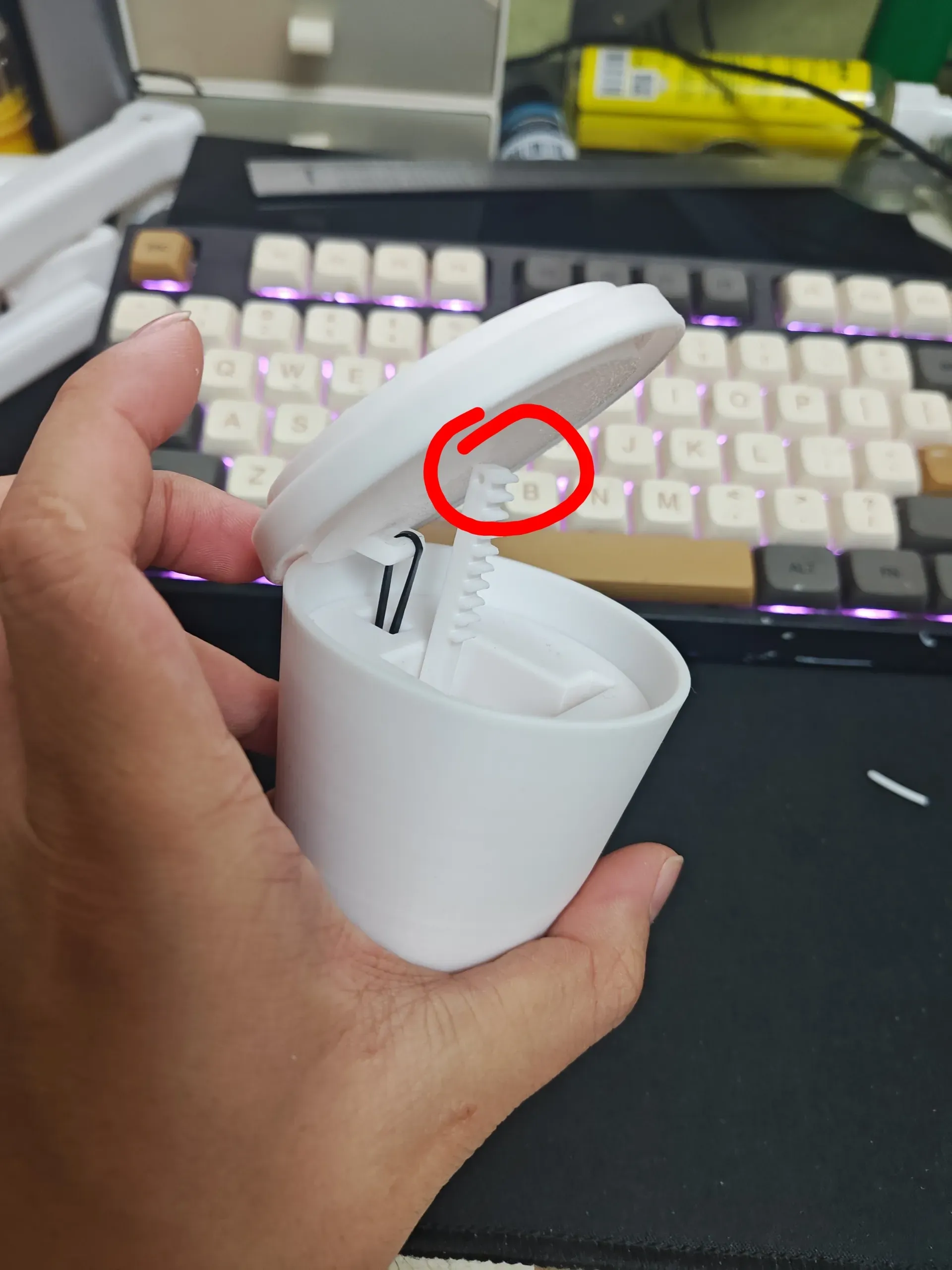

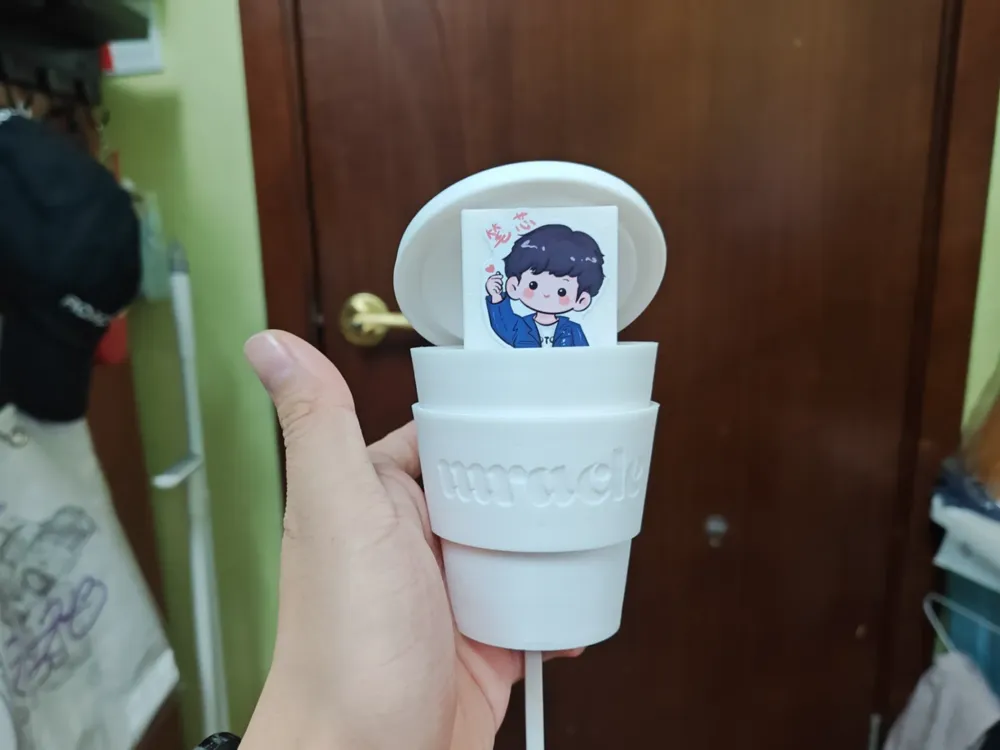

This model comprises two plates: the first contains all components, while the second provides interchangeable parts, including replacement sleeves and display panels (as shown below). The display panel accommodates custom imagery to suit your preferences.

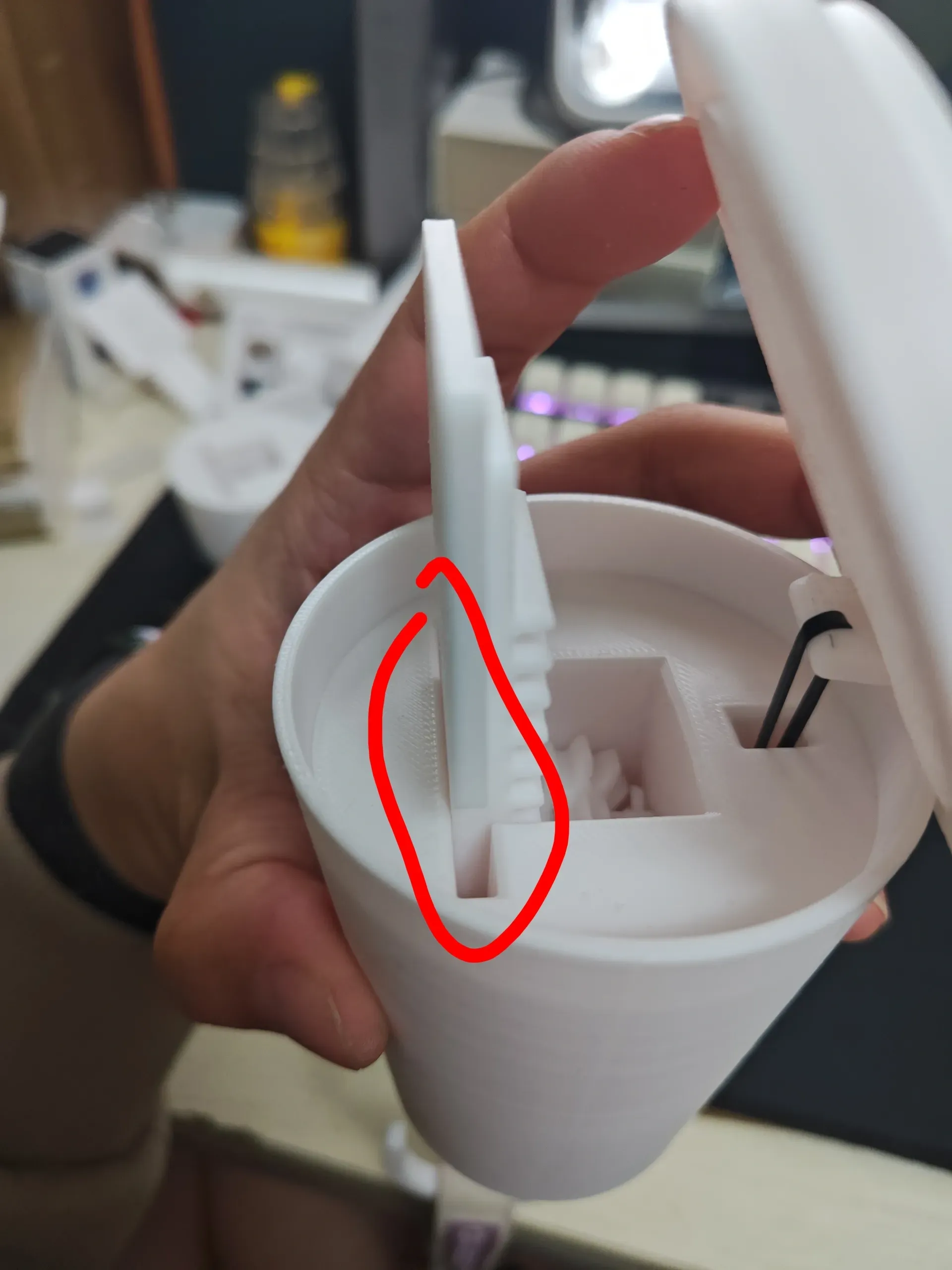

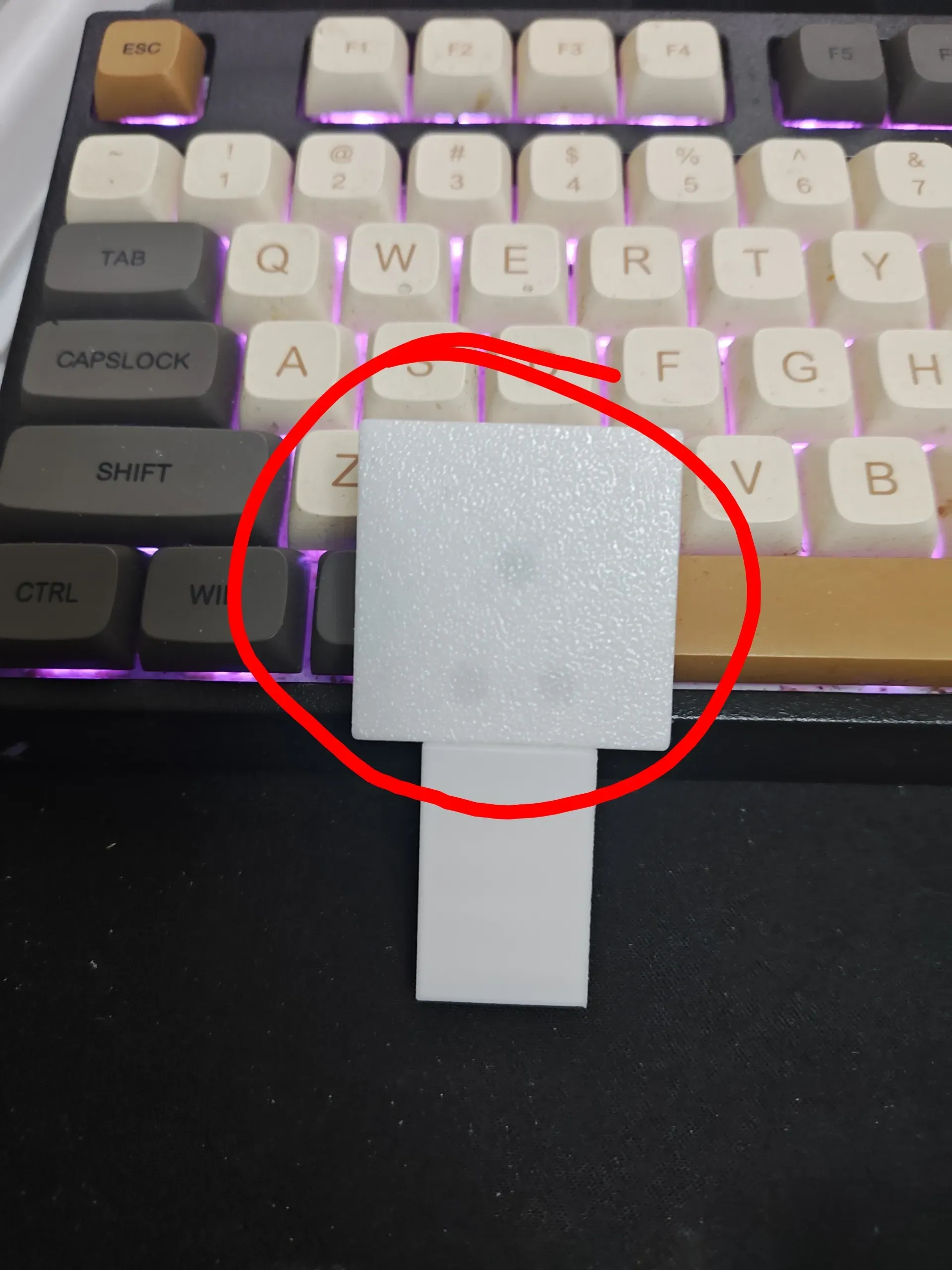

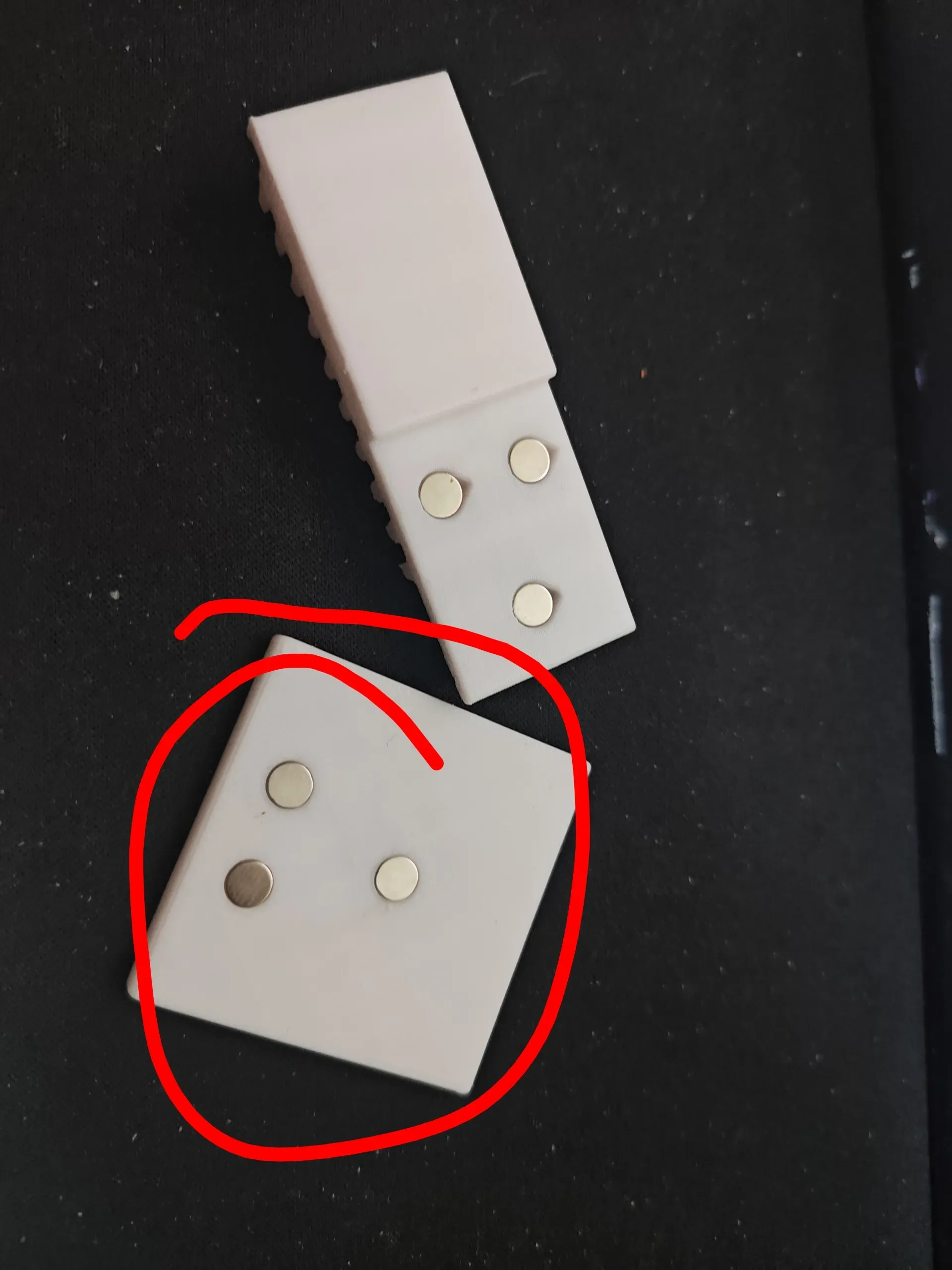

The image below showcases the detachable, modular display panel. The circled area allows for the incorporation of custom shapes.





 Assembly instructions are detailed below:

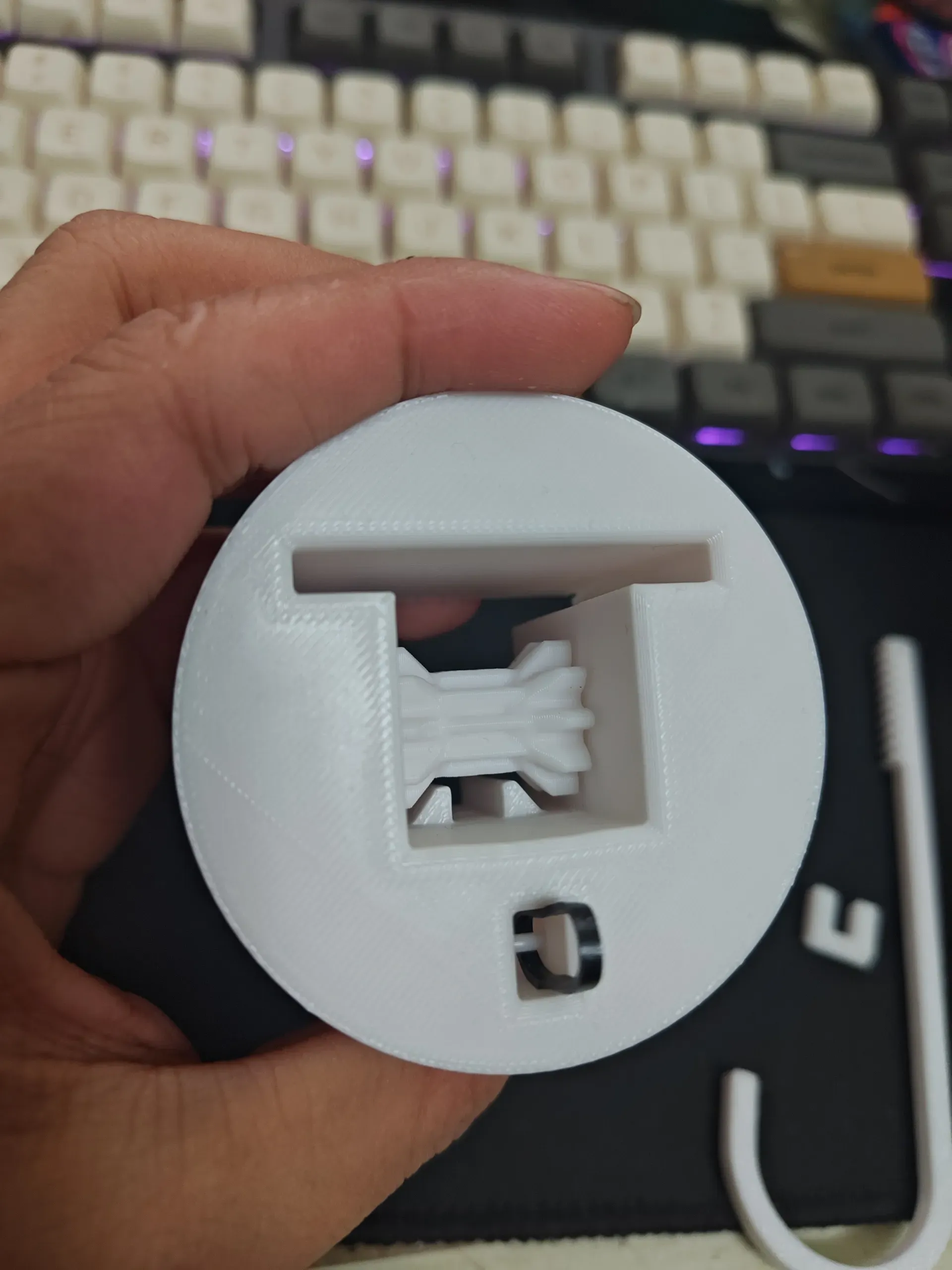

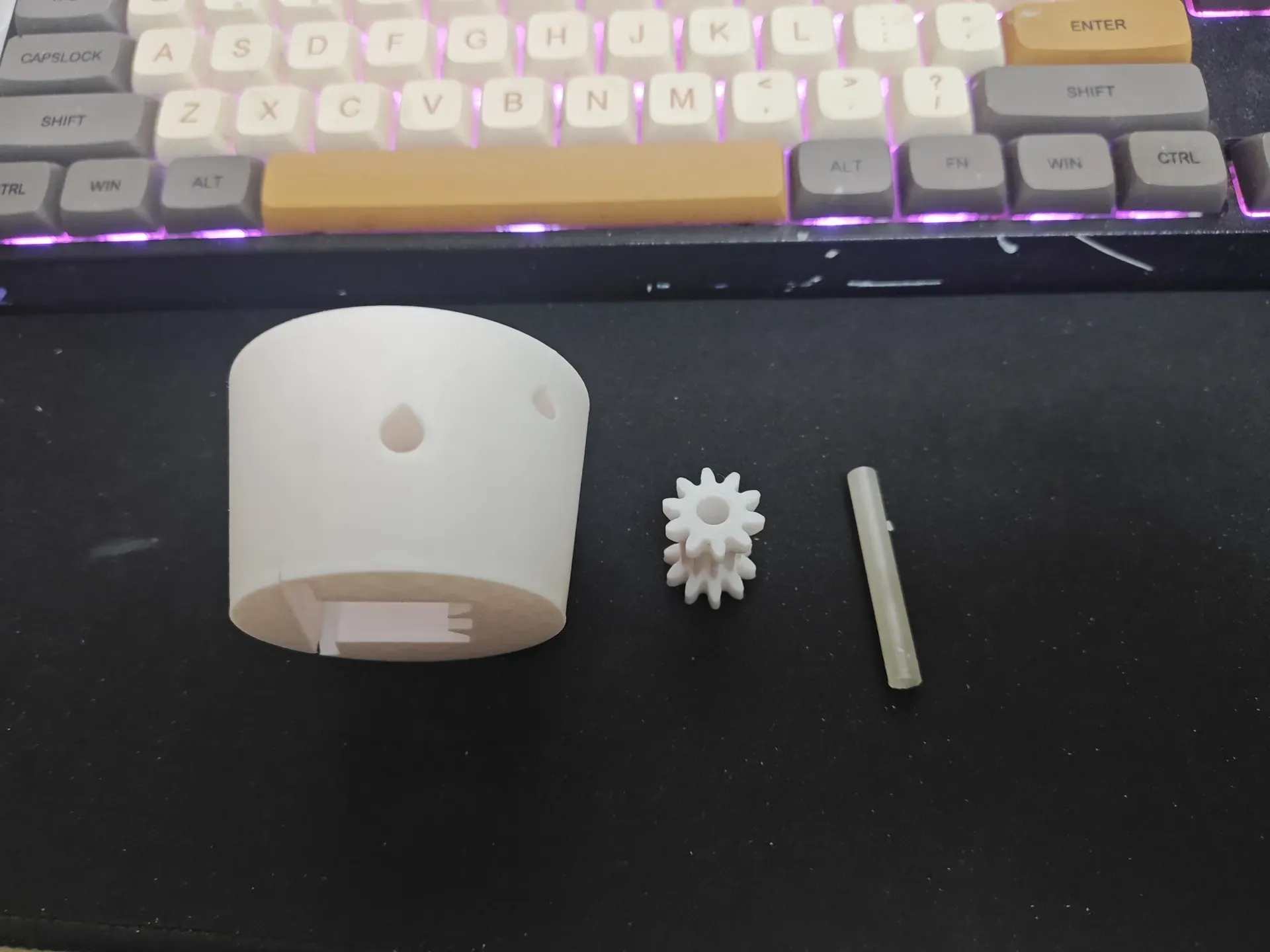

Step one requires the three components illustrated. Thread the cylinder through the frame and secure the gear in the frame's center, ensuring free rotation.

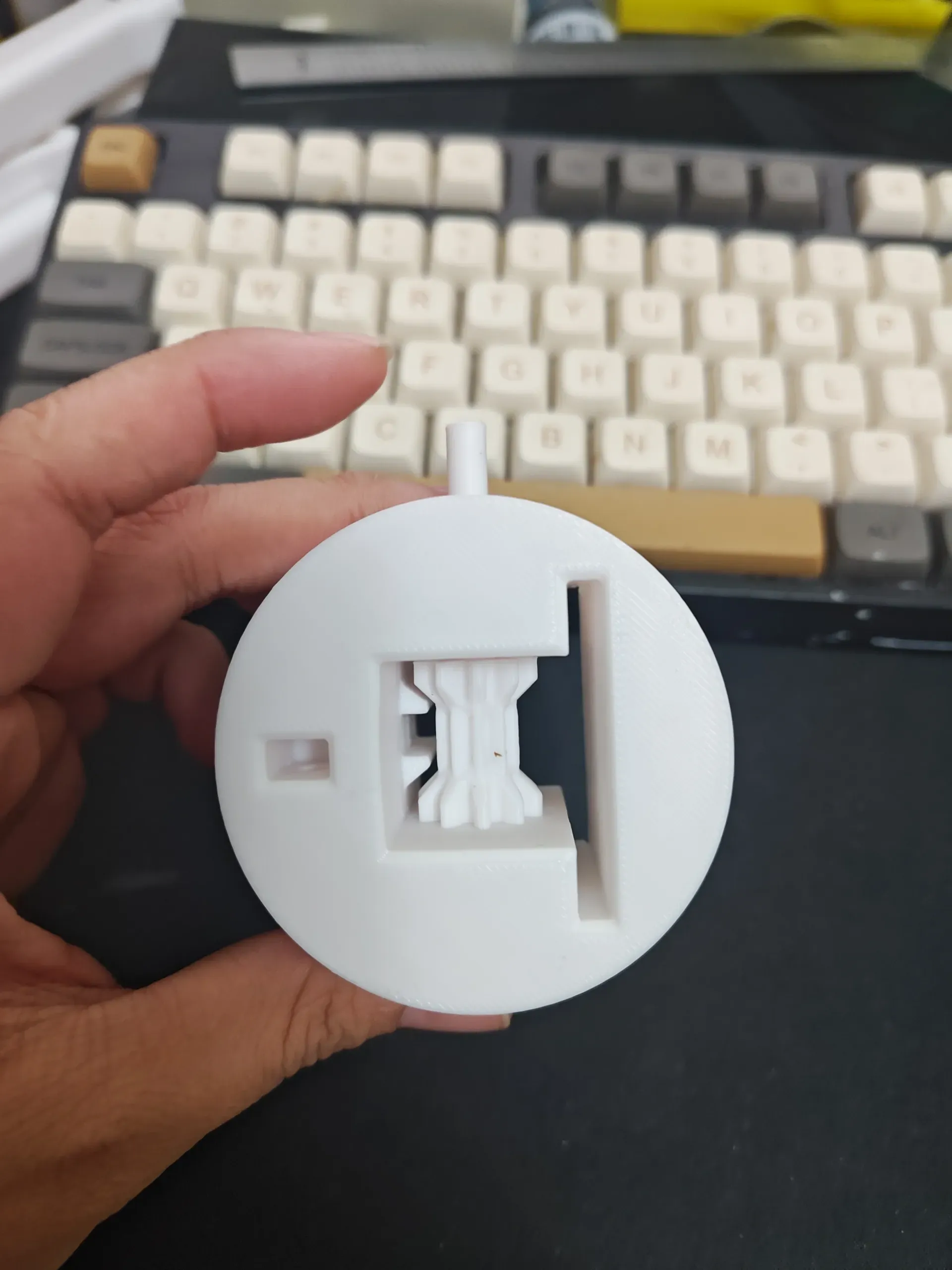

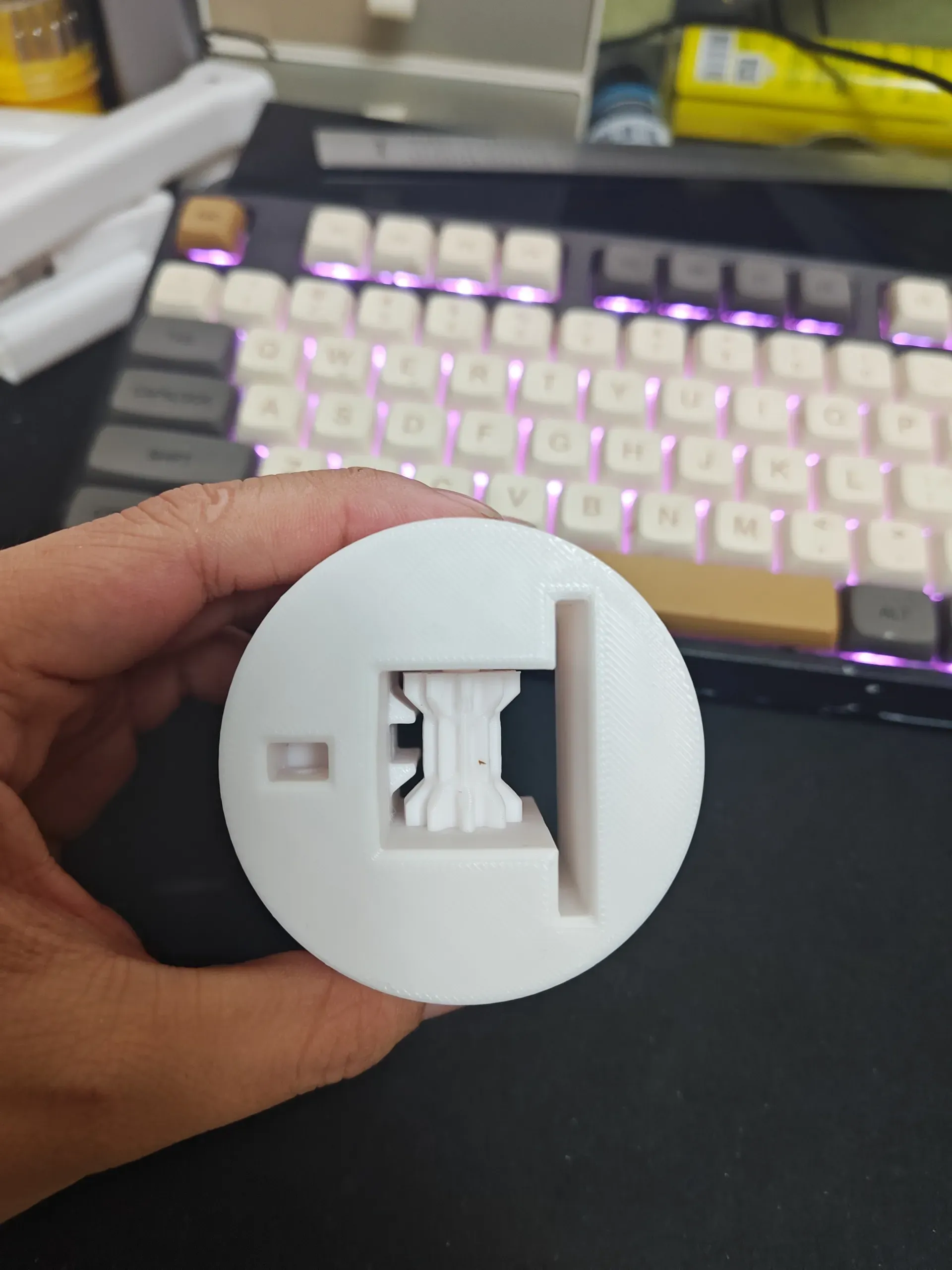

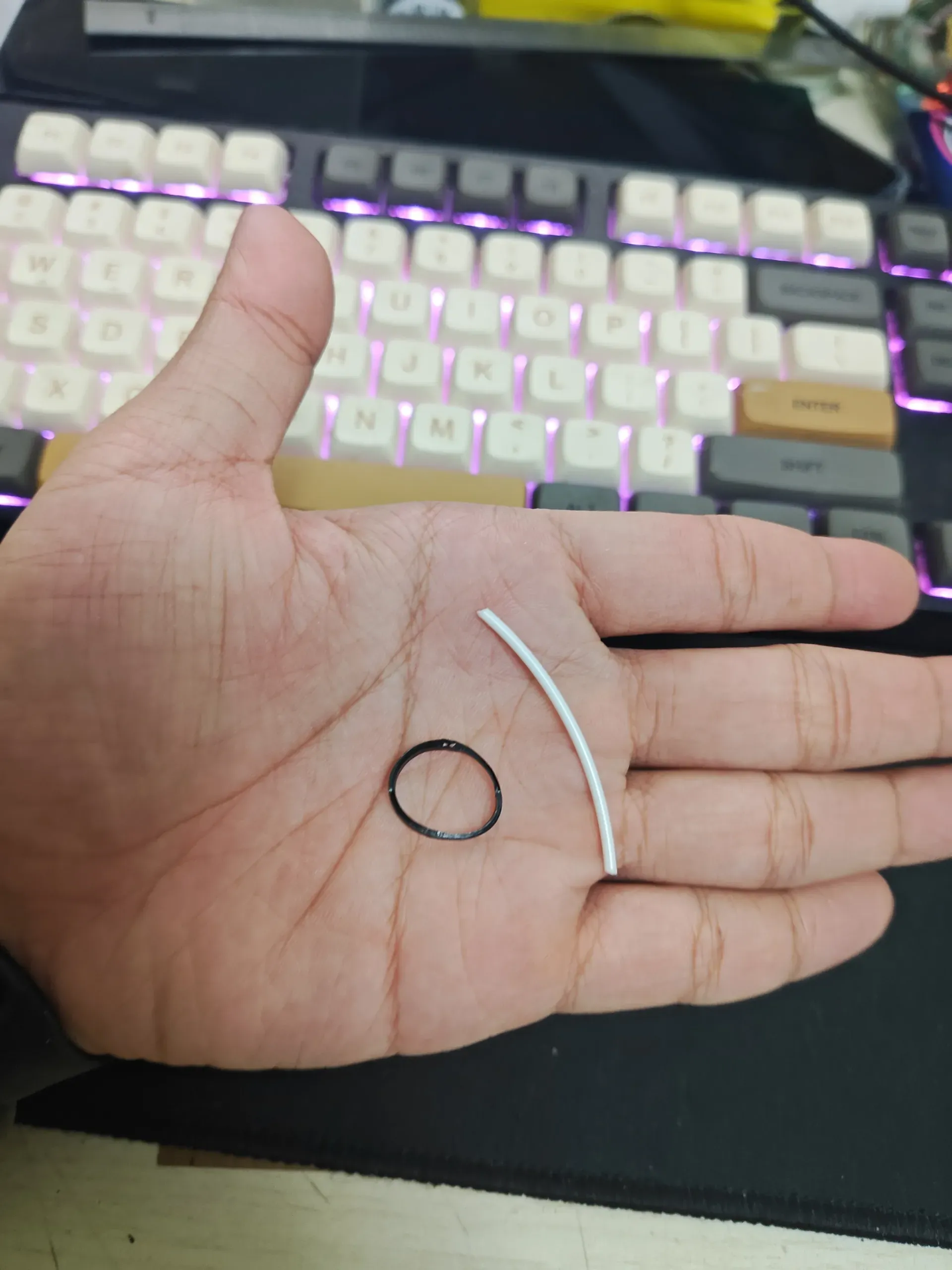

Step two requires a short length of filament and a small rubber band. Feed the filament through the frame's second aperture and secure it with the rubber band.

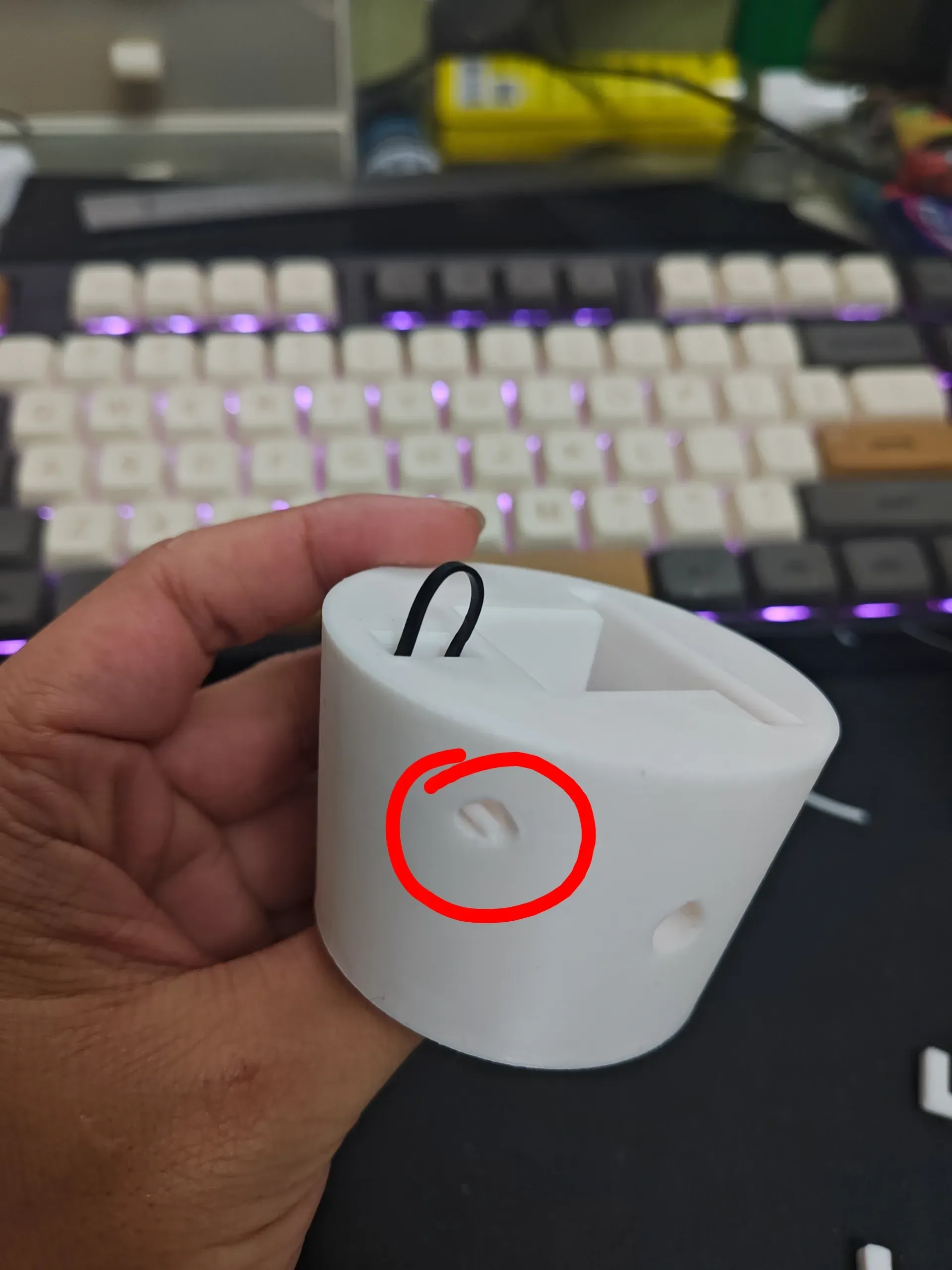

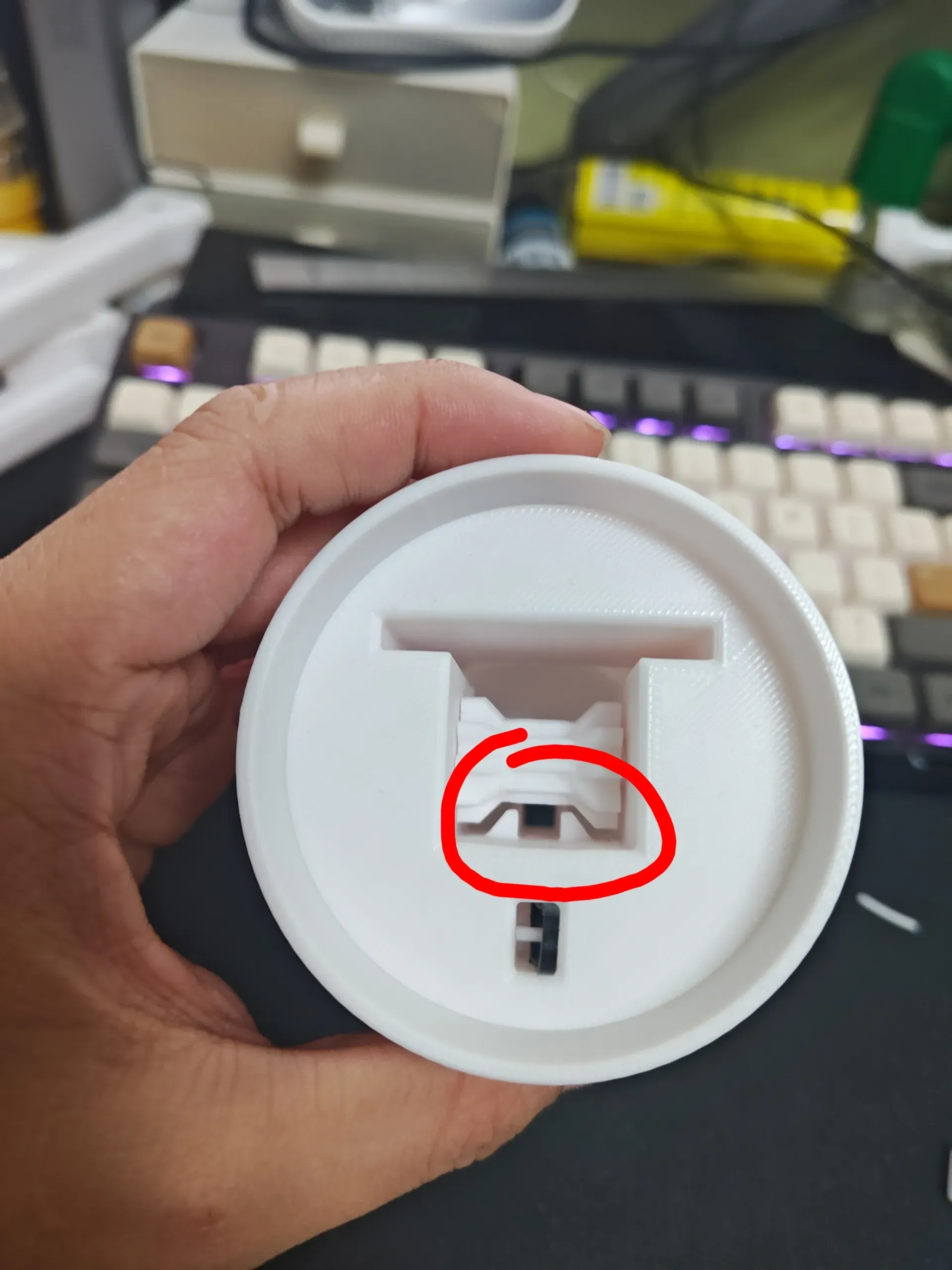

Step three involves inserting the frame into the cup, ensuring alignment of the frame's positioning (as illustrated) with the cup's base aperture. Firmly secure the frame within the cup.

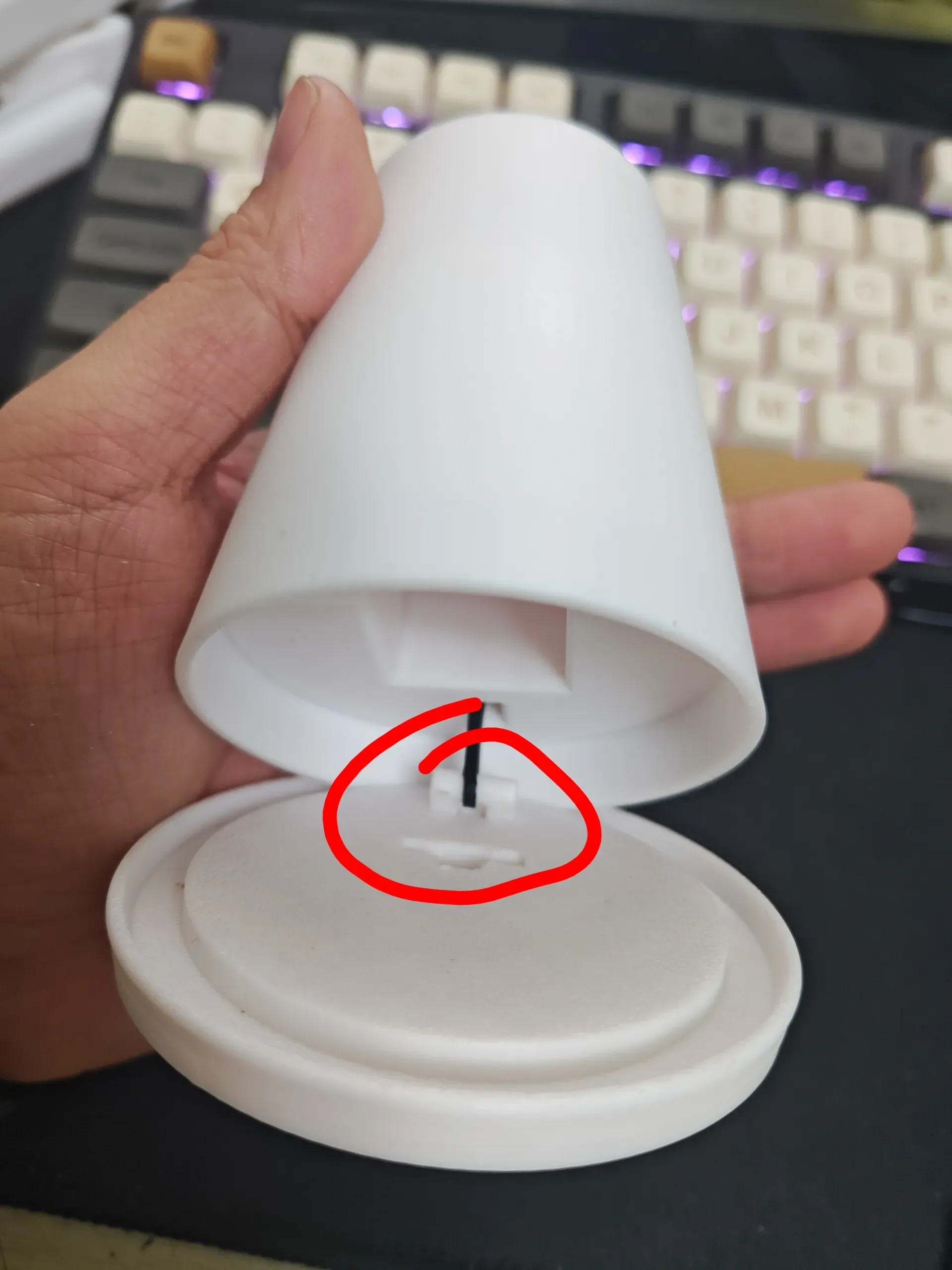

Step four: Thread the 'N'-shaped component through the rubber band and secure it within the cup lid's aperture.

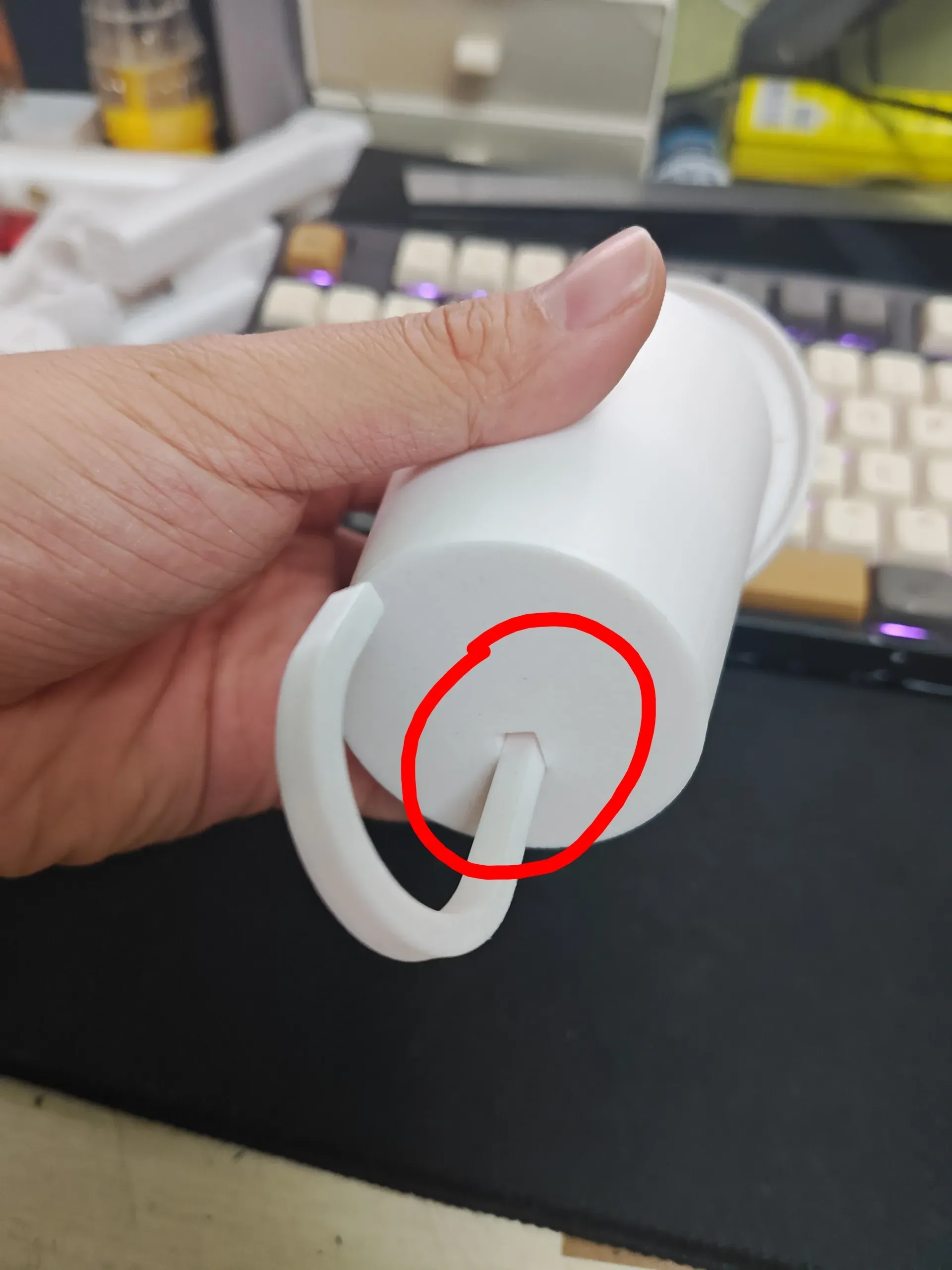

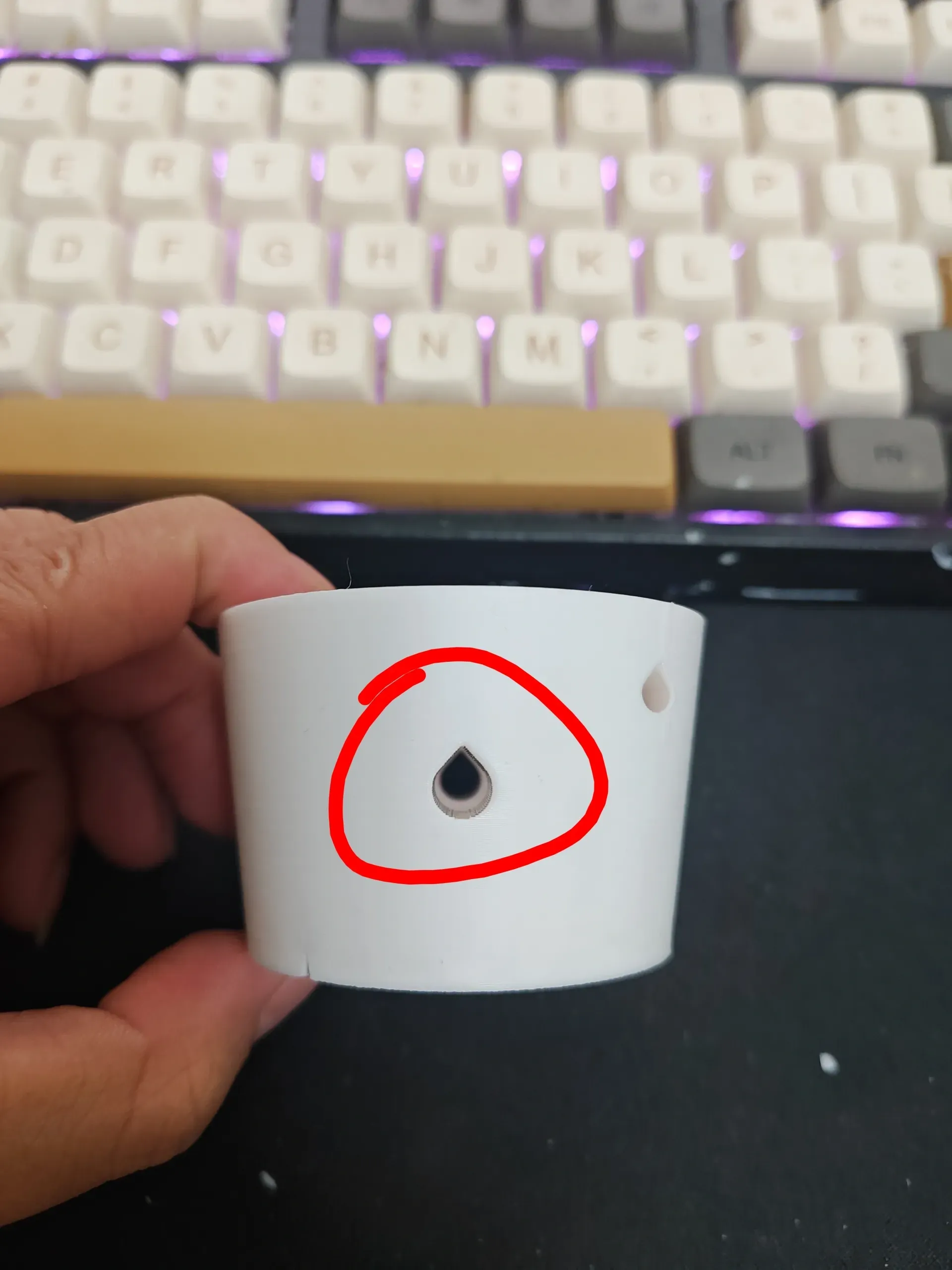

Step five: Pass the hook through the cup's base aperture. Thread a short length of filament through the hook's top aperture, ensuring the filament is not excessively long.

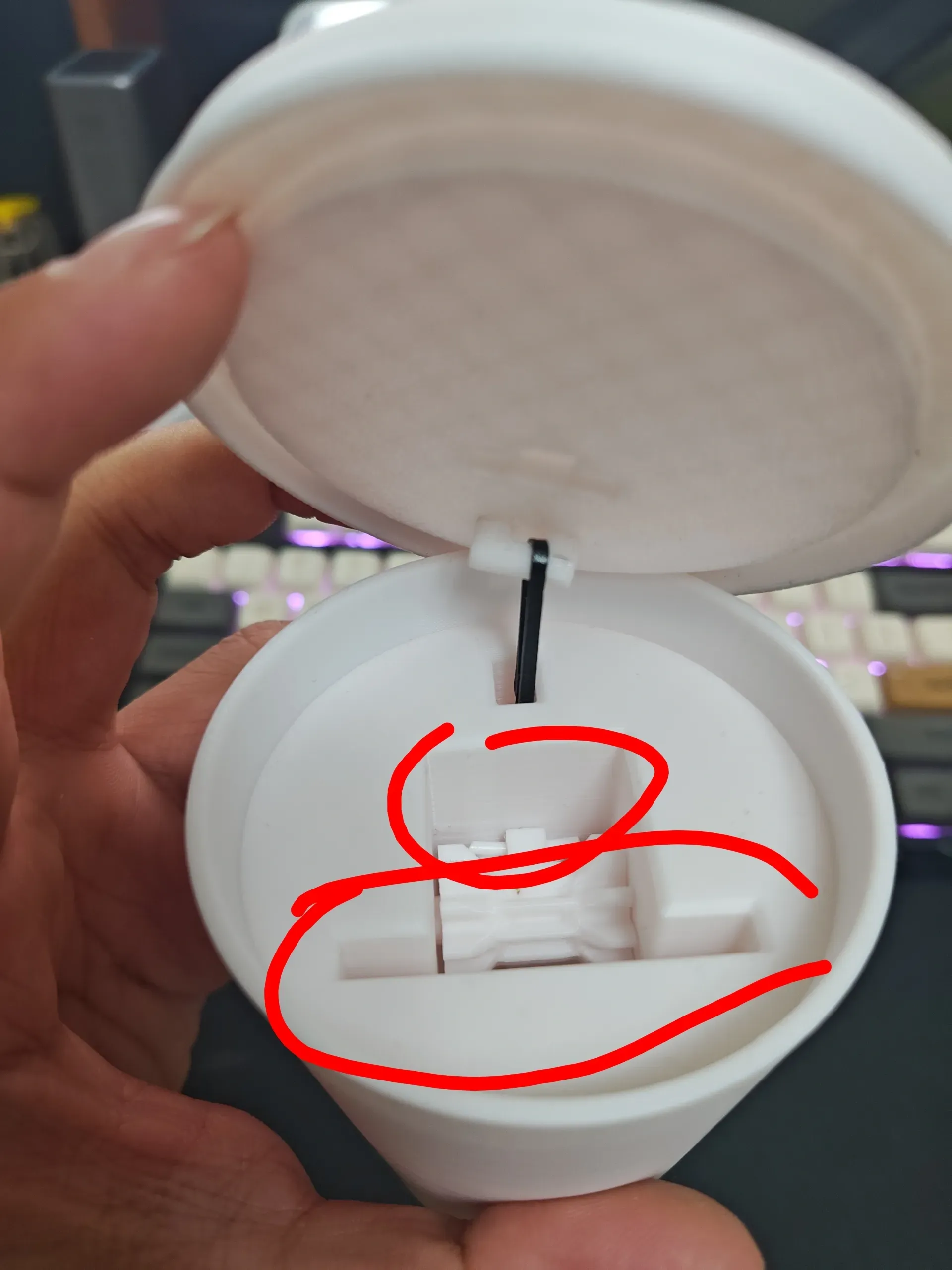

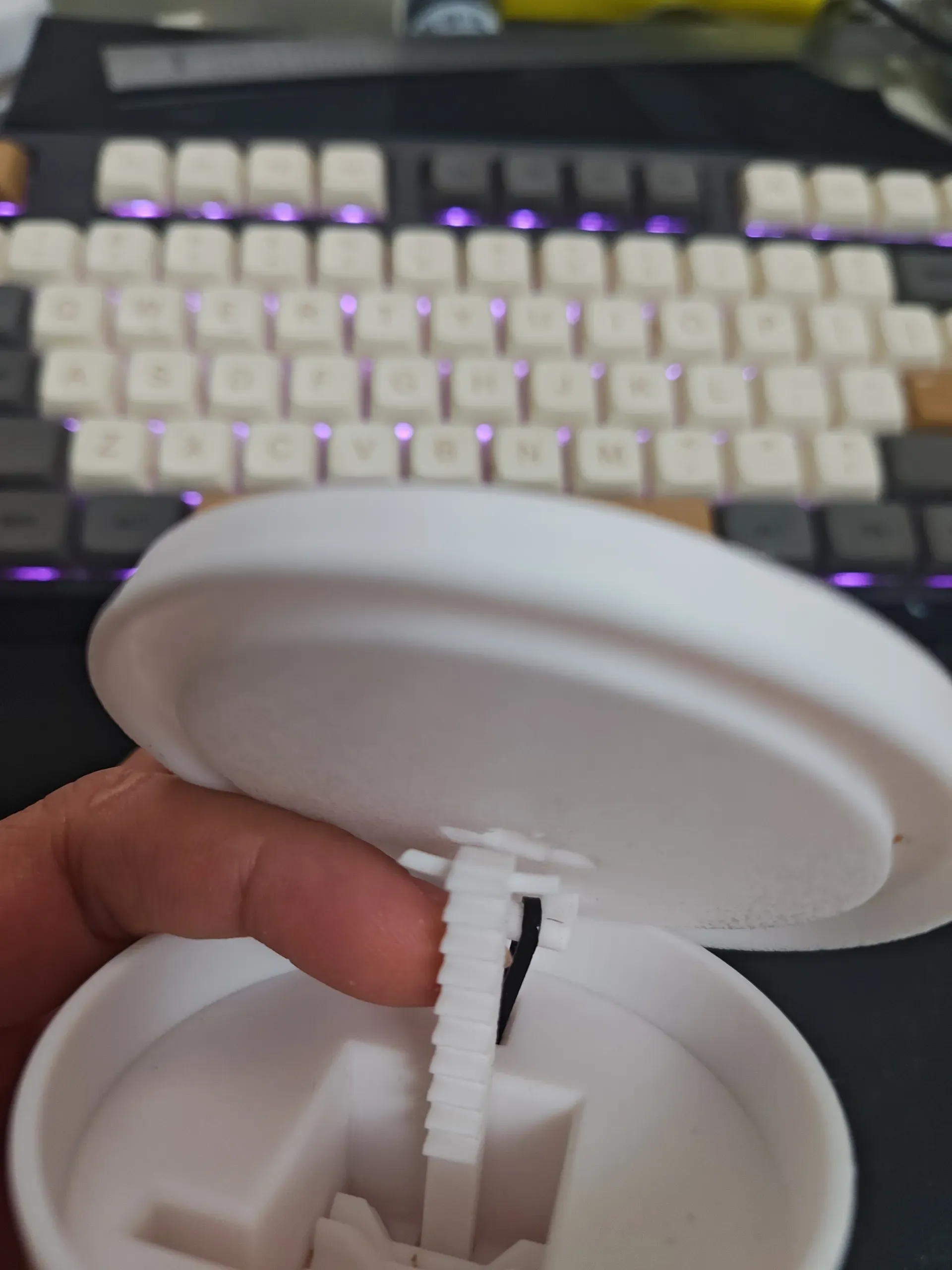

Step six: Pull the hook to its lowest point and insert the final display component.





Step seven: Secure the cup within its sleeve. Enjoy!
