Jig for screwing furniture boards at right angles

Jig for screwing (18mm/12mm) furniture boards at right angles

For furniture and chipboards with a thickness of 18 mm.

It makes it easier for one person to quickly and accurately screw furniture boards at a right angle.
Quick assembly and setting of details.
No more tipping over of the walls of screwed furniture or drawers.
Version with holes directly for the screw, for a 4mm drill and for a self-centering drill.

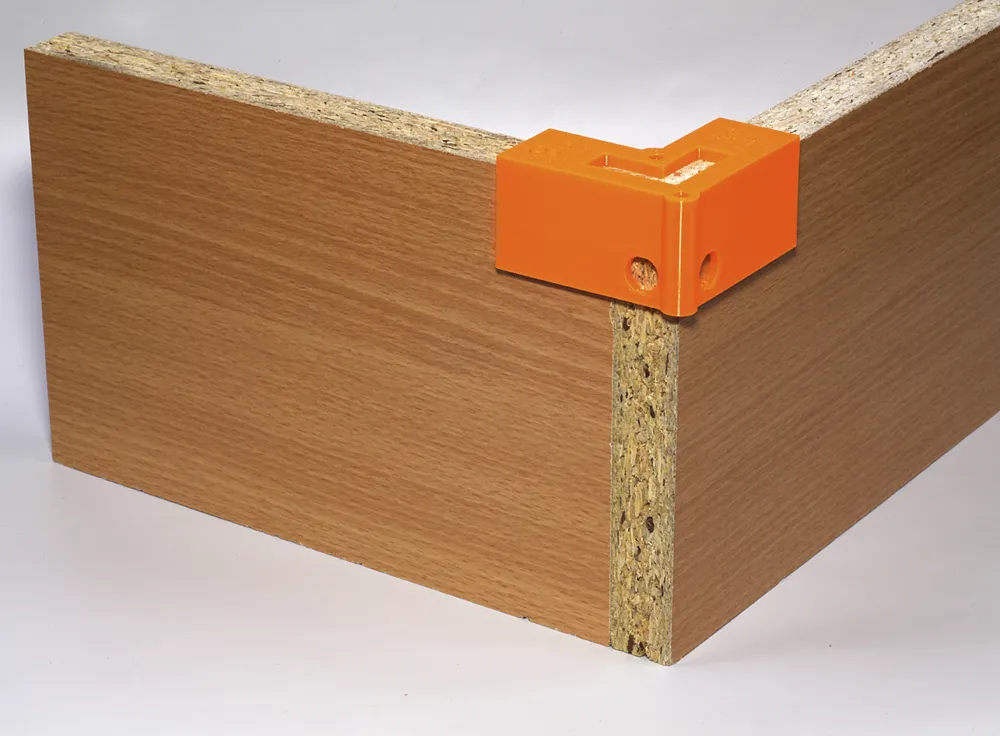

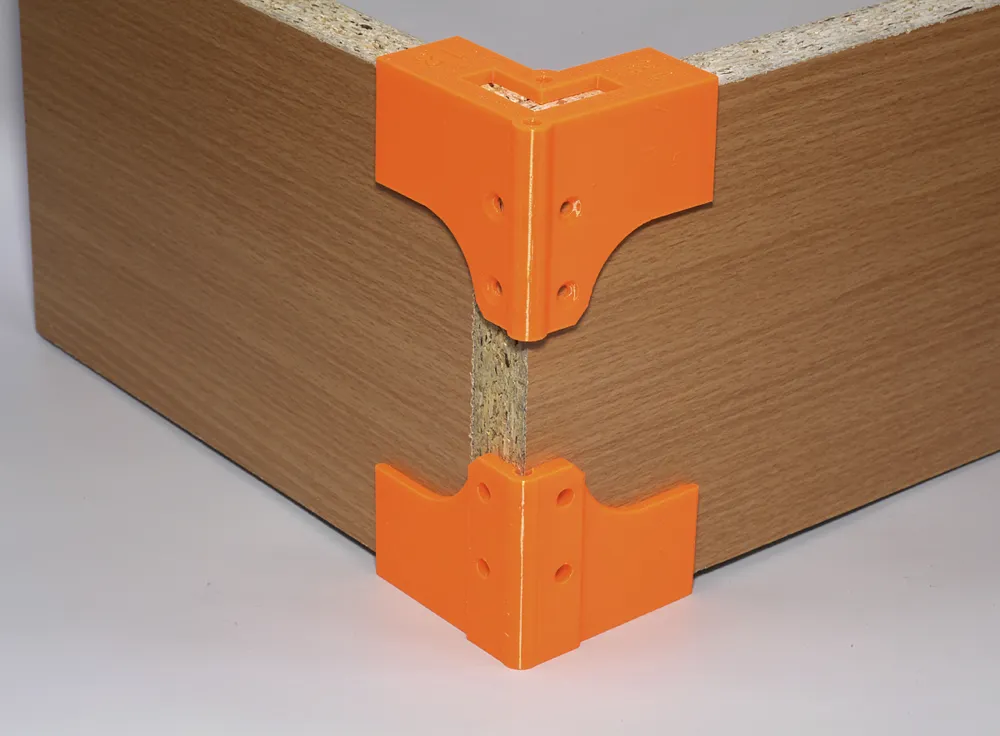

Higher version with two holes and lower with one hole.

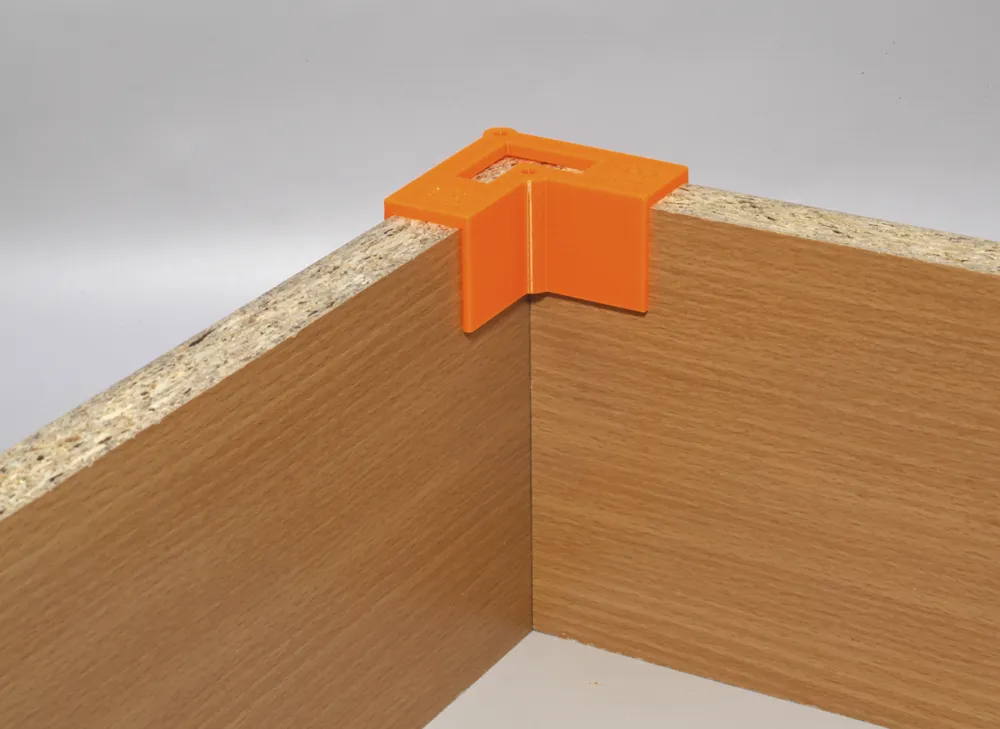

The window makes it easier to check whether the details are set precisely and whether they fit together.
Rounded undercuts in the corners allow for trouble-free adhesion of the surface, even with uneven edges of the connected edges.
Sloping edges make it easier to put the jig on the details.

JigL_1 - holes directly for the screw (high)

JigL_2 - holes directly for the screw (low)

JigL_3 - holes for a 4mm drill (high)

JigL_4 - holes for a 4mm drill (low)

JigL_5 - holes for a self-centering drill (high)

JigL_6 - holes for a self-centering drill (low)

JigL_7 - holes directly for the screw (high) - 12mm board

Any material/0.2mm

If you need a version for a different board thickness, let me know.
