Seat Leon 5F MEGA Spoiler
Print Profile(2)
Description

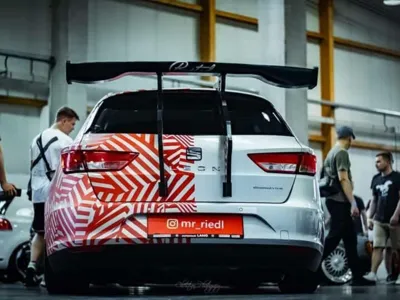

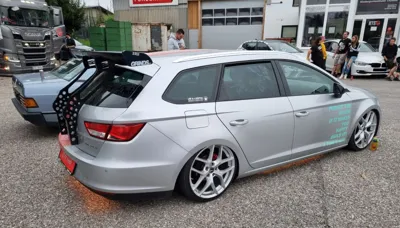

Here you will find the files for the depicted spoiler for the Seat Leon 5F.
Everything was printed in ABS, with three wall lines and 20% infill.
The individual parts were glued together using UHU 2k epoxy adhesive and subsequently filled.
The two supports attach to the car via magnets:
https://www.amazon.de/gp/product/B07FMTGZB9/ref=ppx_yo_dt_b_asin_image_o02_s00?ie=UTF8&psc=1
I added a 2mm foam rubber pad over the magnets.
The spoiler is simply placed on the supports using an adhesive mount.
WARNING, THIS SPOILER MUST NOT BE USED IN PUBLIC ROAD TRAFFIC!!!!!
It is only intended for display at stationary events.
The spoiler has a width of 1.54m and can be divided into two halves in the middle so that it fits easily into the trunk. There are four holes in the middle, two of which accommodate a 7cm long, 12mm diameter iron rod.
Four smaller magnets are also included to ensure a secure hold.
I would greatly appreciate ratings, likes, and boosts to enable me to create further files for you
