Jump rings opener ring for chaimaille v2

Remixed by

Print Profile(2)

All
A1 mini
P1S
P1P
X1
X1 Carbon
X1E
A1
H2D
H2D Pro
H2S
P2S
H2C
X2D
A2L

RINGV2-MAGNET 0.16mm layer, 6 walls, 25% infill
RINGV2-MAGNET 0.16mm layer, 6 walls, 25% infill
Designer
34 min
1 plate
5.0(8)

RINGV2-NO_MAGNET 0.16mm layer, 6 walls, 25% infill
RINGV2-NO_MAGNET 0.16mm layer, 6 walls, 25% infill
Designer
34 min
1 plate
5.0(7)

Open in Bambu Studio
Boost
134
338
17
5
170
144
Released

Description

Improved version of the previous model of jump rings opener.

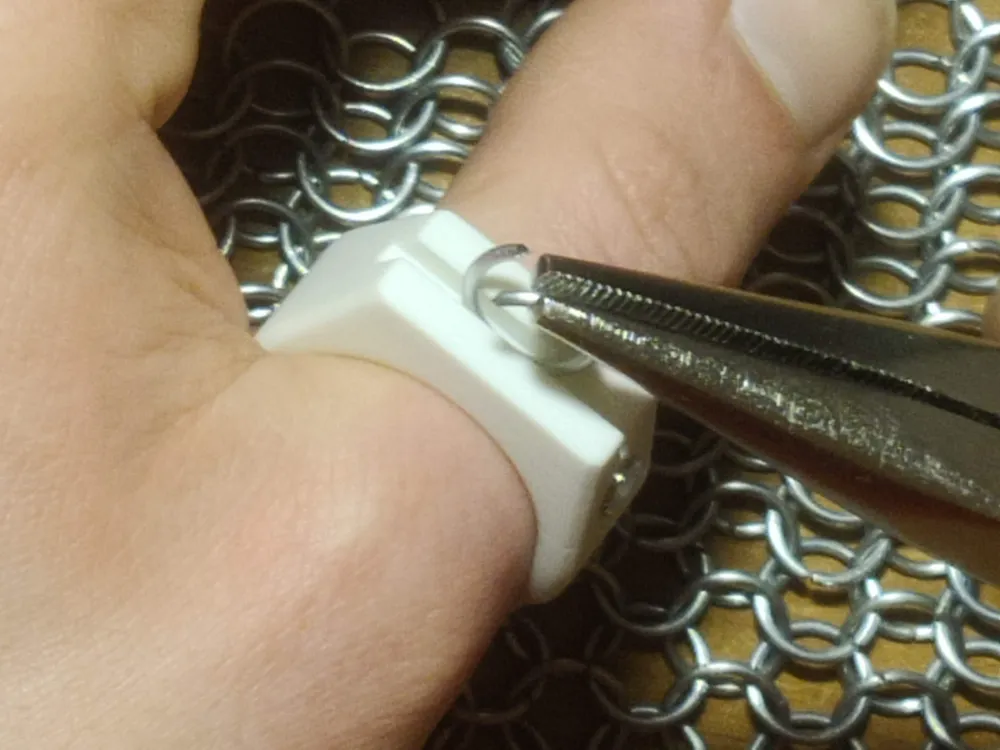

I noticed a wider side profile helps to put less stress on the finger.

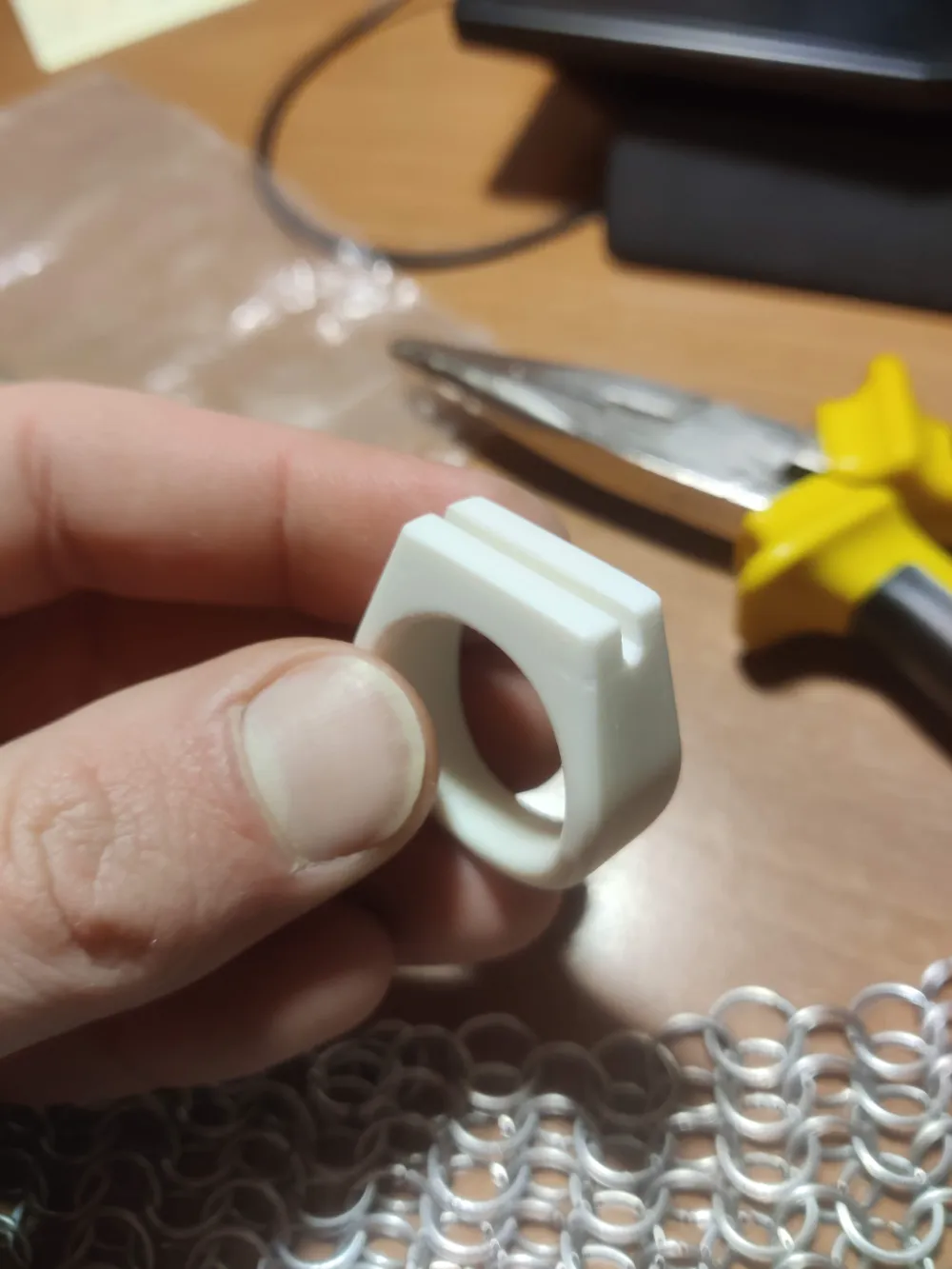

Internal ring diameter 23.5mm, recess for rings of 2mm maximum thickess.

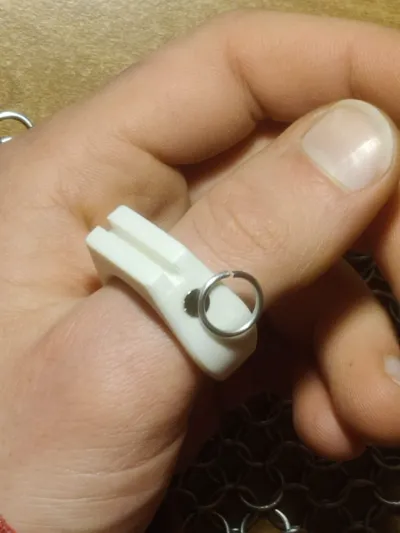

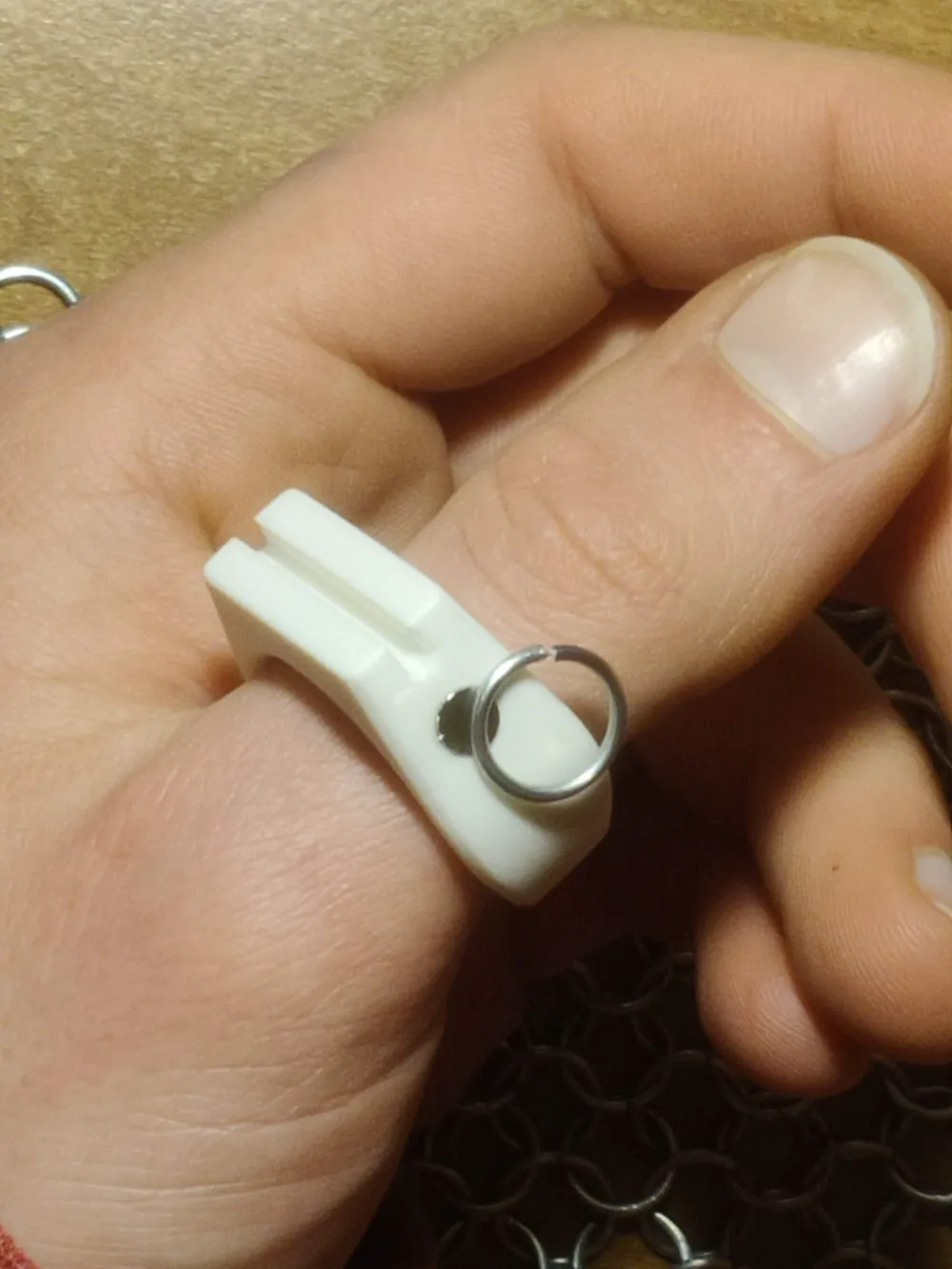

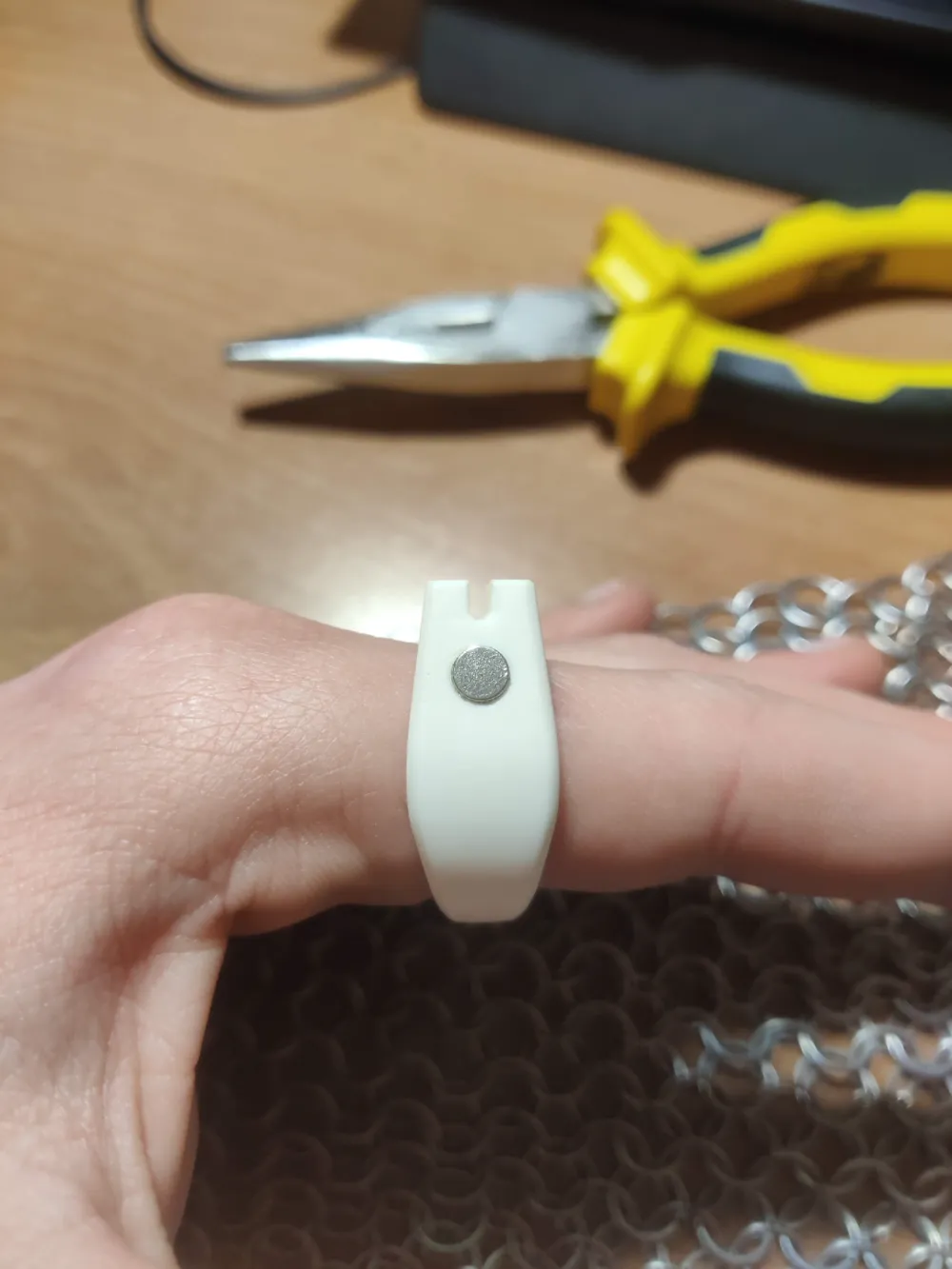

Added a hole on the side to insert a small 5x1 mm magnet to help work with galvanised steel.

I'm also adding a different print profile without the magnet hole.



I'm including the .f3d file so you can modify the various dimensions, ring size, sloth thickness, magnet size.

If you need to have the various dimensions modified but cannot edit the .f3d file, just ask and I will do it.
