Enclosure exhaust duct 12cm fan to 80mm vent conversion
Print Profile(1)
Description

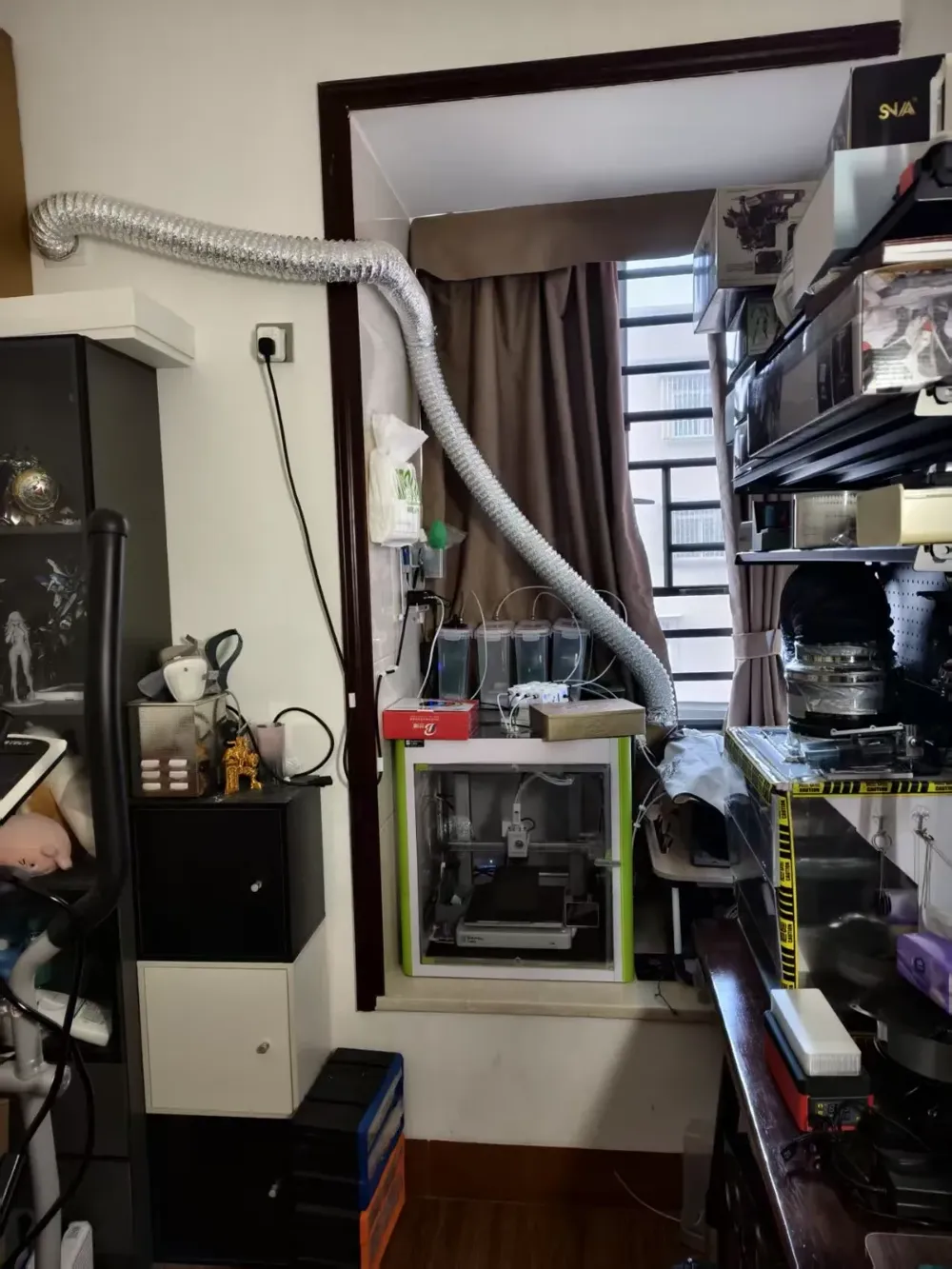

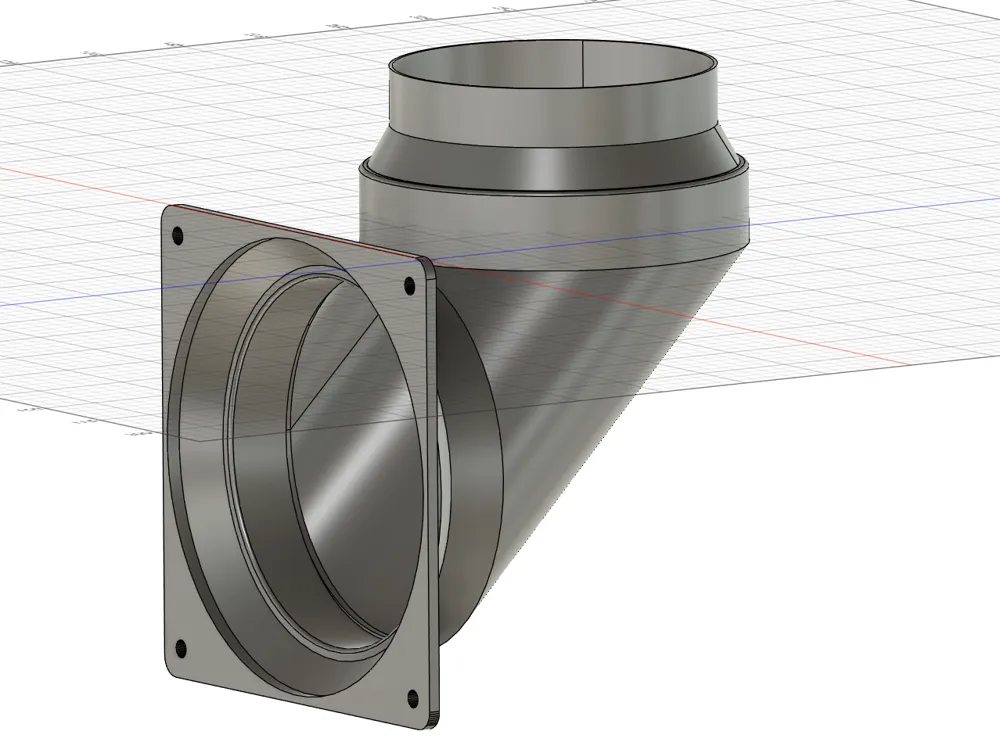

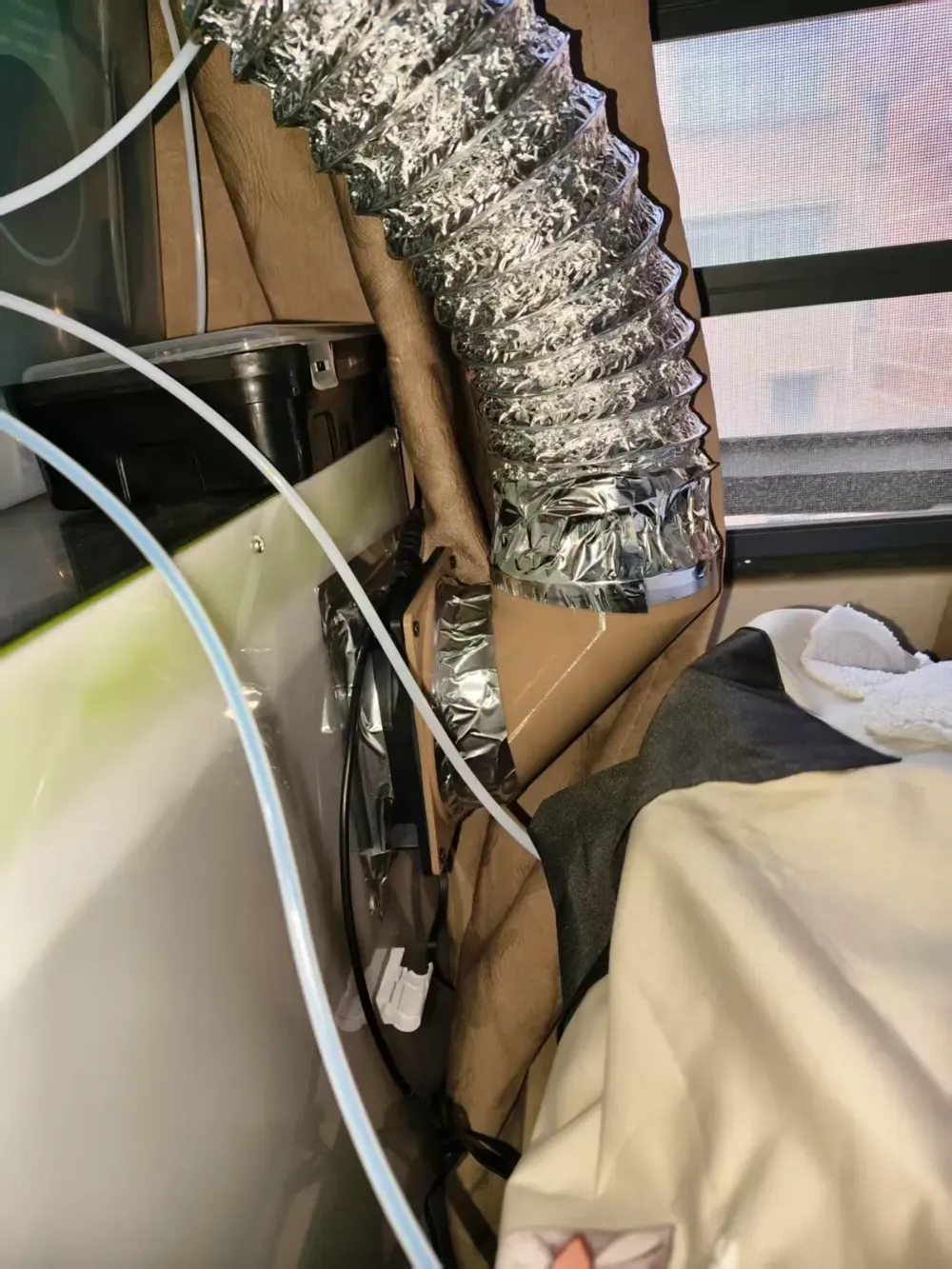

L-shaped exhaust duct for enclosure exhaust. The pre-drilled screw holes are for a 12cm fan; the exhaust panel can be mounted directly to the outside of the enclosure, although mounting the fan inside is preferable. The duct conversion outlet is for a commonly available 80mm diameter exhaust pipe (the internal diameter is usually larger; my design has an 82.6mm interface).
