Enclosure Exhaust Solution
Print Profile(1)
Description

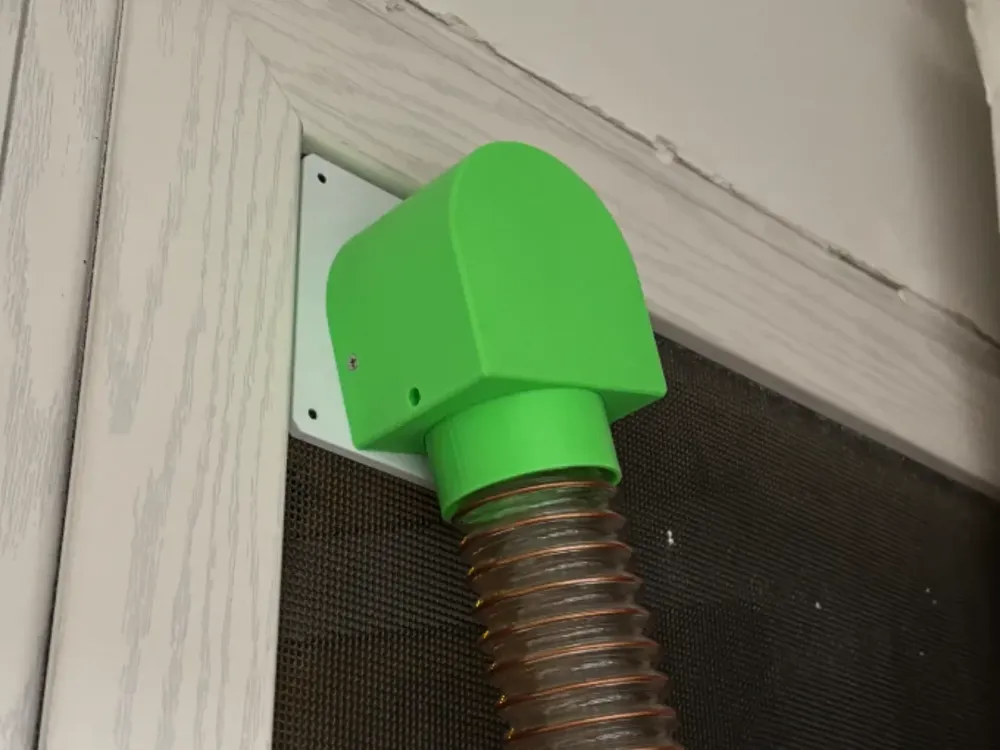

360° Rotating Exhaust Port | Non-Destructive Installation · Screen Compatible

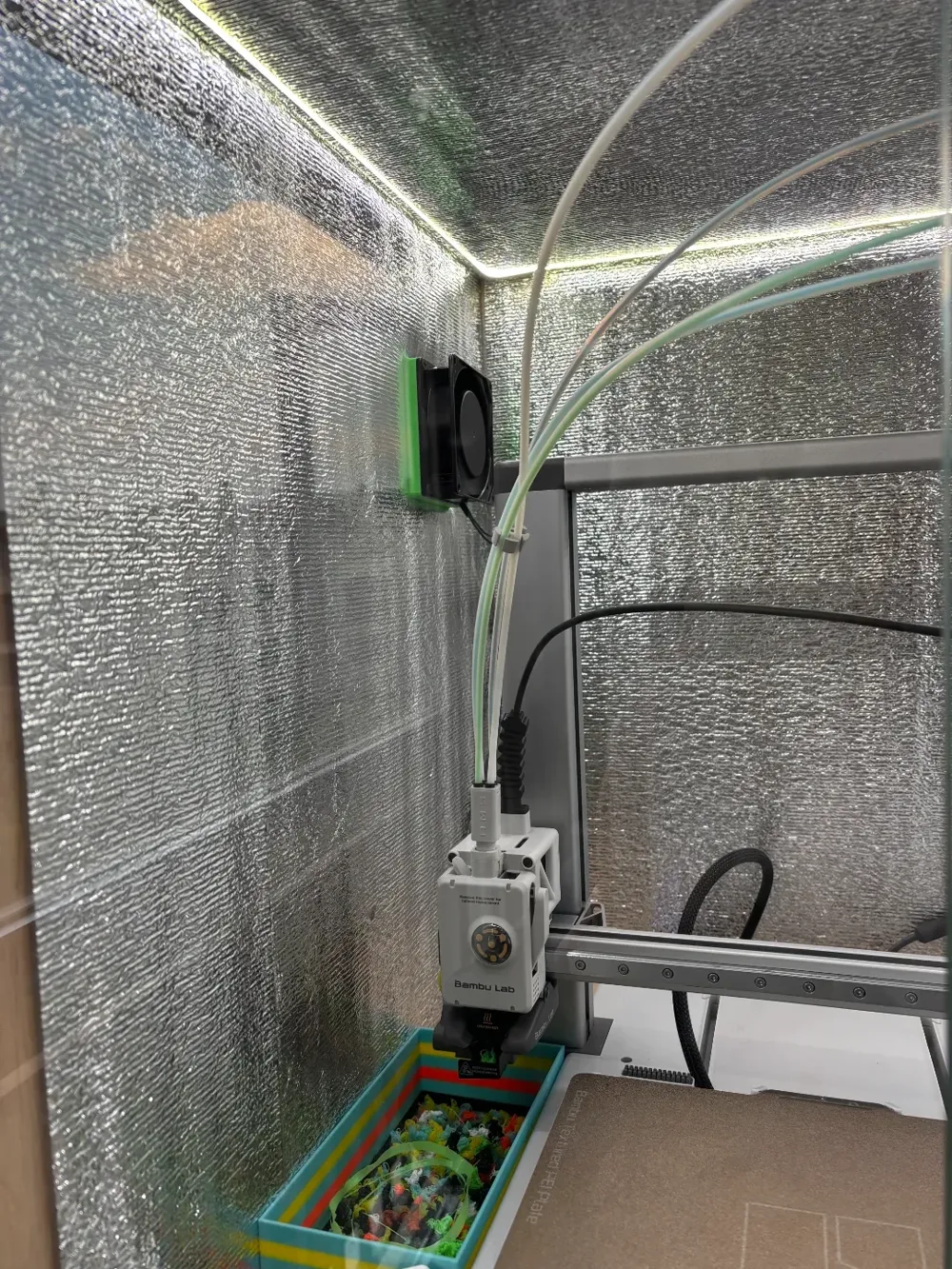

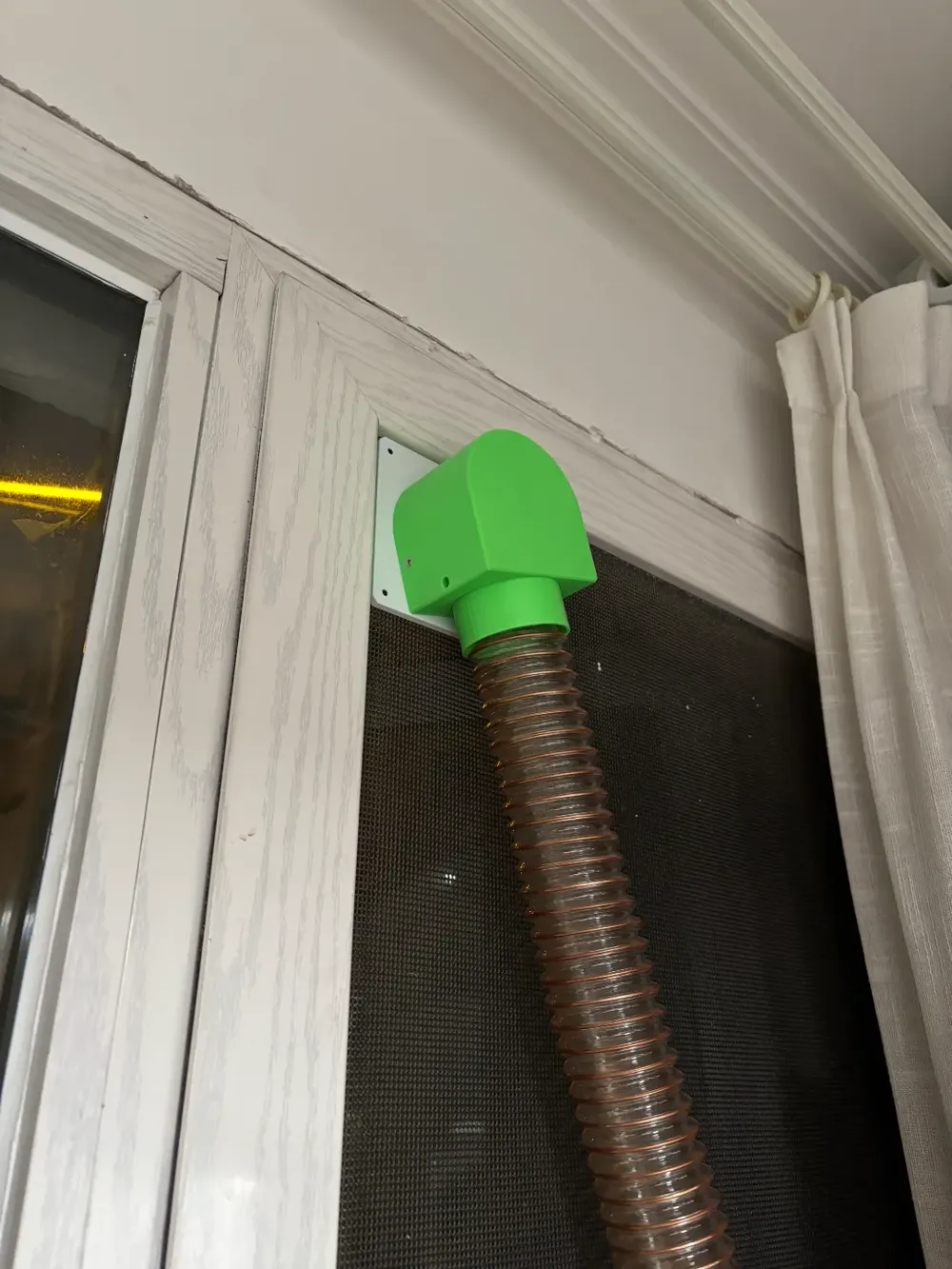

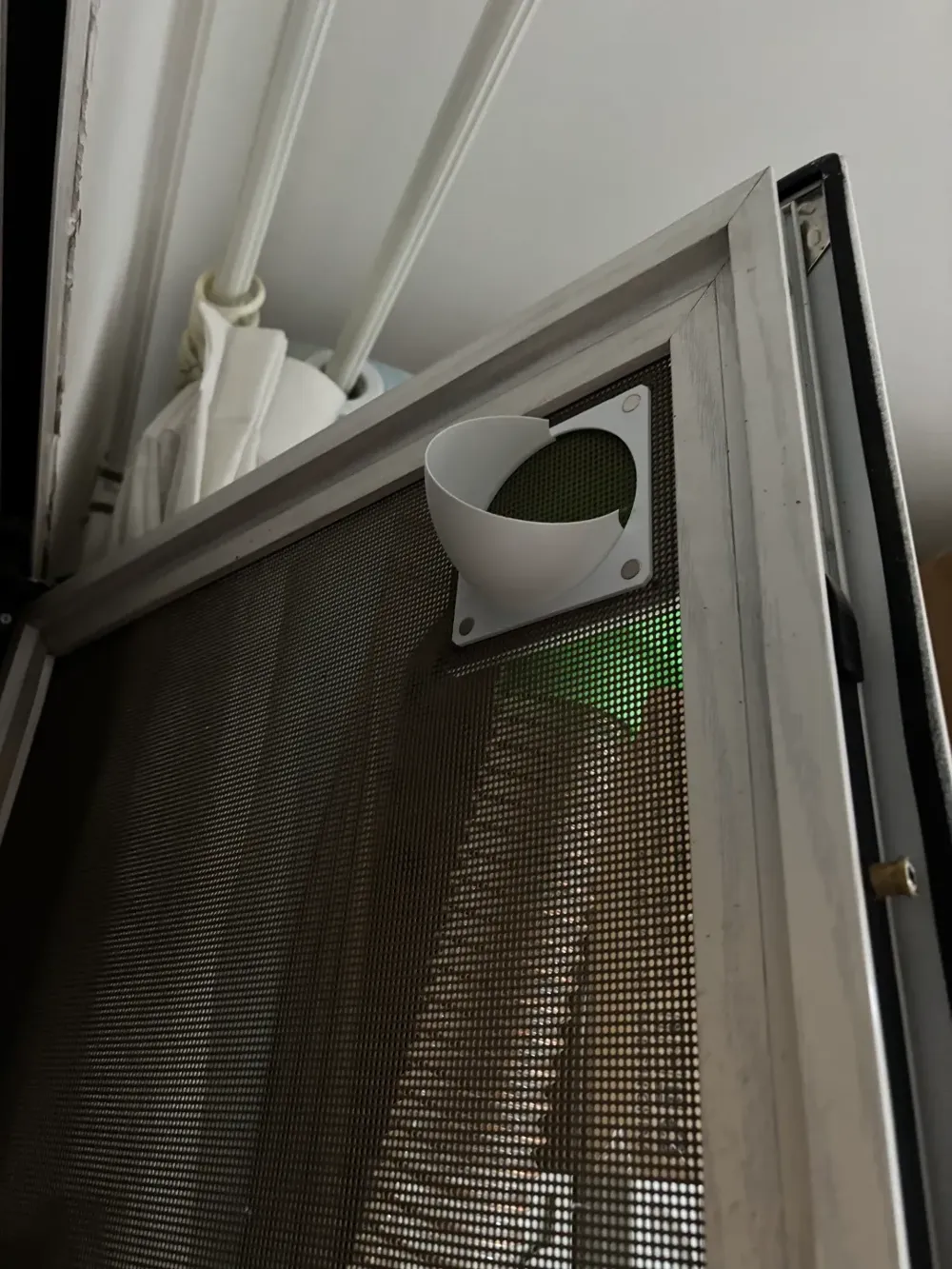

This is a 360-degree rotatable exhaust port design, suitable for small fans or exhaust devices. Its highlight is the ability to avoid damaging the screen structure, with airflow naturally exiting and discharging upwards through the screen, achieving non-destructive ventilation and exhaust.
If the fan size does not match the enclosure's reserved hole, a fan gasket flow guide ring can be used for dimensional transition (optional accessory).
Installation Instructions:
- Duct Specifications: PU wire duct, 50mm inner diameter, 0.6mm wall thickness
- Enclosure Hole Diameter: 80mm
- Duct Fixing Method: Embedded snap-fit + screw reinforcement
Parts List:
- Countersunk Screws:
- M3×7 × 6 pieces
- M3×10 × 4 pieces
- Self-Tapping Screws: M3×7 × 4 pieces
- Screen Fixing Screws: M2×7 × 4 pieces
- Screen Fixing Magnets: 8mm diameter × 2.5mm thickness × 8 pieces
📌 It is recommended to use PETG / ABS to print the main components for high temperature resistance and anti-aging properties, ensuring peace of mind for long-term outdoor use.
