PMAG magazine coupler
Print Profile(1)
Bill of Materials
- 70mmM5Bolt x 1: https://a.co/d/djxkRaZ
- M5NylonNut x 1: https://a.co/d/fYCqDmM
Description
FOLLOW me for new updates and models - https://makerworld.com/en/@menerso
Check out my other firearm accessories - https://makerworld.com/en/collections/5410842-firearm-accessories

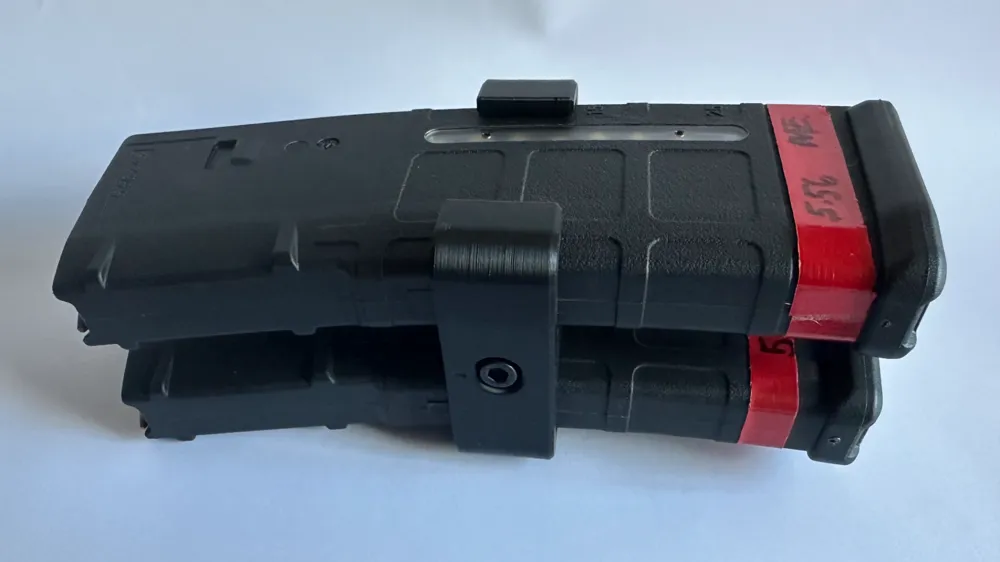

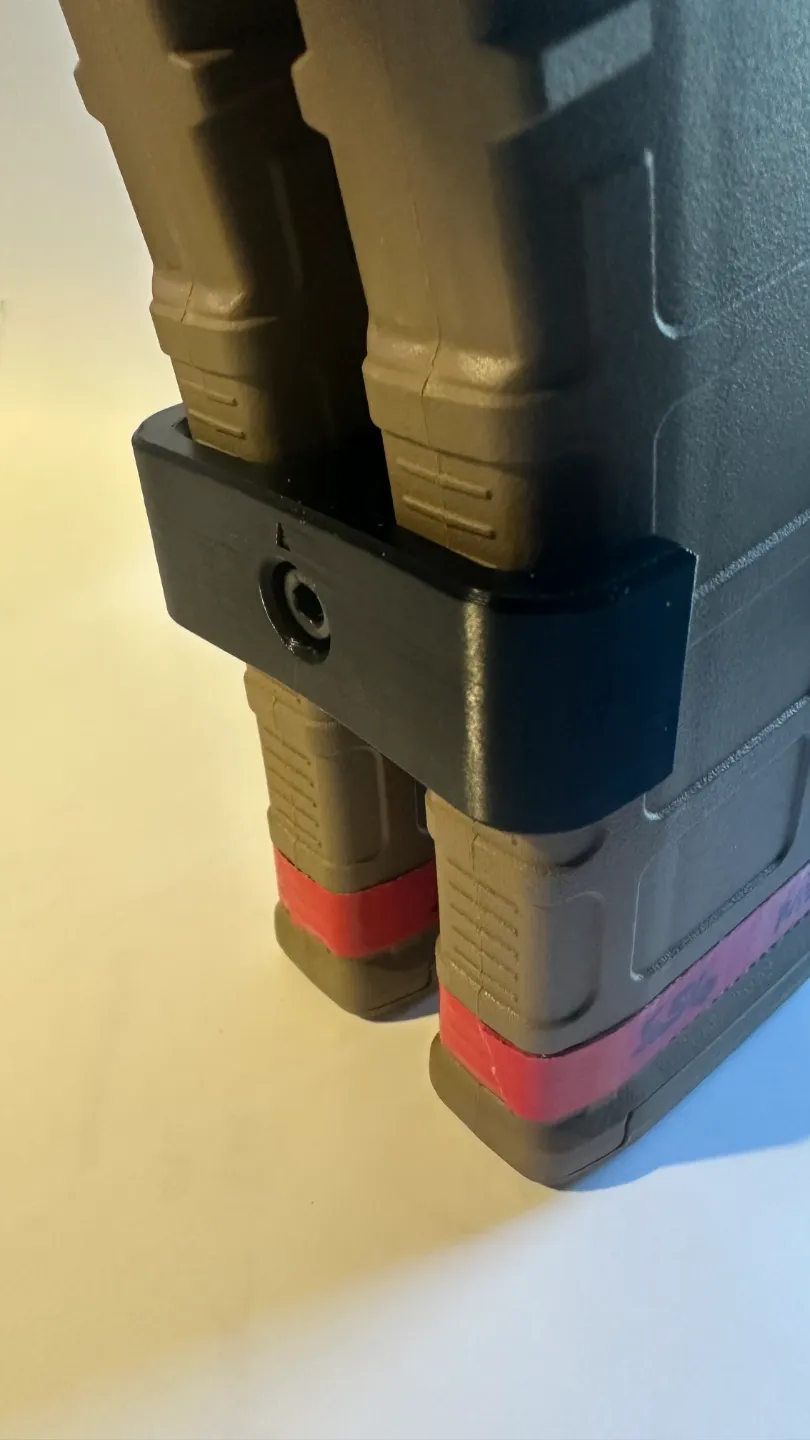

Attach two AR-15 magazines together. Allows for the quick replacement of one empty mag with a full mag. This has worked on both the Gen M2 and Gen M3 Magpul magazines. I have not tried them on any other magazine.

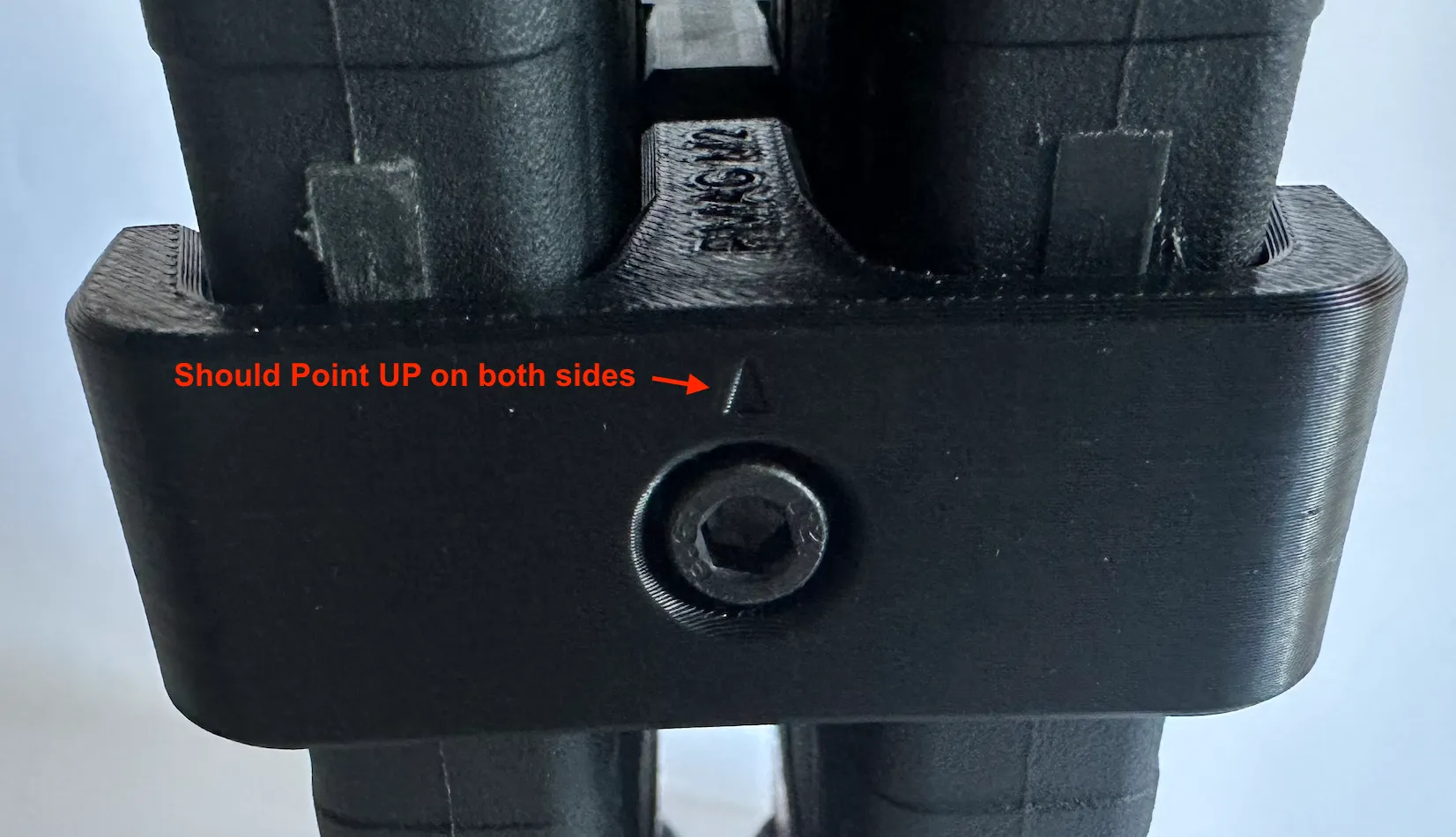

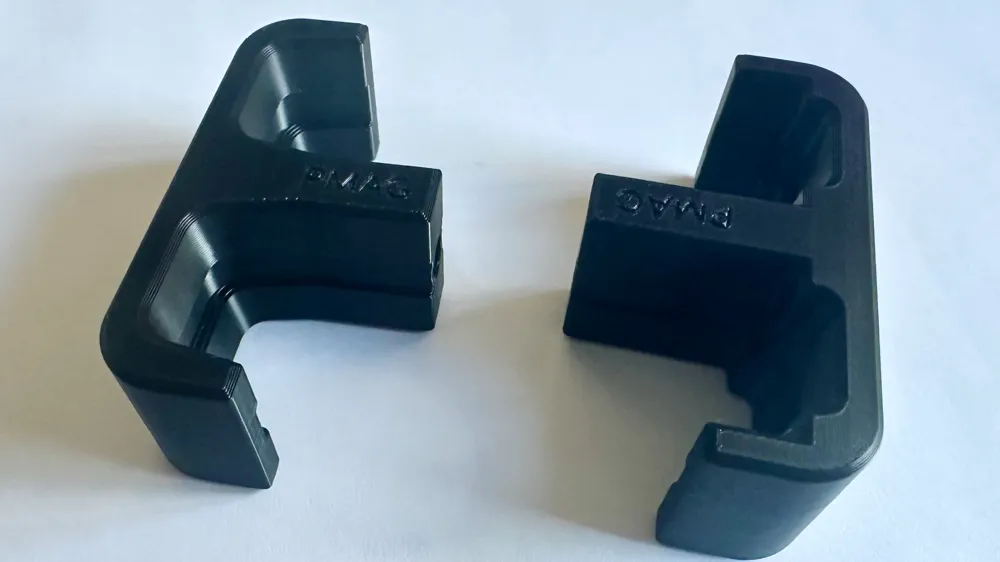

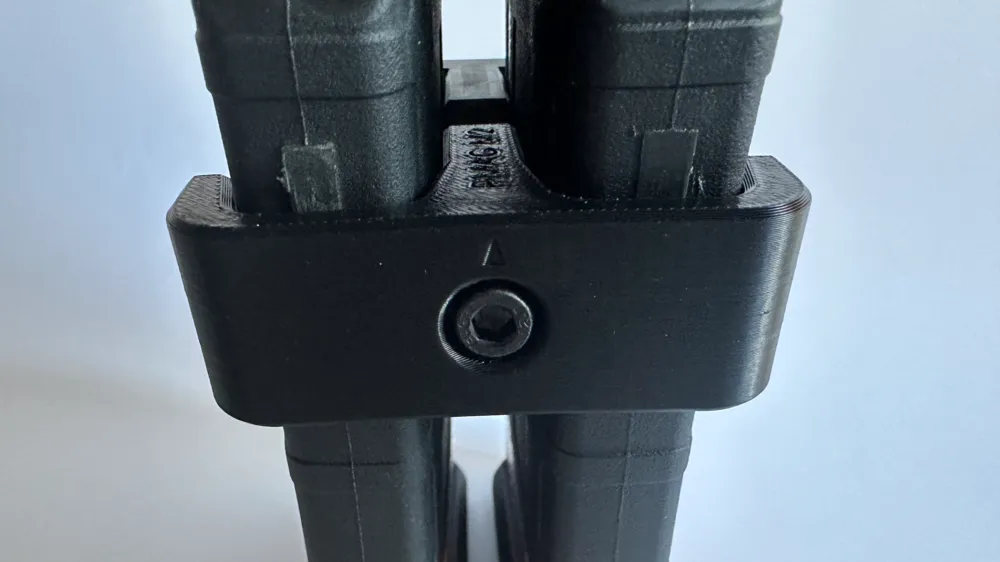

After printing, make sure the arrows on each part point up towards the top of the magazine. There are slight bevels in the clamps to keep them level with each other.
Hardware needed:

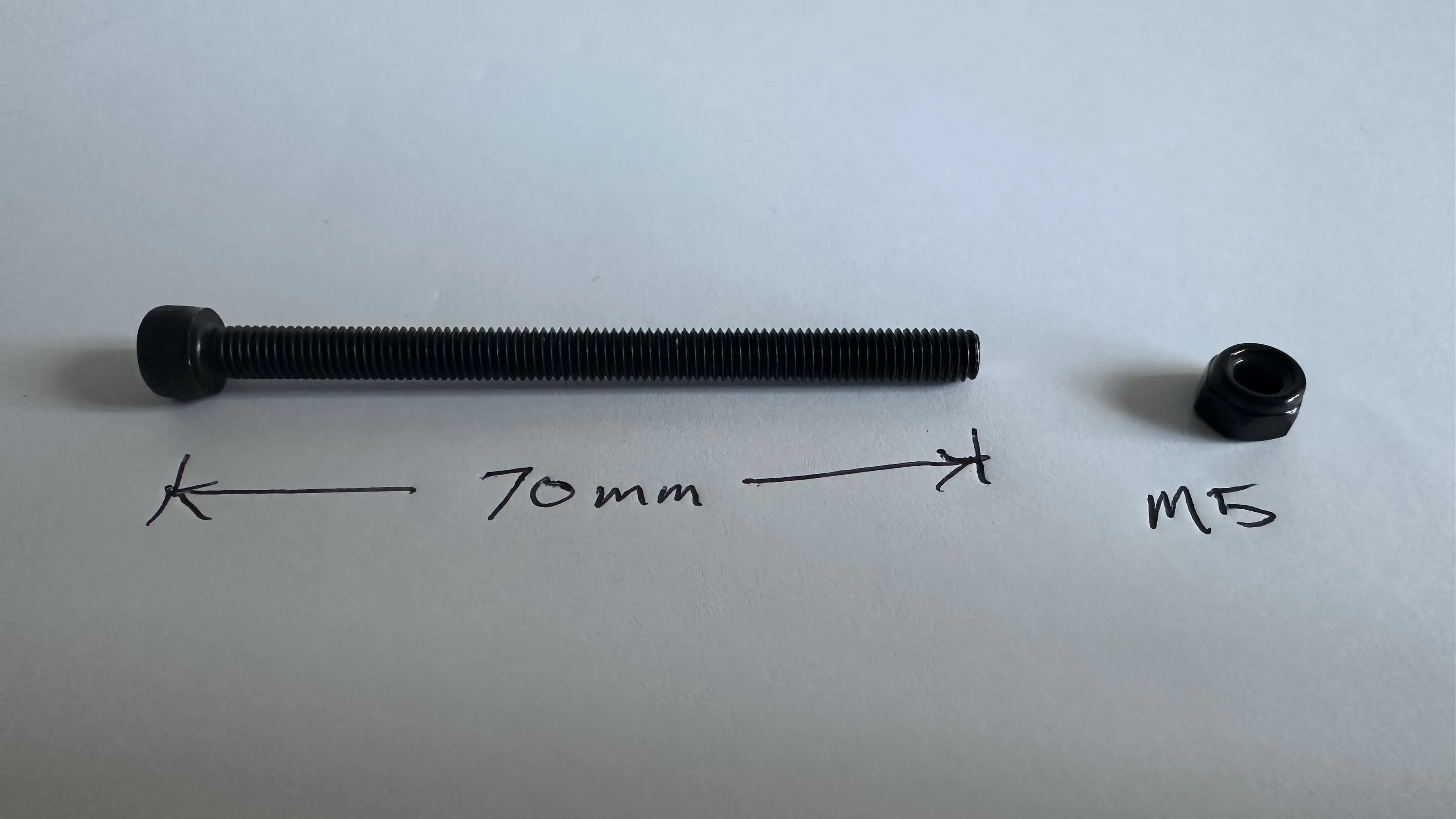

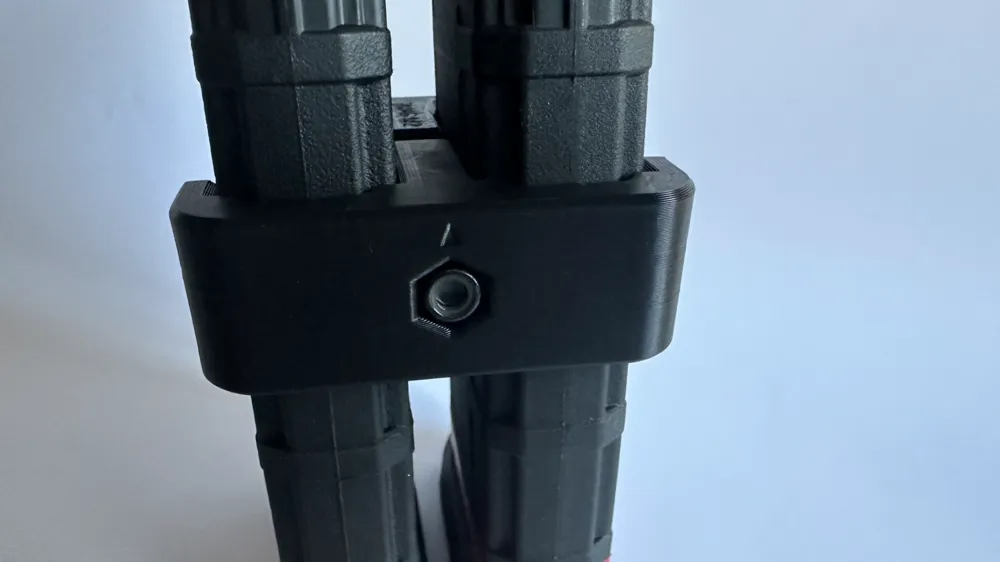

You will need one M5x70mm bolt and M5 nut to attach them.
- 70mm M5 Bolt x 1: https://a.co/d/djxkRaZ
- M5 Nylon Nut x 1: https://a.co/d/fYCqDmM
Use ABS or some other strong but flexible material. PLA will most likely snap if you drop this with full mags.
Check out my metal magazine coupler
https://makerworld.com/en/models/1168728-psa-metal-magazine-coupler

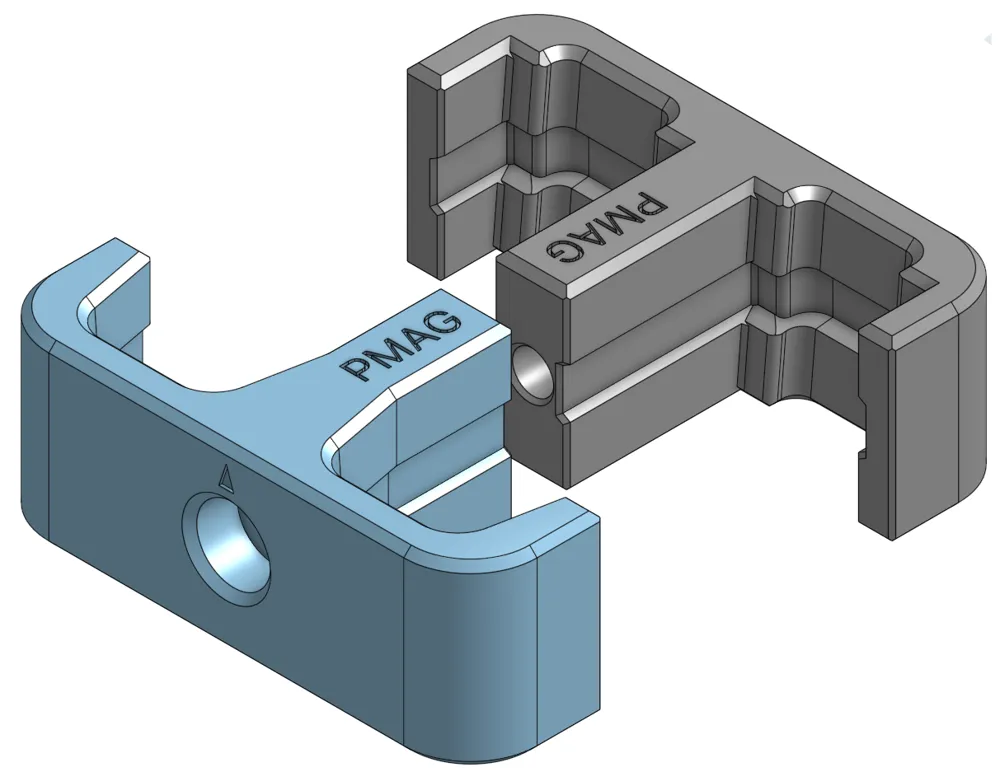

OnShape files to remodel - https://cad.onshape.com/documents/1e2b450a003b528ab1dcffc8/w/650fecfc174697abd0bc7b4c/e/24cf596f4feaae8511c4e318?renderMode=0&uiState=67bf614c385288338f77a271
