Virgin Media Stream TV Box VESA television mount.
Print Profile(1)
Bill of Materials
Description

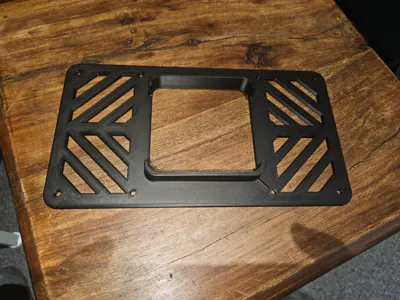

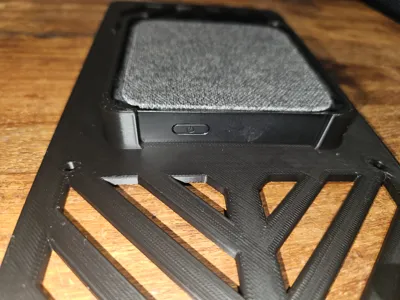

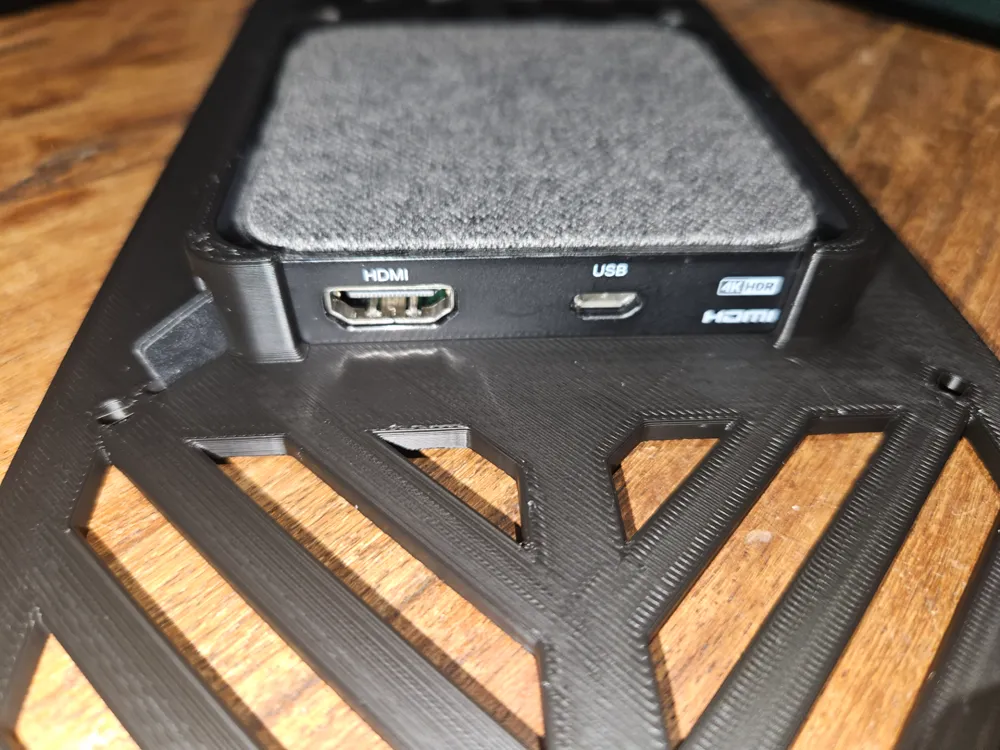

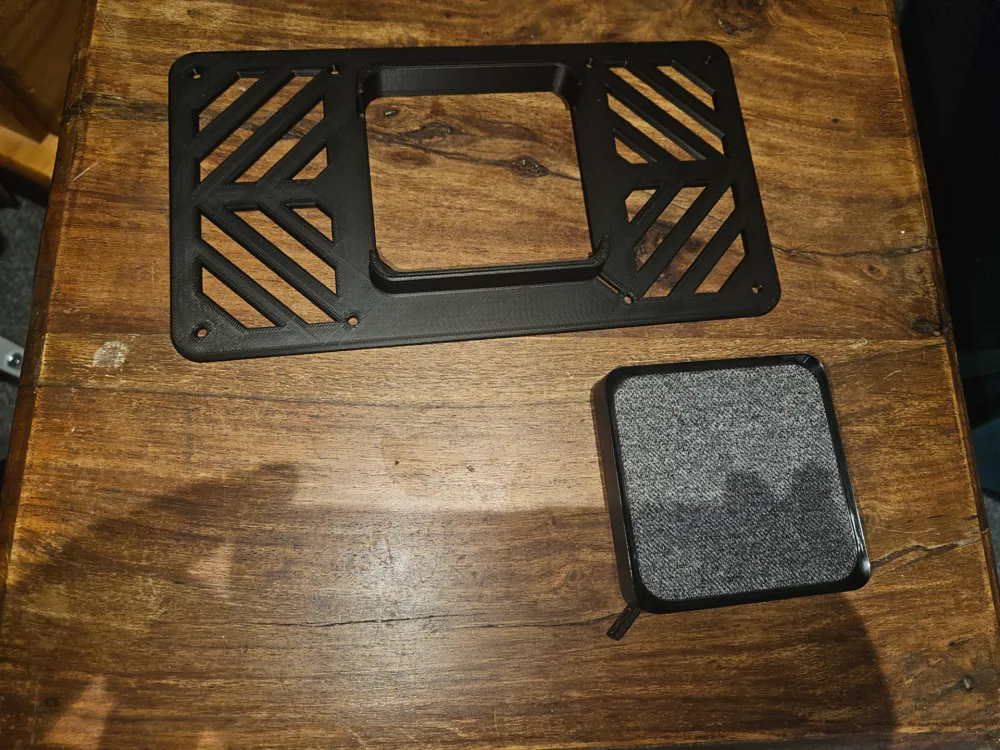

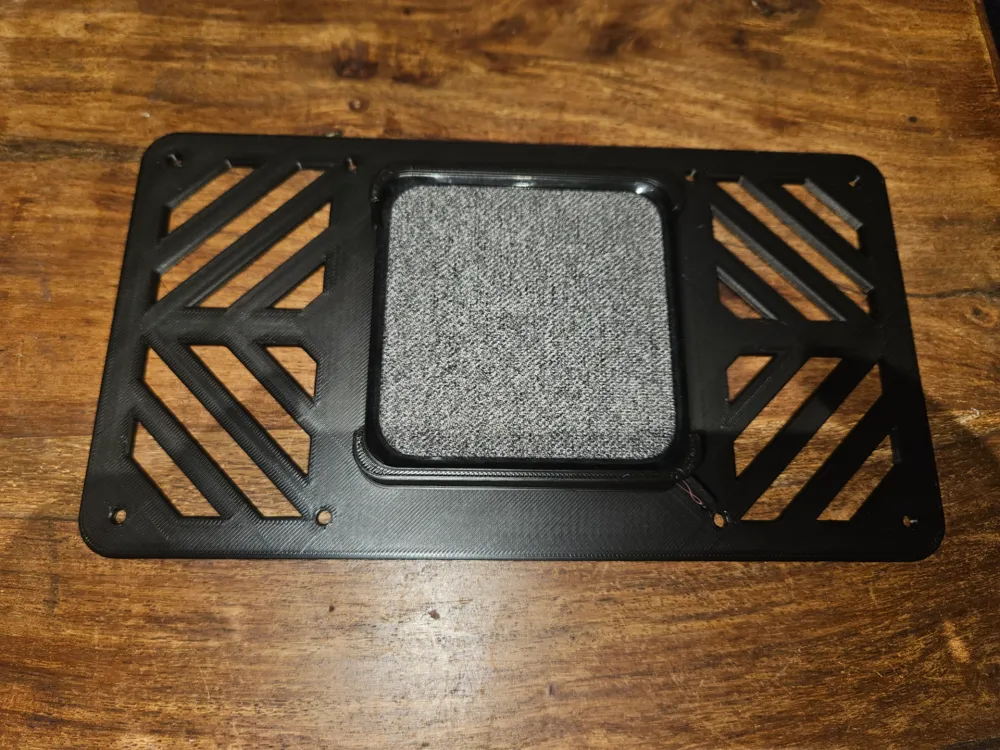

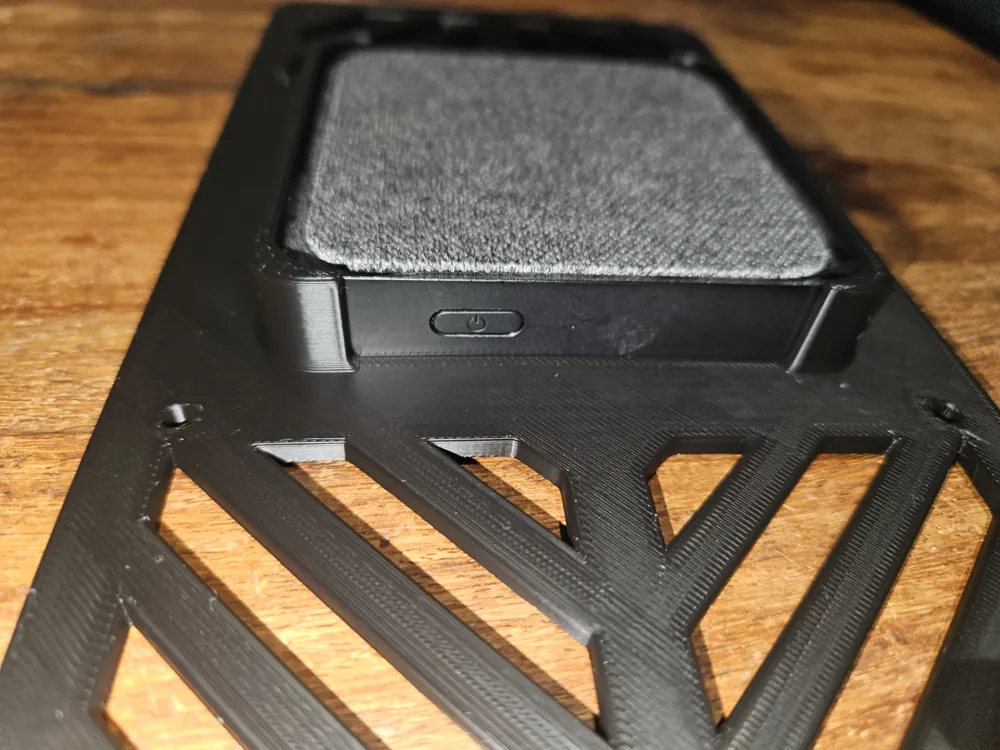

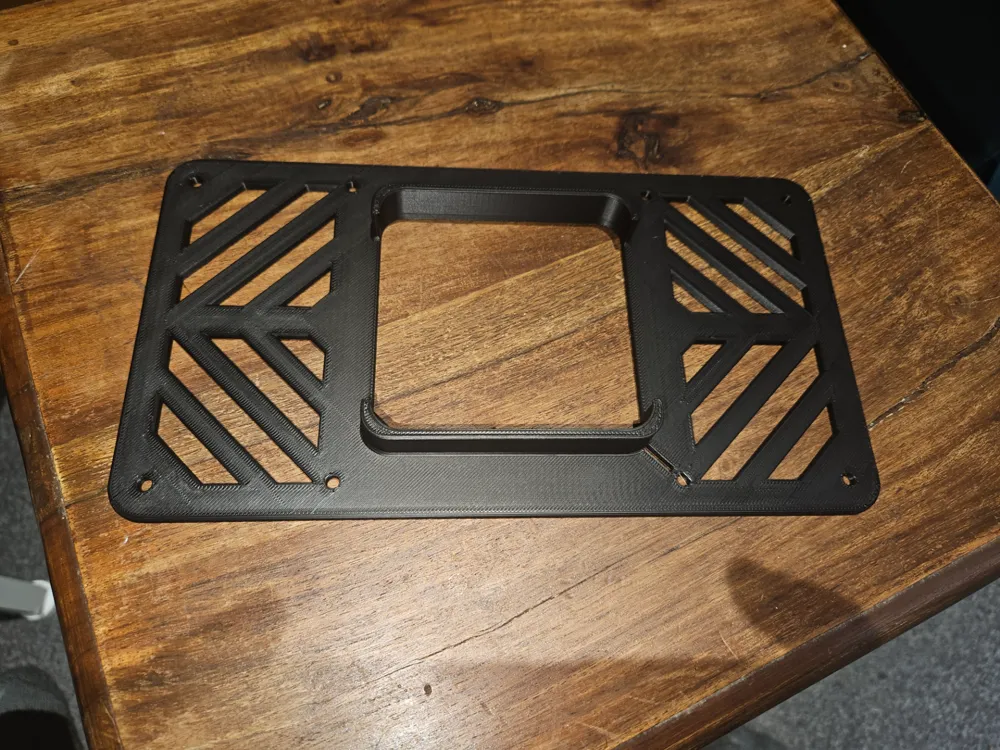

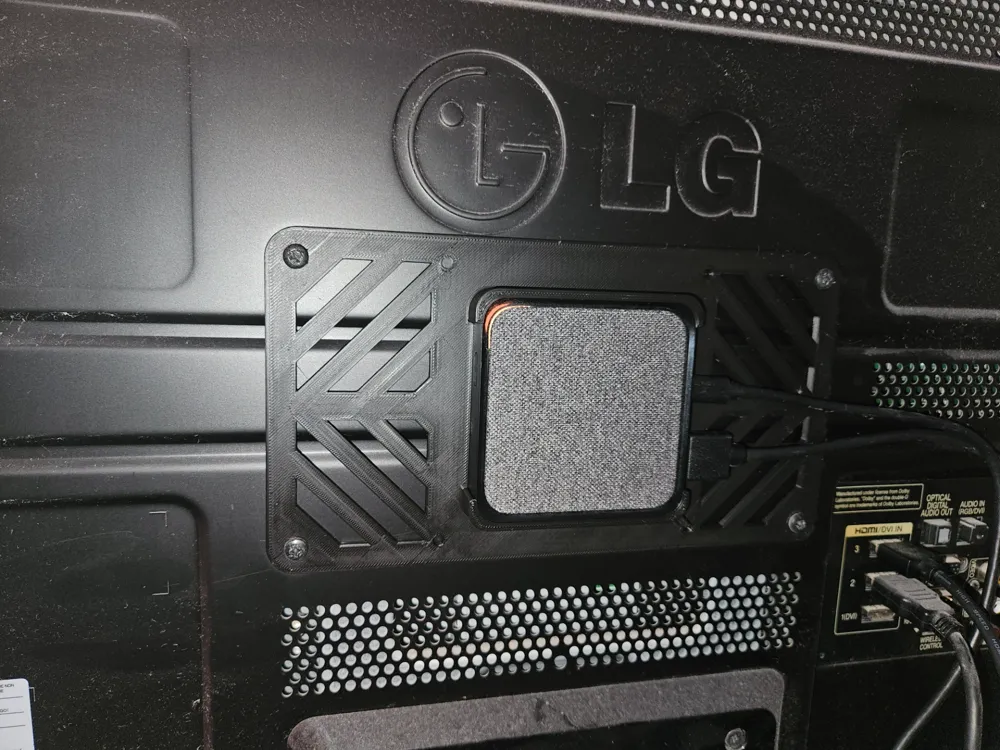

TV mounting bracket for the new Virgin Media streaming box.
This attaches to the back of the TV using the standard mounting holes
Fits both VESA200x100 and VESA100x100
Standard model is with 5mm bounting holes, suited to 4mm bolts.

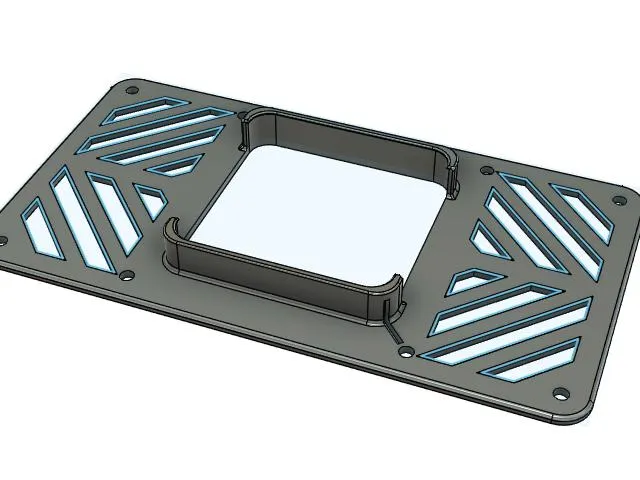

To modify the model easily in Fusion360 to accept different sized bolts:
Load the model and select Change Parameters from the Modify menu in the Solids tab.
Only change the parameters that are favourited at the top of the list.
There's four entries for the VESA200mm holes and four entries for the VESA100mm holes, make sure to change all four holes for the relevant mounting points. Recommend making them 1mm bigger than the screw size used.
