Parkside & 230V Diesel Heater Power Hub

Upgrade for Diesel Heater

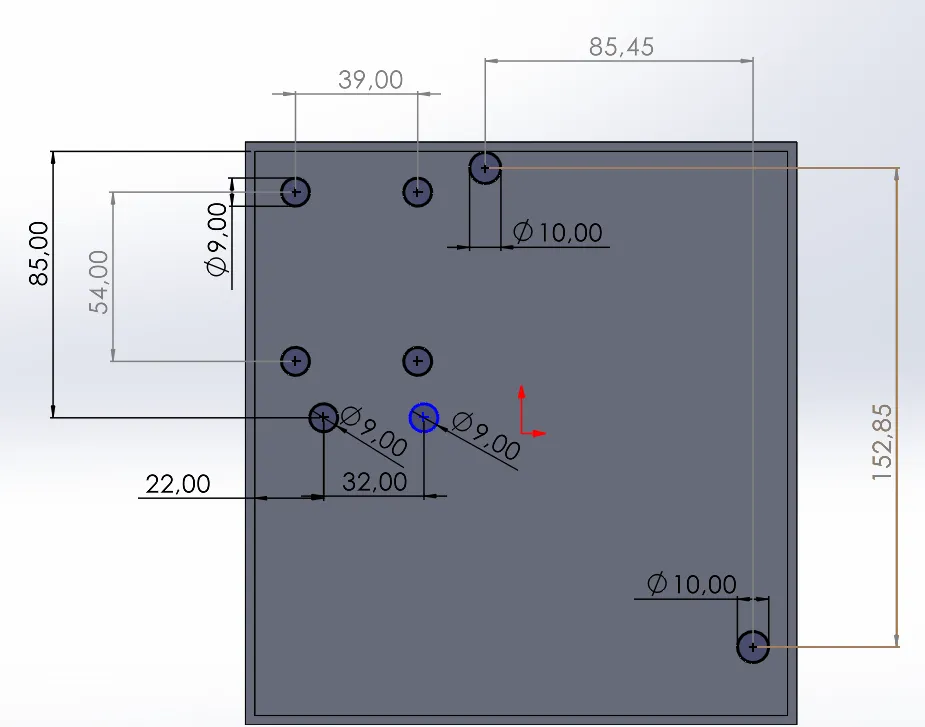

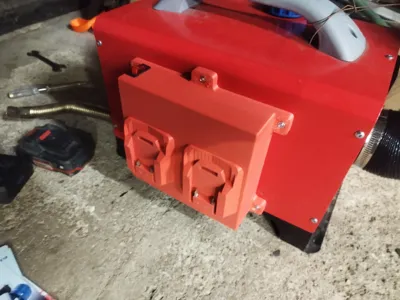

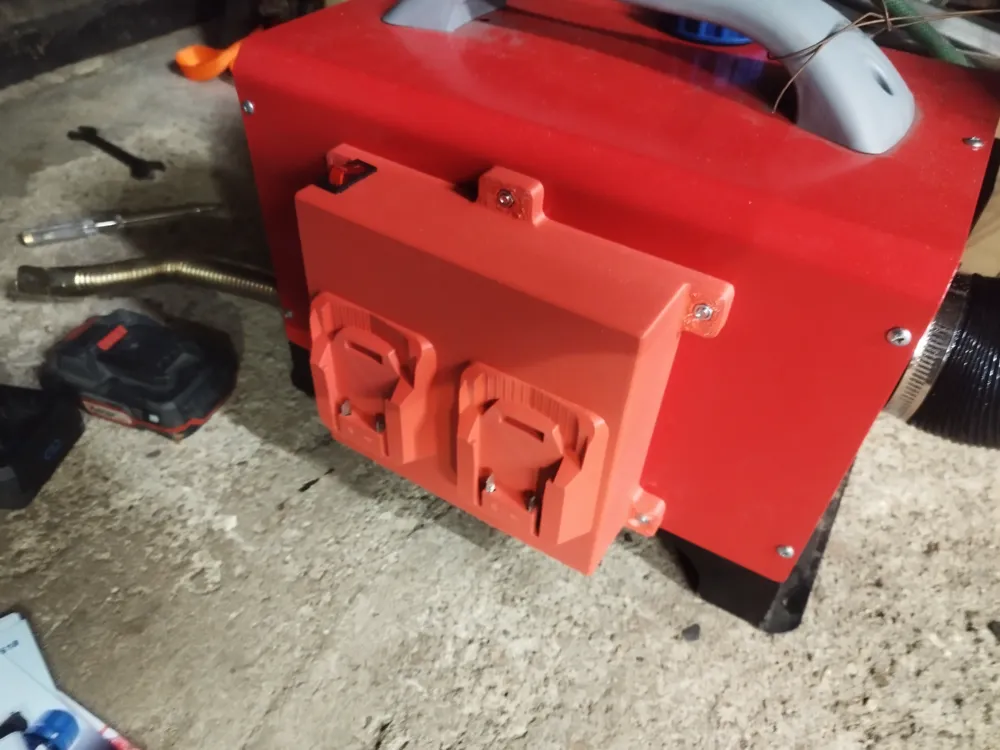

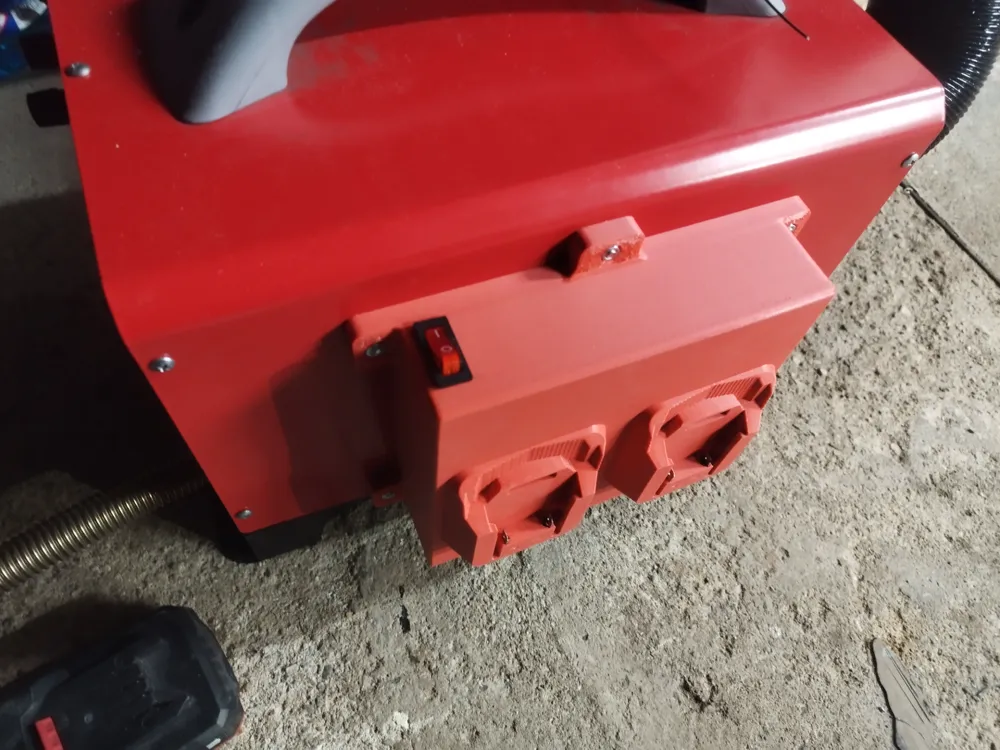

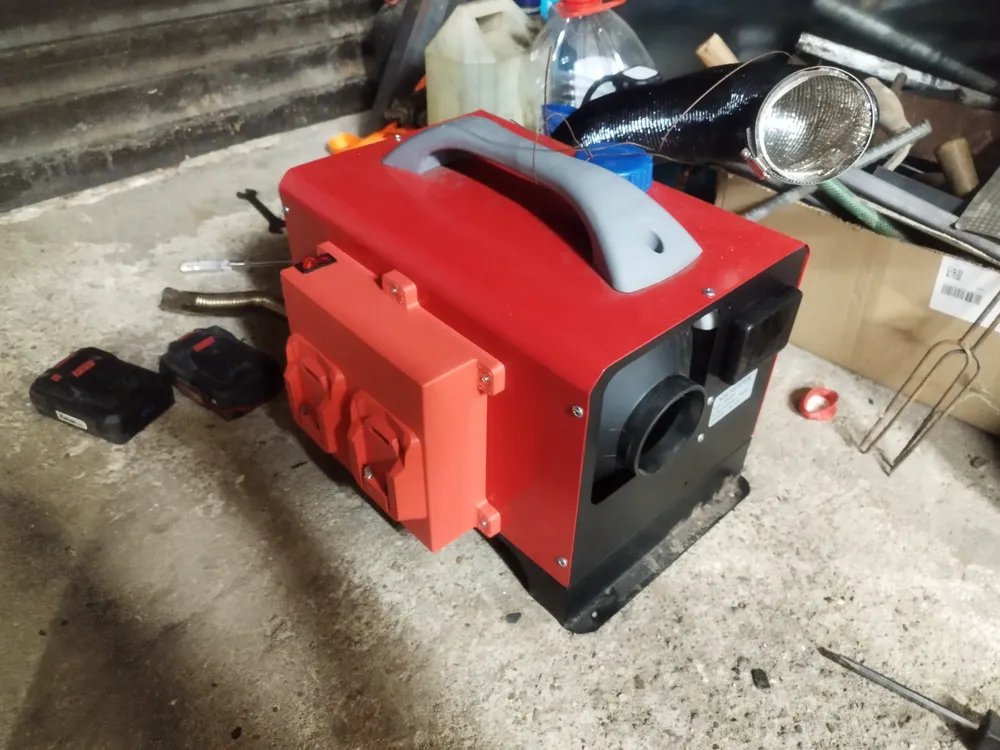

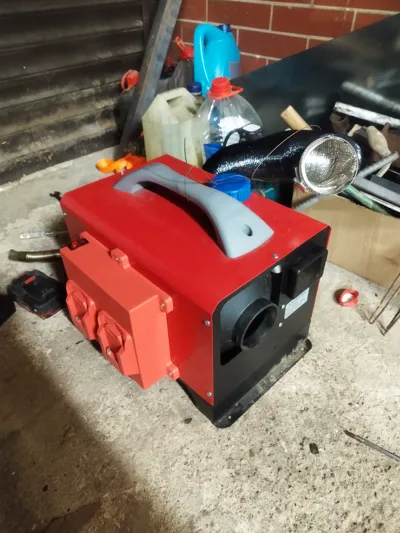

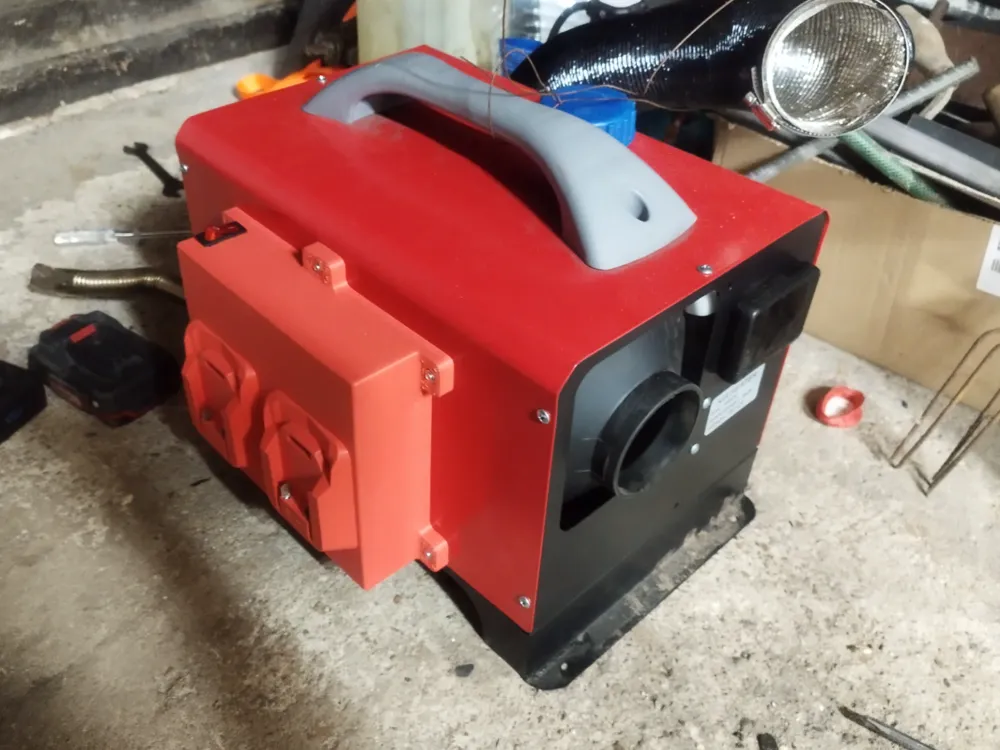

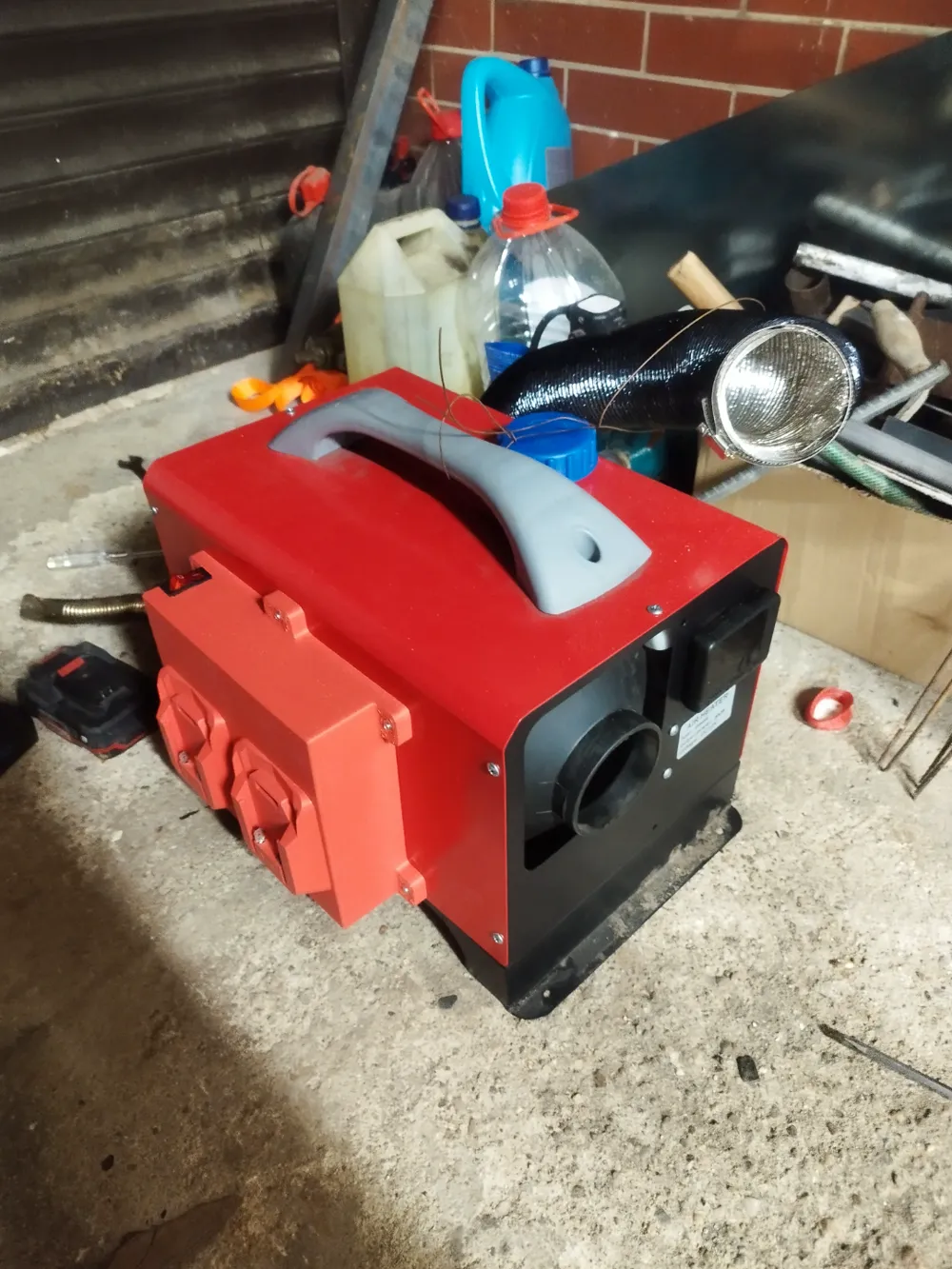

This is an upgrade for powering a diesel heater using a Parkside 20V battery or a 230V power supply.

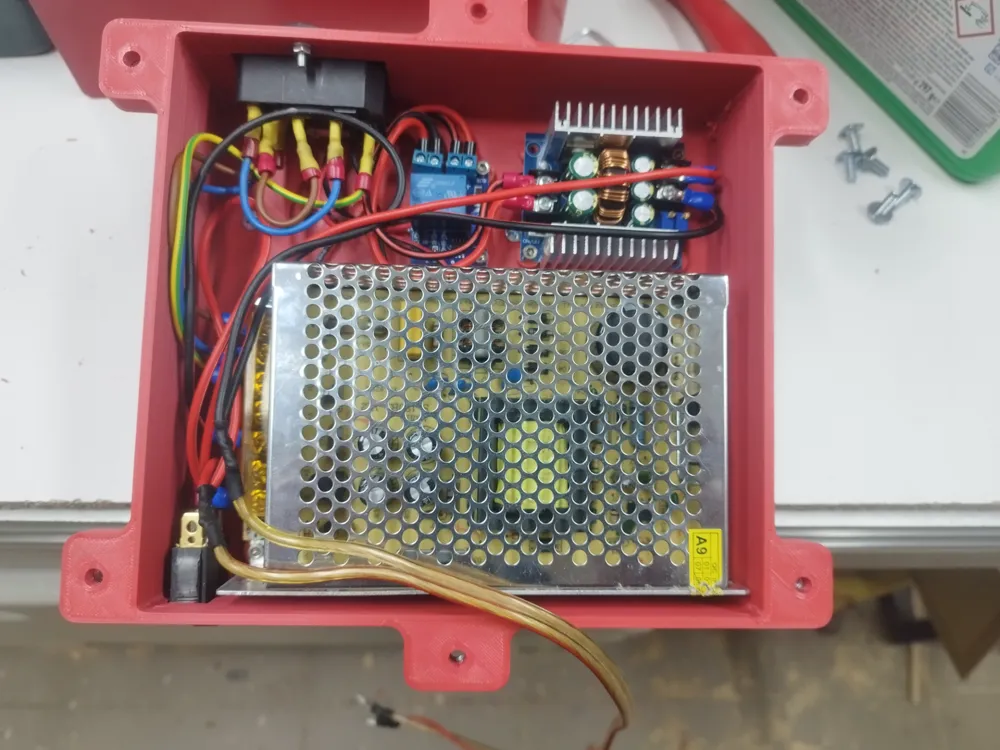

The box includes a 12V 10A power supply, a low-voltage battery module, and a step-down module to convert 20V to 12V. All necessary components for assembly are listed below. Wiring is simple, and you can follow the provided wiring diagram for guidance.

Powering from the Battery:

1. Connect the battery in parallel.
2. Battery → Low-voltage module (set to 16V) → DC step-down module (set to 12V) → Switch → 12V input.

Powering from the 230V Power Supply:

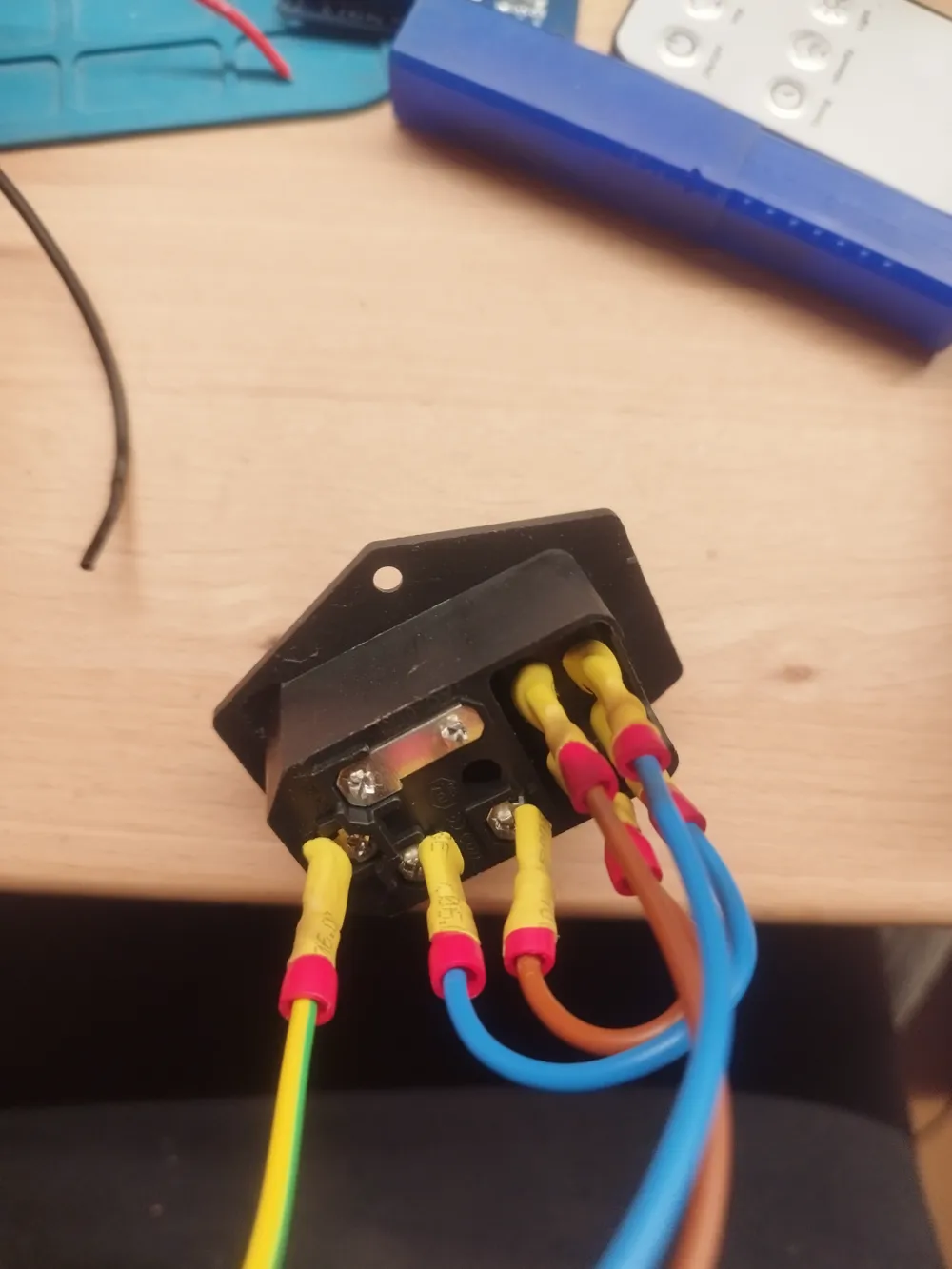

1. Connect the output from the IEC socket to the power supply.

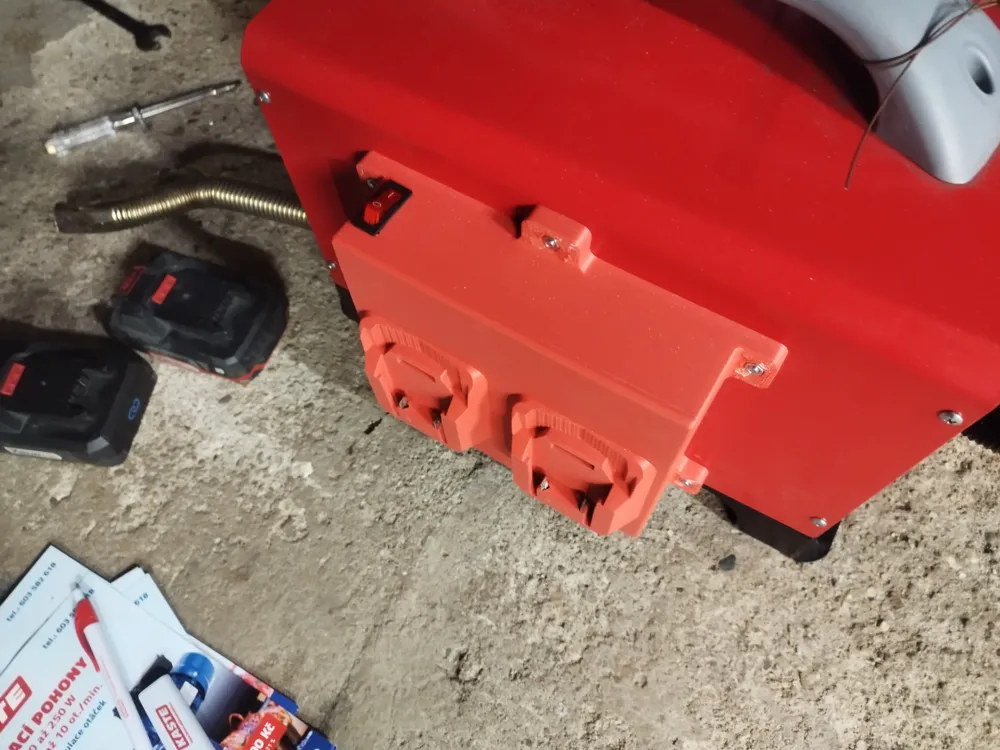

Finally, connect both 12V outputs into a single cable, which then connects to the diesel heater’s power input.

!!!!! On layer 31 of the plate with the battery adapter, add a pause. During the pause, insert an M4 nut inside the model. I use this method because, for me, it’s a cheaper and easier way to create a thread in plastic compared to heating a nut.

Part list:

300 W step down module - aliexpres                             CZ eshop

Low voltage module - aliexpres

12V 10A psu - aliexpres                                                     CZ eshop

Switch - aliexpres                                                               CZ eshop

IEC power plug - aliexpres

Heating nut M3 – 6 pcs (for mounting the electric module)
Screw M3 x 5 (internal hex) – 6 pcs (for mounting the electric module)
Screw M3 x 10 (countersunk head) – 8 pcs (for mounting the battery adapter)
Screw M3 x 8 (countersunk screw) – 2 pcs (for mounting the IEC plug)
Screw M5 x 12 (domed head) – 5 pcs (for mounting the box to the heater)
Nut M4 – 8 pcs
Nut M5 – 5 pcs

Faston 6.3 mm – 4 pcs (for battery adapter)
Faston 6.3 mm – for IEC plug and switch

Some cables and connection material
