0.12mm layer, 4 walls, 25% infill

Designer

5.4 h

2 plates

Open in Bambu Studio

Boost

Released

Bill of Materials

Bambu Filaments

Select all

Matte Marine Blue (11600) / Refill / 1kg

PLA Matte

PETG HF

List other parts

M2.5*25 Socket Head Cap Machine Screws (SHCS) x 2:
RAK WisBlock Meshtastic Starter Kit x 1: https://muzi.works/products/rak-wisblock-meshtastic-starter-kit-us915
Muzi Works R1 Battery x 1: https://muzi.works/products/r1-battery

Description

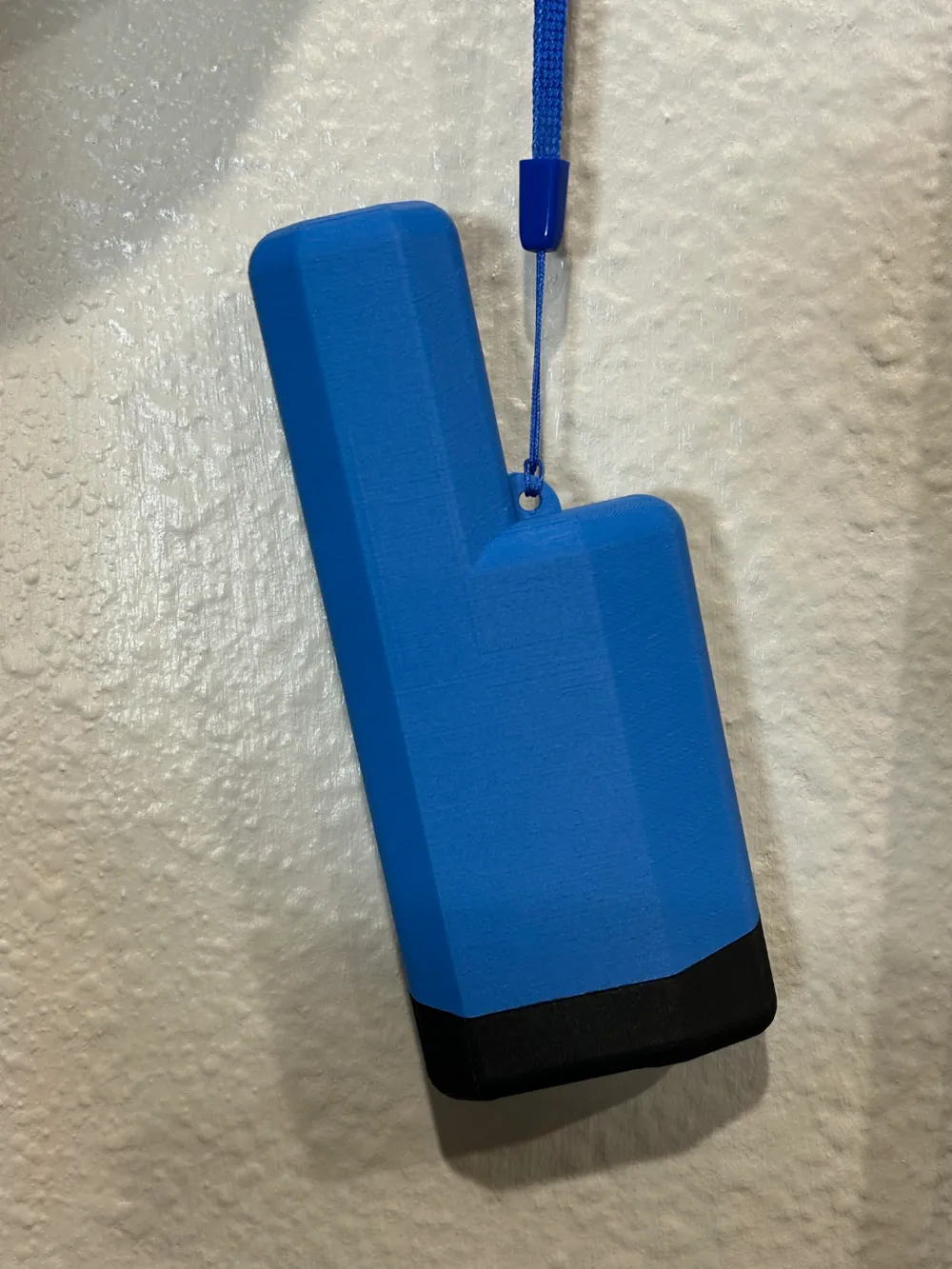

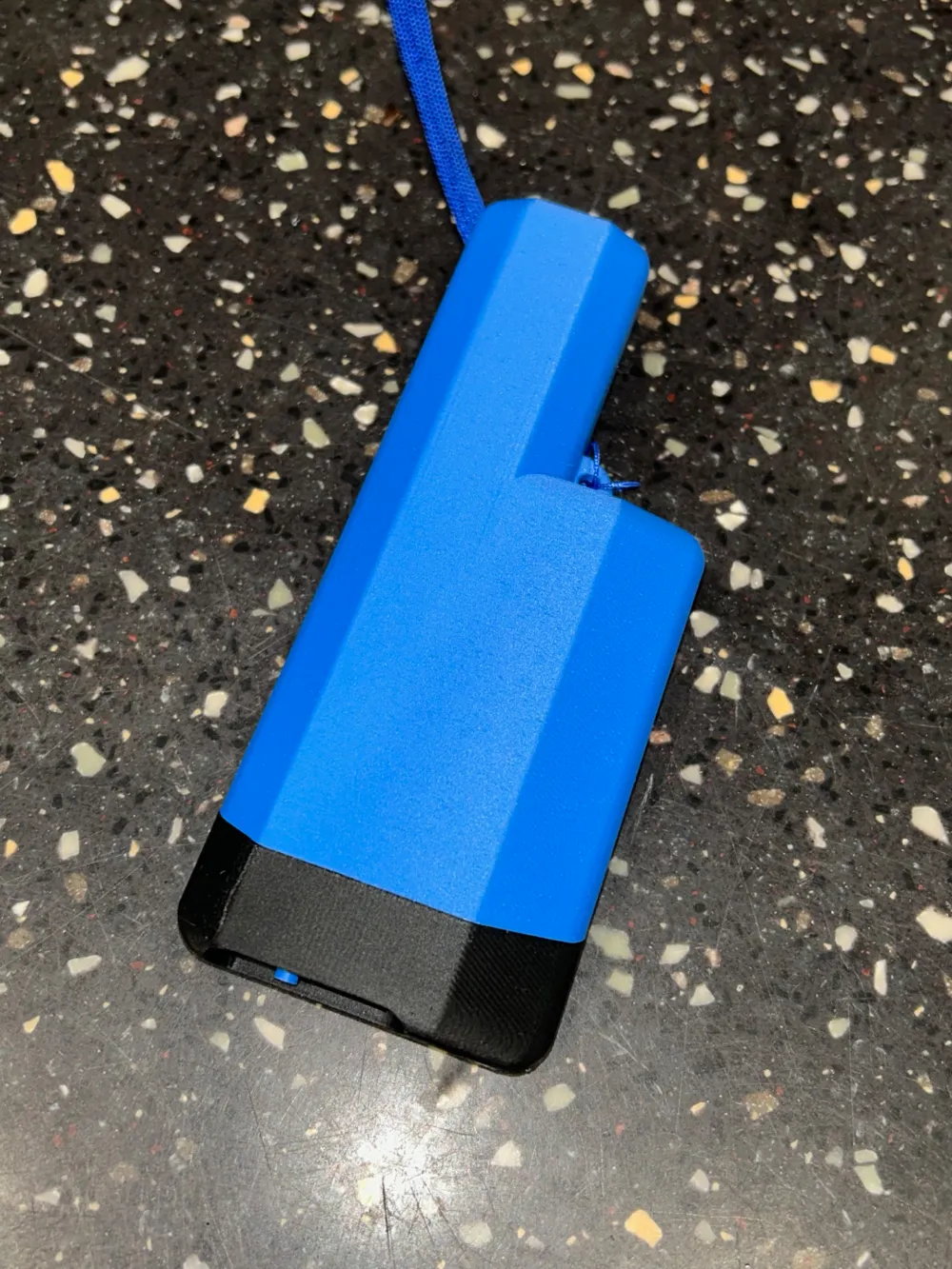

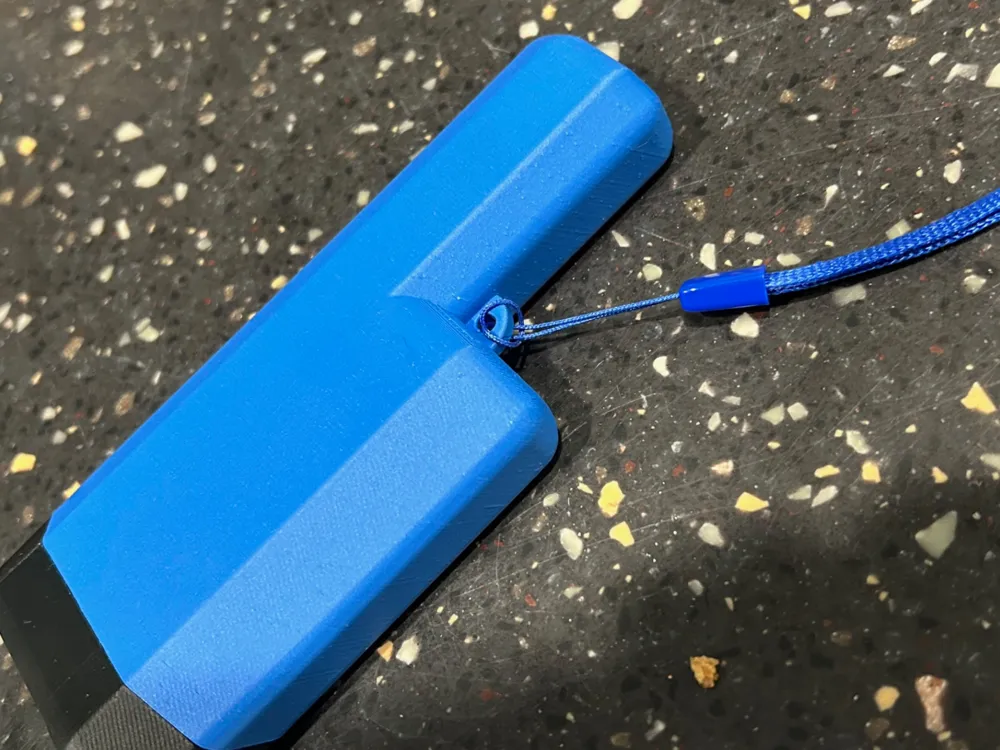

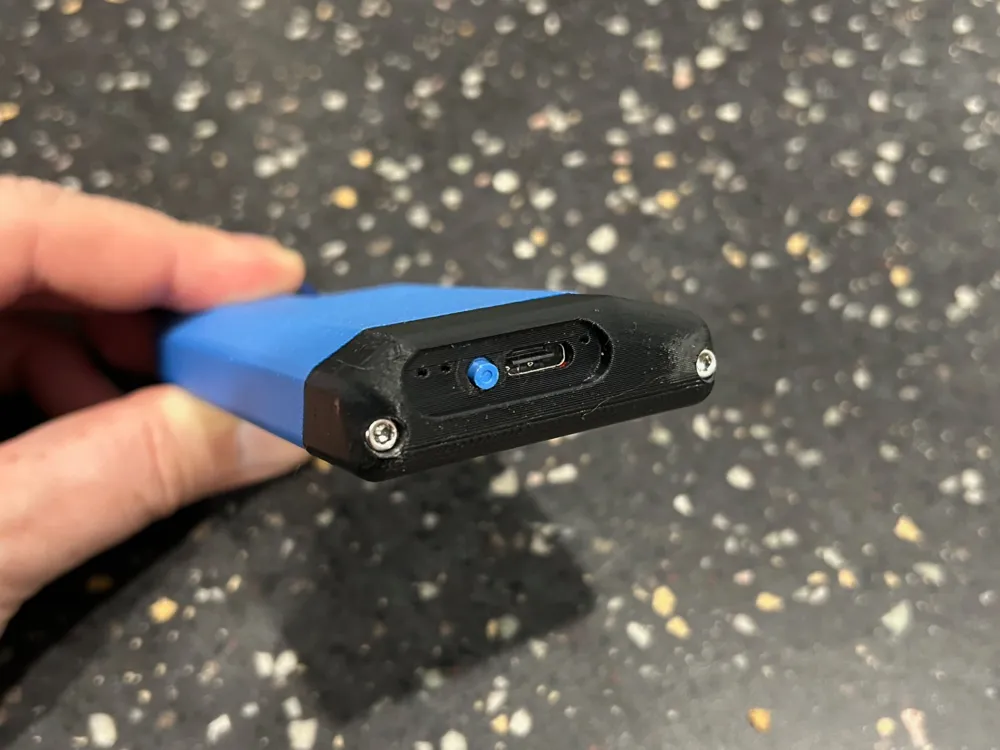

This is a remix of an R1 extended case found on this site. I have added a recess in the internal holder to allow for the soldering bulge at the base of the antenna. This makes the antenna sit straighter in the holder. Another hole was added to the bottom to more readily see the red charging light. Additionally, I have added a channel in the bottom piece to allow for RAK boards with longer prongs at the bottom of the battery connection to slide more easily. A ring was added to the top for the unit to be hung with a lanyard. Finally, the screw holes between the top and bottom pieces have been enlarged slightly to accept commonly used M2.5*25 hex head screws.

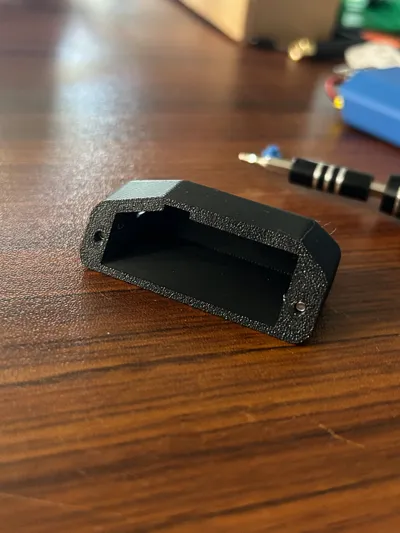

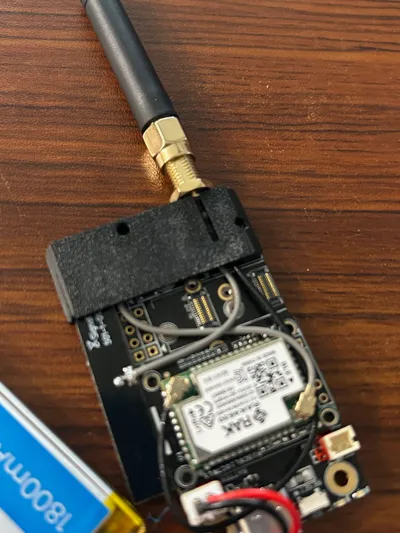

Note: Internal holder piece attaches to the board with the small screws provided in the kit. No not overtighten as you will strip the threads.
