WZ7
Print Profile(2)
Description

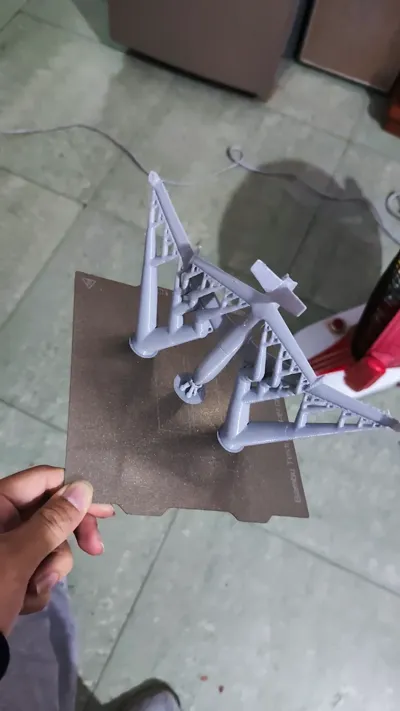

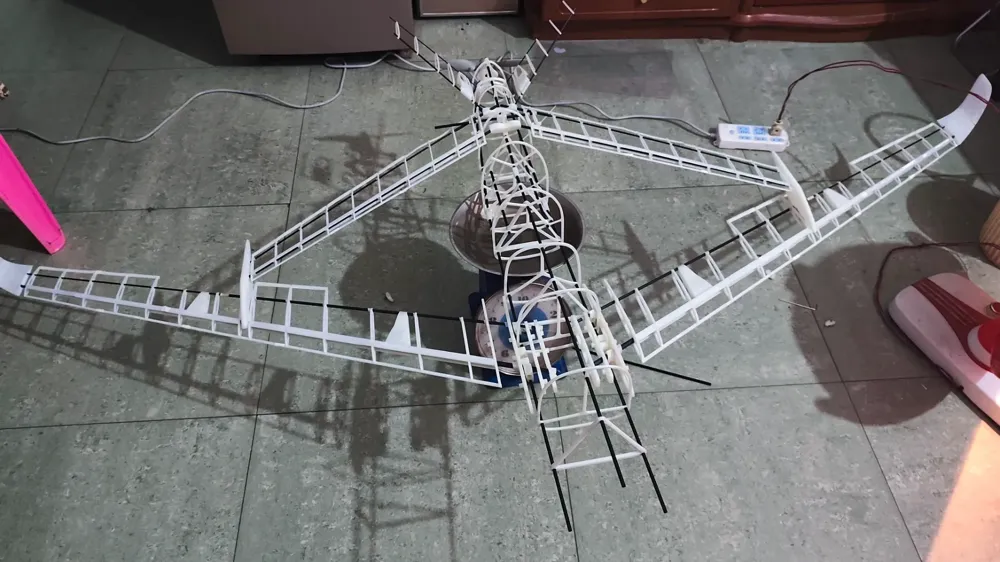

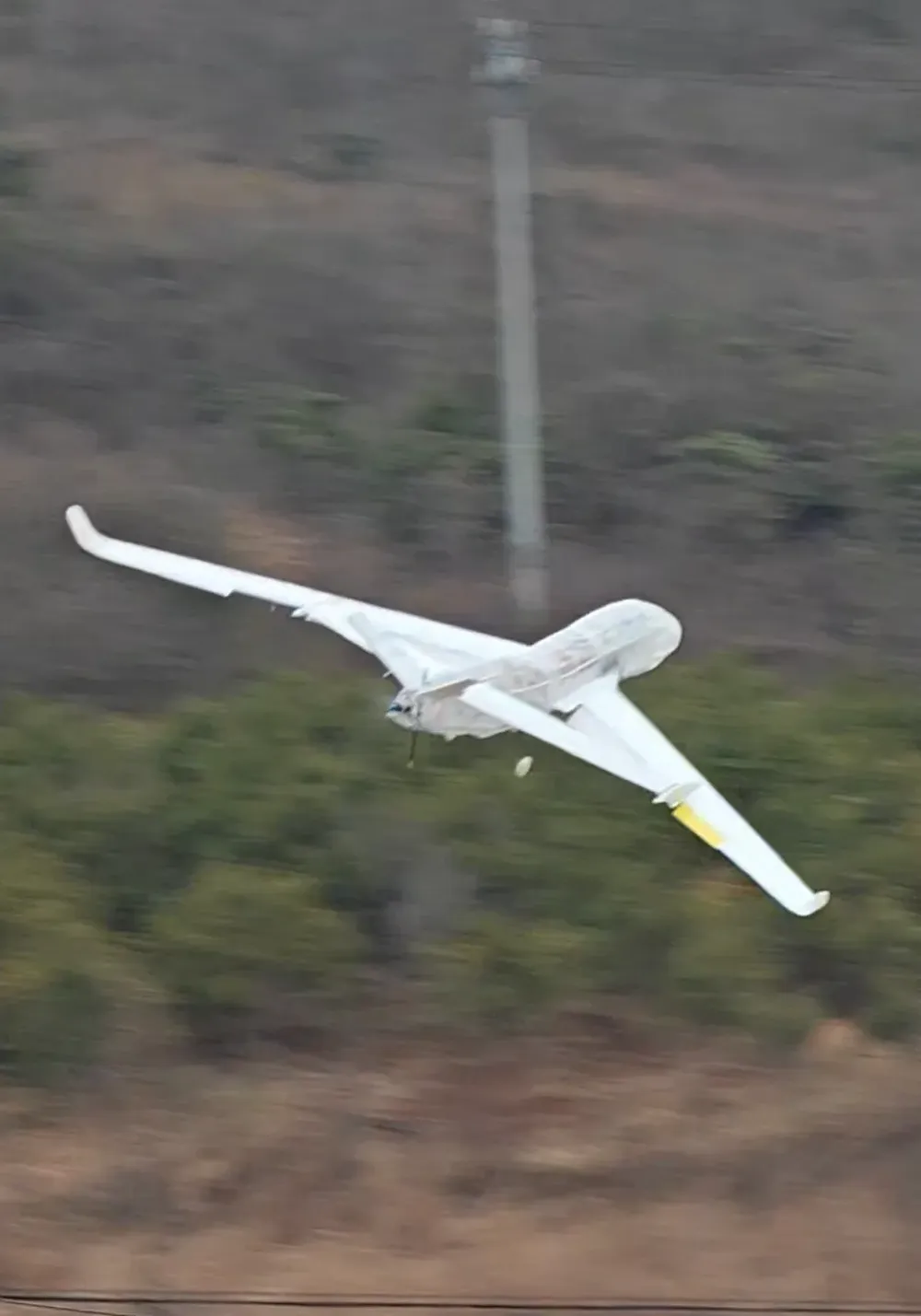

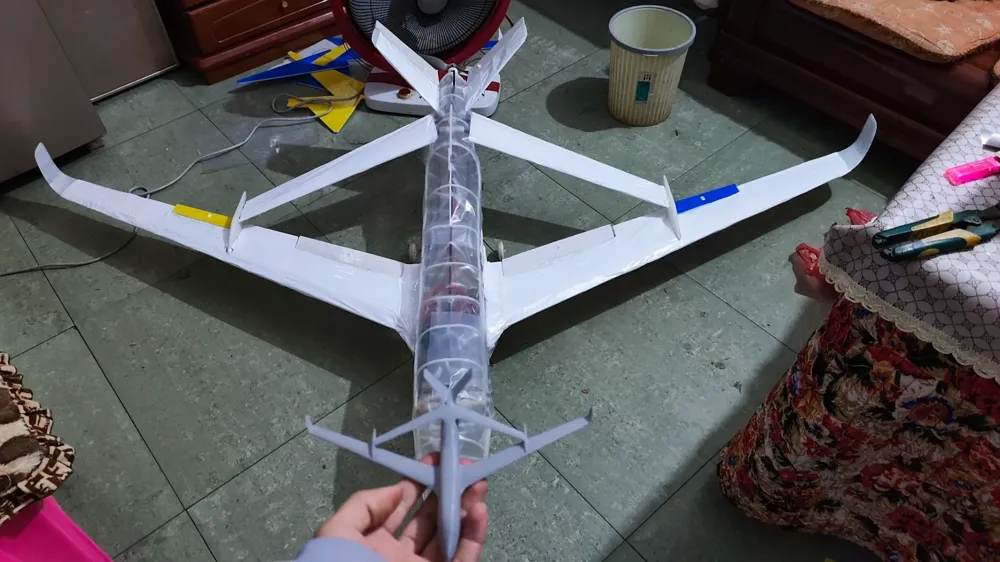

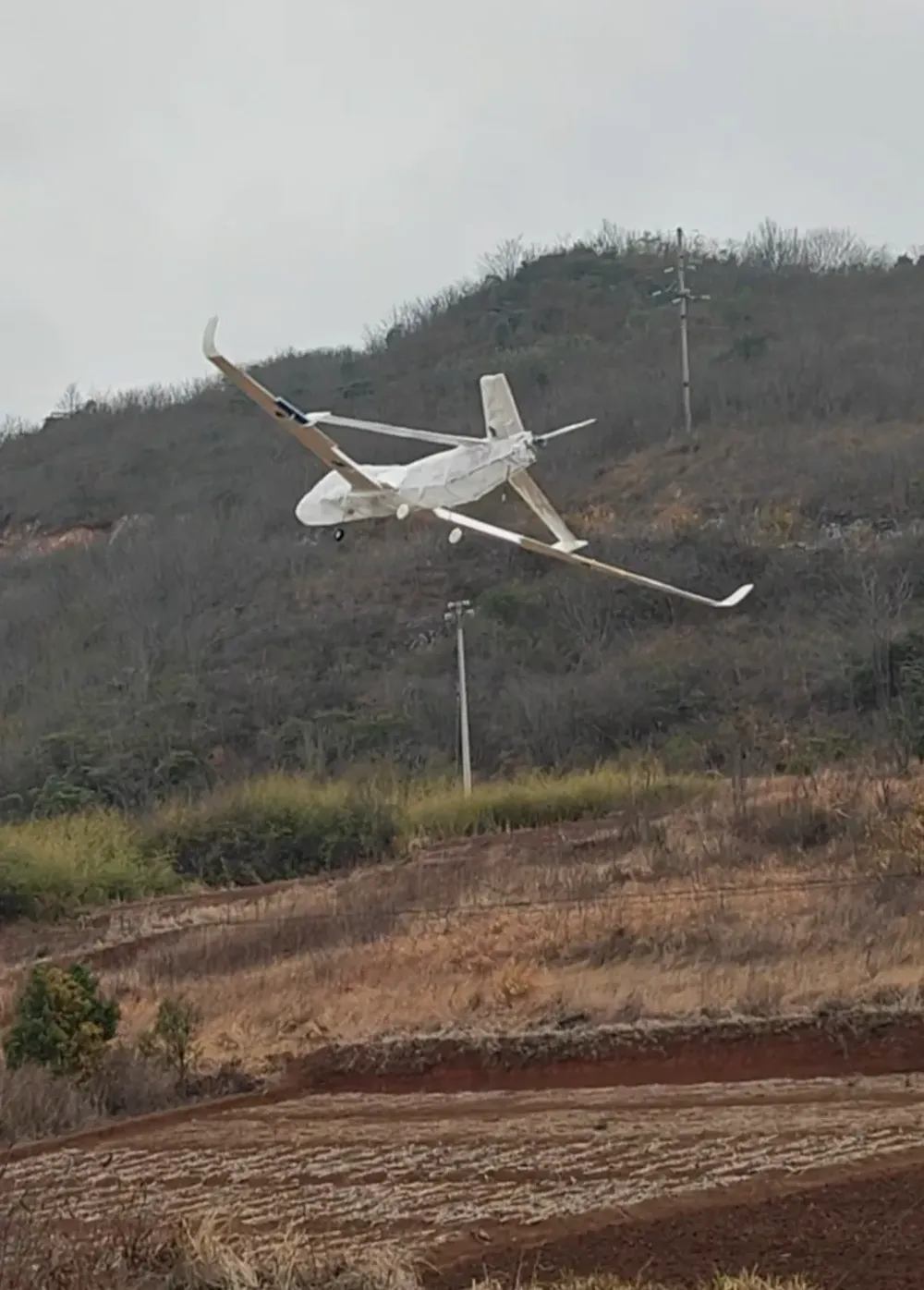

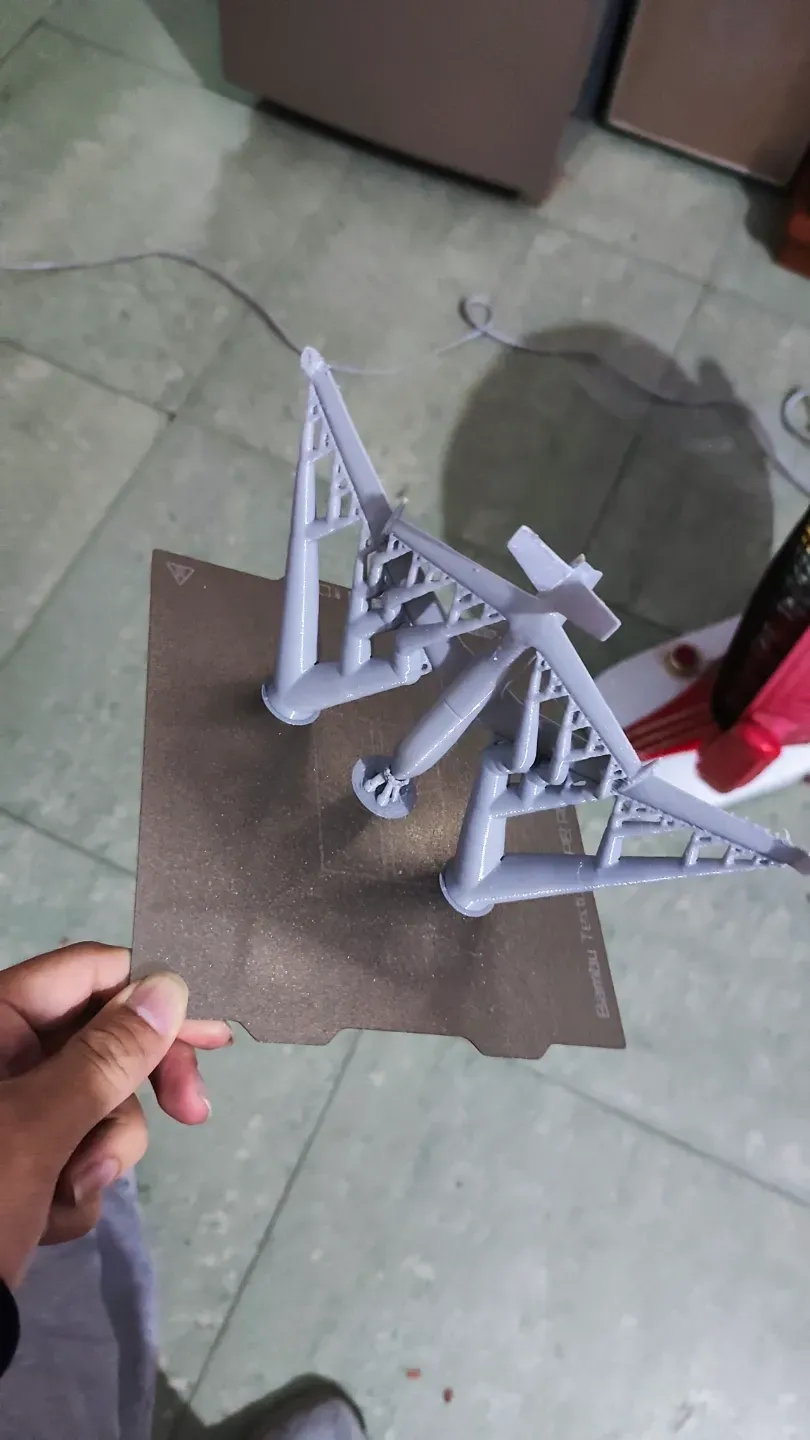

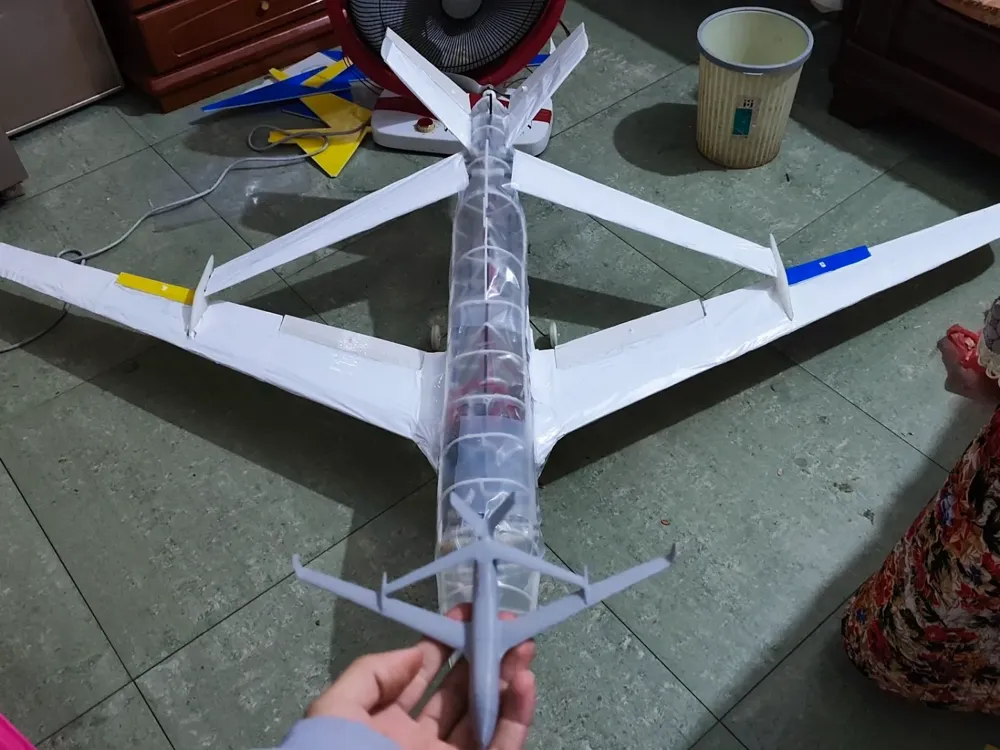

A display model and source files for the Wu Zhen 7 airframe are provided. While flight is possible, the construction process is exceptionally demanding. It's advisable to avoid attempting construction and download only the display model. Parameters are adjusted to single-wall thickness; the aircraft nose is filled at 30% to allow for hand-launched gliding (although uncontrolled spirals are highly probable).
Personal Equipment List
Langyu 1250KV 2216 brushless motor * 1,
9060 propeller * 1,
Hao Ying 50A ESC * 1,
MG90S servo * 6,
1m motor extension cable * 3,
Servo extension cables 60cm * 2, 30cm * 2, 90cm * 2
Futaba i6 transmitter, 6-channel receiver

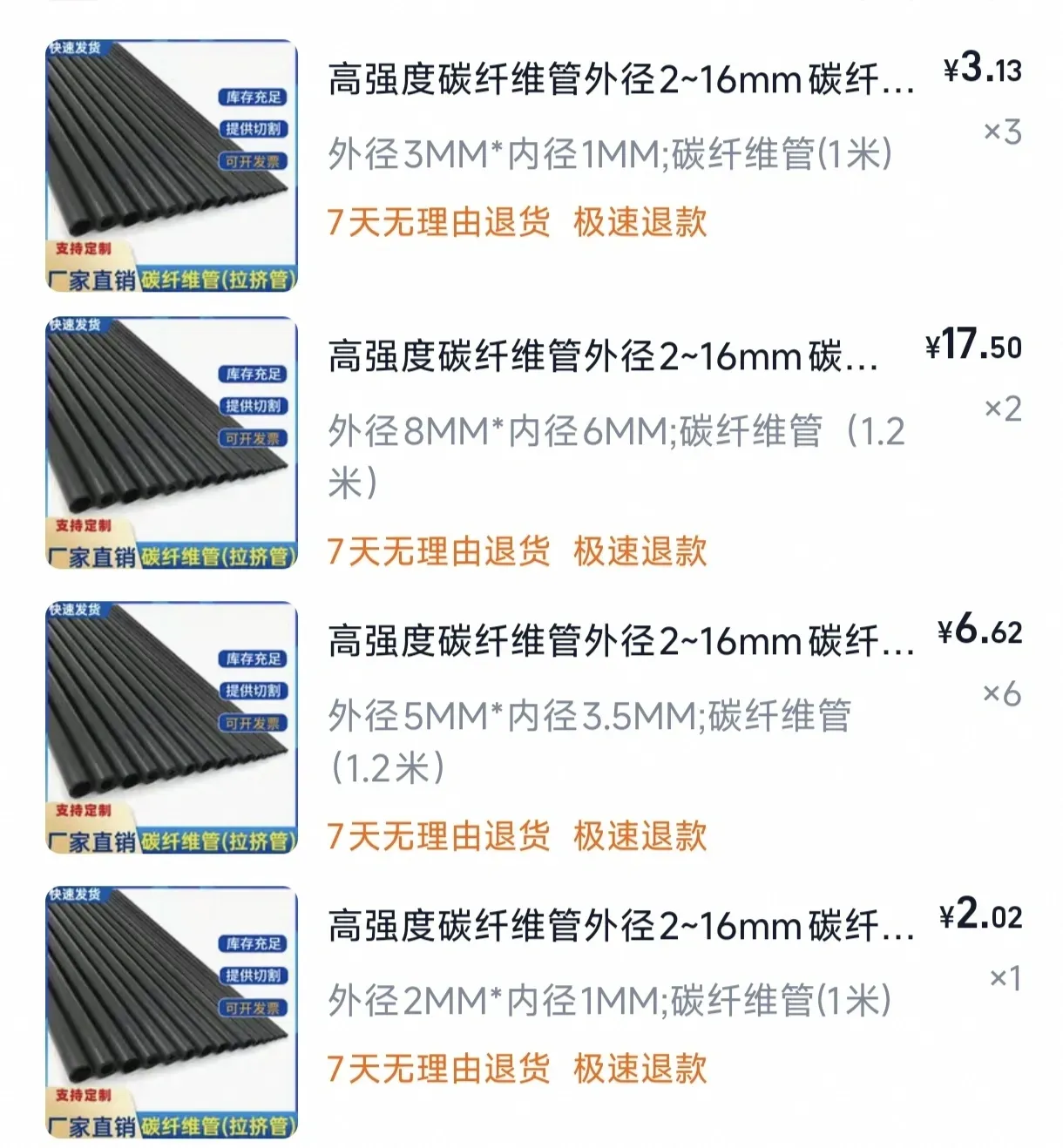

Carbon tube as shown

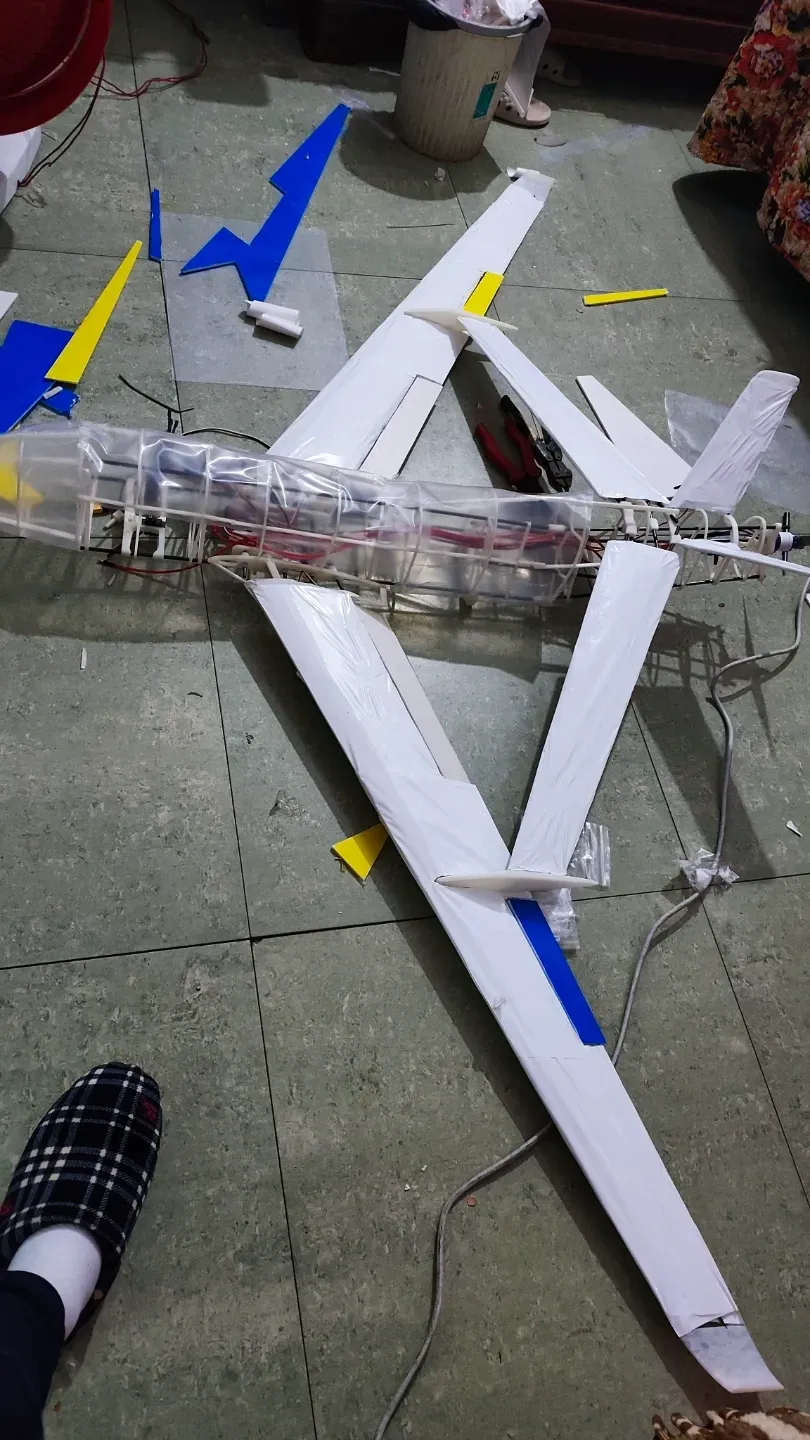

Aerospace heat-shrink tubing 60cm * 200cm
