12"(305mm) Foil & Saran Cling Wrap Organizer w Cut
Print Profile(9)
Description
Boost Me (for free)
If you found this design helpful or inspiring, please leave me a Boost! It’s a great way to show support and helps me keep creating more designs like this. Thank you so much!
Boost Me (for free)
Please Boost if you like my designs to support me! Thank you!

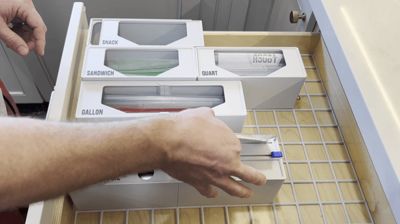

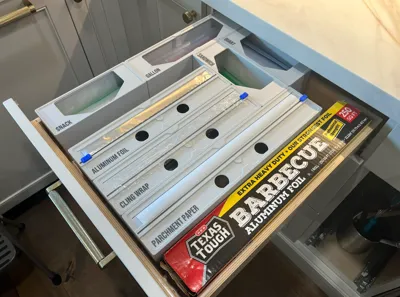

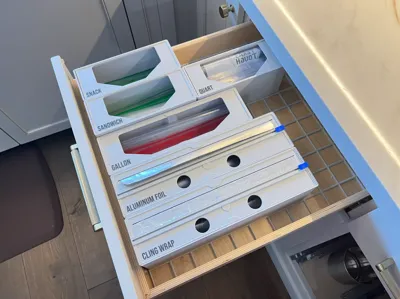

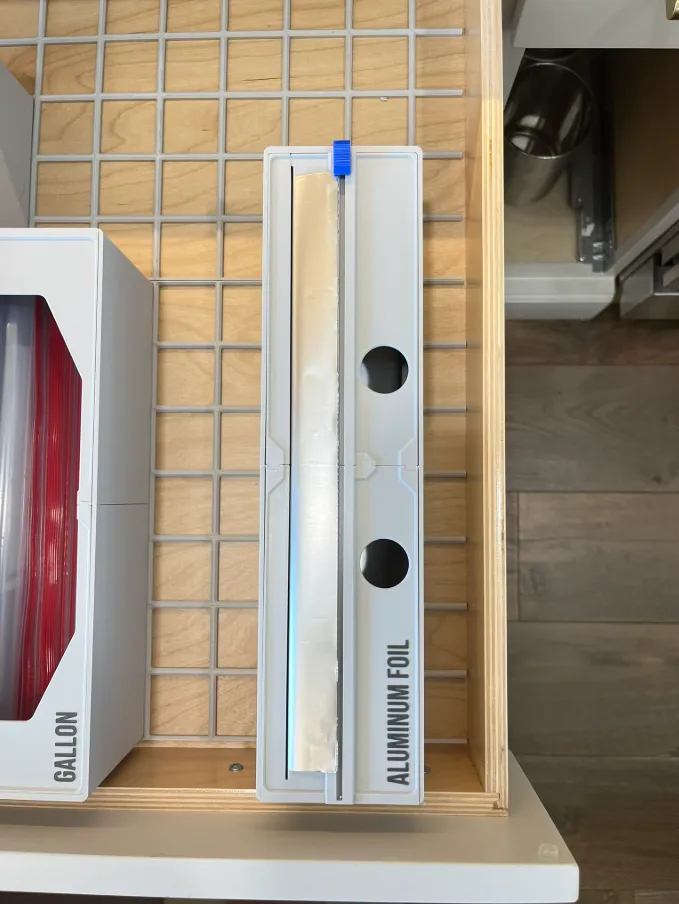

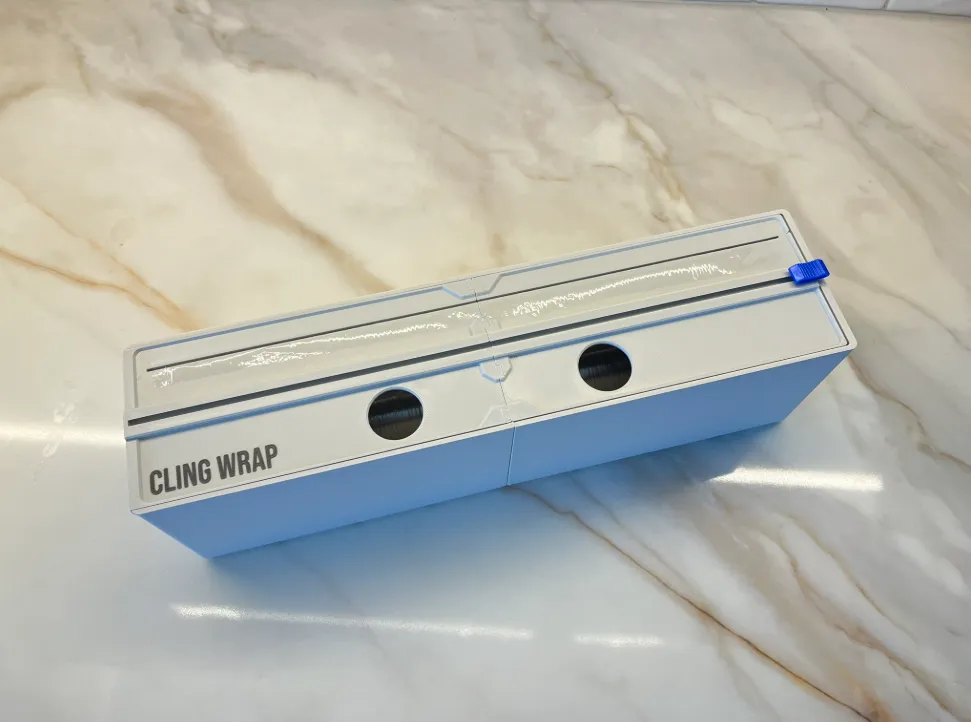

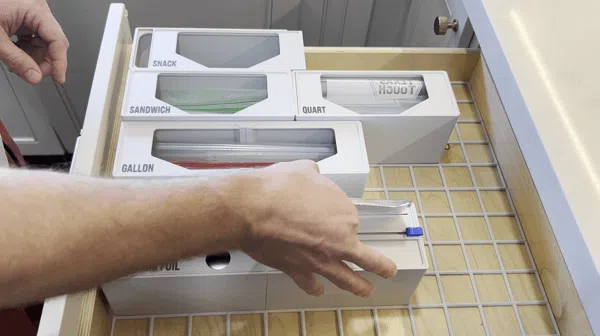

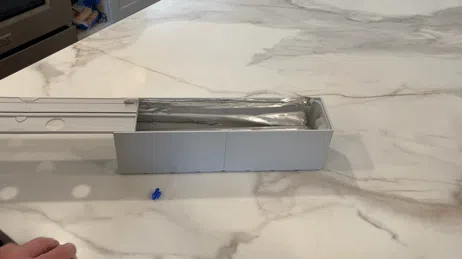

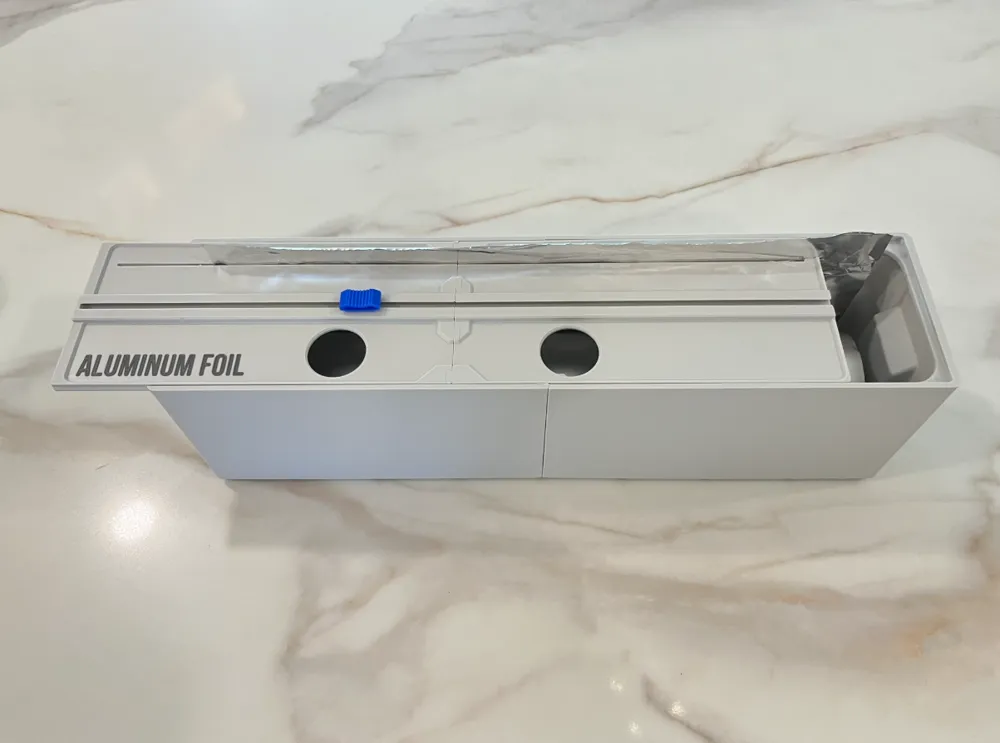

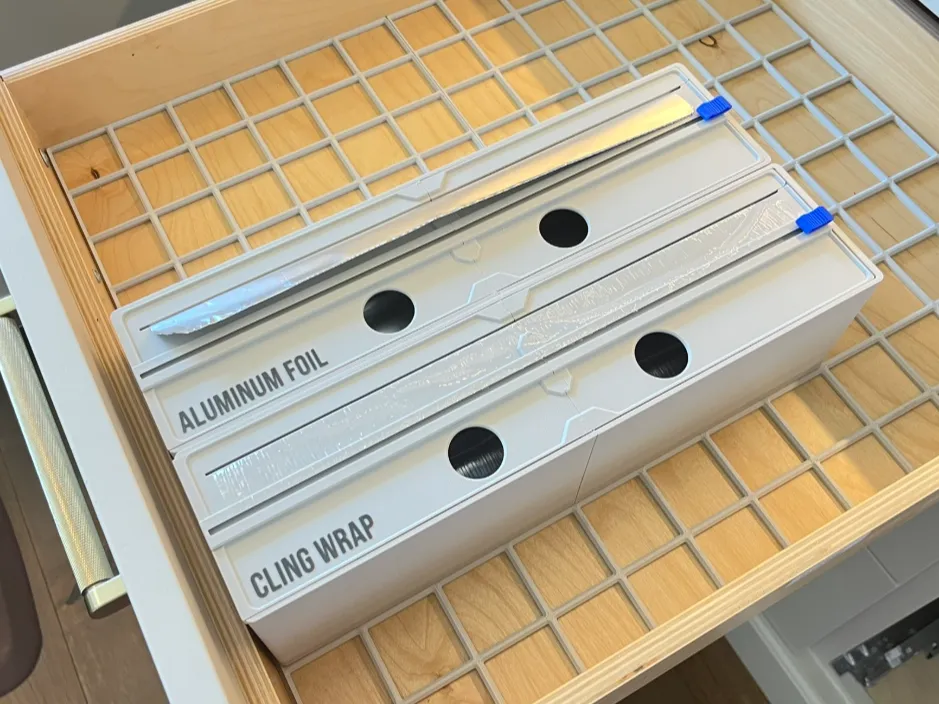

I am adding this on to my Kitchen Drawer Organization Series for Gridfinity. An elegantly designed Aluminum Foil and Cling (Saran) Wrap holder with built in cutter. This is in harmony with my other kitchen Gridfinity designs when it comes to font style and size.
You can find my other Gridfinity Organizers HERE.
Note: If you want other text than Parment Paper, feel free to ask!
*07MAR25 Update: After thinking the lid was a little flimsy, I have redesigned how the lid is retained on the base with full dovetails down each side. This is a whole new (much more secure) connection style, but therefore not retrofittable to the original style posted. Because of this, I have deleted the original print profiles.
Assembly notes:
- Every now and then a loose strand of filament may get misplaced when printing the female dovetail profile profile. Before assembling make sure the grooves are clear for an easy fit.
- The lid fit will on occasion also be a little snug for the first time. Work the parts together and back apart slowly several times for the first time and it will loosen up and fit great after that.
Design Notes:

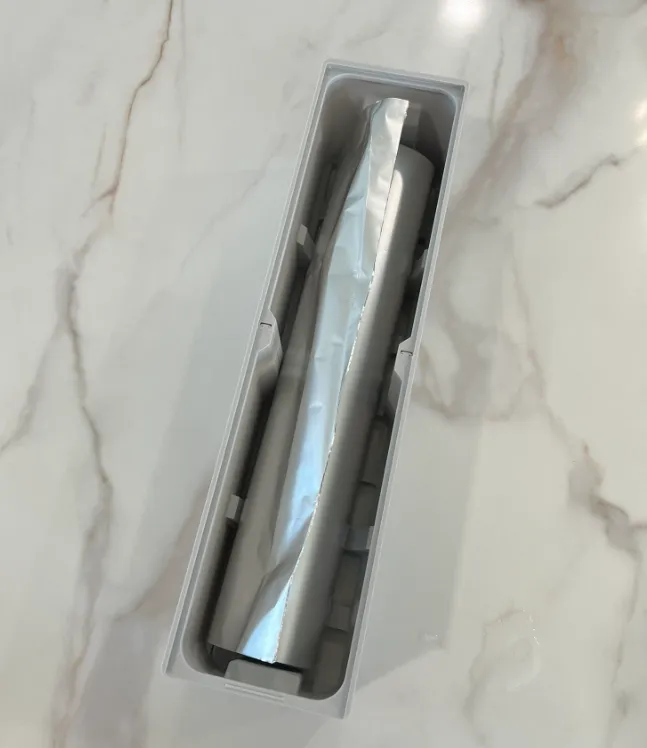

- This is for 12" (305mm) Rolls! If you need 12" or 18" Versions, check in my other Gridfinity organizers linked above.
- Uses a 8x2 Grid and stands 3.75" (95mm) tall
- *There is now a 3.5" (89mm) and 2.75" (70mm) tall version as well
- Carefully designed positive locking t-slot for a very strong, reliable connection between halves of the Base

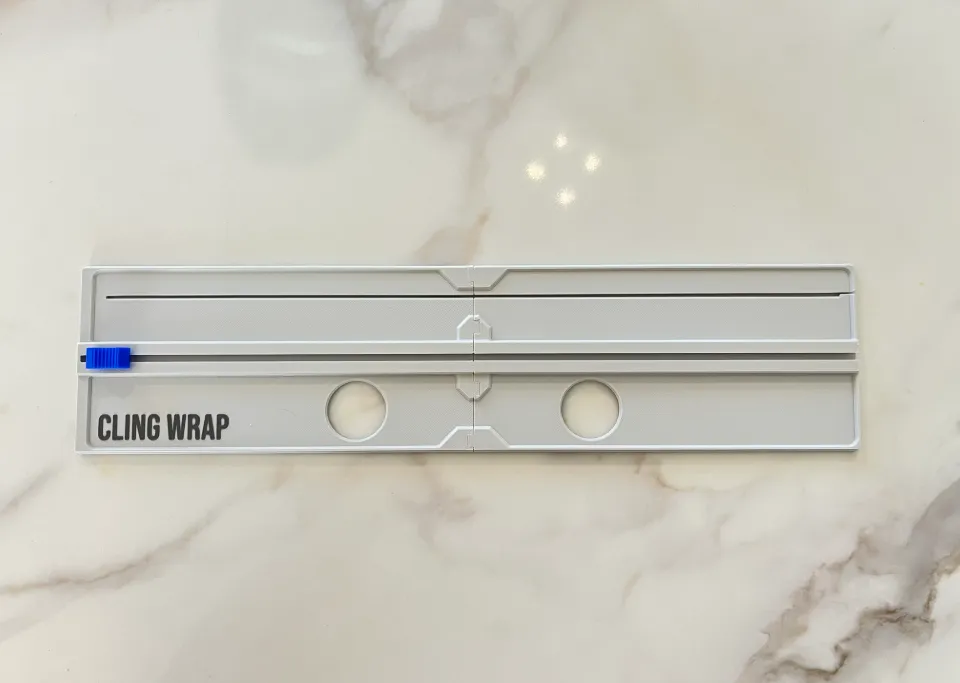

- Tapered dovetails for for a very strong, reliable connection between halves of the Lid
- Because of the taper, if you are struggling to put them together, try switching the direction you are assembling them!

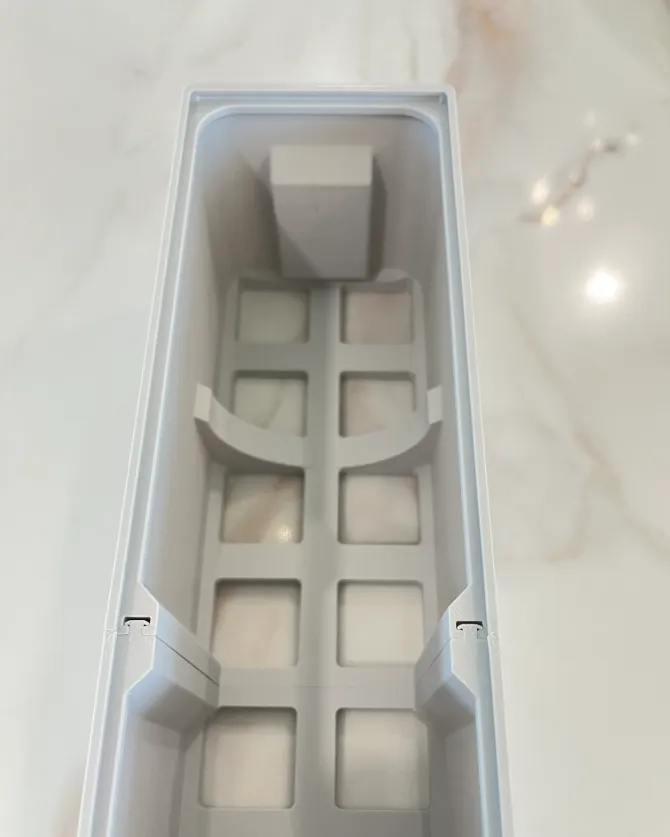

- Hollowed gridfinity to save on filament
- Cutters I used (you can order the shortest ones to save money since only the cutter is needed): https://www.amazon.com/dp/B09YNMF9FT?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1
