Rainwater Diverter for Downspout

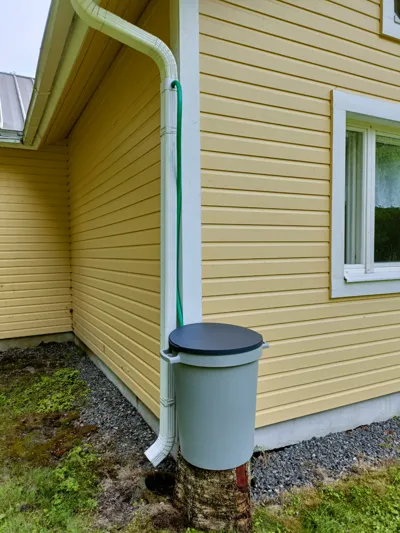

Why let free eco-friendly water go to waste? This diverter is used to redirect rainwater from a downspout into an alternative location or container. Multiple models designed to fit a rectangular downspouts with dimensions of:

• 100 × 75 mm (≈ 4" × 3") [2 versions: pipe on shorter and wider side]
• 80 × 55 mm (≈ 3 1/8" × 2 1/8")
• 80 x 60 mm (≈ 3 1/8" x ≈ 2 3/8")
• 75 × 50 mm (≈ 3" × 2")
• 80 x 80 mm w/ sharp corners (≈ 3 1/8" x ≈ 3 1/8")
• 110 x 70 (≈ 4 5/16" x ≈ 2 3/4")

  Also available as a round version here!

The diverter features a 20 mm hose connection, which allows for easy attachment of a hose or tubing. To ensure a secure connection, a hose clamp or clamp collar can be used to tighten and secure the hose onto the diverter.

A simple filter prevents leaves from sneaking and clogging the hose. Pro tip: Clean it regularly—unless you want your downspout to become a leaf storage unit.

In case of heavy rainfall, if the hose becomes clogged, or if the barrel / container gets full, the diverter is designed to allow water to flow through the downspout as a backup. This ensures that water can still be safely directed away from the downspout and prevents any potential overflow or water damage.

I've been using PLA for months in a shaded area with no issues. However, PETG, ASA, or ABS are recommended for outdoor and sunny conditions for better long-term durability.

• Harvest free rainwater straight from the sky
• 20 mm hose connection
• Built-in filter keeps leaves and debris out
• Backup system prevents overflow

March 3, 2025:

• First release

May 22, 2025

• New version added with a downward-facing pipe outlet to accommodate more flexible hoses without kinking or blocking water flow.

June 6, 2025

• Added new models for additional downspout sizes:
  • 80 × 55 mm (≈ 3 1/8" × 2 1/8")
  • 75 × 50 mm (≈ 3" × 2")

Sebtember 15, 2025

• Added 80 x 80 mm (≈ 3 1/8" x ≈ 3 1/8") size with sharp corners

Sebtember 16, 2025

• Added 110 x 70 (≈ 4 5/16" x ≈ 2 3/4") size

November 11, 2025

• Added 100 × 75 mm (≈ 4" × 3") size where pipe is located on wider side

April 13, 2026

• Added new closed bottom models for downspout size:
  • 80 × 55 mm (≈ 3 1/8" × 2 1/8")

May 28, 2026

• Added 80 x 60 mm (≈ 3 1/8" x ≈ 2 3/8")

Check my other household items here!

Your feedback and ratings are incredibly valuable and help refine future designs. Thank you! 💧
