1-to-2 extraction system with 2 blast gates, ceiling mount
Print Profile(3)
Description
Extraction system part 6 (I am gradually making all components of my extraction system available):

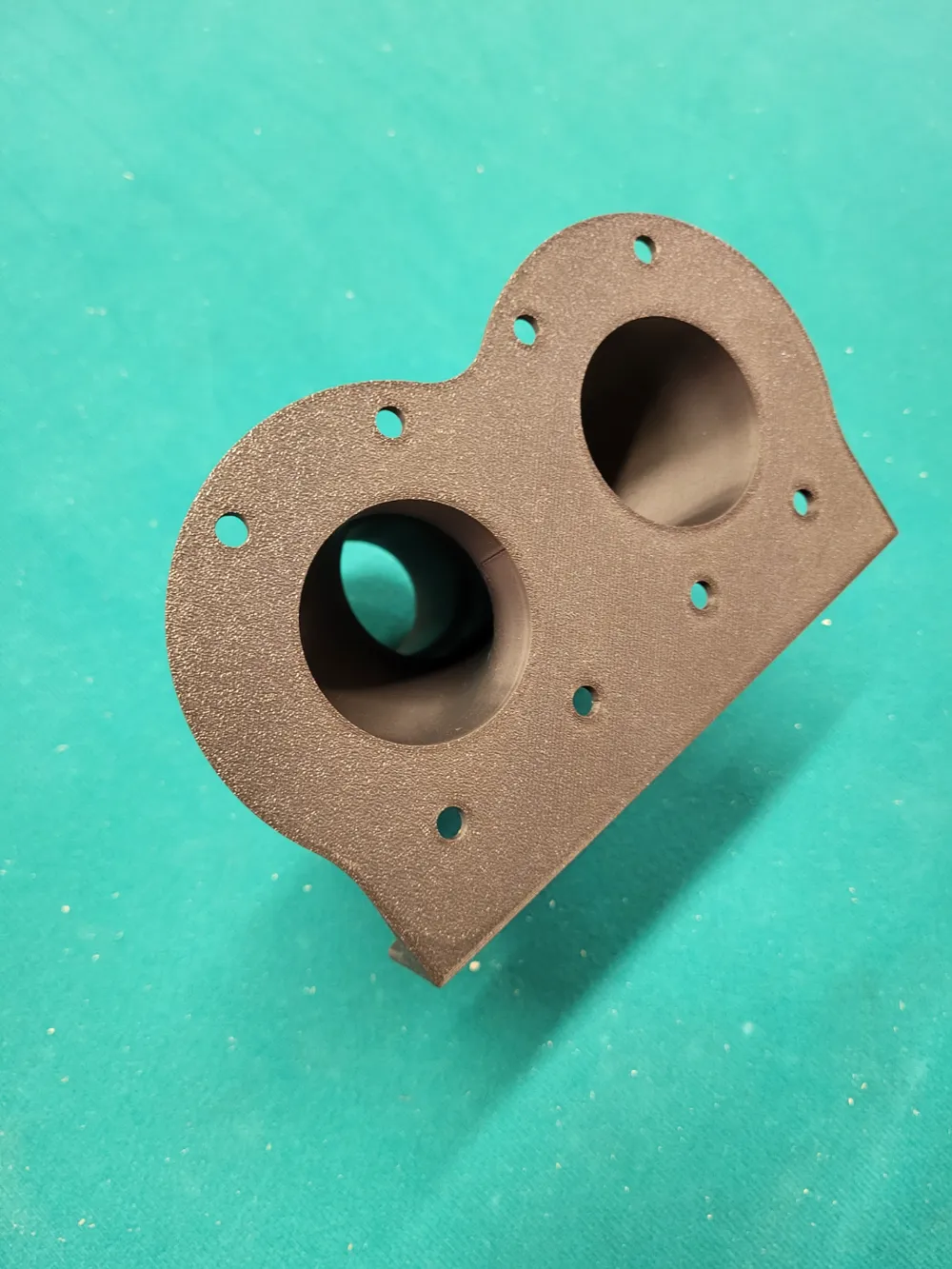

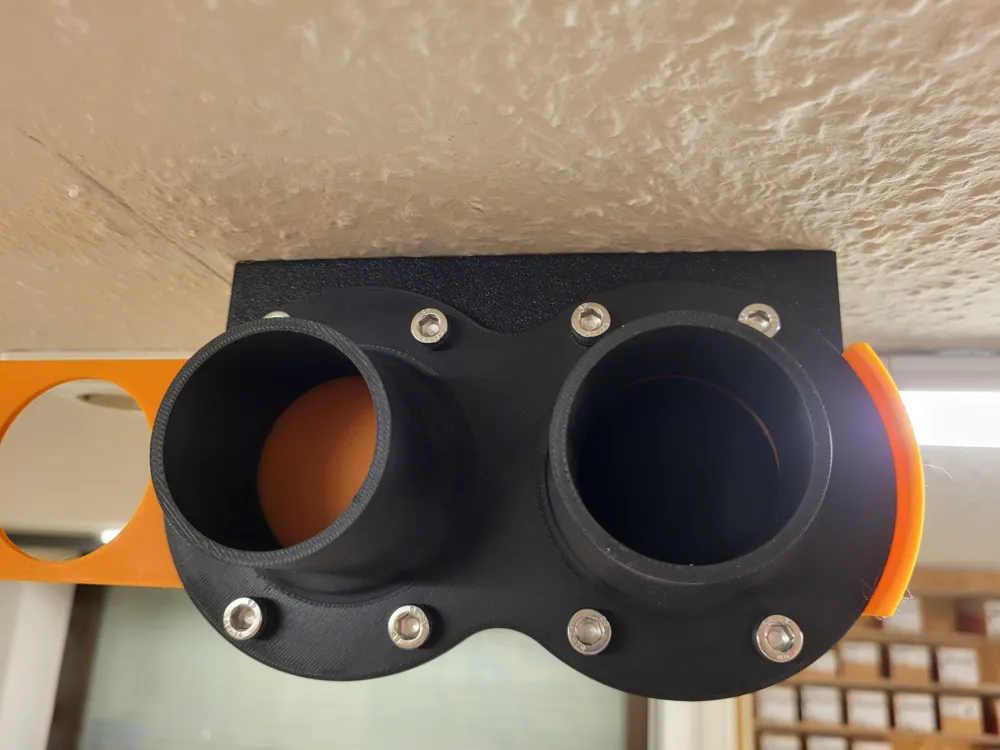

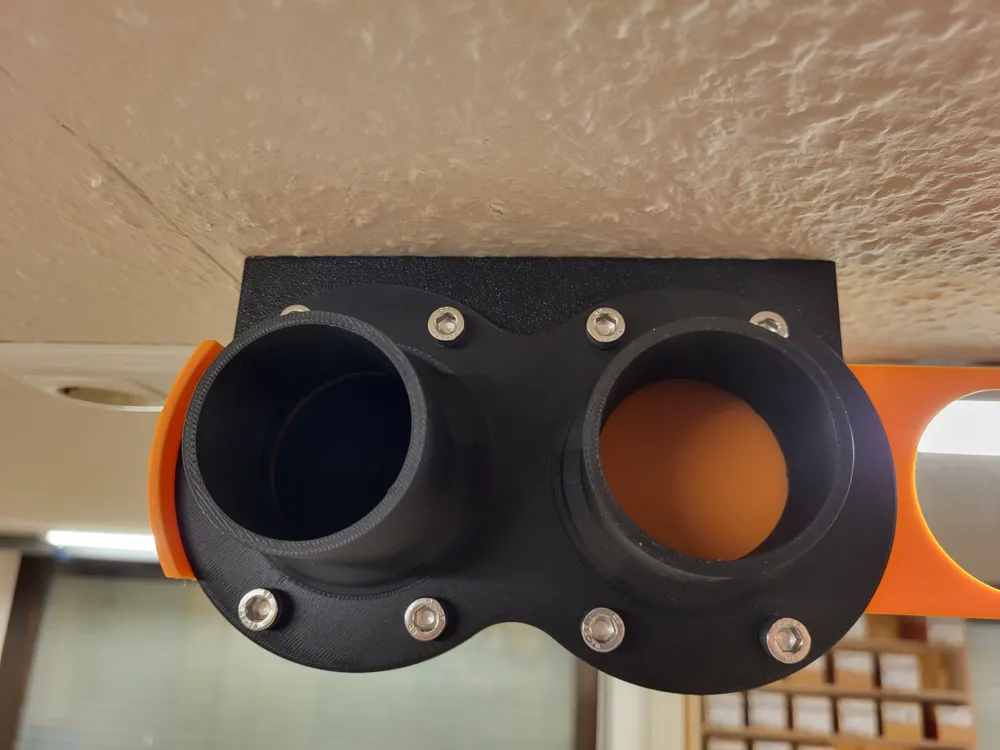

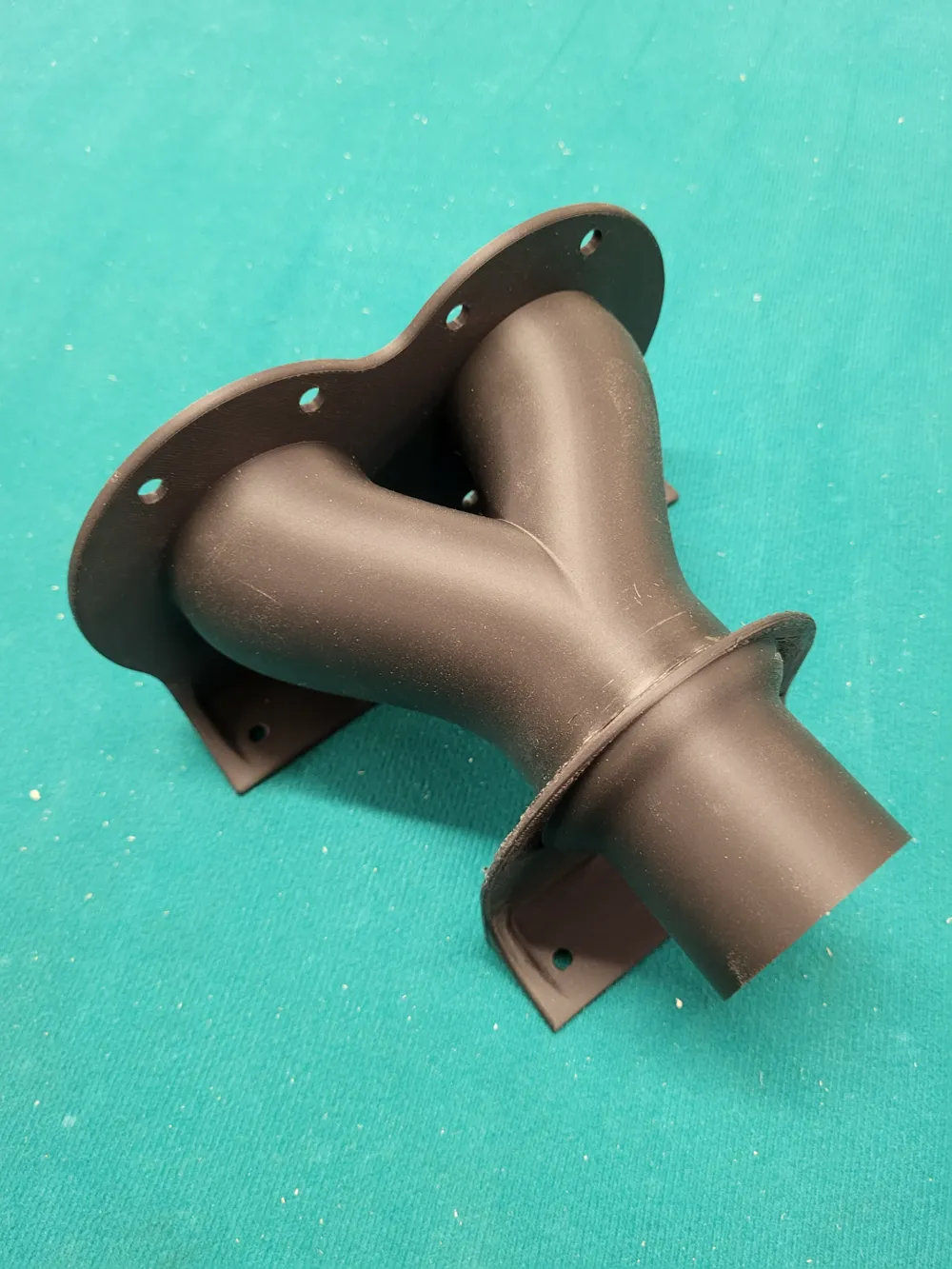

Unlike part 5 of my extraction system, part 6 is intended/suitable for ceiling mounting as it has two mounting flanges. The rest is almost identical.

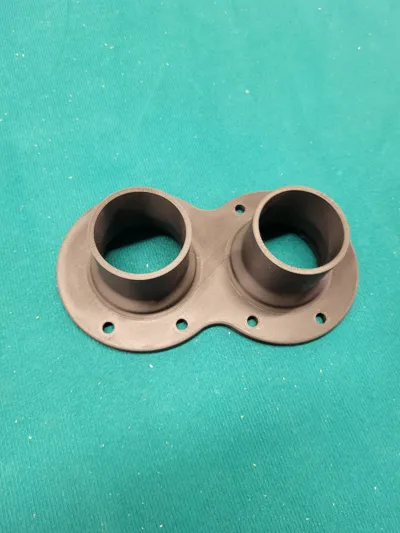

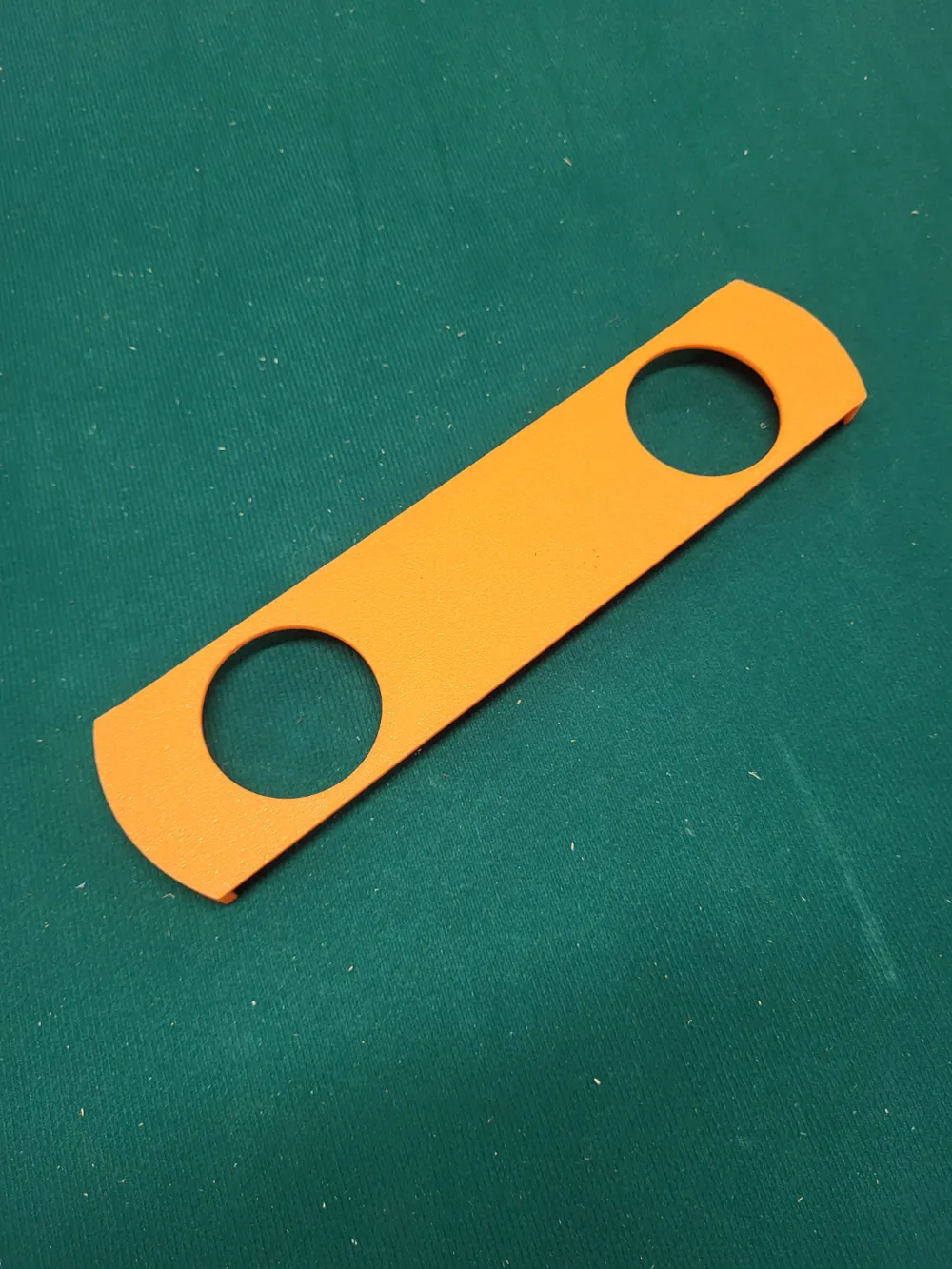

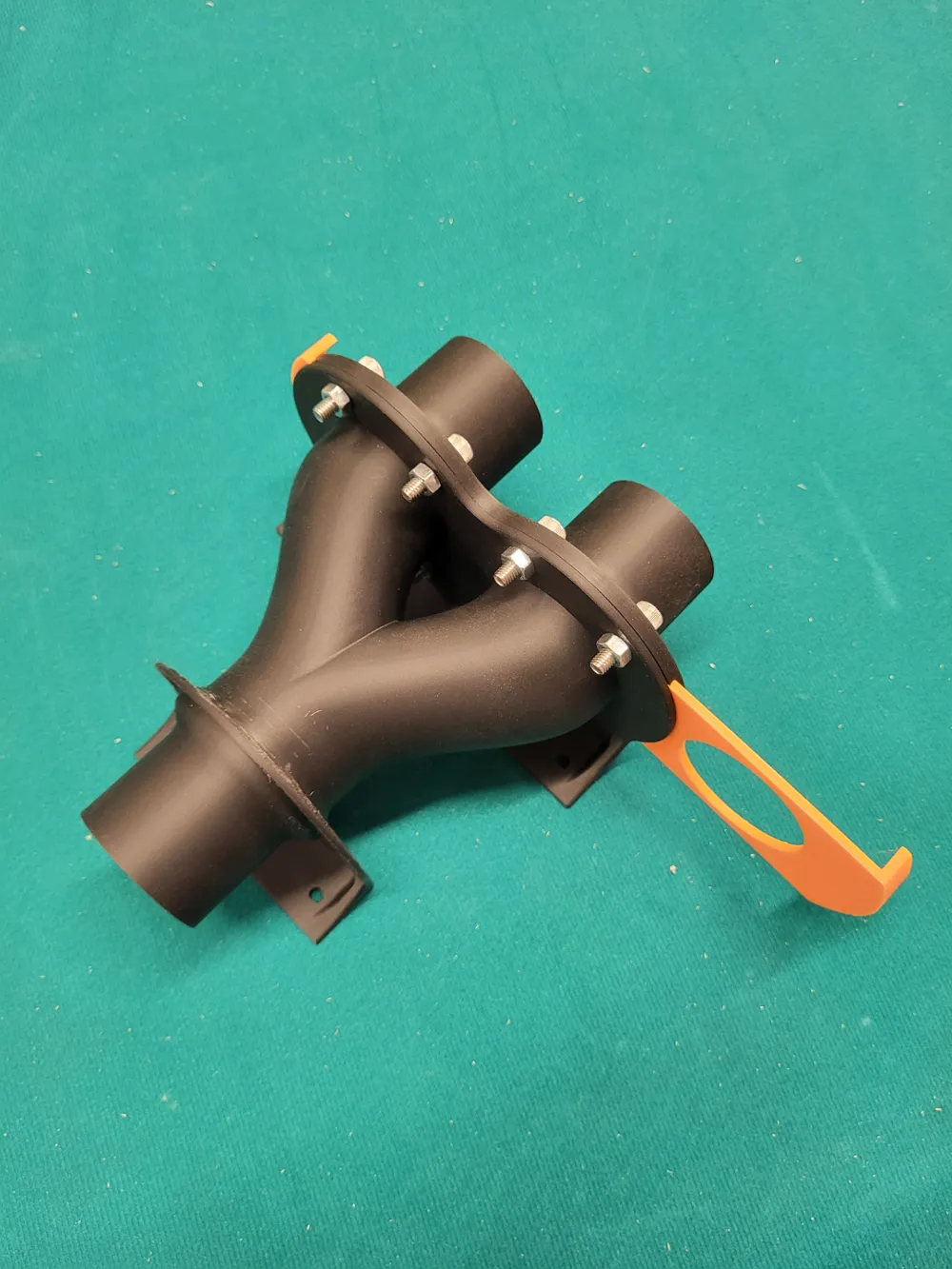

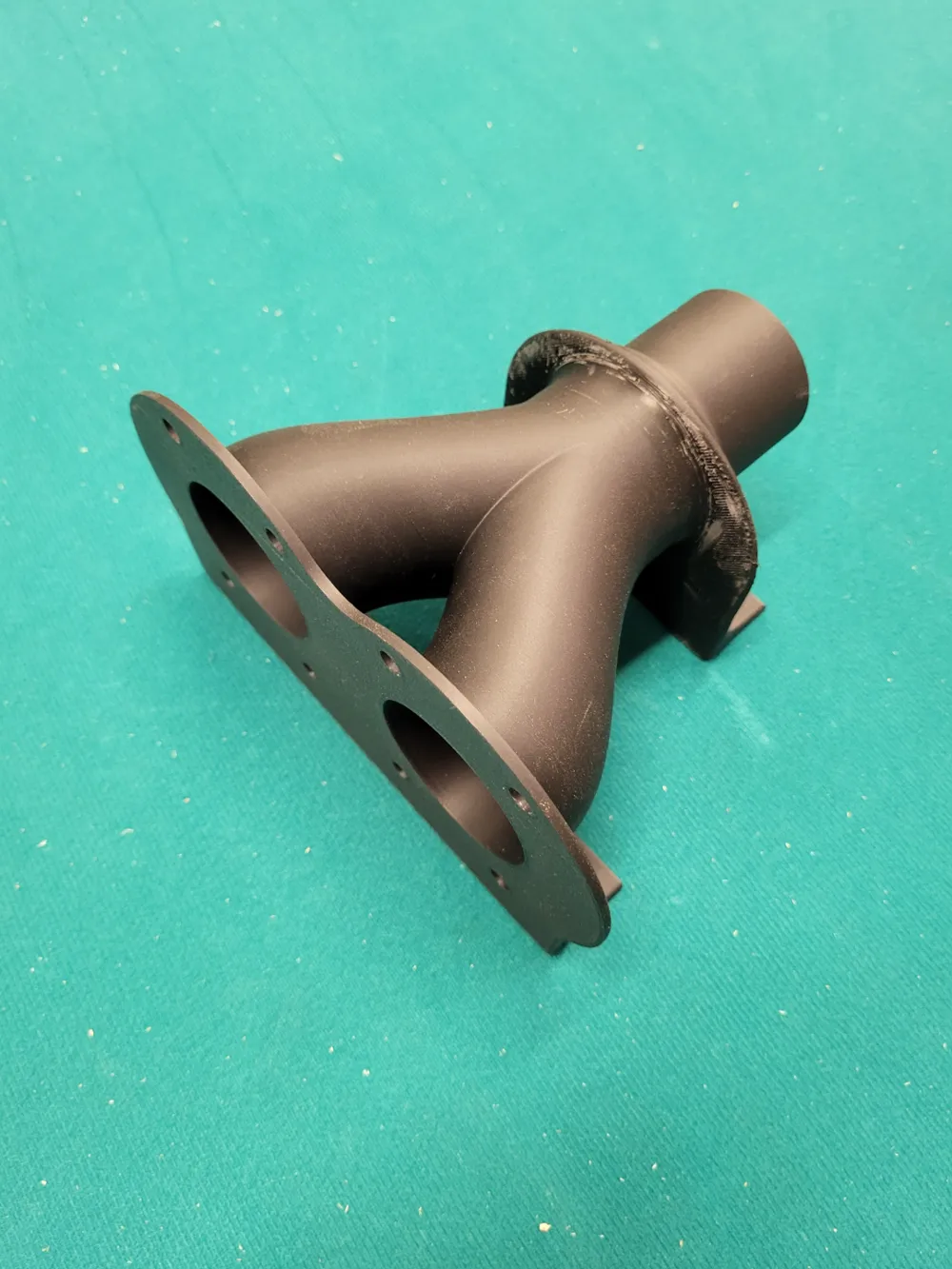

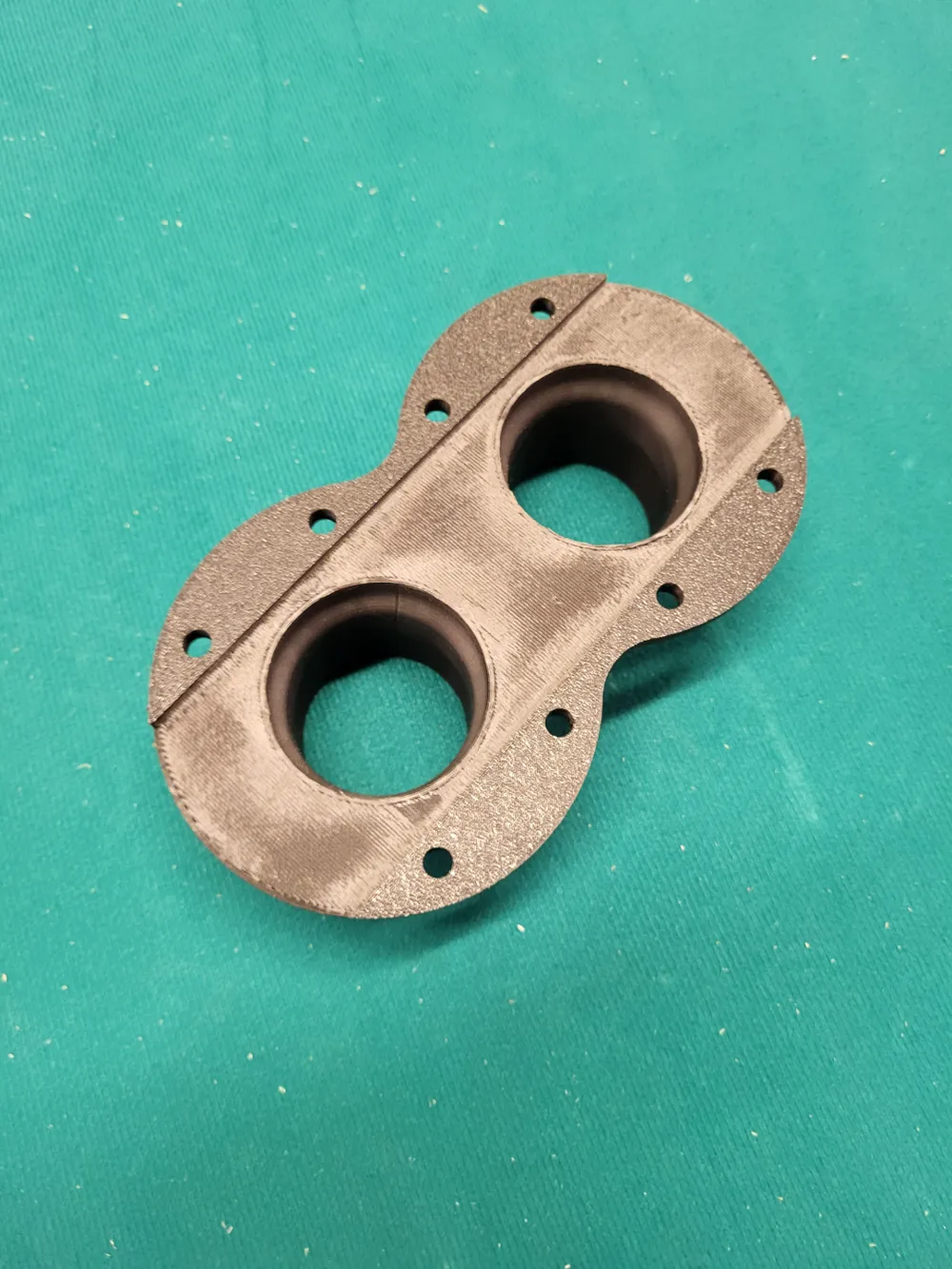

The distributor serves to combine two blast gates in one component. There is one inlet and two outlets, each with a slider. The flange of the connection side with the two outlets is fixed with 6mm screws, as well as corresponding washers and nuts.

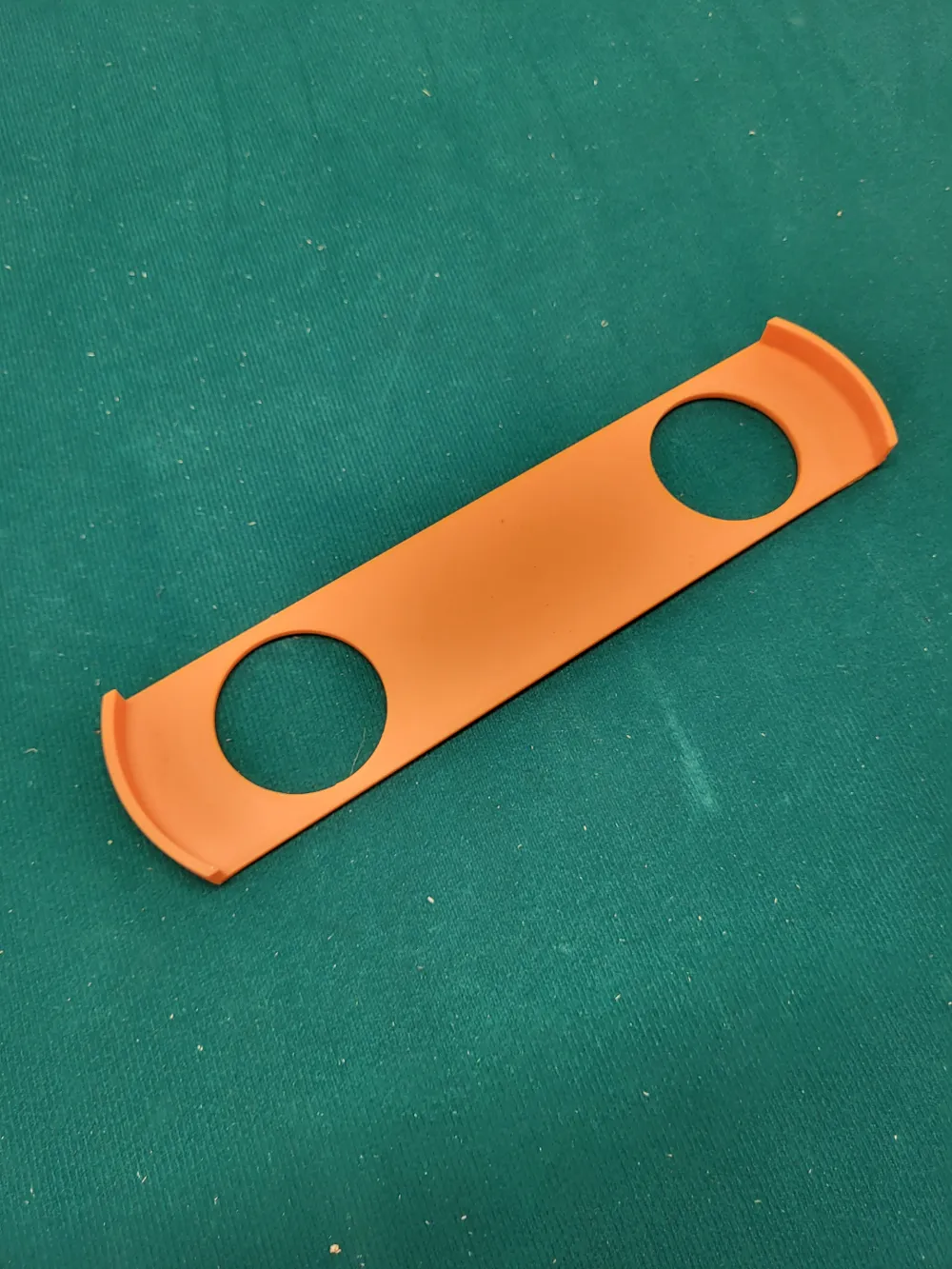

Analogous to my simple blast gate, the depth of the groove is designed so that the sliders have sufficient friction when the screws/nuts are hand-tightened and do not shift on their own due to vibrations.

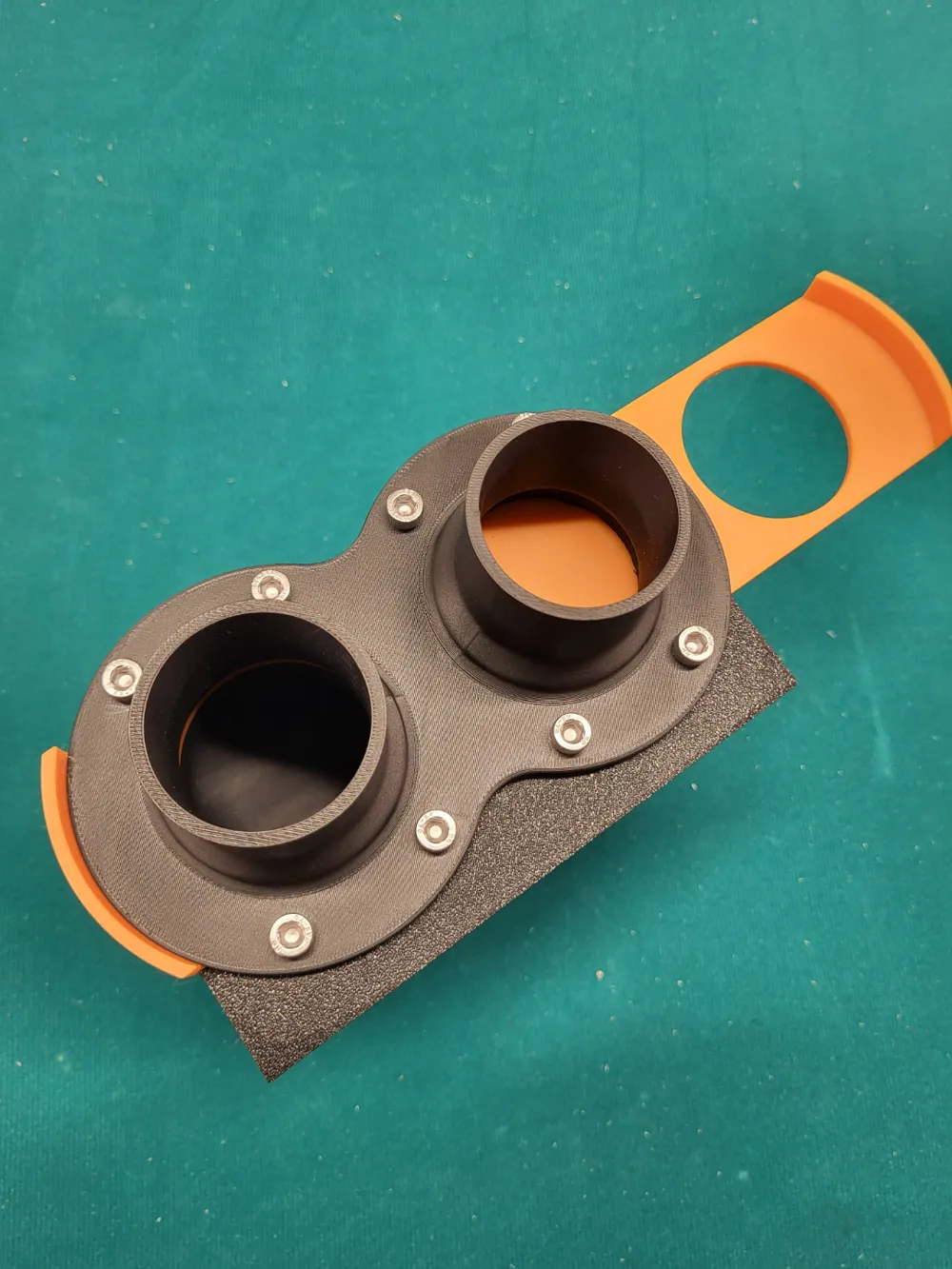

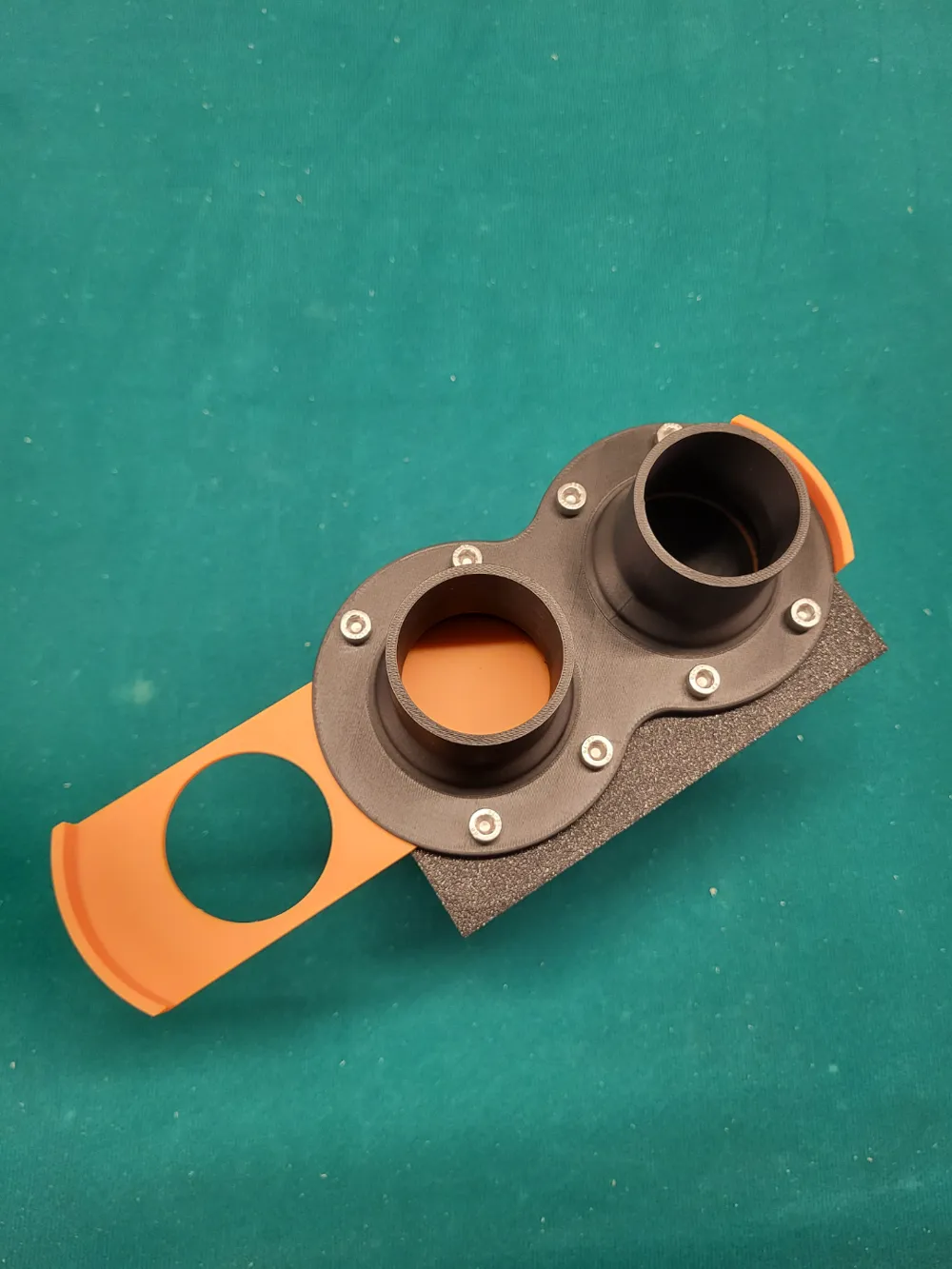

As shown in the images, only one outlet can be opened at a time with this distributor, or one outlet is always open with this distributor.

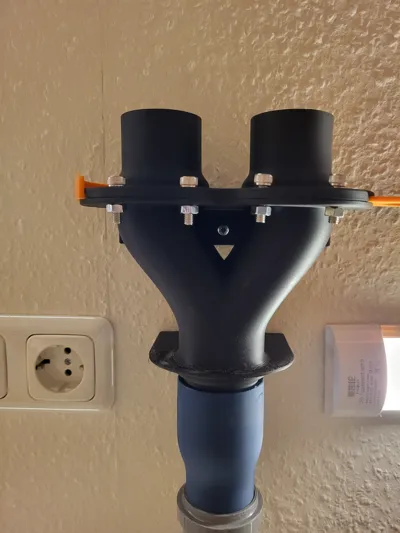

The component has a 50mm diameter at the connections, so that 50mm HT pipes or flexible extraction hoses (as shown in the images) can be attached to the ends. The component is arbitrarily fixed using two screws.

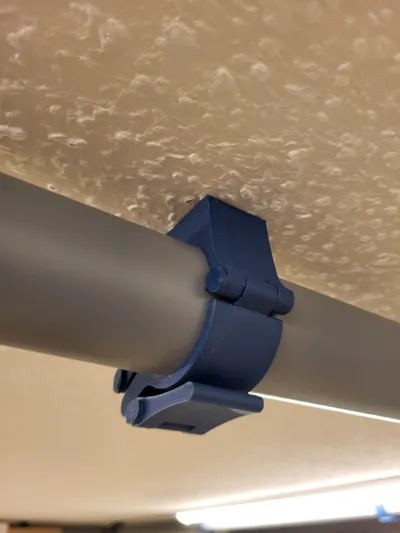

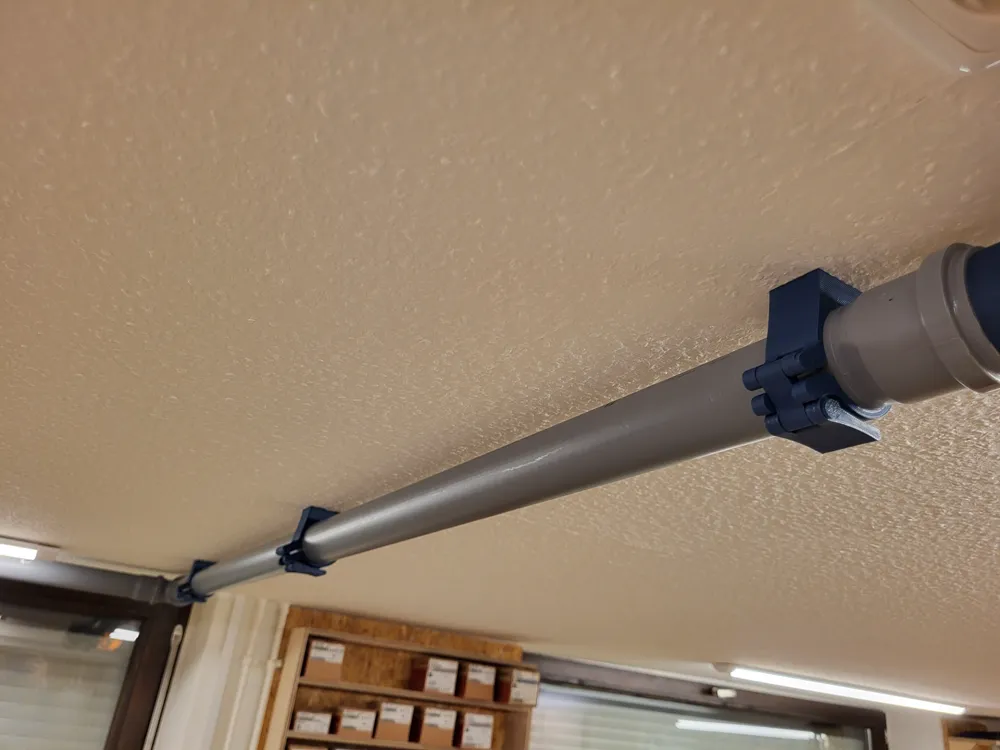

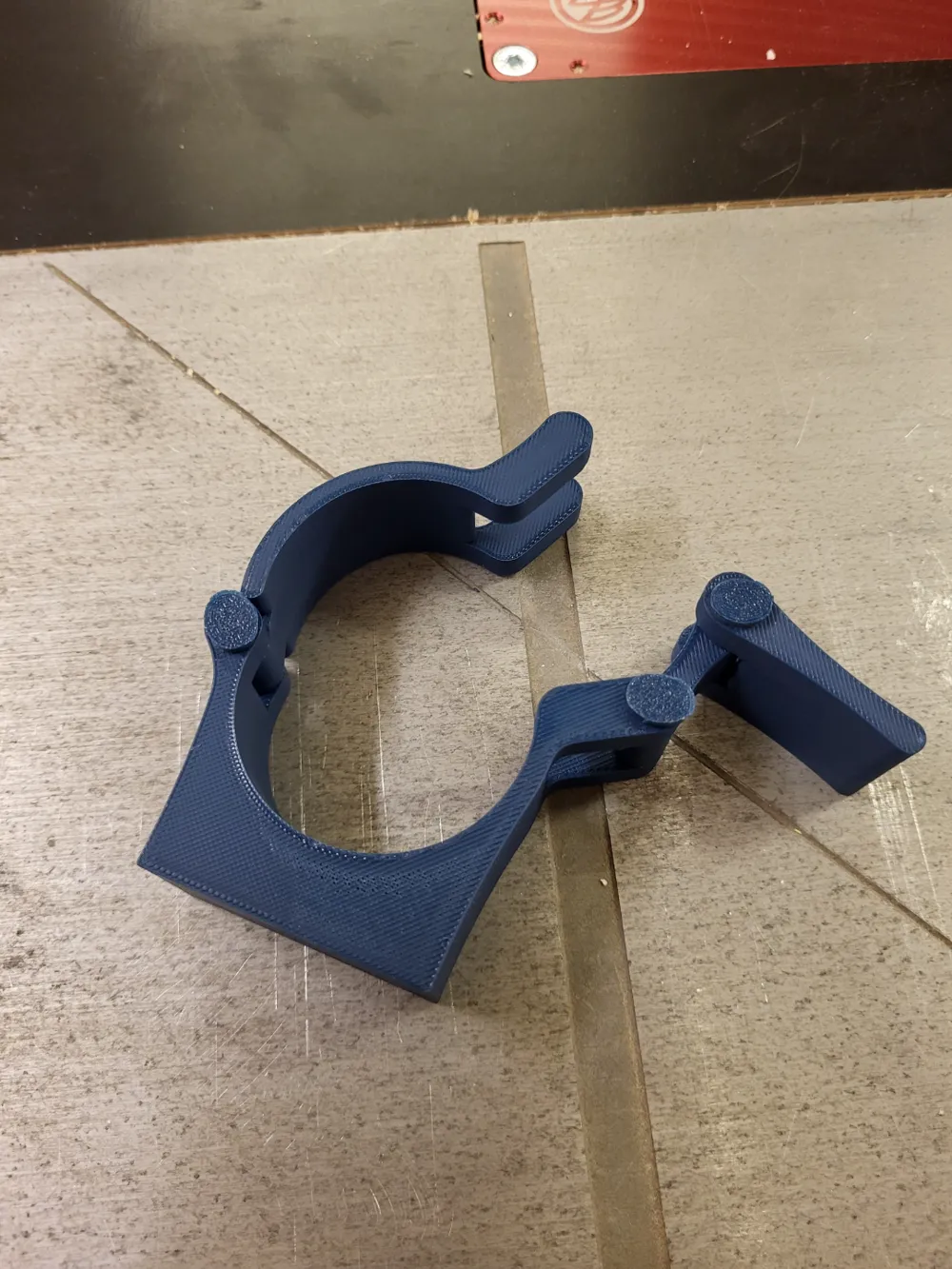

The holders for 50mm HT pipes also shown in the images are from @Super_Laserkatz.
