120mm Fan Adapter for HT Pipe DN100
Print Profile(1)
Description

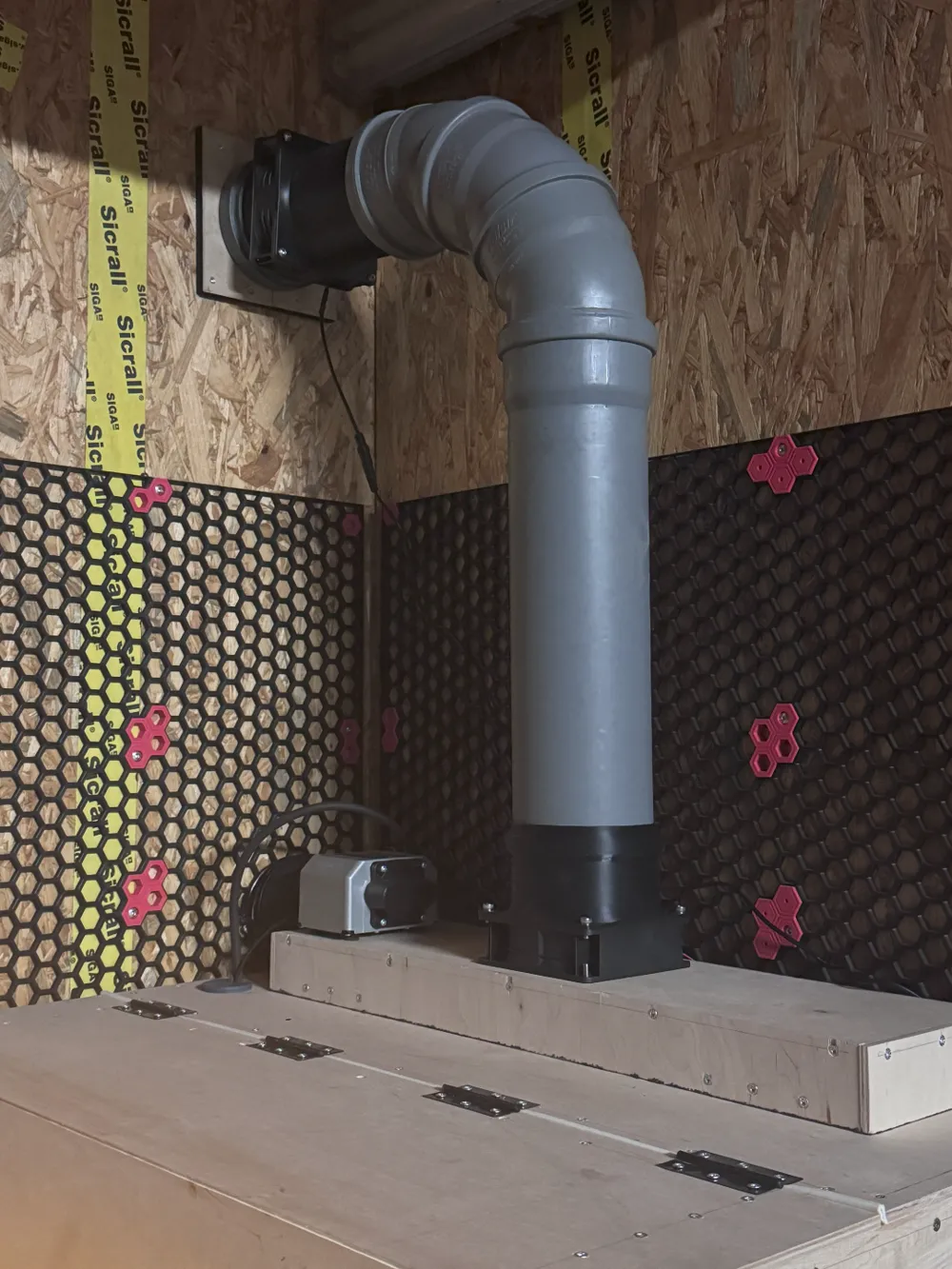

An extraction system was necessary for my laser enclosure. Since I wanted to use readily available 120mm fans I already had on hand, I needed suitable adapters for a pipe system. My choice fell on existing DN100 HT pipe.

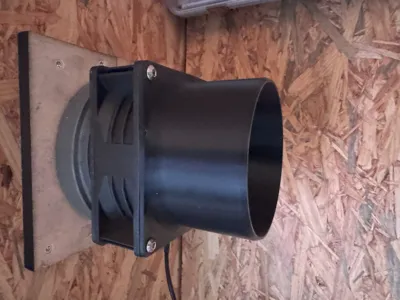

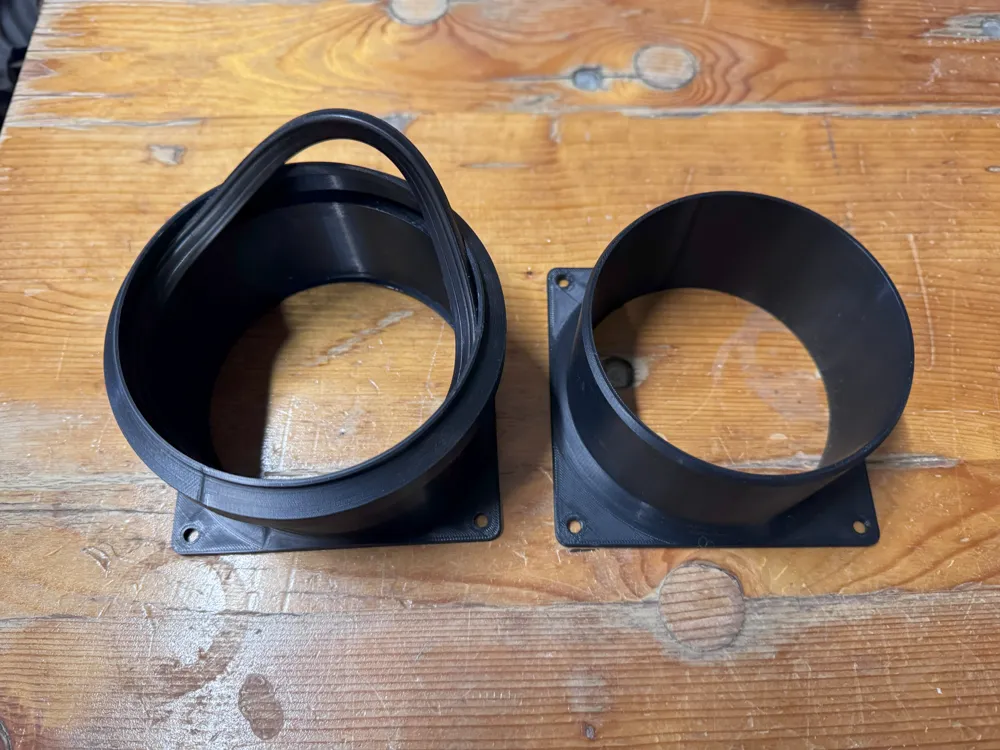

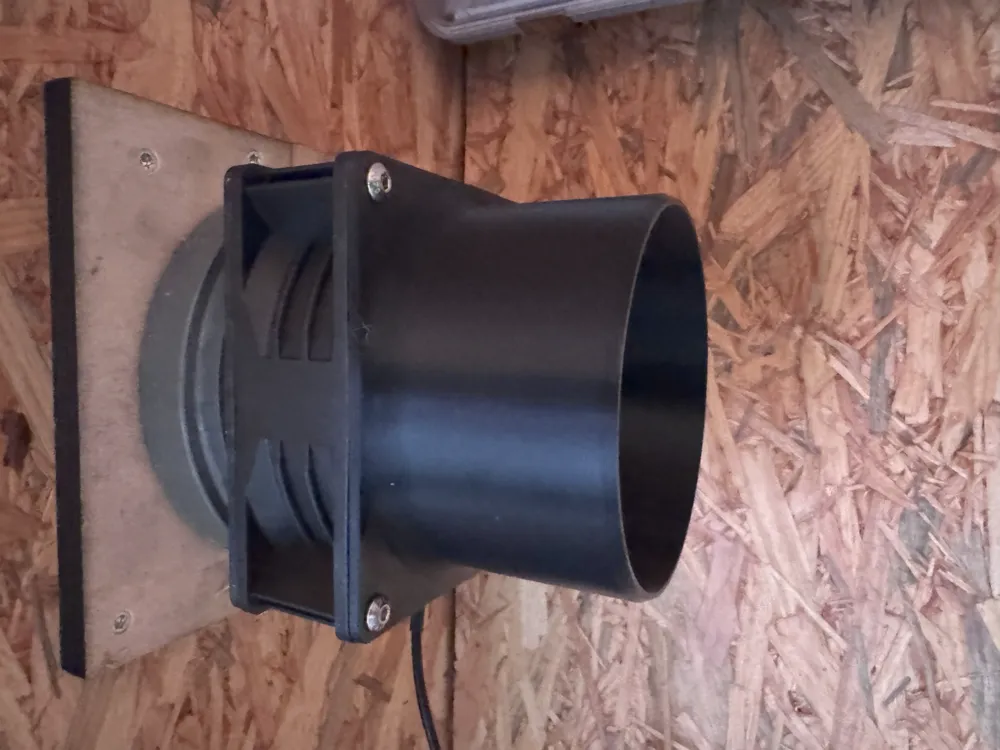

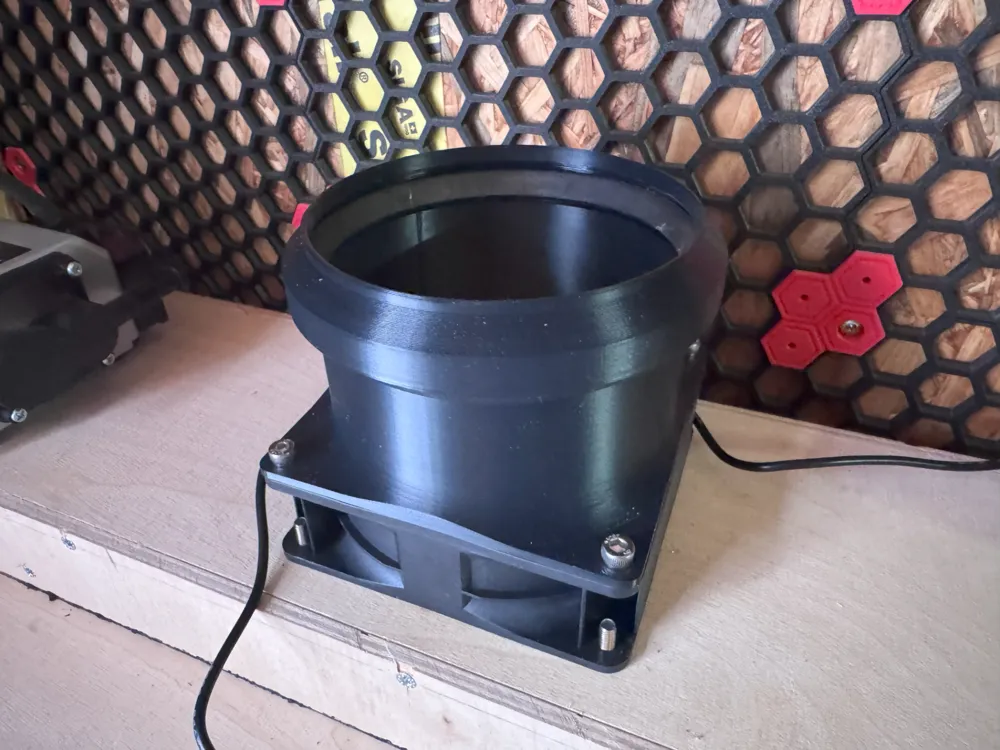

I designed a matching coupling and a fitting to accommodate a 120mm fan. An HT sealing ring DN100 is inserted into the coupling to seal the entire assembly. The sealing rings and pipe system are available at any hardware store and are standardized.
The STEP files are also available for download. Printed with ABS.
