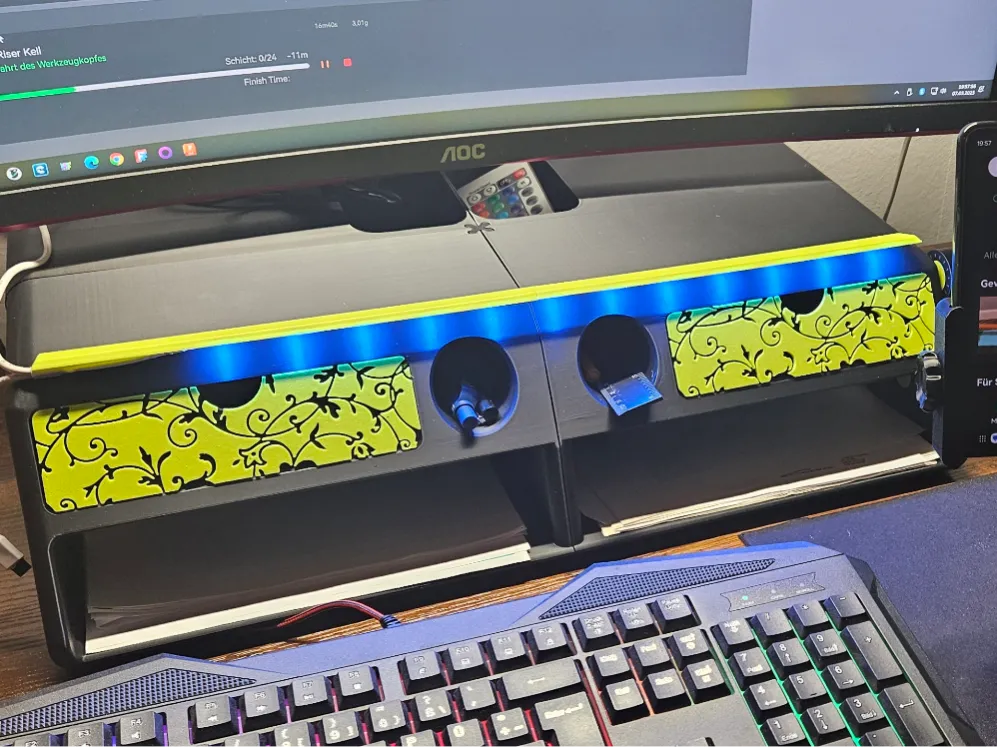

Welcome to My Version of the Monitor Riser
To allow customization of this monitor riser to your needs, a .stp (STEP) file has been included for each component.
The monitor opening is sized to accommodate a budget AOC monitor. I cannot guarantee compatibility with other brands.
However, a raw version without an opening is also included as a STEP file, enabling you to create your own custom opening.
Alternatively, the monitor can simply be placed on top.

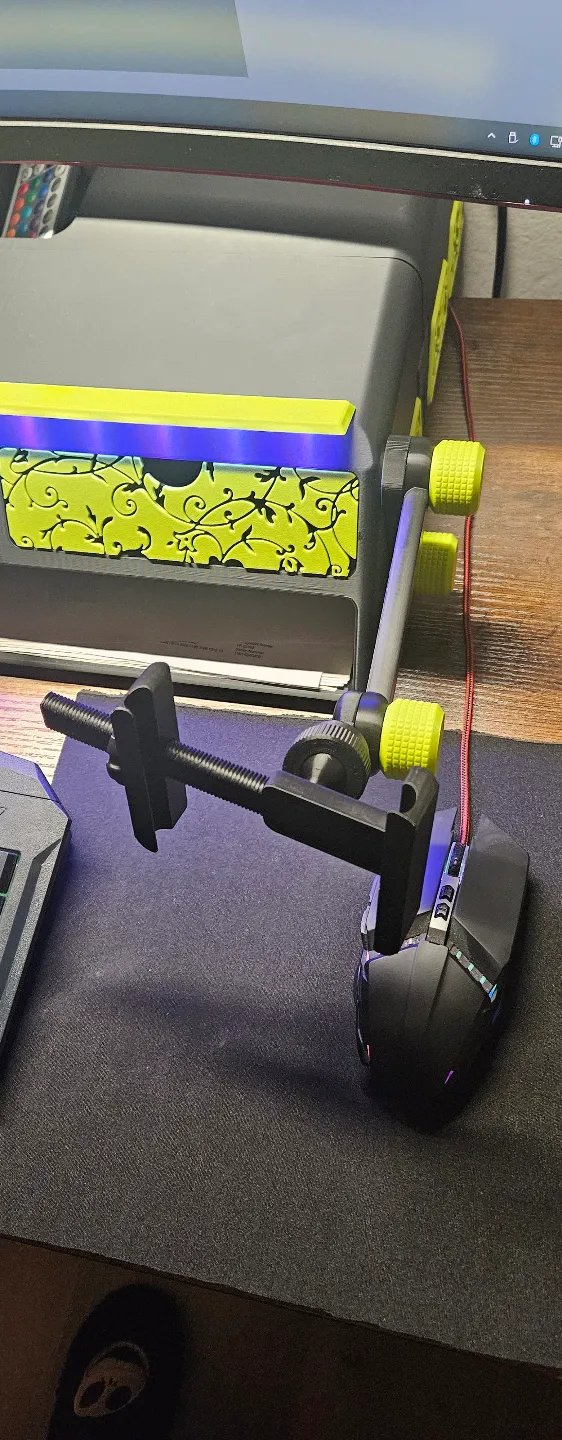

A matching stand and extension are provided to facilitate the construction of a custom monitor mount.
Approximately 3.3 kg of filament is required in total.
For optimal results, use my print profiles.
Disable the auxiliary fan in your filament settings.
Supports have been optimally positioned. Retain their placement if possible when making modifications.

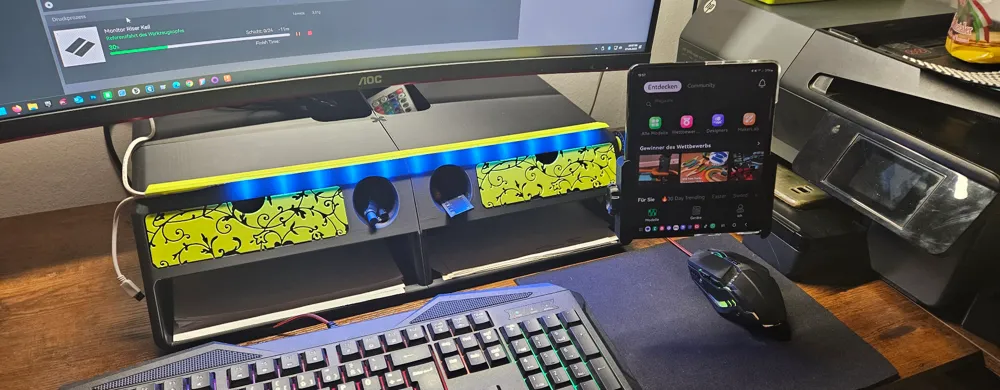

The smartphone holder is designed for bilateral attachment.
The bezel for the LED strip simply snaps on. You can use any LED strip you prefer.

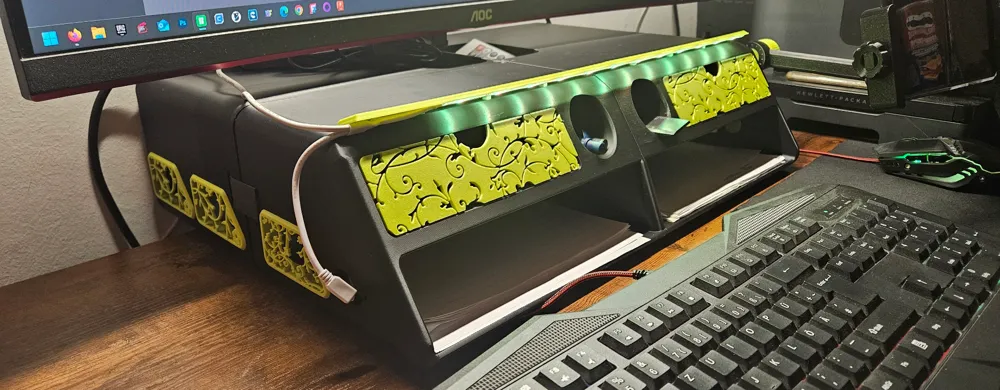

The side bezels and drawer fronts are snap-fit and provided as STEP files (should you dislike my design).
Assembly Instructions:

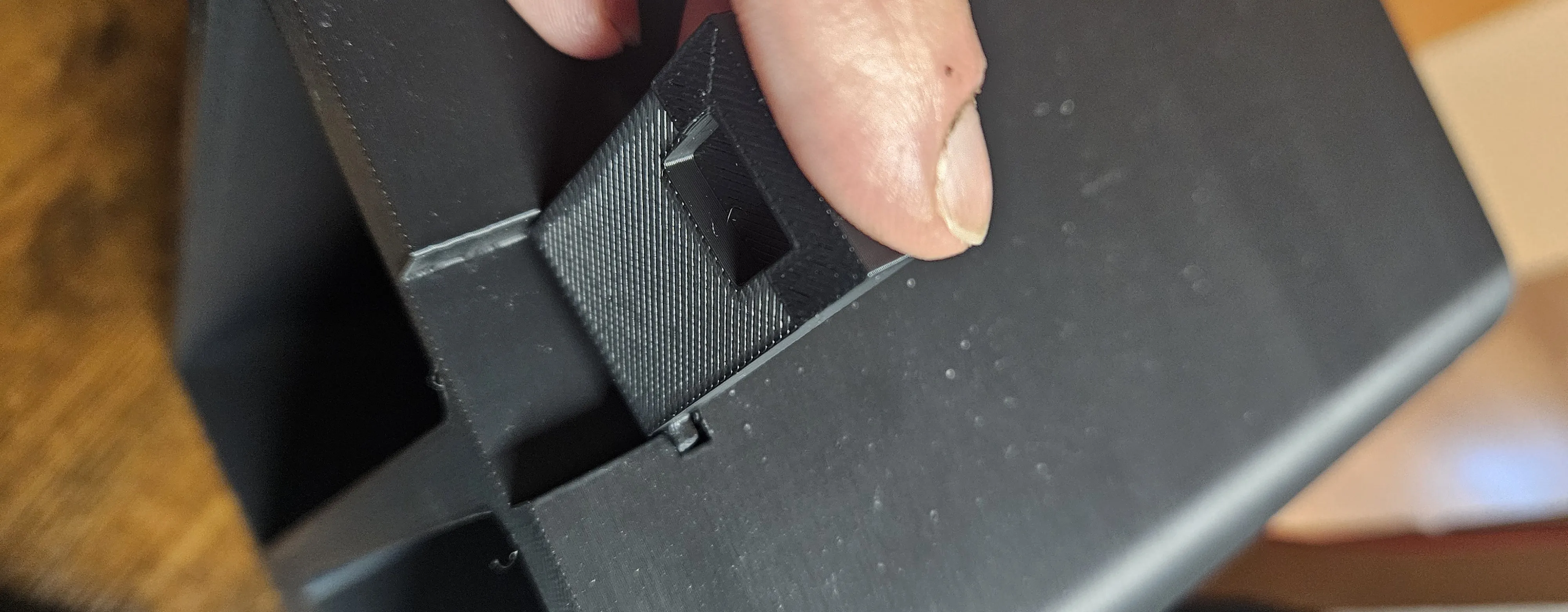

The latches are clipped onto the rear sections.

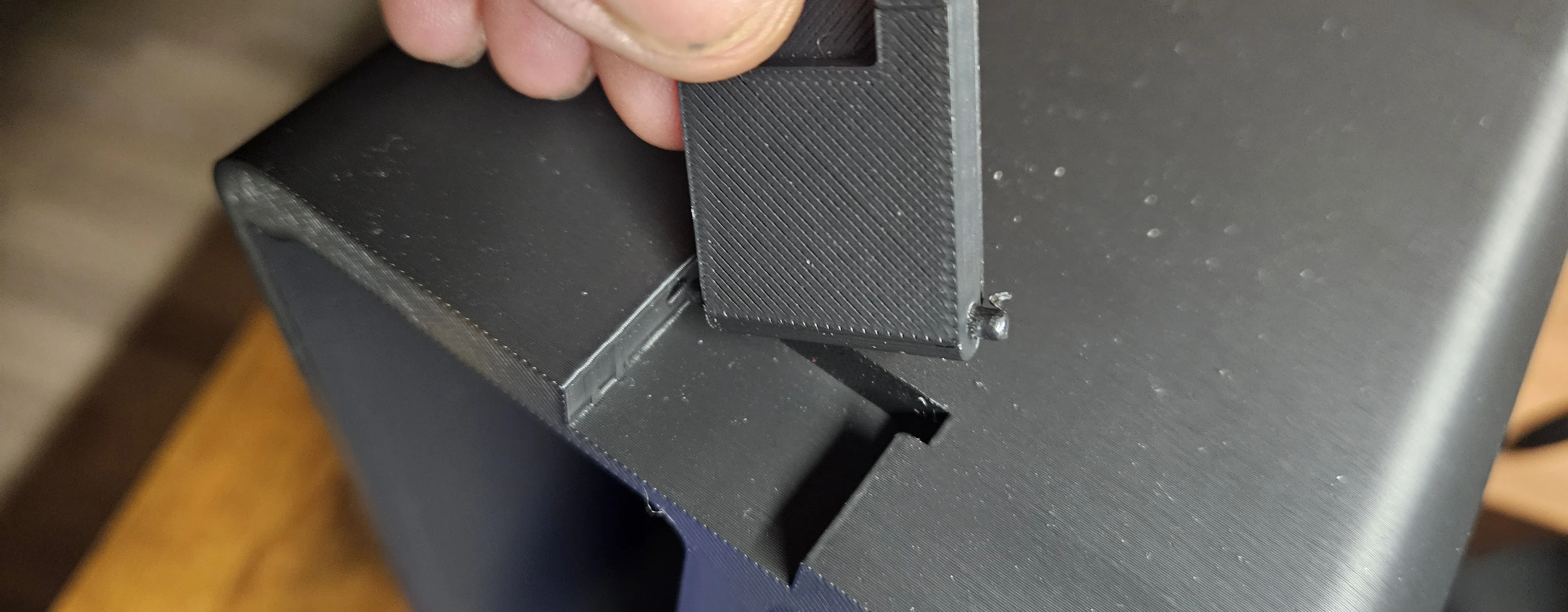

First, insert them into the bottom hole. You may need to adjust them slightly for proper insertion.

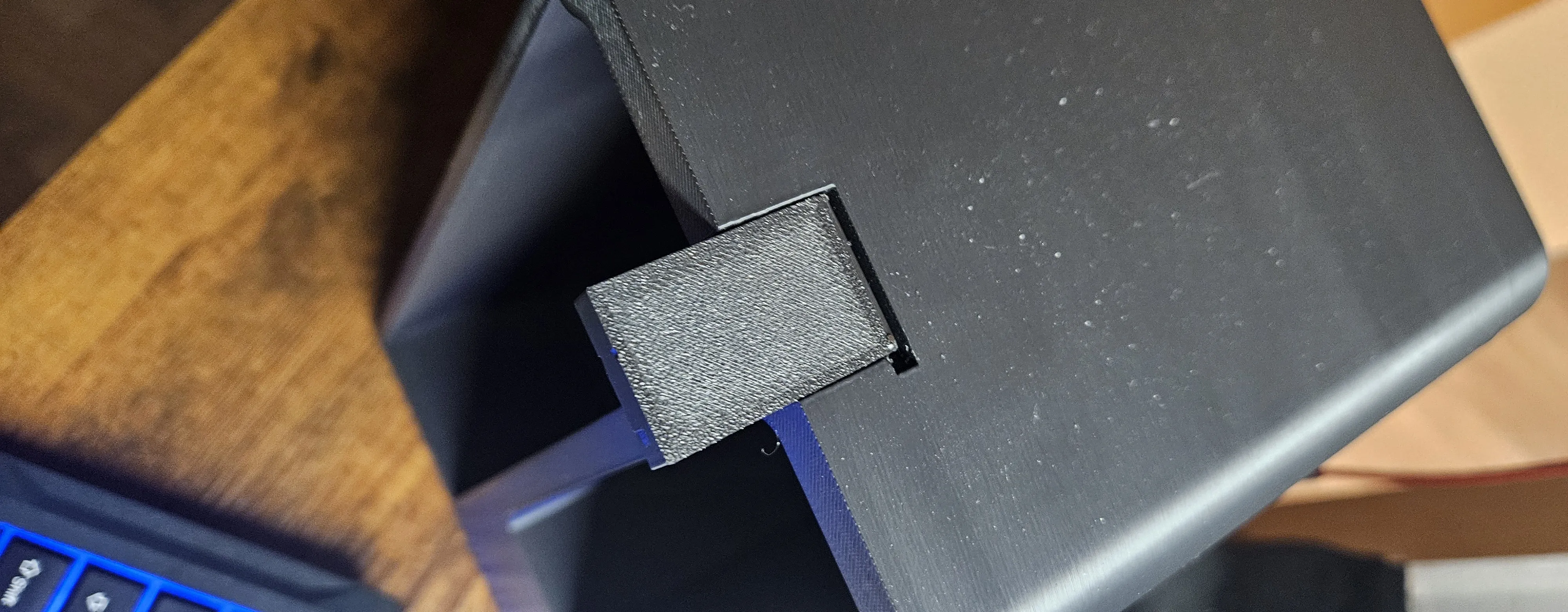

Then, clip them in at the top and fold them over.

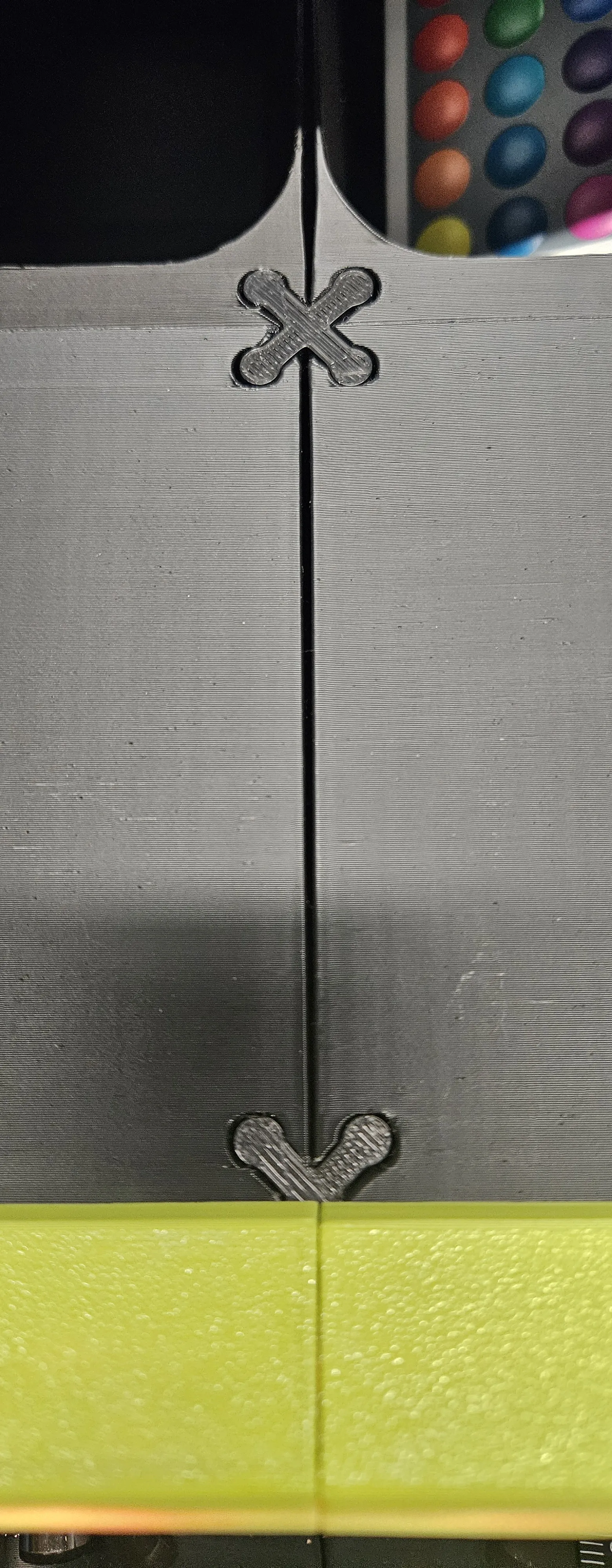

Now you can assemble all the parts and insert the connectors.
These only fit in one direction. They should fit without excessive force.
