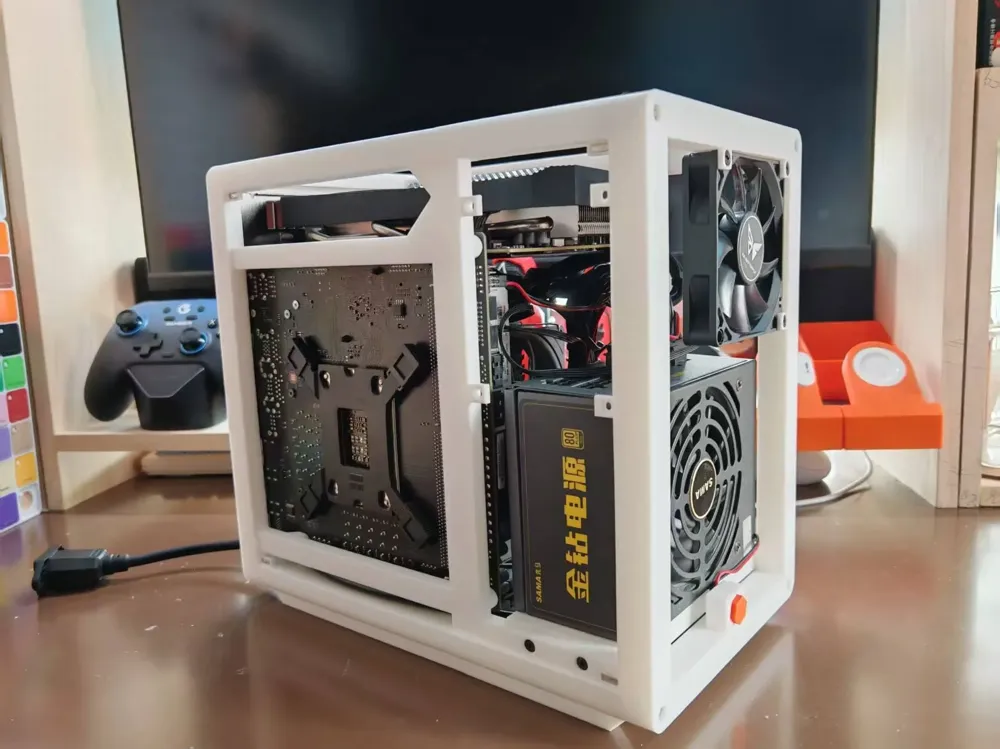

ITX直插式机箱（ITX direct-plug computer case）

因为我设计的A4机箱没有独立风道，在高压力下CPU和显卡温度过高，所以设计了这款ITX直插机箱

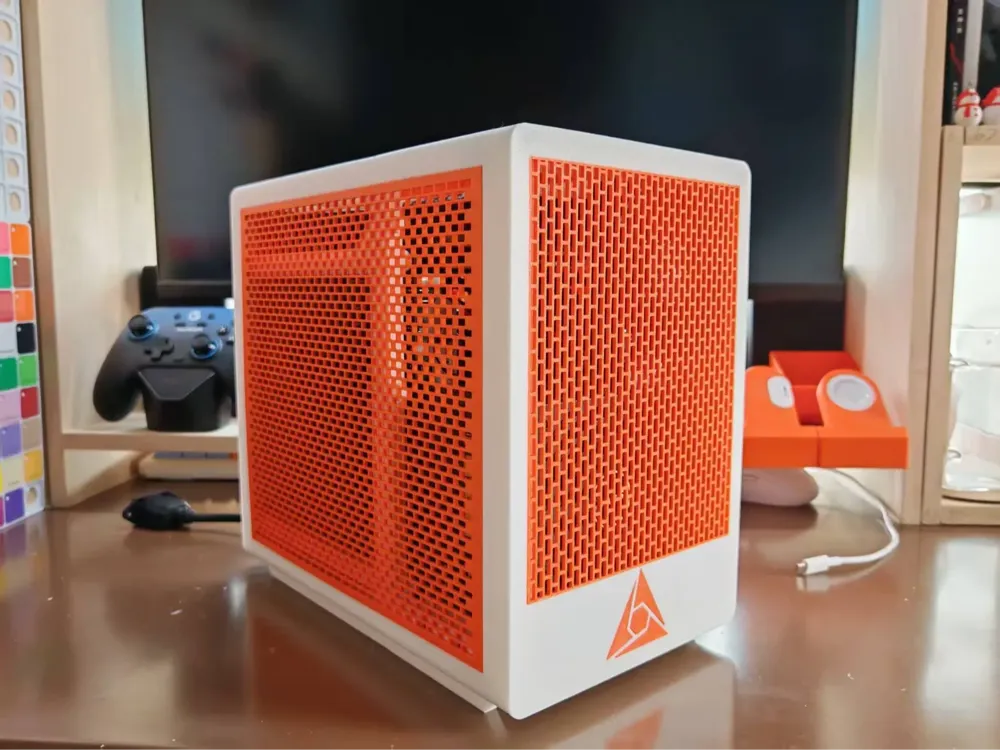

机箱尺寸为265X159X246（包含底座）

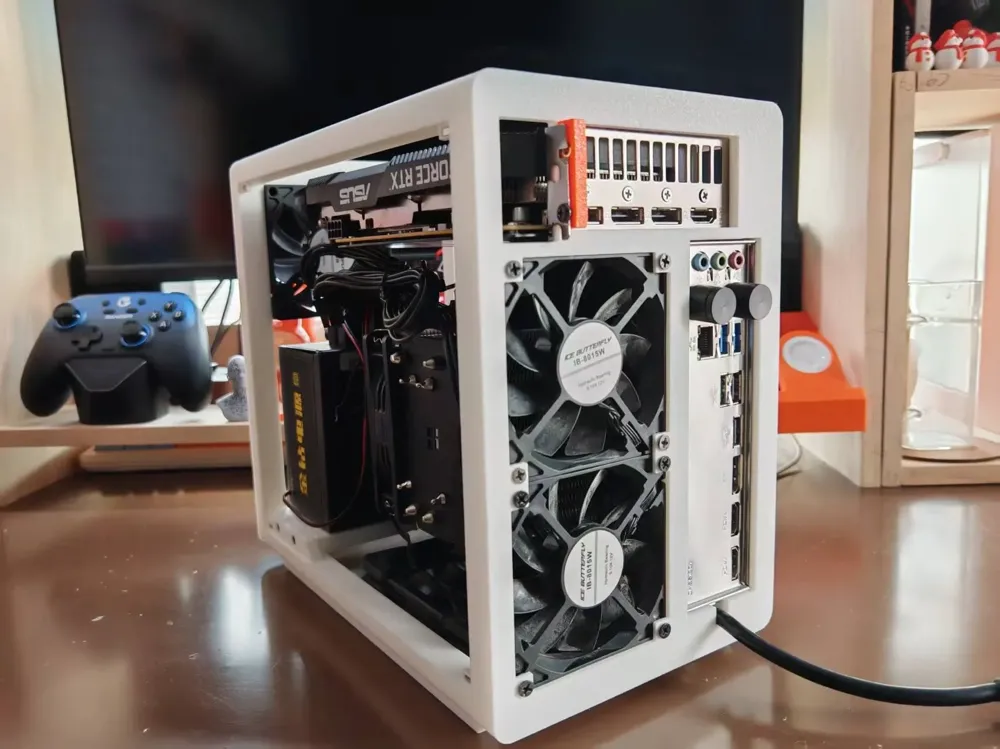

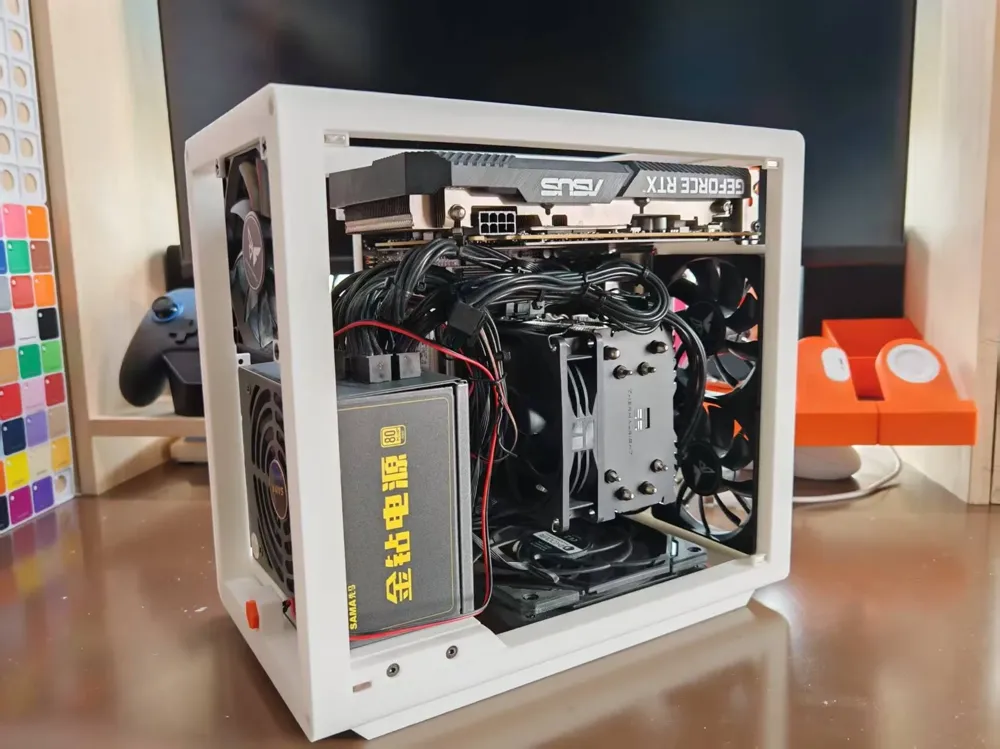

结构为显卡倒置，电源倒置

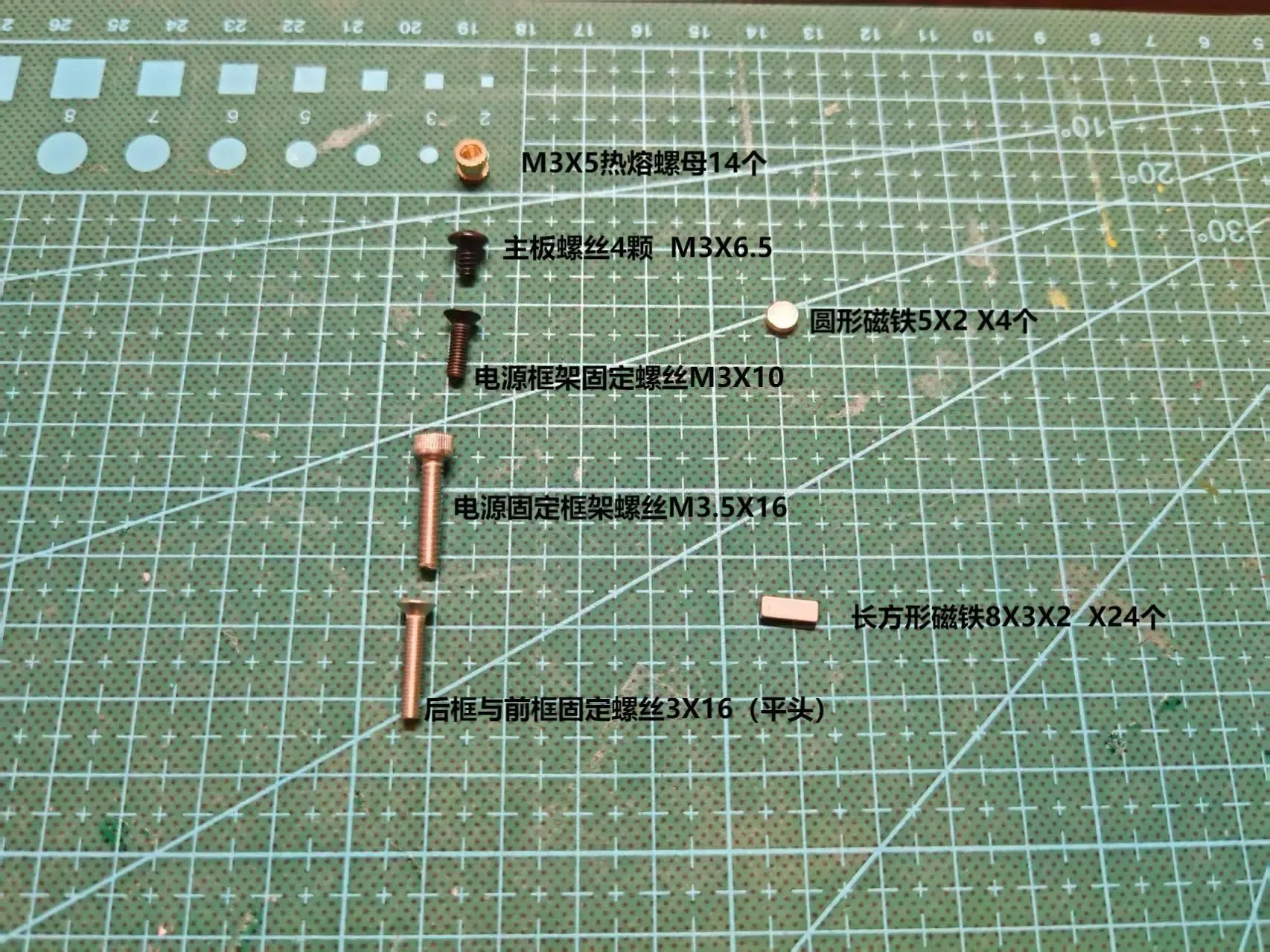

所需零件：

M3X5热熔螺母14个（主板4个，电源框架4个，后框与前框链接处4个）

主板螺丝4颗（主板自带一般为M3X6.5）

电源框架固定螺丝M3X10 X4

电源固定框架螺丝M3.5X16  X5（一般为电源自带）

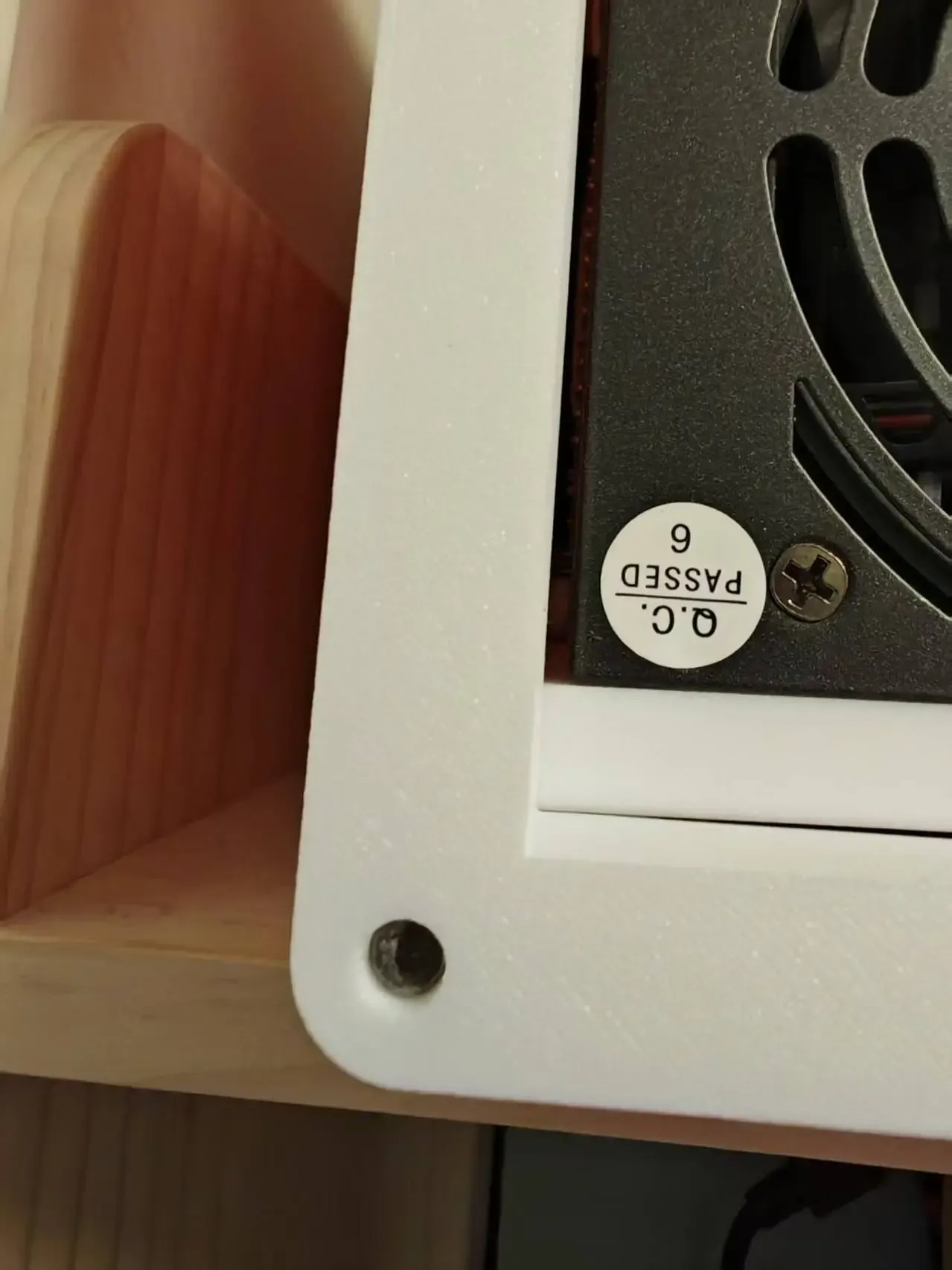

后框与前框固定螺丝M3X16  X4（切记为平头，要粘贴磁铁）

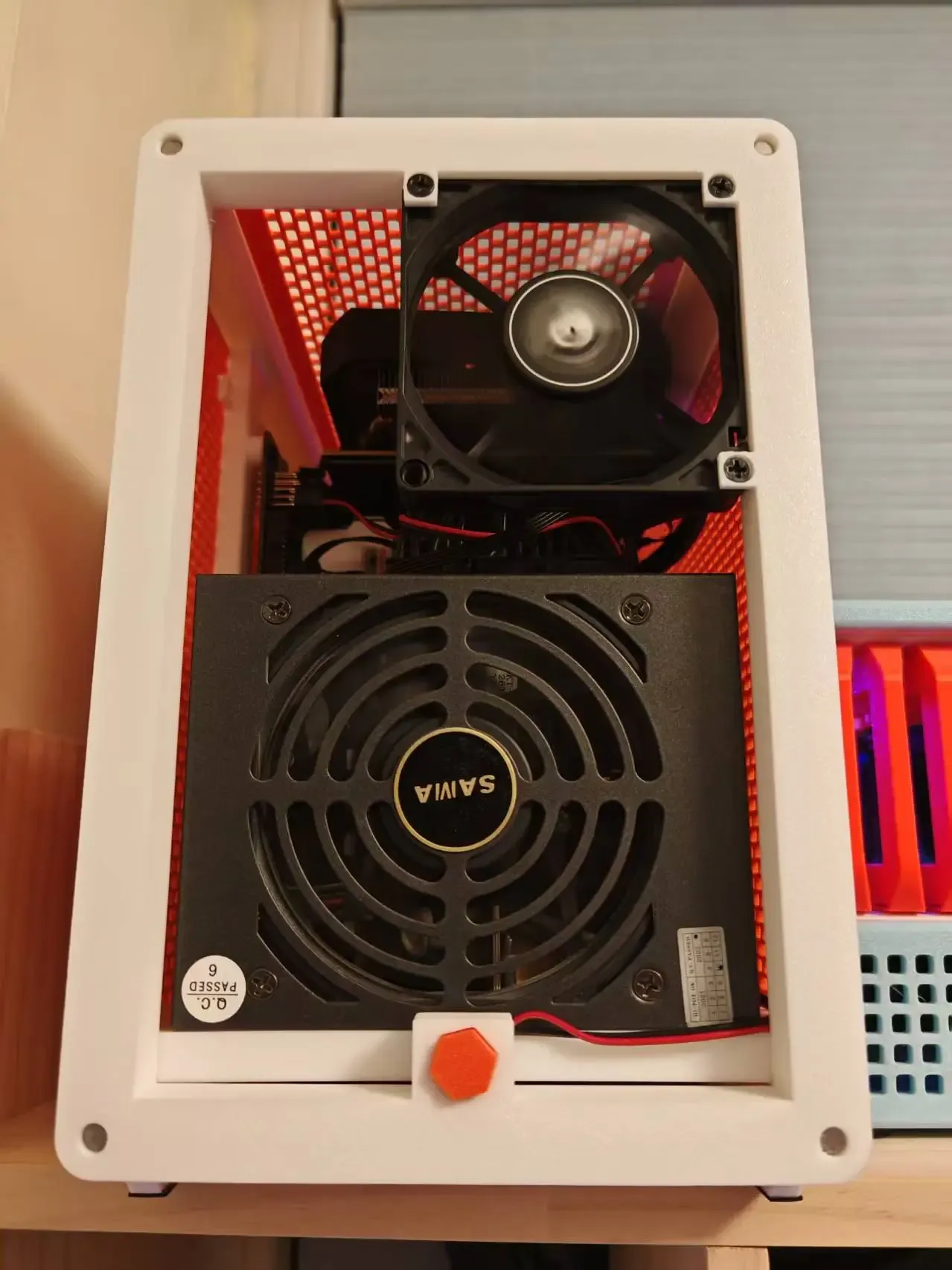

重点：电源延长线公头一定要短，否则会撞到底网

长方形磁铁8X3X2  X24个（我购买的店内虽然标注这个尺寸，但是实际为8X3X1.7，我按照这个尺寸设计）（购买链接https://mobile.yangkeduo.com/goods.html?ps=vmbpiYIRIa）

圆形磁铁5X2 X4个 （购买链接https://mobile.yangkeduo.com/goods.html?ps=ctao8tmR9f）

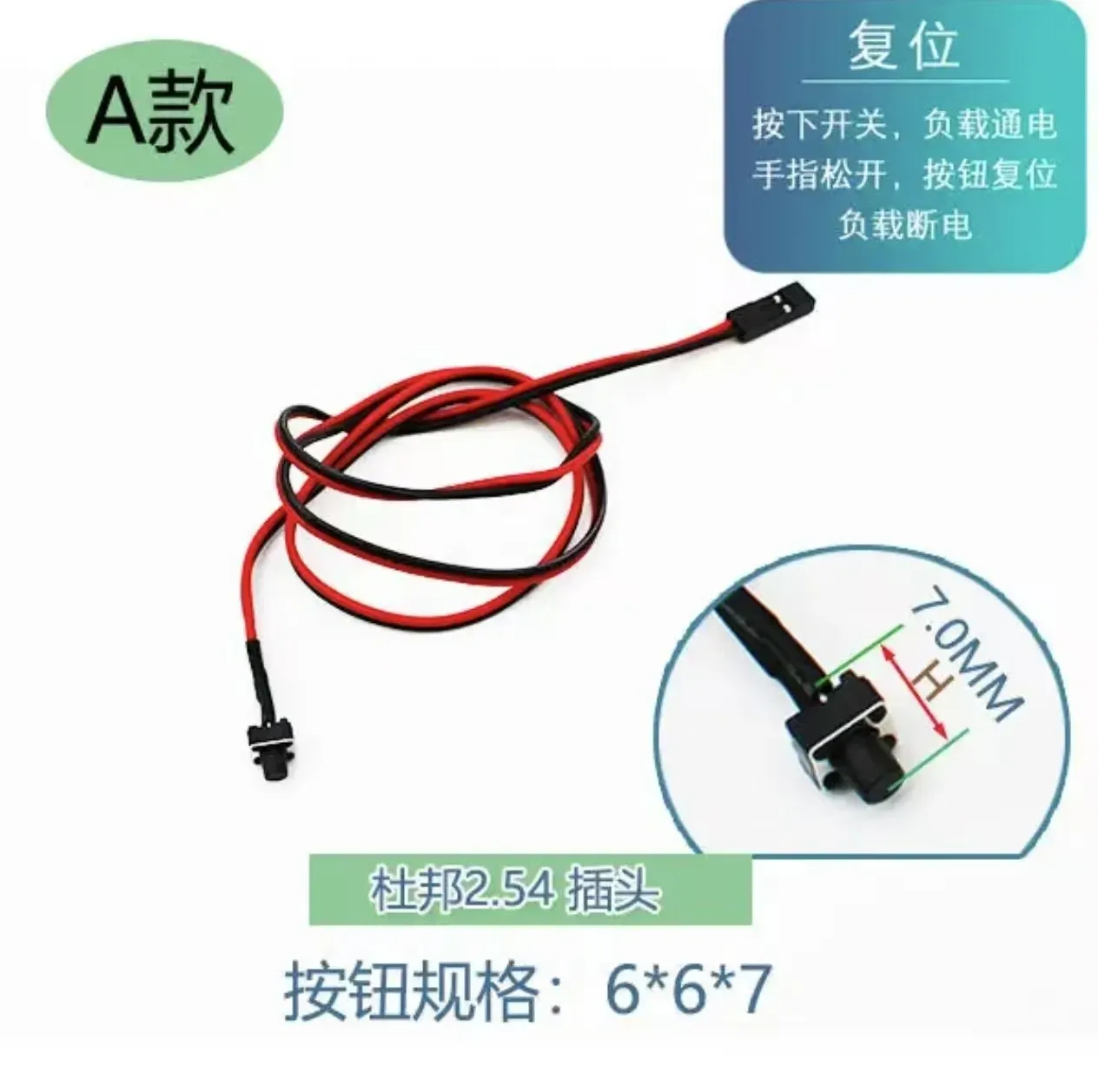

电源按钮6X6X7（圆形按钮）（购买链接https://mobile.yangkeduo.com/goods1.html?ps=sWH7dHsnQa）
不容许一切商业形式（如有需要与本人联系，本人保留一切法律权利）

Because the A4 case I designed does not have an independent air duct, the CPU and GPU temperatures are too high under high pressure so I designed this ITX direct plug-in case.

The case size is 265X159X246 (including the base)

The structure with the GPU inverted and the power supply inverted

Required parts:

M3X5 heat-melt nuts  X14   (4 for the motherboard, 4 for the supply frame, 4 at the connection between the back frame and the front frame)

4 motherboard screws (usually M3X6.5, included with the motherboardM3X10 fixing screws for the power supply frame

M3.5X16   X5   screws for the power supply fixing frame (usually included with the power)

3X16 X5  fixing screws for the back frame and the front frame (remember to use flat heads, and you need to paste magnets)

Rectangular magnet 8X3X2 X24 pieces (although the store I bought from marked this size, it is actually 8X3X1.7, and I it according to this size) (purchase link https://mobile.yangkeduo.com/goods.html?ps=vmbpiYIRIa)

Round magnet 5X2   X4 pieces (purchase link https://mobile.yangkeduo.com/goods.html?ps=ctao8tmR9f) Power button 6X6X7 (round button) (purchase link https://mobile.yangkeduo.com/goods1.html?ps=sWH7dHsnQa)

No commercial forms allowed (if necessary, please contact me, and I reserve all legal rights)
