Handle (prepared to M8 screws and washers)

Designer

3.1 h

1 plate

4.9(35)

Hnalde (prepared fot conical head screws)

Designer

3.1 h

1 plate

4.9(12)

Open in Bambu Studio

Boost

319

859

826

477

Released

Description

NOTE: If you want abnormal handle strenght increase infill to 100%.

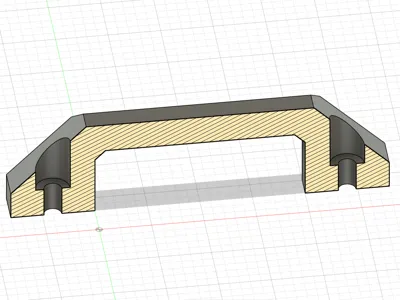

Heacy duty handle. Holes are reinforced (they have 100% infill). Parameters:

Lenght: 180mm
Height: 50mm

Place for washer (diameter): 16,5mm (prepared to M8 washer)

Hole for screw (diameter): 8,5mm (prepared to M8 screw)

Handle is very strong (even with 15% of infill as both Print Profiles) and comfotable. There is a lot of space for hand and fingers.

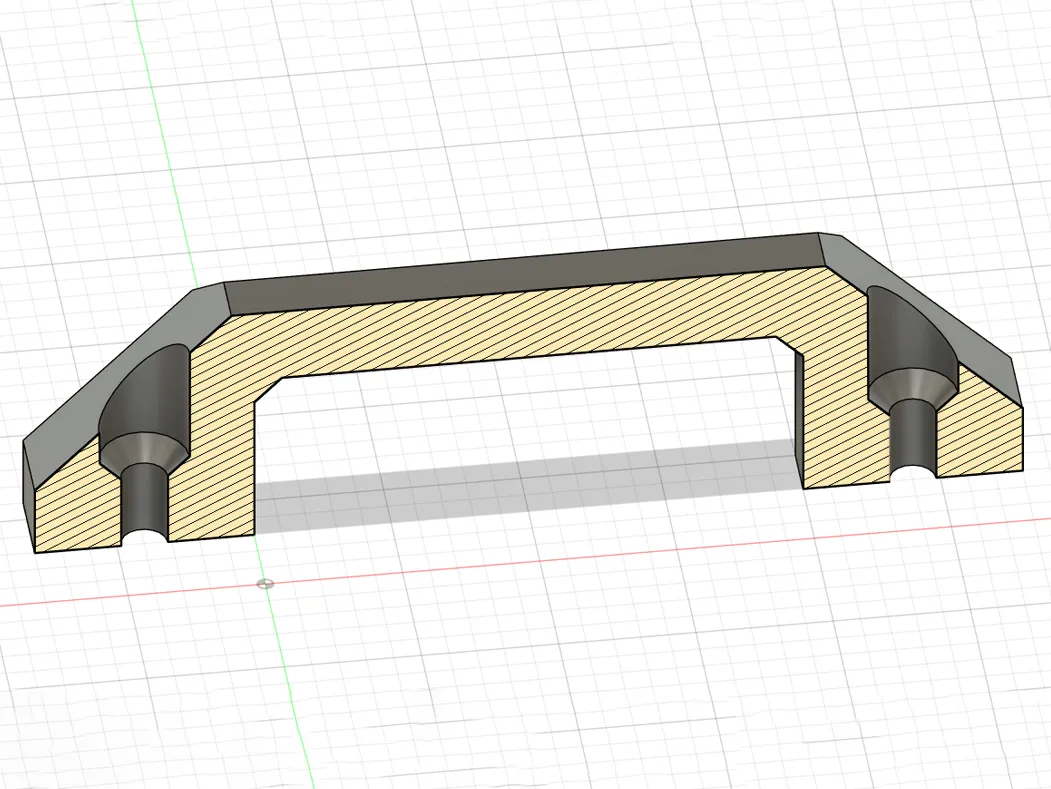

Second print profile is the handle prepared for conical head screws:

furniture accessories

heacy duty carry handle
