Flag Pole Wall Bracket Heavy Duty (20mm and 38mm)
Print Profile(2)
Description

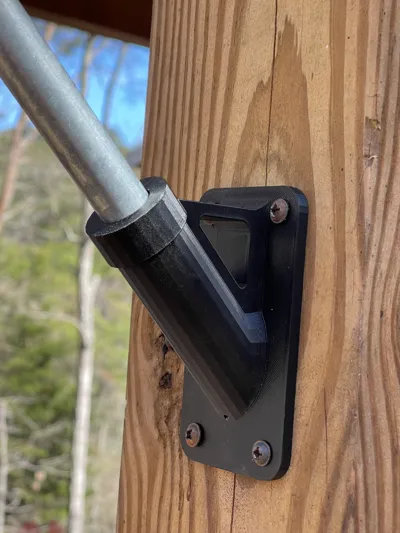

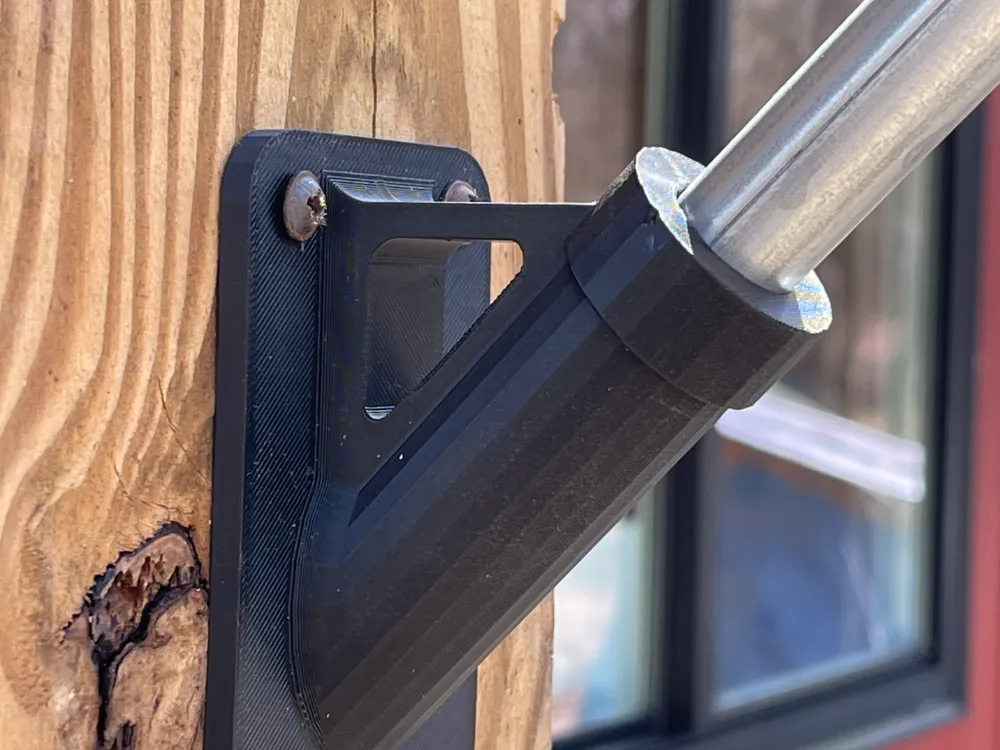

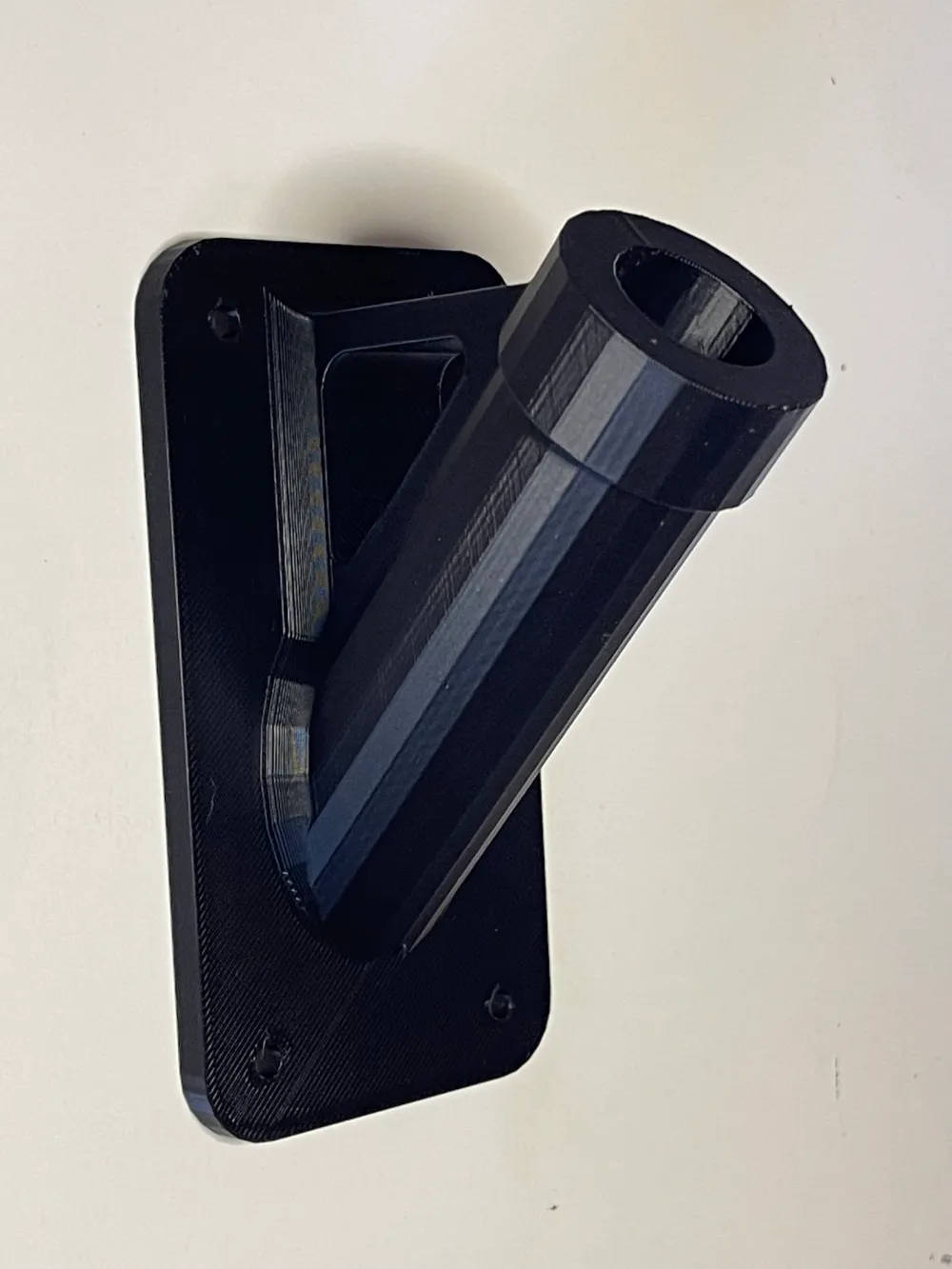

Heavy duty flag pole bracket. Designed to accommodate a 20mm pole and a new model for a 38mm pole. This bracket was created to replace the light weight bracket that came with our flag pole. Printed in PETG to stand up well outside. Requires 4 pan head or truss head screws to install.
I have added a small disc to both print profiles to be used when shopping for a pole to fit the bracket, or for test printing with minimal filament use prior to printing the full bracket. The test print is only a little over 2g and prints in about 7 minutes vs. the bracket which takes about 3-½ hours and 95g at 100% fill for strength. The sample disk is also helpful for testing percentages to scale the bracket prior to fully printing to fit poles of other diameters.
Please let me know if you have questions or suggestions for improvements.
