QNAS6 V2 Unbranded Version Offers Multiple Motherboard IO Port Versions for Extensive Network Access

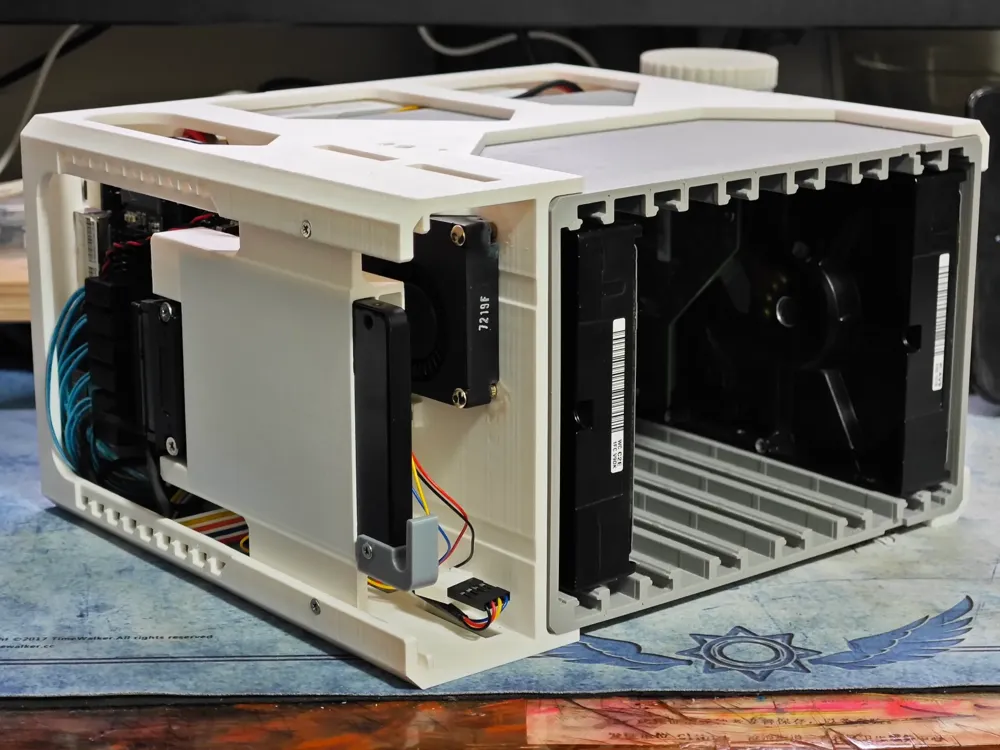

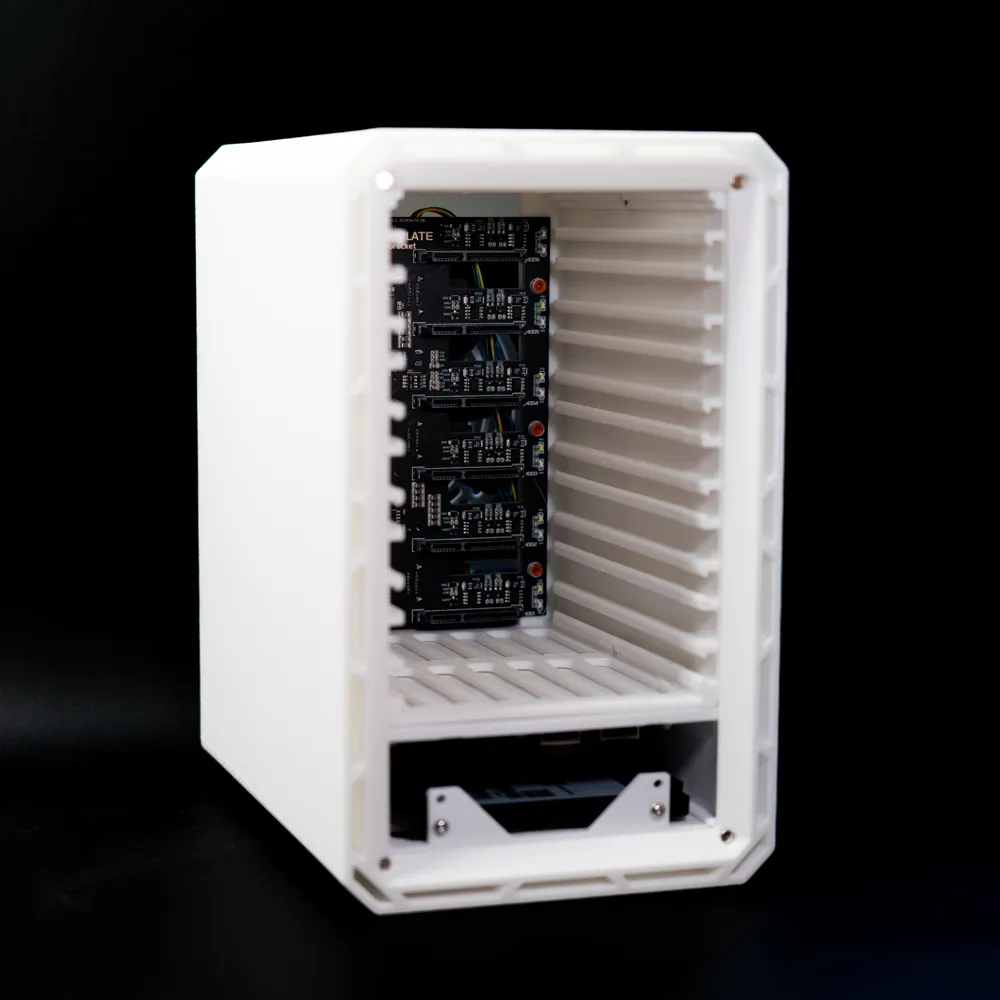

Based on the QNAS4 V2 design by creator 'Wangwangdui Shooter', this is a six-bay QNAS chassis customized with a six-bay integrated backplane made by creator 'Wankecustom'

Instructions for use:

1. The backplane uses a Wankecustom six-bay backplane (https://m.tb.cn/h.S7jlg7j?tk=92utfYhYGYy), it is recommended to purchase the matching SATA and DC cables together when buying from Xianyu, other hardware parts and the assembly list can be purchased according to the QNAS4 V2 BOM (https://docs.qq.com/sheet/DVUtLdGphaHF1dHRK?tab=BB08J2)
2. Also provided are middle frames for dual HDMI development boards (p2v2, p5, p6) and a middle frame for single HDMI J4125 p2v1 development board, located respectively on plate 5 and plate 9 of the print profile
3. Added is my designed "+2" SSD cage (https://makerworld.com.cn/zh/models/980049), enabling hot-swapping of 2 SATA SSDs in the motherboard compartment, located on plate 10 of the print profile. The original fixed drive bay of QNAS V2 is on plate 8, print as needed
4. The case does not have slots for foot pads, please attach anti-vibration foot pads yourself according to your placement orientation
5. The case uses a blank design, if you need a pattern, you can leave a comment + boost me, I will update it in the future

**********

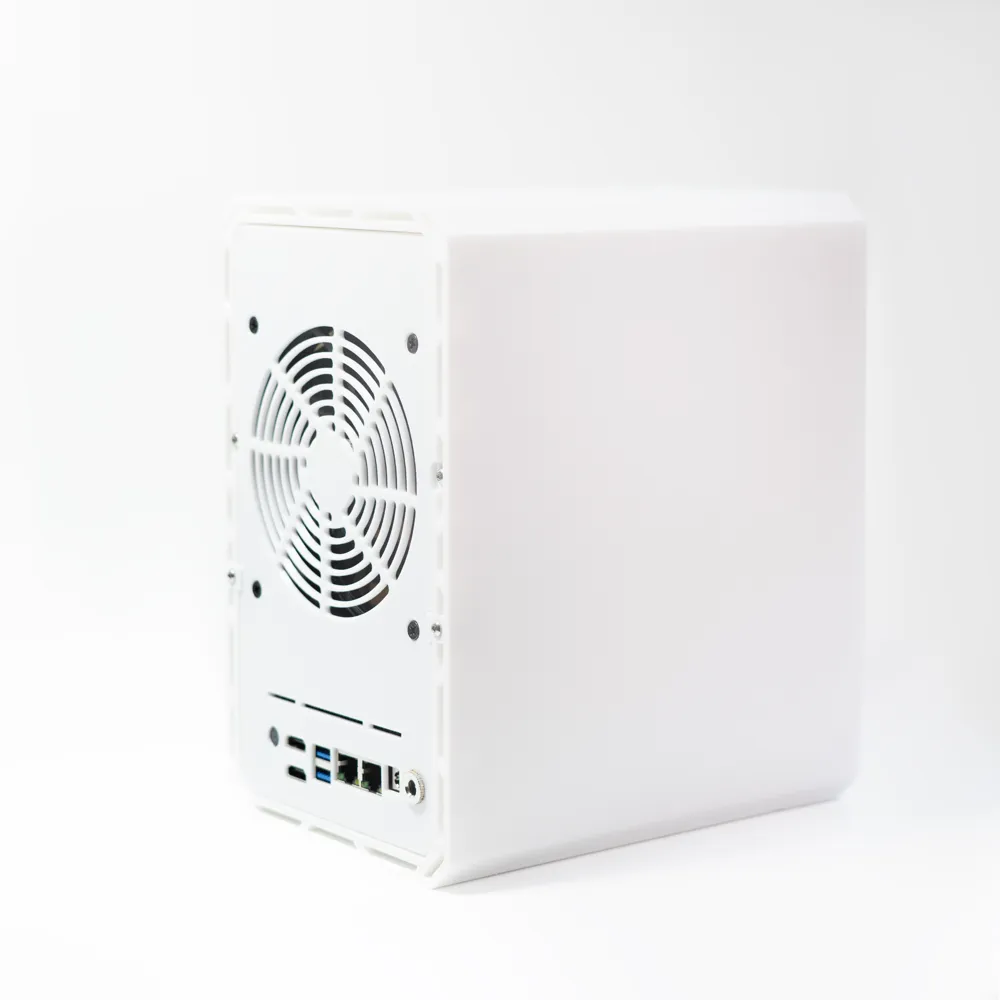

Due to requests in the comment section, an STL for a six-bay middle frame with cutout I/O ports has been added, if needed, it can be downloaded from the source files

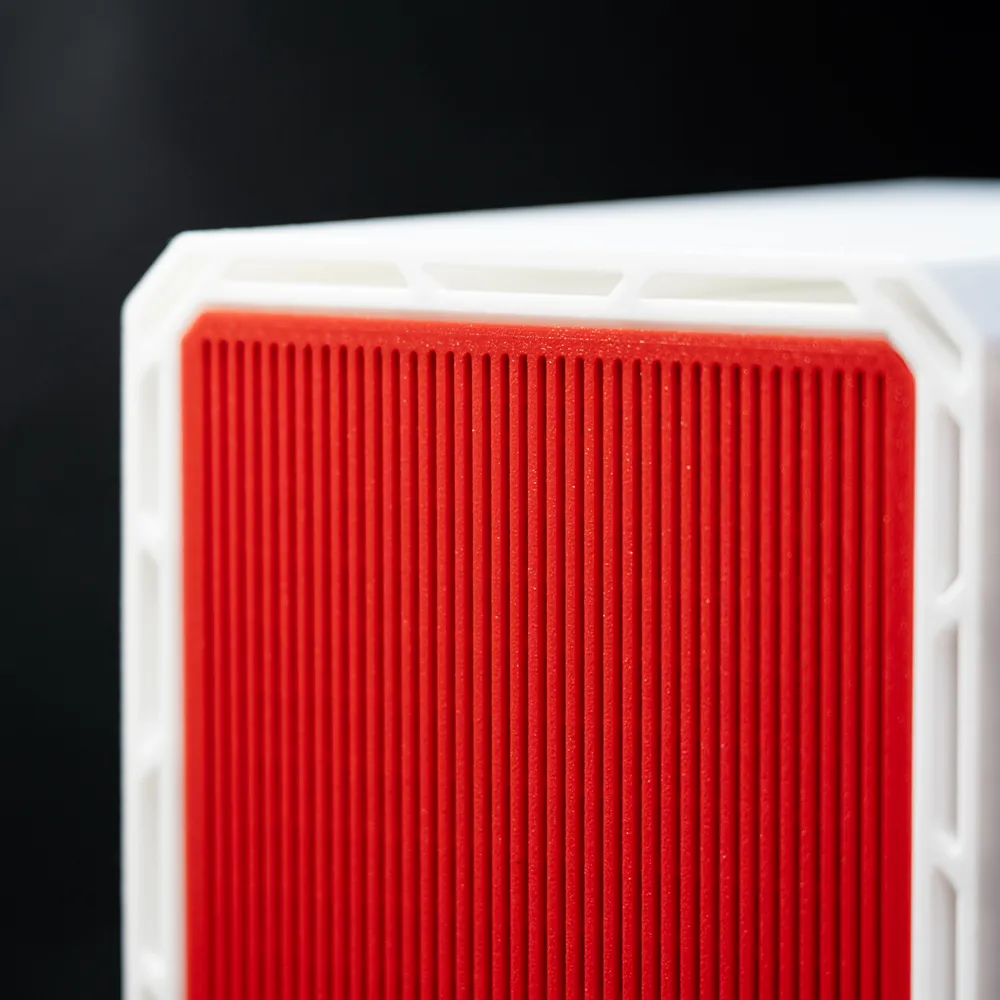

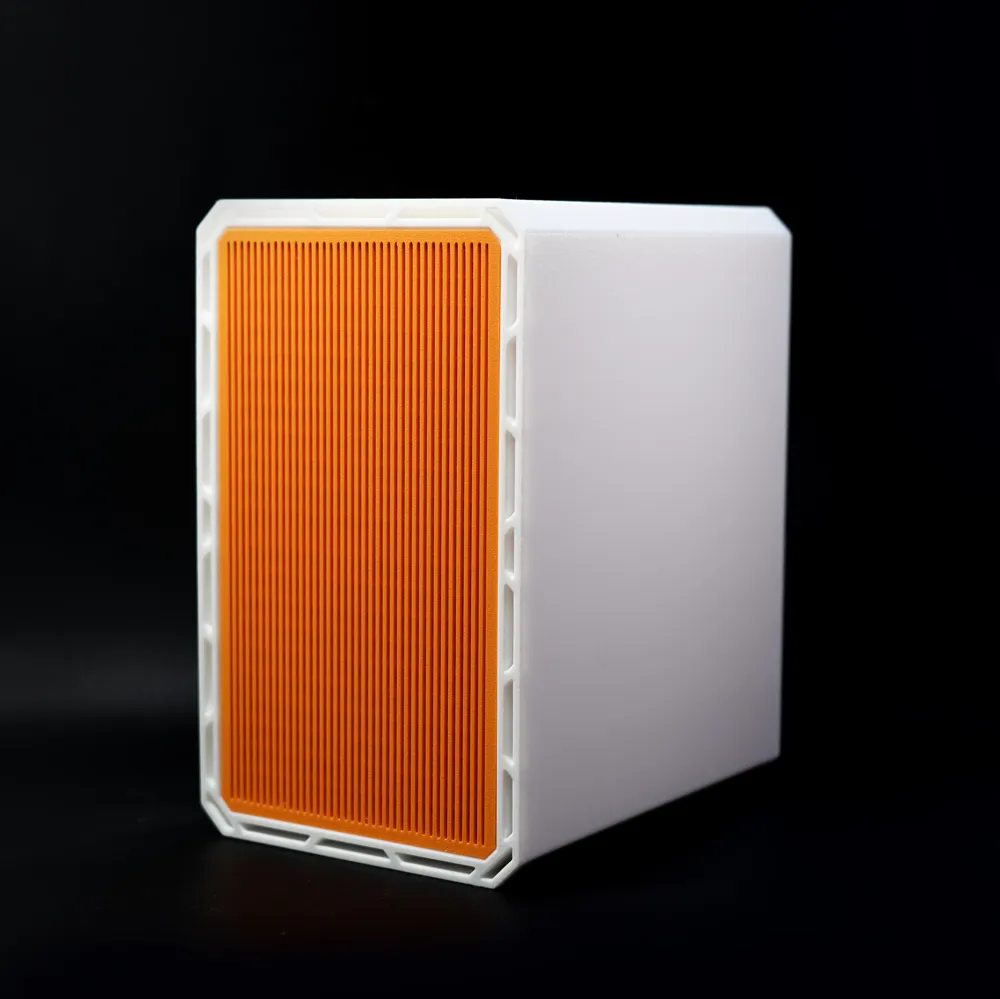

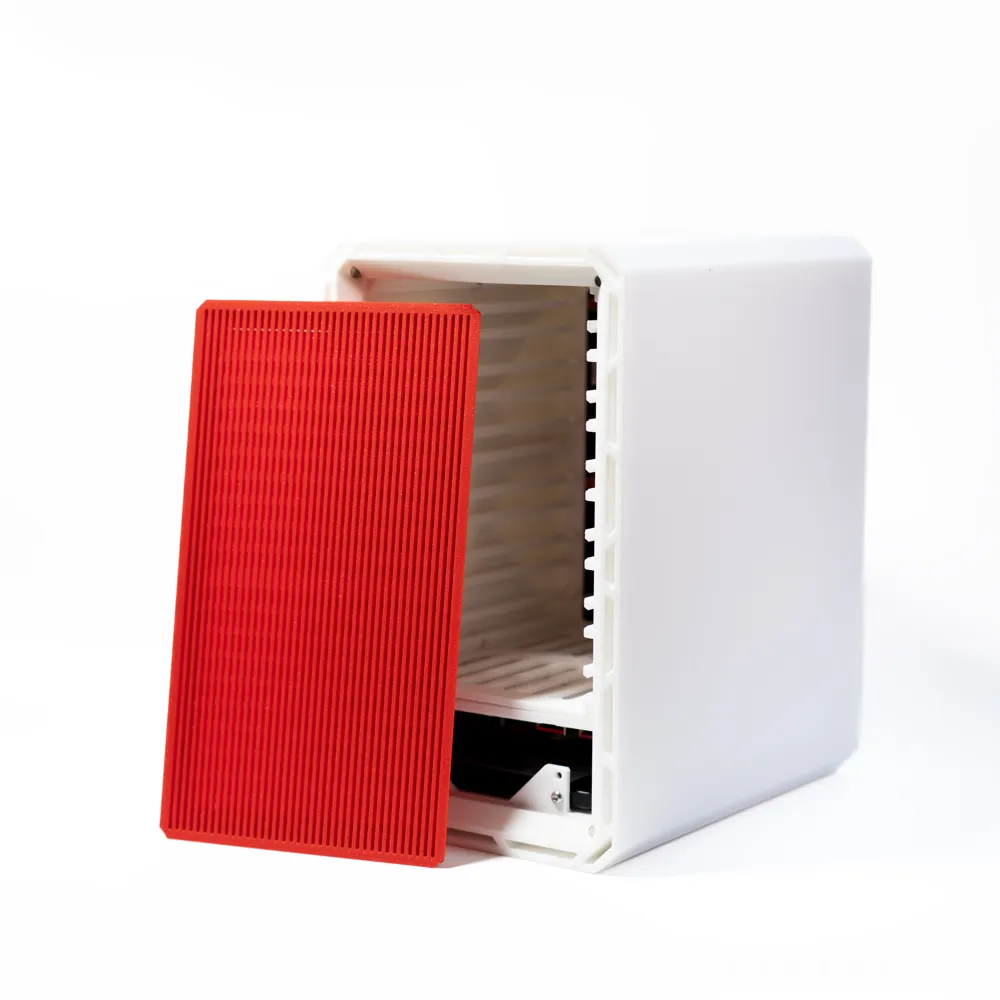

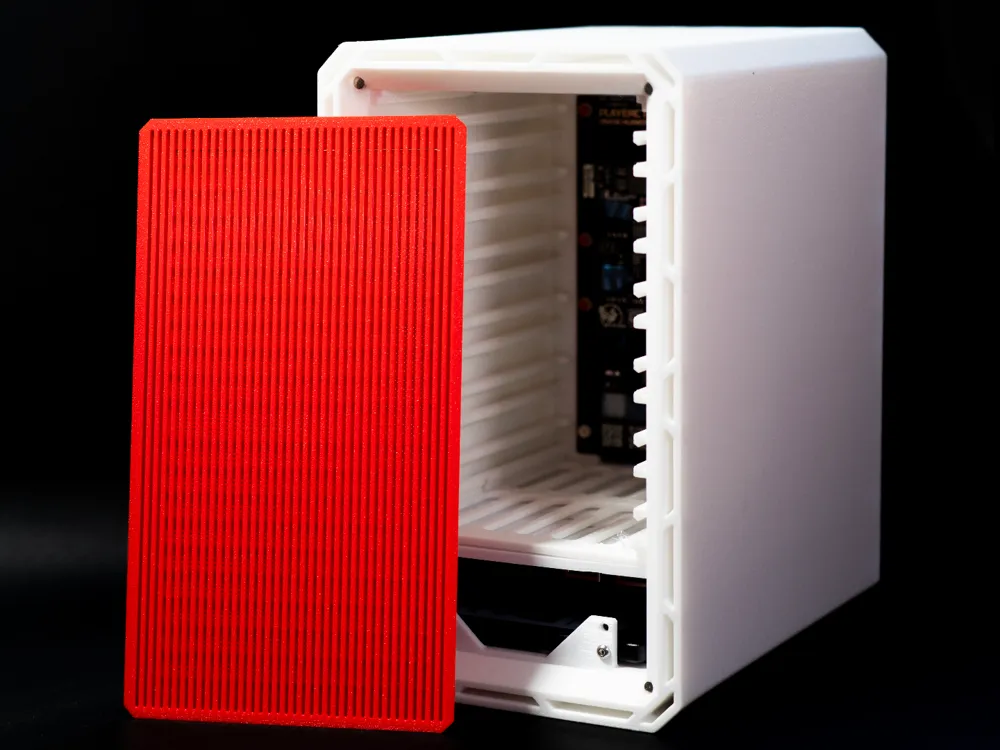

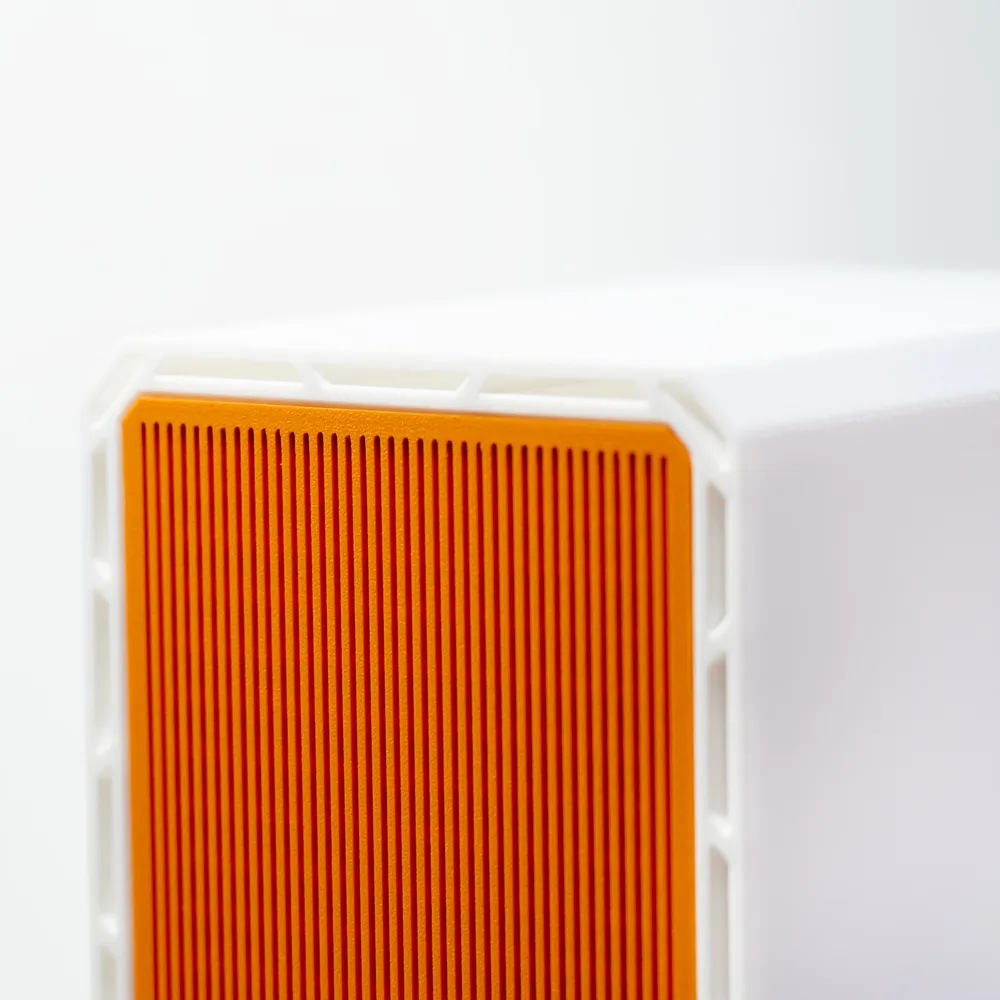

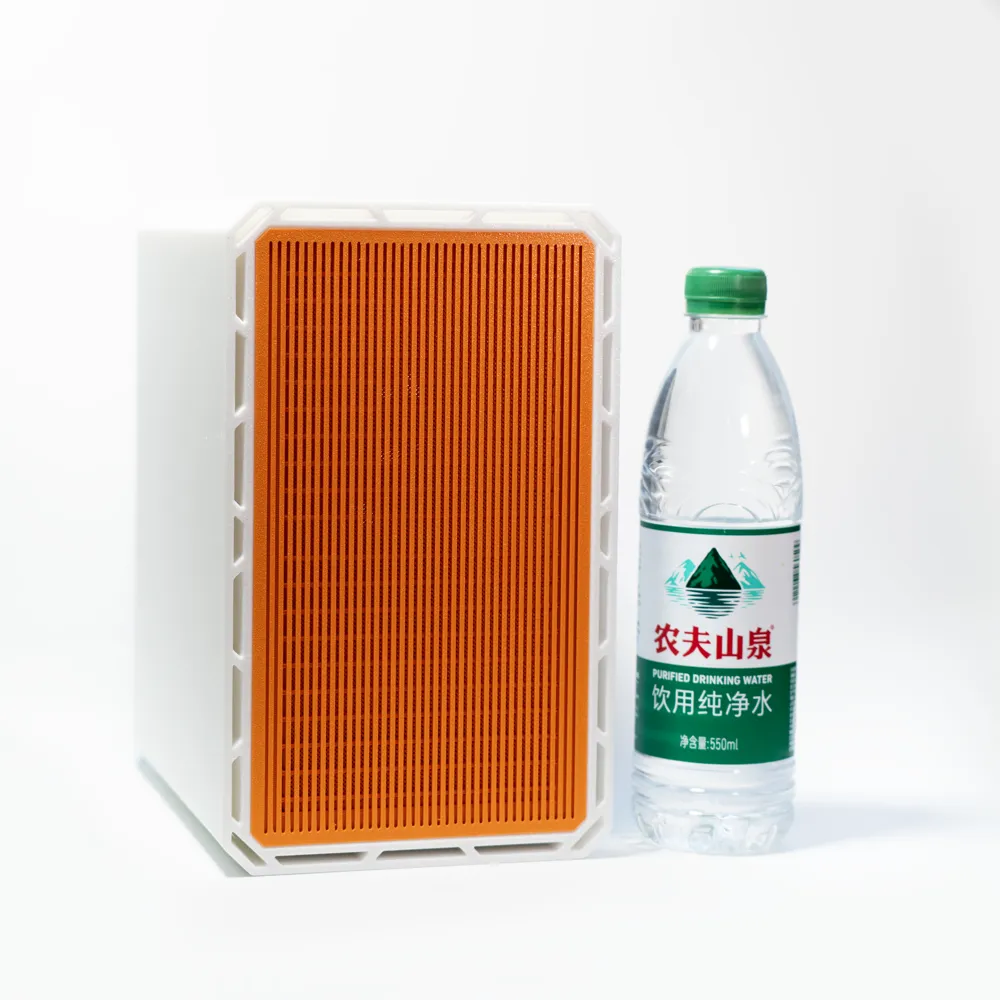

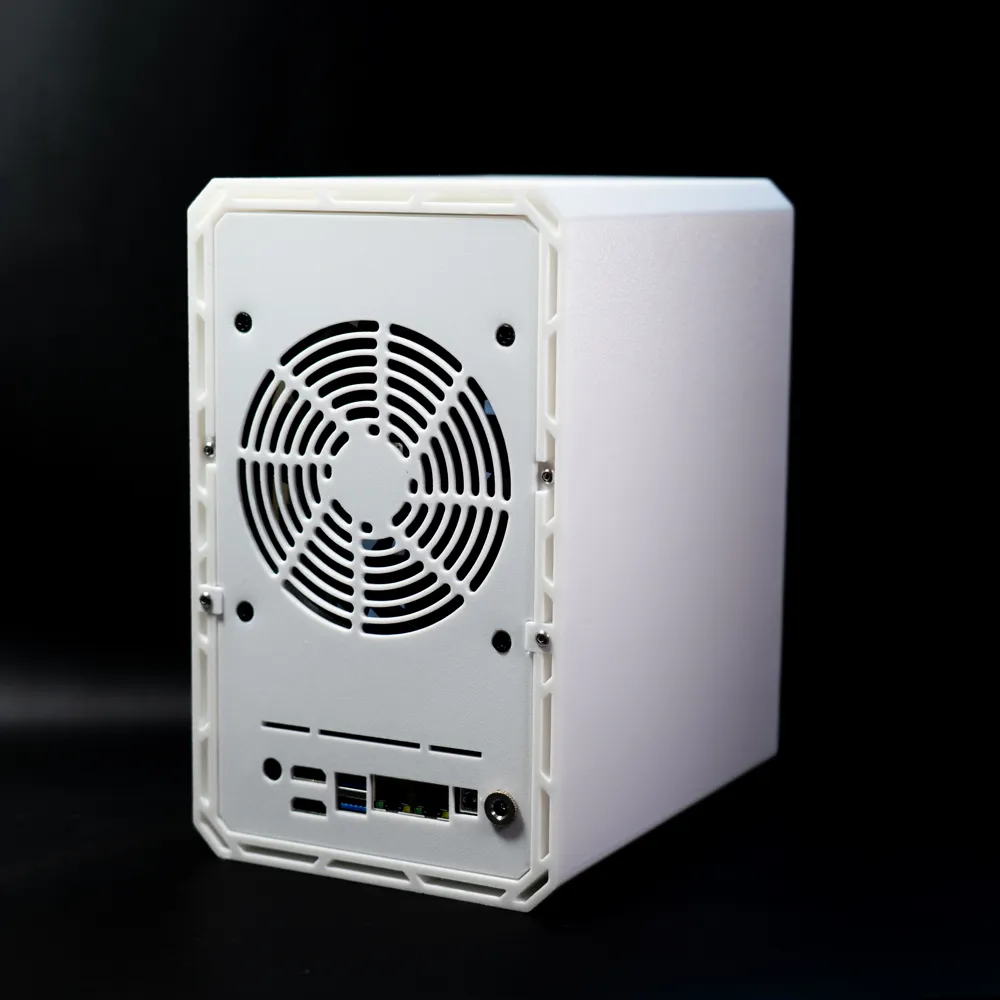

Thanks to @user_233053373 for the beautiful product photos
