Simple FPV Pan-Tilt Gimbal (Universal)

IP Report

Print Profile(0)


Add the first print profile to earn points

Boost
61
116
11
7
151
35
Released

Bill of Materials

List other parts
  • Ball Bearing (3mmx7mmx3mm) x 1:
  • Washer(M3) x 1:
  • M3 Screw x 4:
  • Servo Mounting Screws x 4:

Description

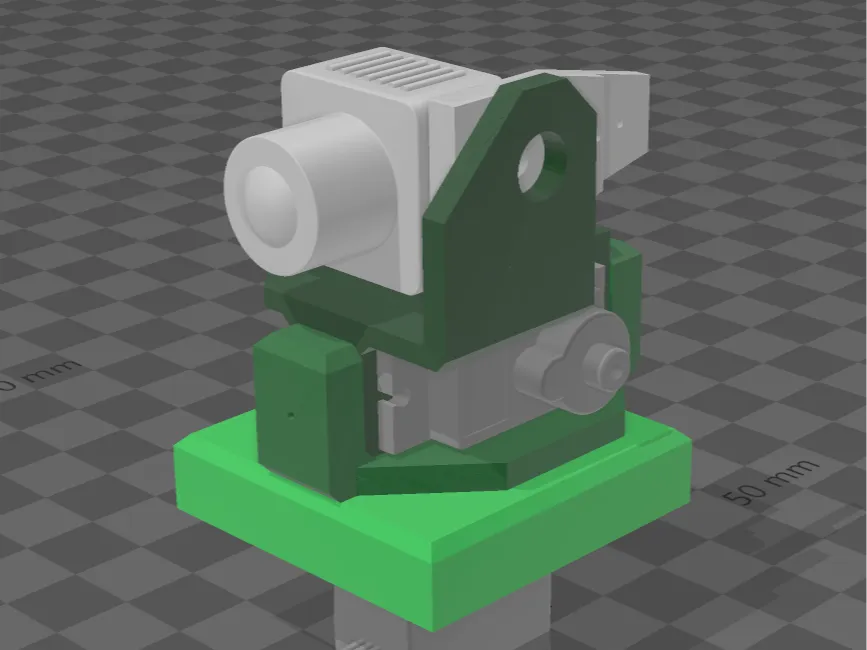

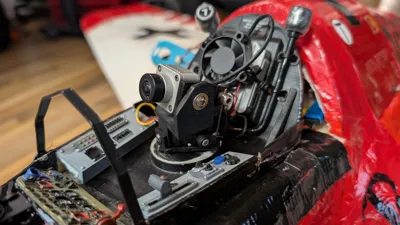

This is my Pan Tilt Gimbal



Designed for 9g Servos



Additionally needed:

  • 1x Ball Bearing (3mmx7mmx3mm)
  • 1x Washer(M3)
  • 1x M3 Screw
  • 4x Servo Mounting Screws

For Mounting use the standard servo screws to secure base with middle part
