Screw Mounted Cable Clip Creator
Print Profile(1)
Single clip - 0.2mm layer, 2 walls, 15% infill
19 min
1 plate
Open in Bambu Studio
Boost
5
26
0
1
17
7
Released
Description

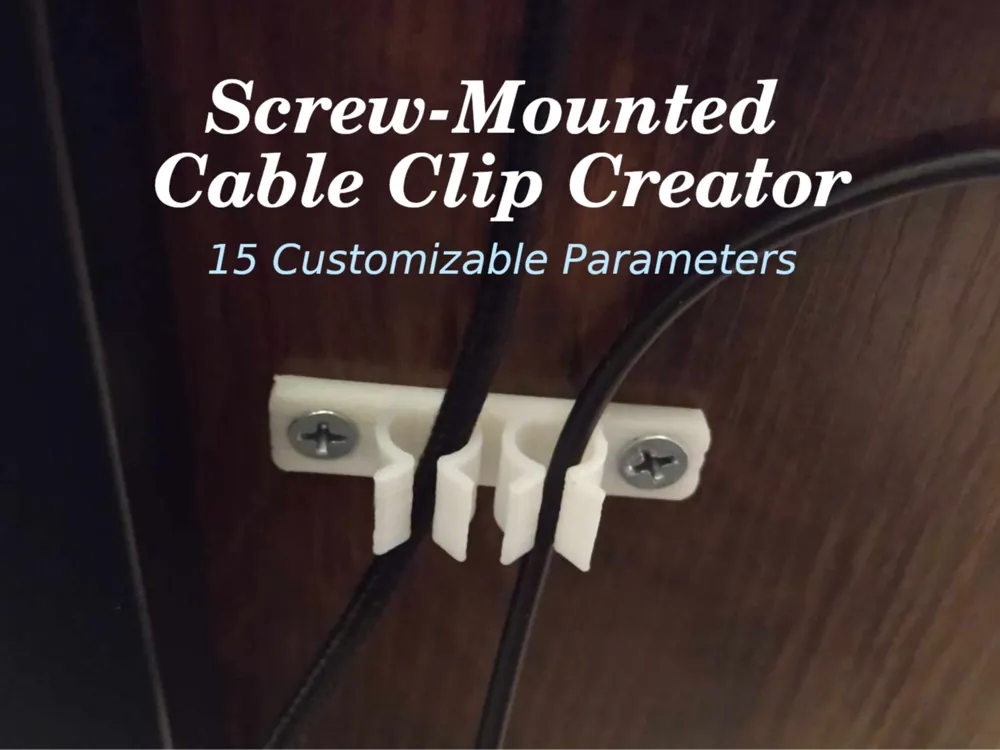

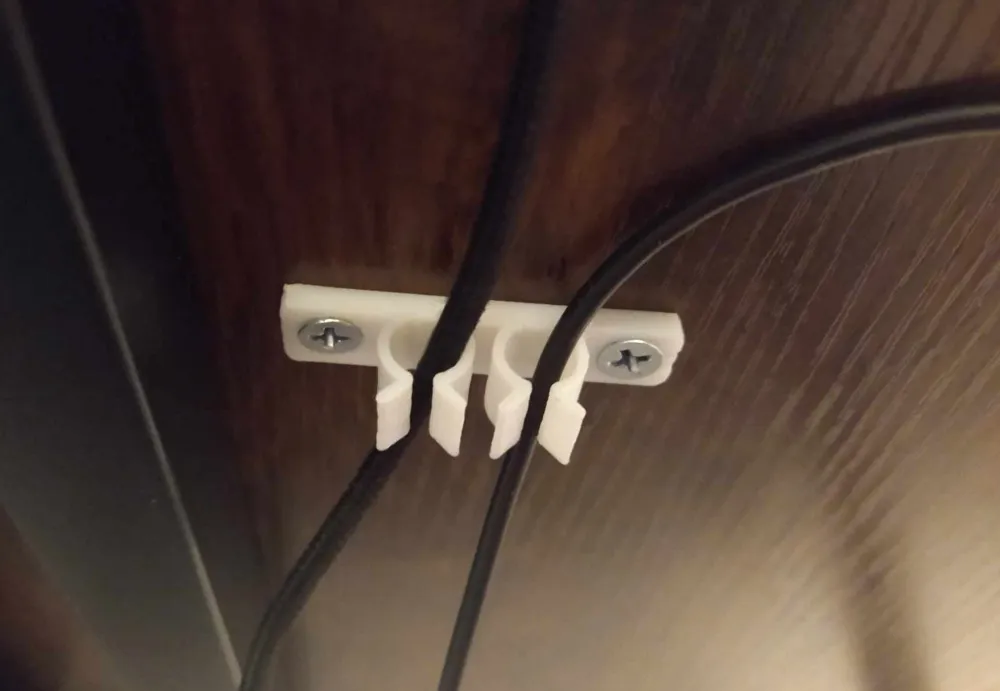

With 15 customizable parameters you can generate the exact screw mounted cable clip you need to keep your desk or table nicely organized!
If you have any suggestions or find any bugs feel free to comment below!

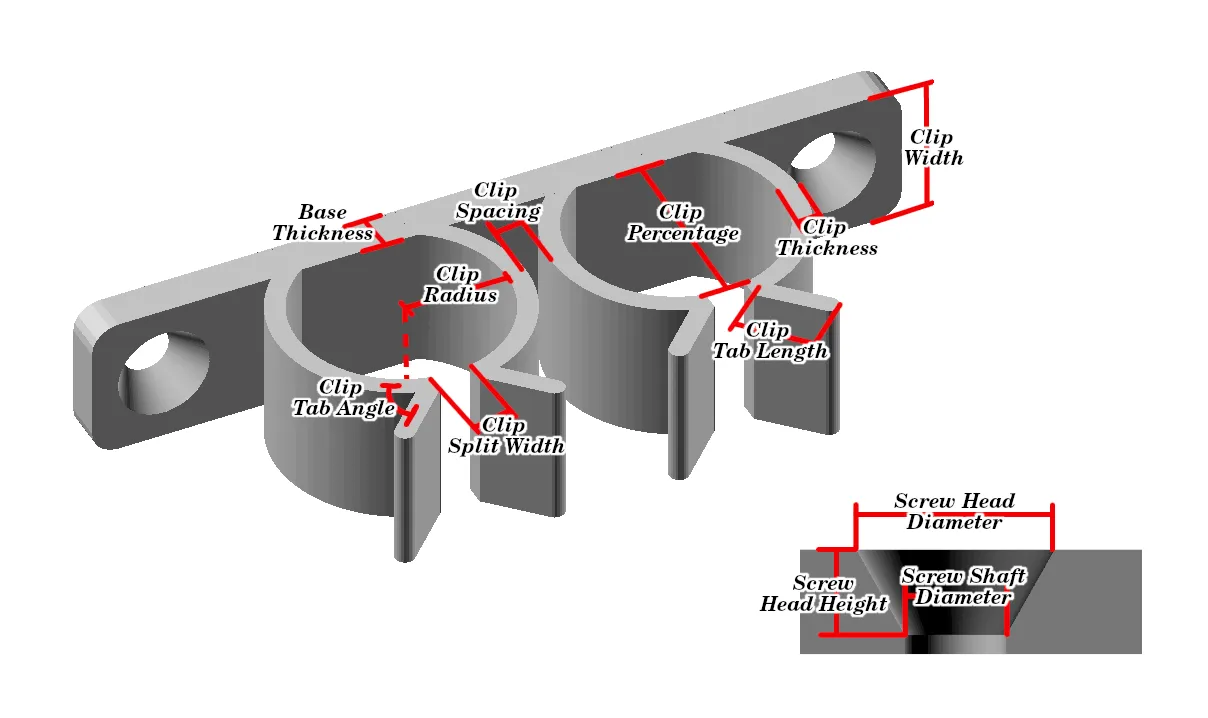

Parameters:
- Clip Width (4-30 mm)
- Clip Count (1-10)
- Clip Spacing (0-30 mm)
- Clip Radius (4-40 mm)
- Clip Thickness (1-6 mm)
- Clip Percentage (0.5-1) (The percentage of a full circle that the clips are, with 1 = 100%)
- Clip Split Width (1-11 mm)
- Clip Tab Length (2-20 mm)
- Clip Tab Angle (0-60 mm)
- Base Thickness (1-30 mm)
- Left Screw (enabled/disabled)
- Right Screw (enabled/disabled)
- Screw Head Diameter (0.1-30 mm)
- Screw Head Height (0.1-30 mm)
- Screw Shaft Diameter (0.1-30 mm)
Part Dimensions:
