Description

Intro

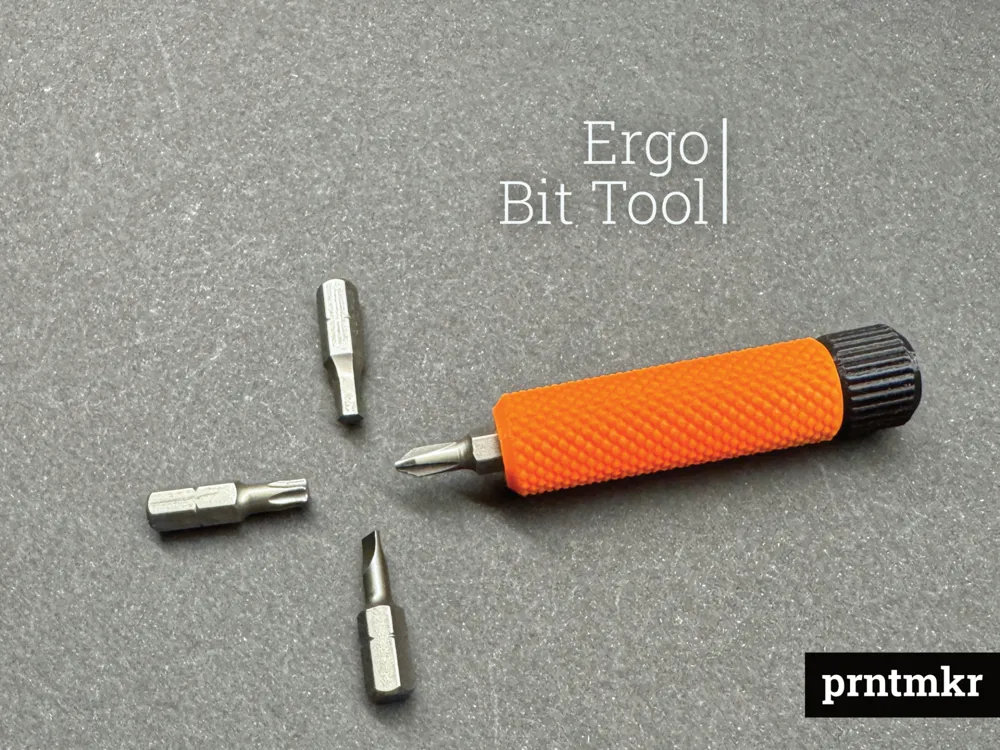

This is an ergoniomic bit tool with a nice textured handle and rotating end piece! Try it, you will really enjoy working with it!

Boost Me (for free)

Why you'll love it?

Suitable for all HEX bits
Very small but still a super grip for all your work
Rotating end piece
Quick print

Recommended print settings

Nozzle: 0.4
Layers: 0.2
Infill: 100%
Perimeters: 2
External perimeters first (important for accuracy)
Print the main item with facing the bit opening towards the print bed, print the end piece with facing the end to the print bed
Material: I recommend to use PLA or PETG (see below)

Please mind, every filament has a slightly different behavior and every bit varies slightly in size too. So if it doesn’t work in the first run with your filament/bit, please make sure to activate the “External perimeters first” option in your print settings. You also can try to change the size of the print a little bit (e.g. scale it to 101% or even 102%).

PS: Push both parts together. It will be rather hard, but this is to make it really fit. After this, turn it a few times and it will work smooth. Also: The tool was designed to hold the bit rather tight - it will get worn out when you use it a couple times. Use pliers or a thin nail (opening on the top) to get the bit out.

Filament recommendation

I used Prusament PLA Prusa Orange and Prusament PLA Jet Black print this model - It works great for this model.

Copyright

You are welcome to print this model for personal use. Please respect the copyright. Unauthorized reuploads are monitored and reported.

Feedback & Support

If you enjoy this model, please consider hitting the LIKE button – it truly supports my work.

Have ideas, FEEDBACK or suggestions for improvements? I’d love to hear them – feel free to leave a comment.

Printed it already? That’s the best compliment! Please share a photo in the MAKES section – seeing your prints is incredibly motivating and helps others get inspired too.

Thank you for supporting independent designers and makers. ❤
