Surface-Mount Enclosure for 4x WAGO 221-412
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
1.5 h
1 plate
Open in Bambu Studio
Boost
119
326
8
3
135
69
Released
Description

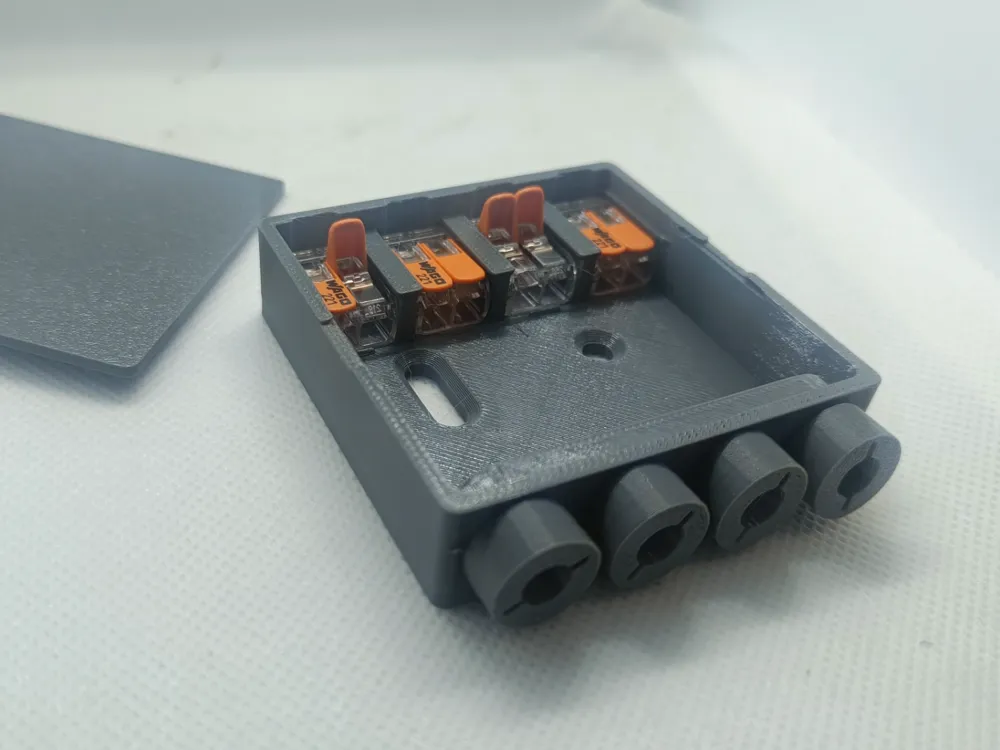

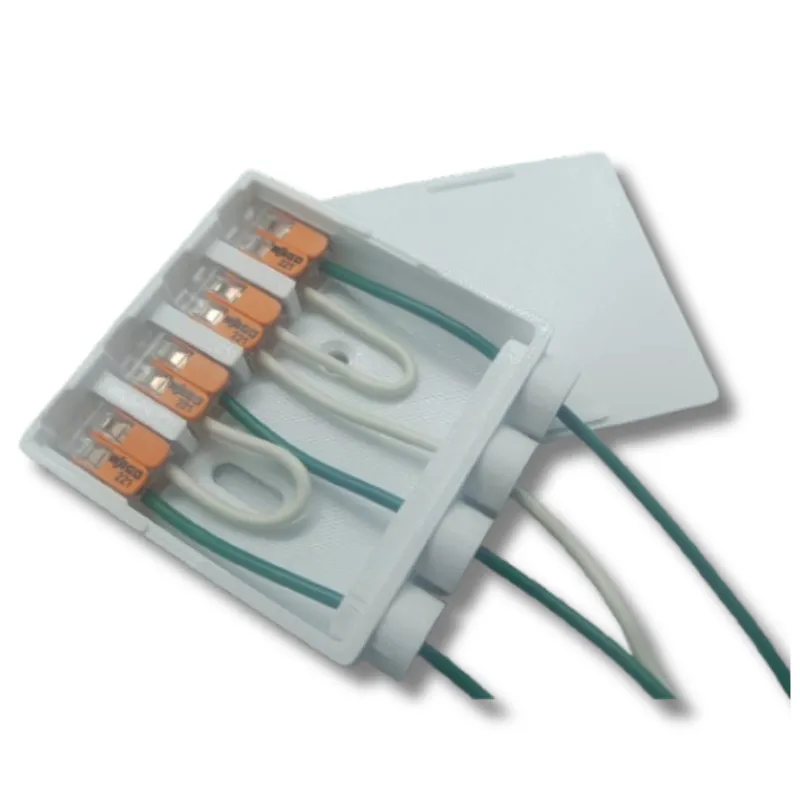

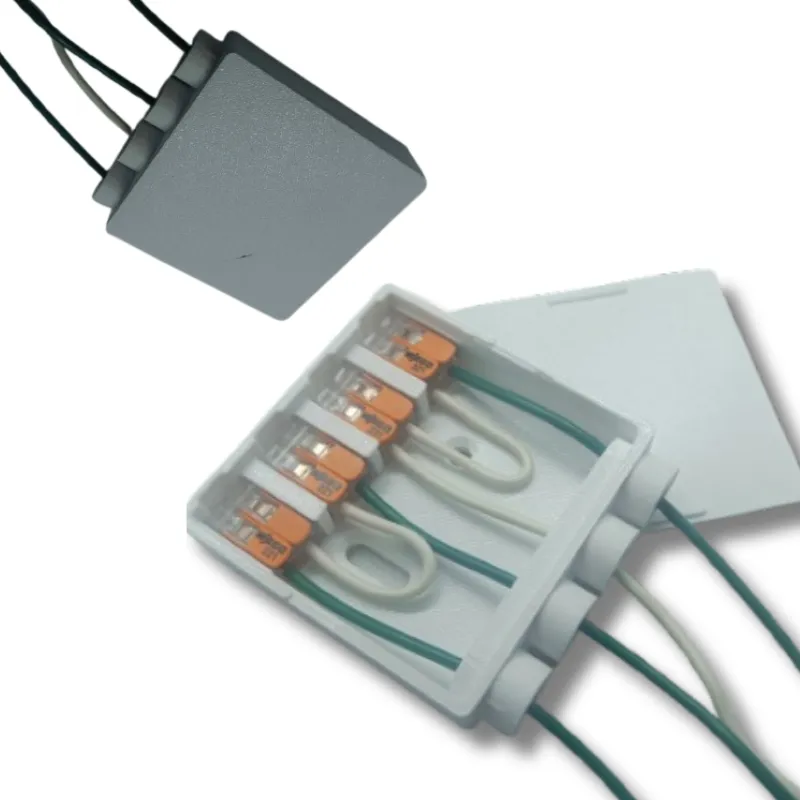

This is a surface-mount enclosure designed for 4x WAGO 221-412 connectors. The enclosure provides a clean and organized way to secure electrical connections while protecting them from external factors. It features a snap-on lid for easy access and maintenance.
Features:
- Designed for 4x WAGO 221-412 connectors (2-wire).
- Mounting options: Can be attached to a surface using screws (not included).
- Cable management: Comes with four passthrough caps (Ø5mm) for cable entry and four closed caps for unused openings.
- Compact design: Approx. 66x66x18mm in size.
- Material: PET-G (3D printed).
- Snap-fit lid for quick and secure closure.
This model is shared for 3D printing purposes, allowing makers to create their own enclosures. Ensure proper filament settings for sturdy and precise prints.
