Coca cola Vintage advertising set - hueforge

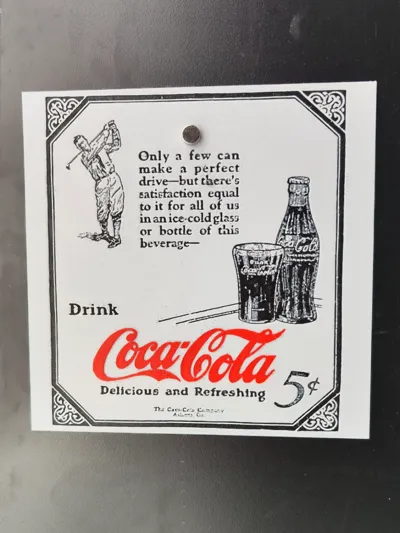

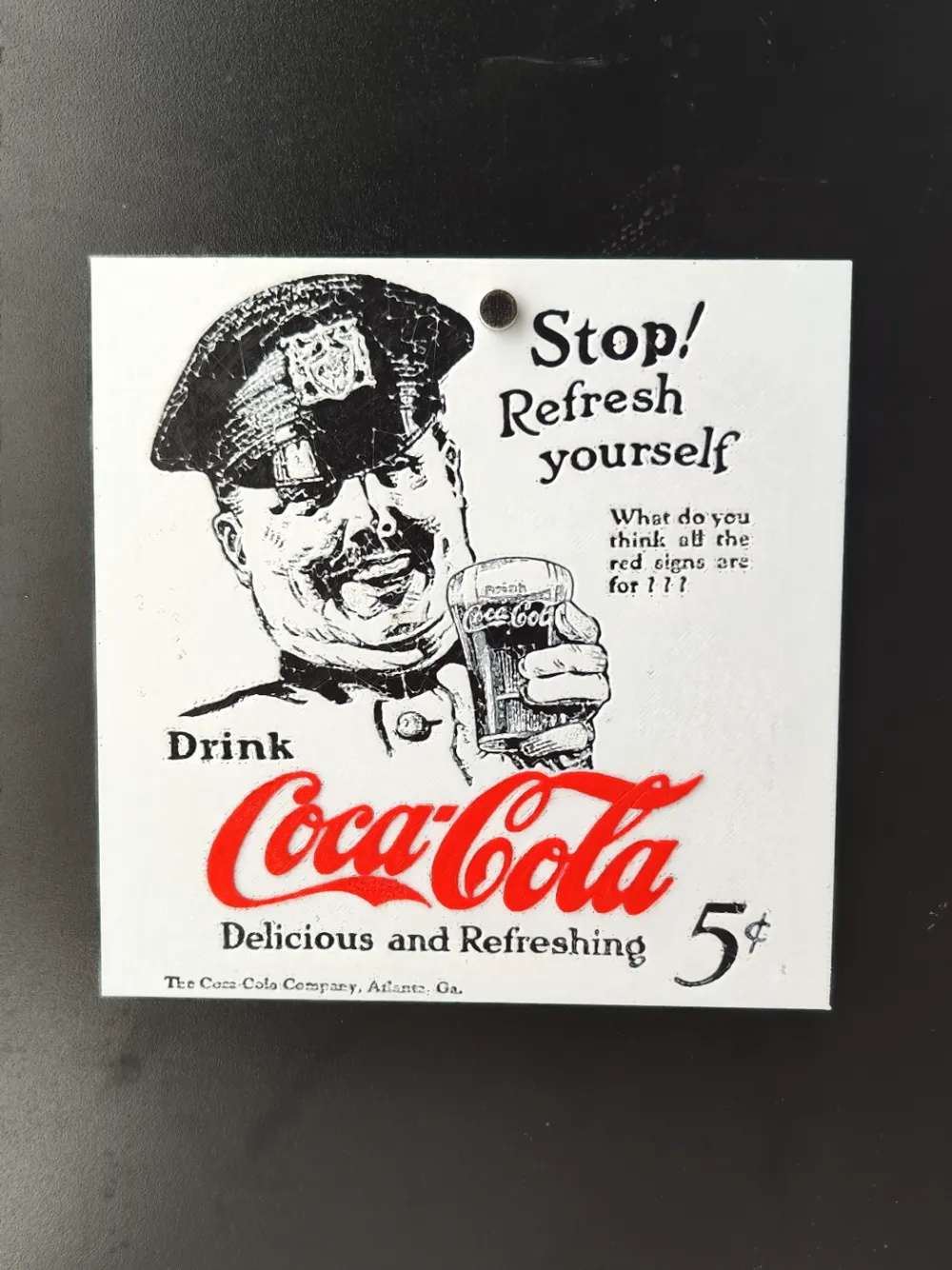

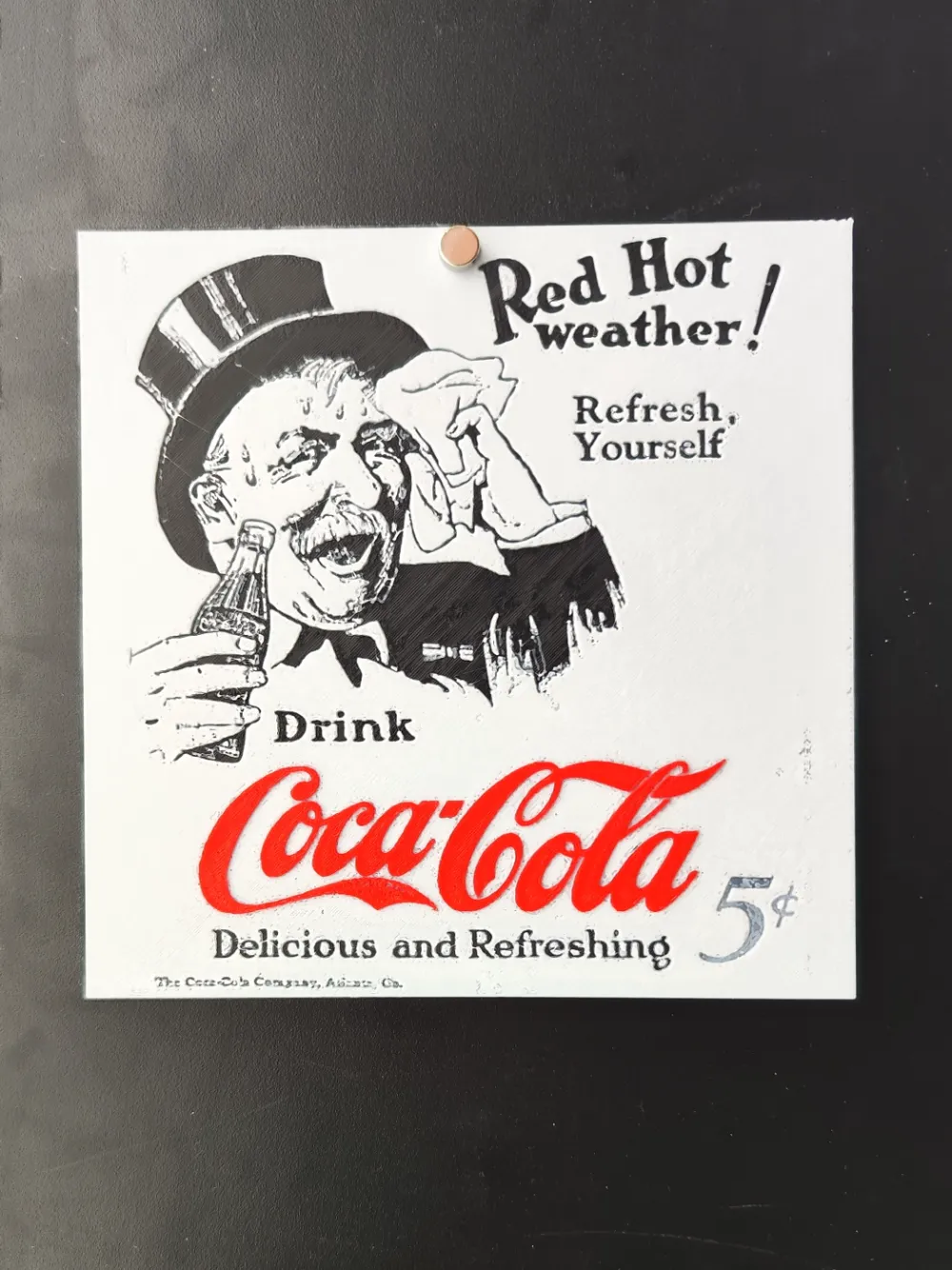

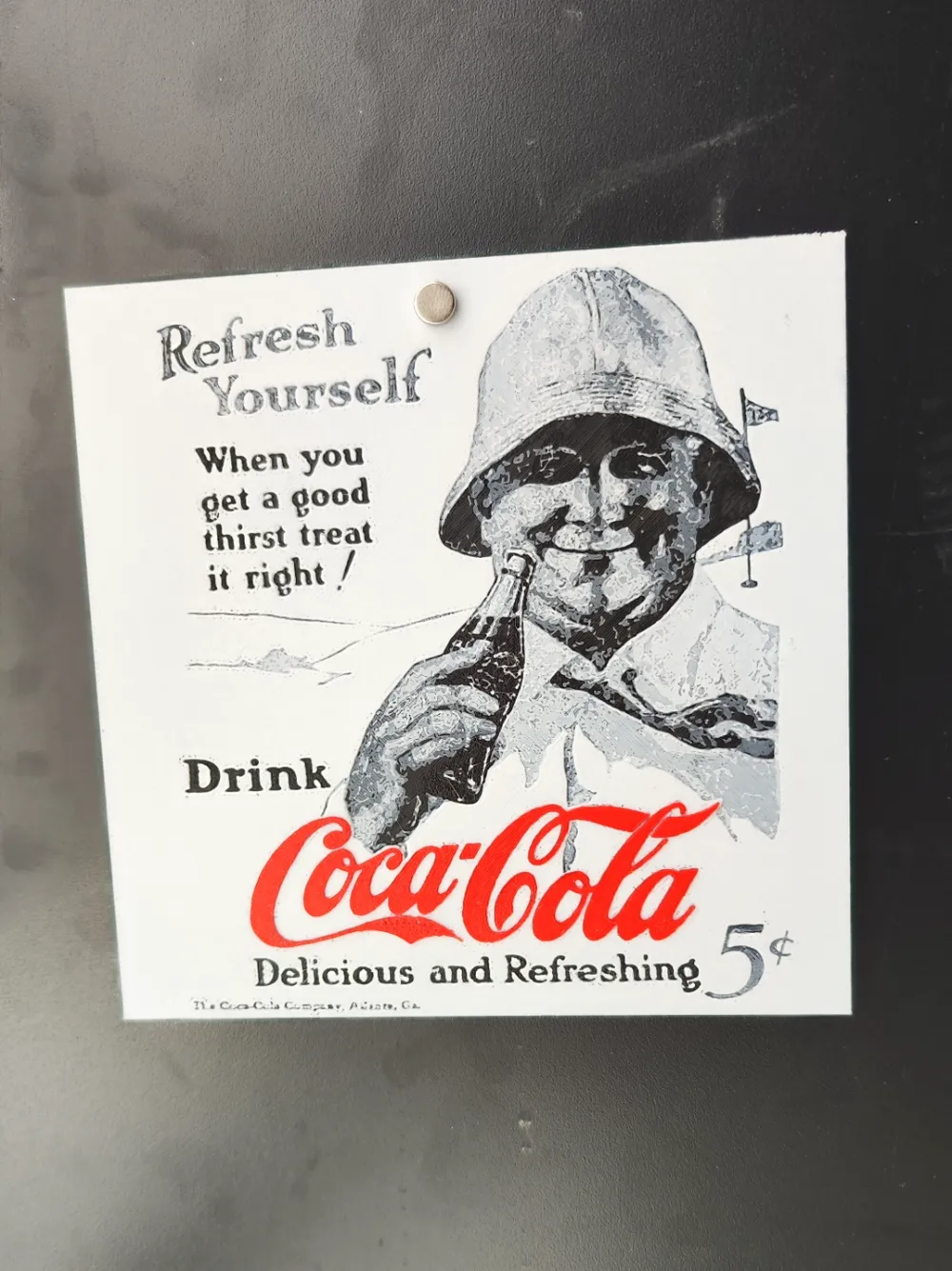

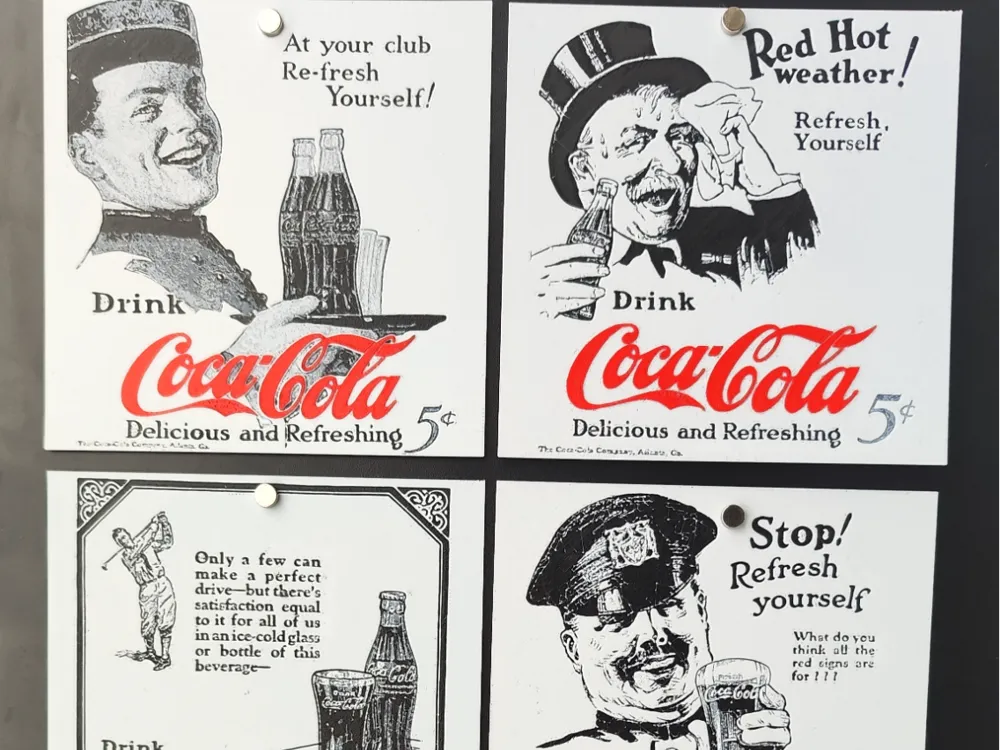

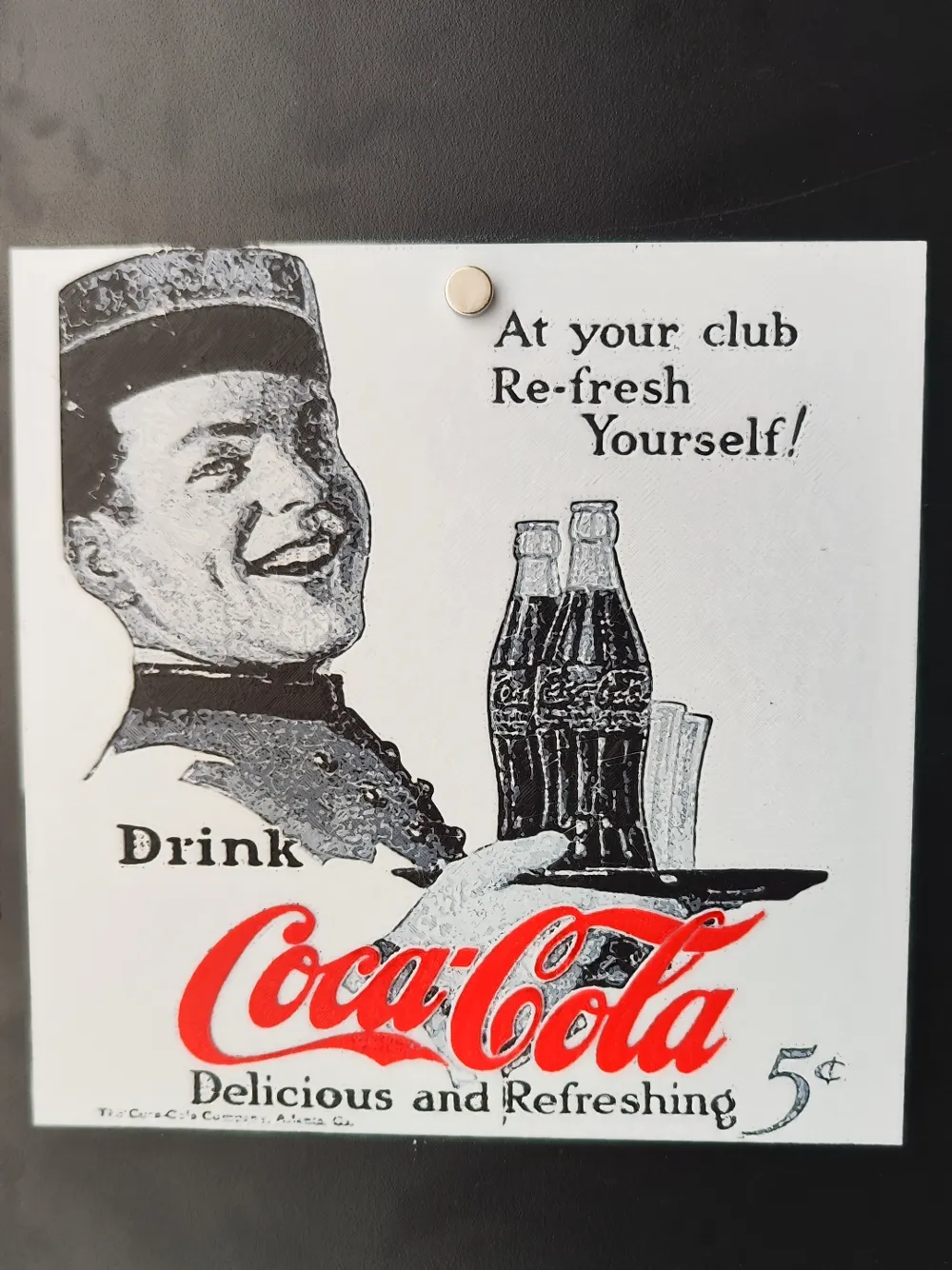

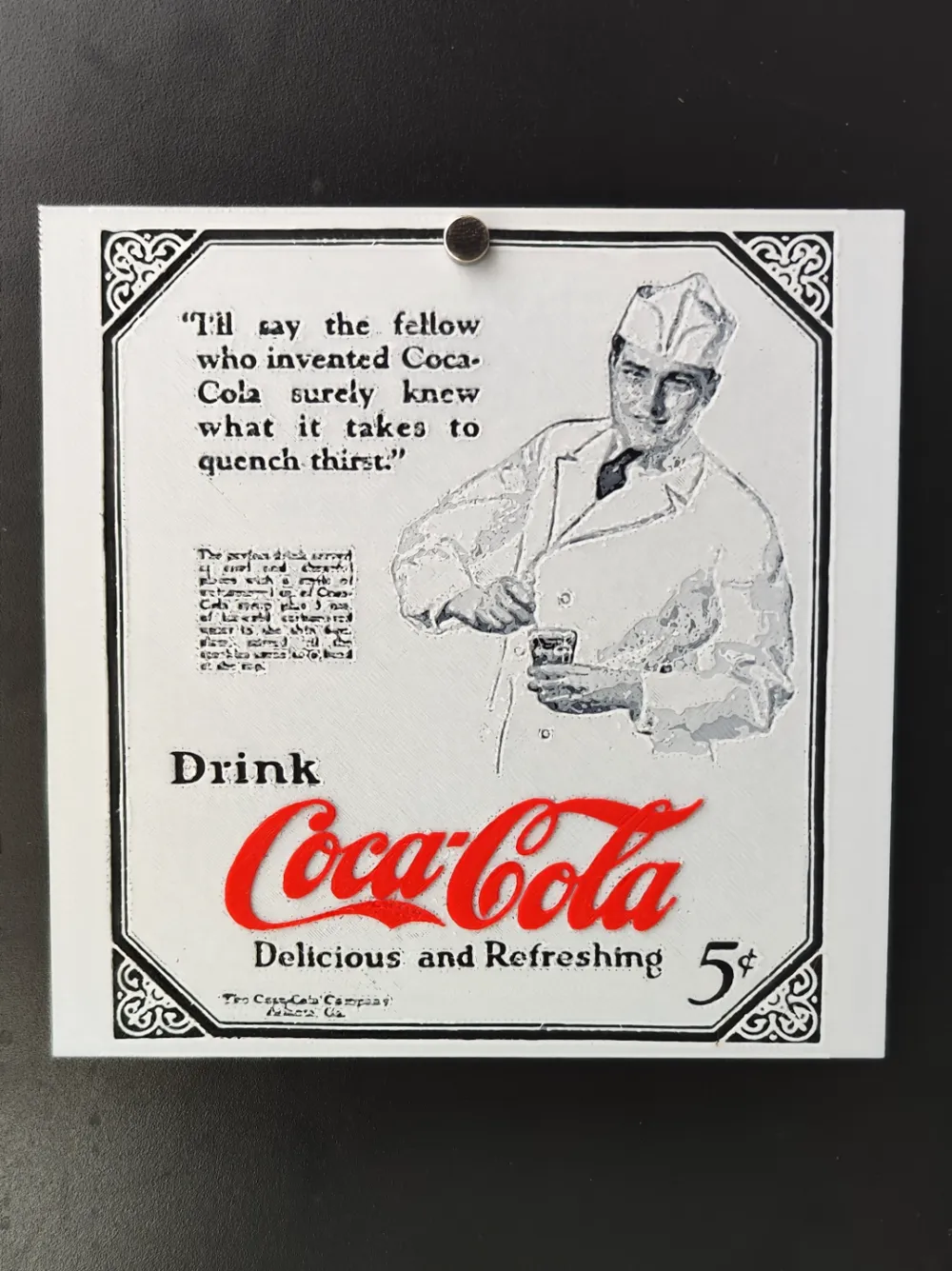

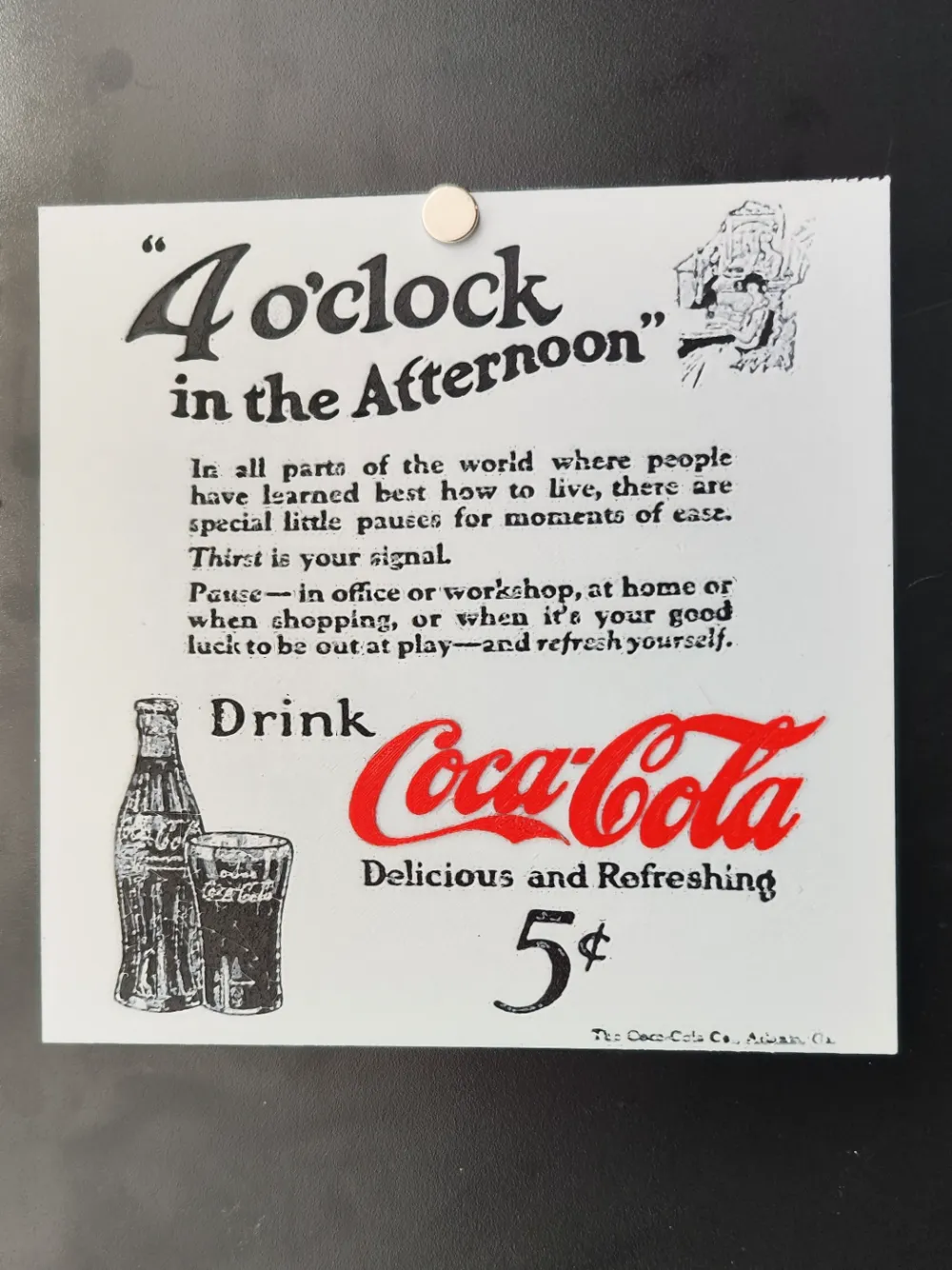

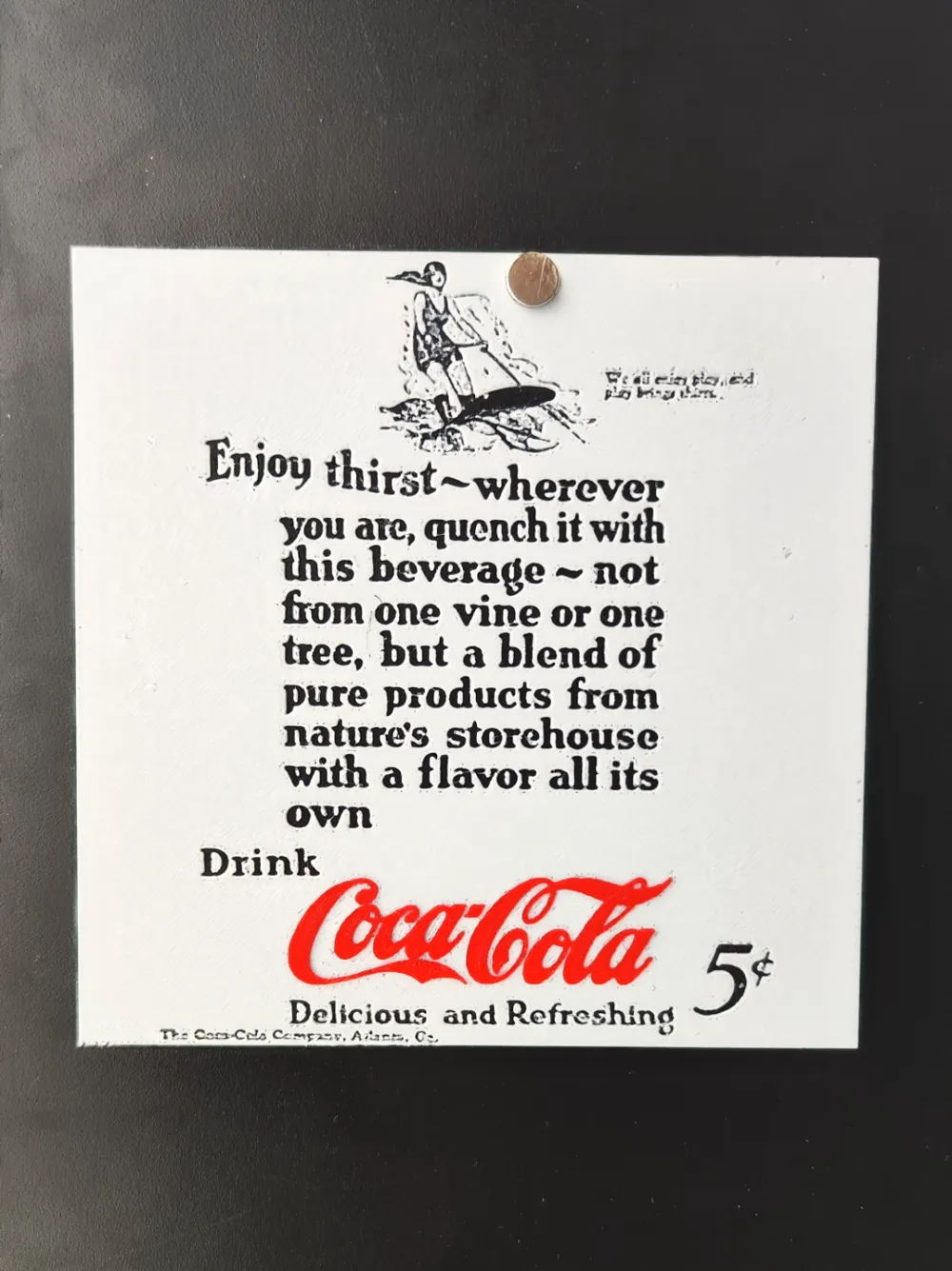

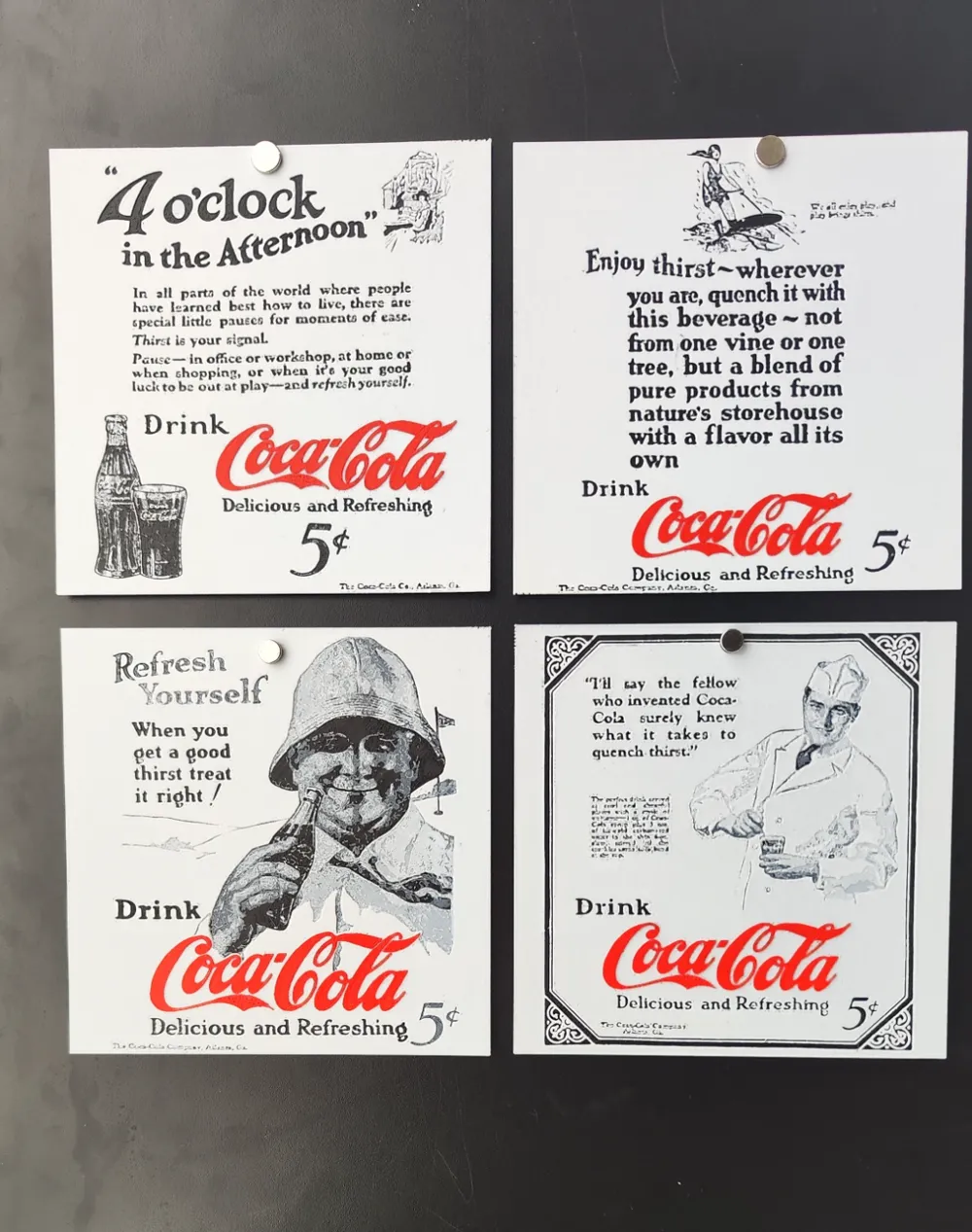

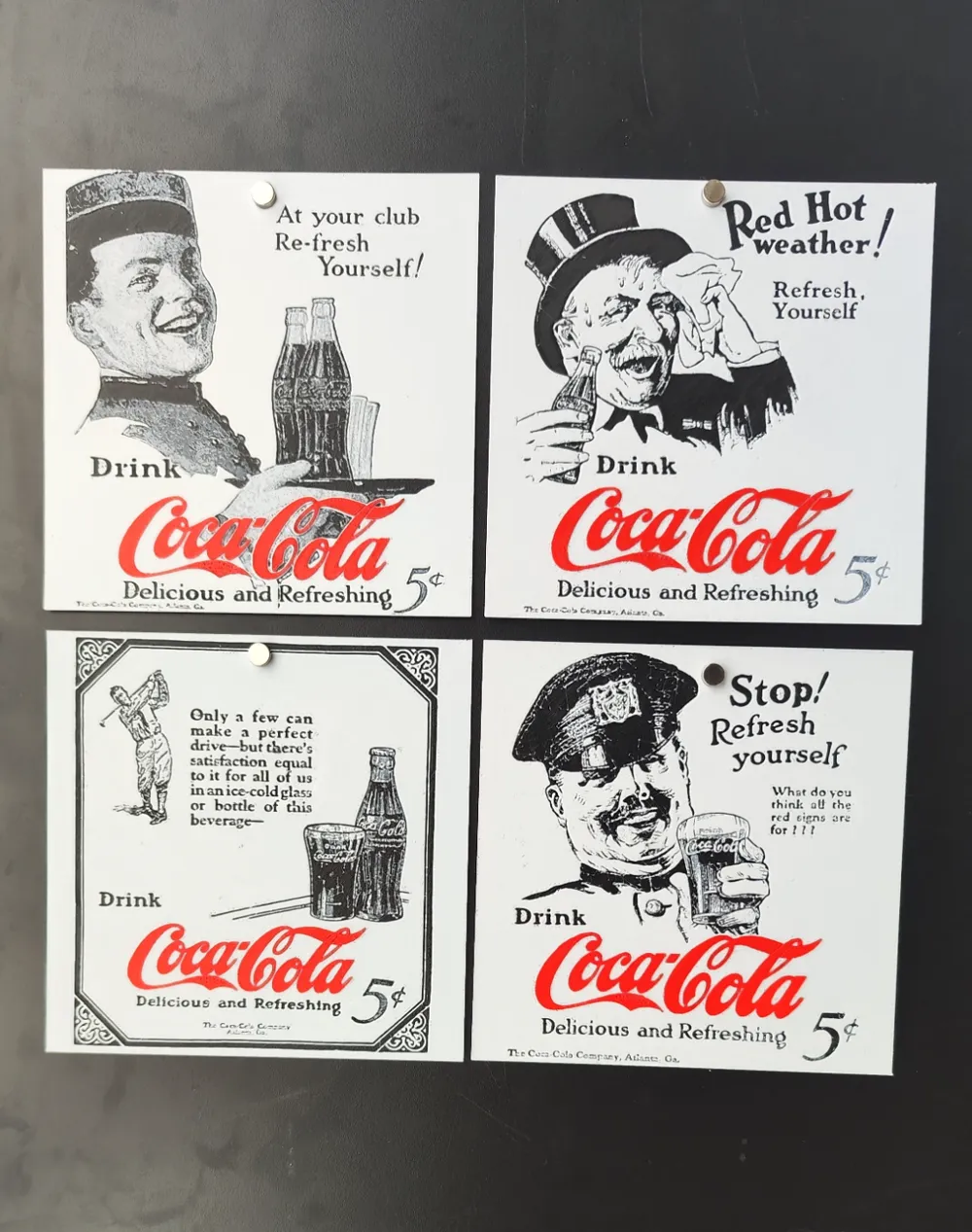

My photos are indeed those of the printed model and not of the original image

-------------------------------------------------------------------------------------------------------------------------------------------------------

Commercial license and exclusive models on Ko-fi!

Thanks!

-------------------------------------------------------------------------------------------------------------------------------------------------------

Hueforge of some Coca-Cola advertising from 1912

The photos shows the result in 150*150mm and a nozzle of 0.4

You can change the X and Y dimensions but do not change the Z dimensions

You must define the printing parameters indicated in the description below and change the filament on the indicated layers.

You can use filaments other than those indicated, but the result will differ.

You can use any black, white or red PLA

Hueforge parameters are the same for all designs

Hueforge description

Print at 100% infill with a layer height of 0.08mm with a base layer of 0.16mm

 The Model is 150x150mm in size

 You may print at higher layer heights below the Min Depth of 0.48mm

 The Max Depth is 2.2mm and the Actual Depth is 1.7mm

Filaments Used:

 PLA BambuLab Basic Black Transmission Distance: 0.6

 PLA BambuLab Basic Jade White Transmission Distance: 5

 PLA BambuLab Basic Red Transmission Distance: 4

This print uses 3 unique filaments

Swap Instructions:

 Start with Black

 At layer #8 (0.72mm) swap to Jade White

 At layer #15 (1.28mm) swap to Red for the rest.

-------------------------------------------------------------------------------------------------------------------------------------------------------

Don't forget your grandma's advice: Always have a clean plate, a dry and calibrate filament, and make an offering to the god of 3D printing from time to time.
