Elegoo Saturn 4 & 4 Ultra Build Plate Drying Rack Resin Recycling

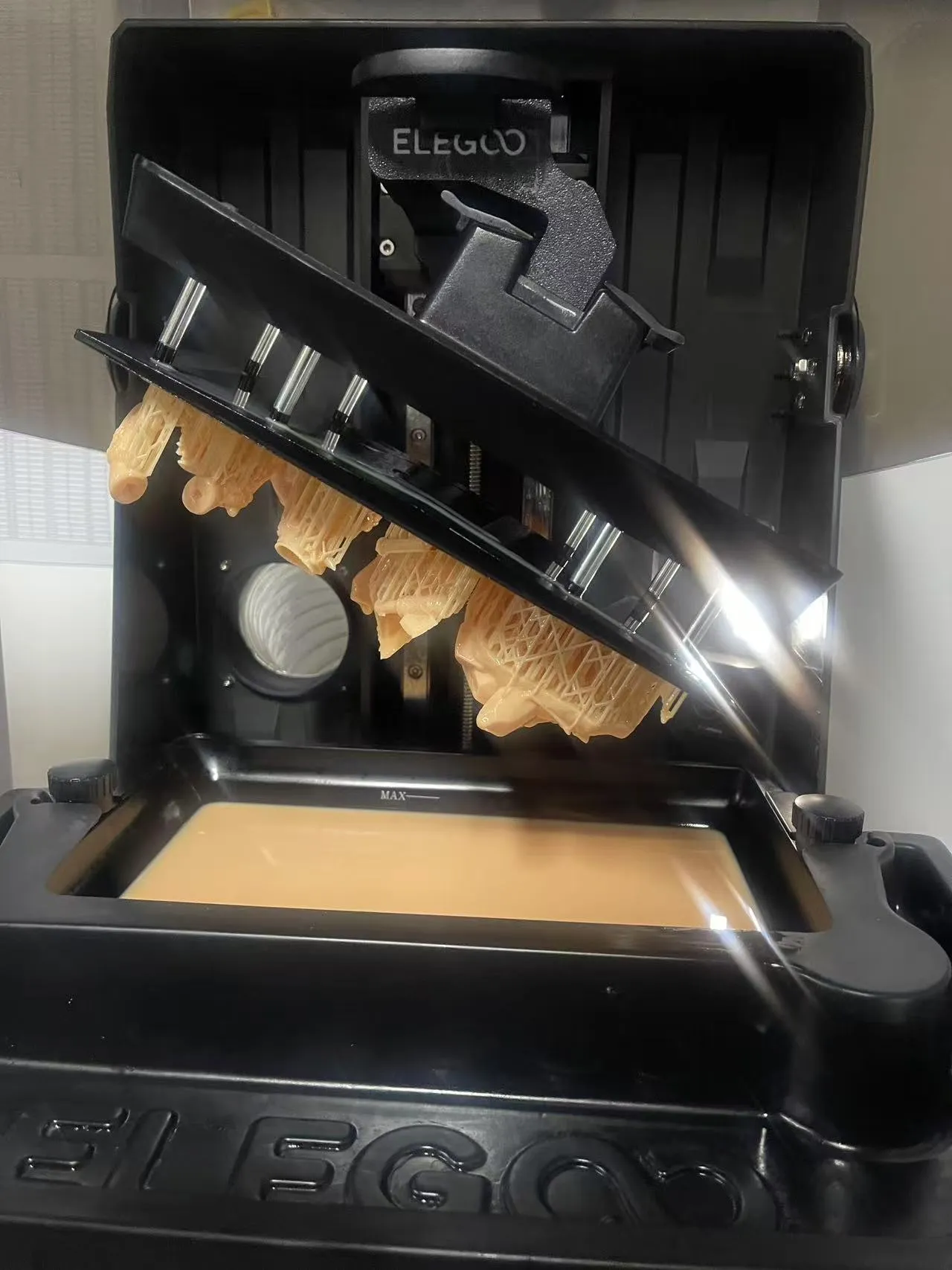

This product is suitable for Elegoo Saturn 4/4U/4U 16K resin 3D printers, used for draining the build plate and models on the build plate after printing, allowing excess resin to drip into the resin vat

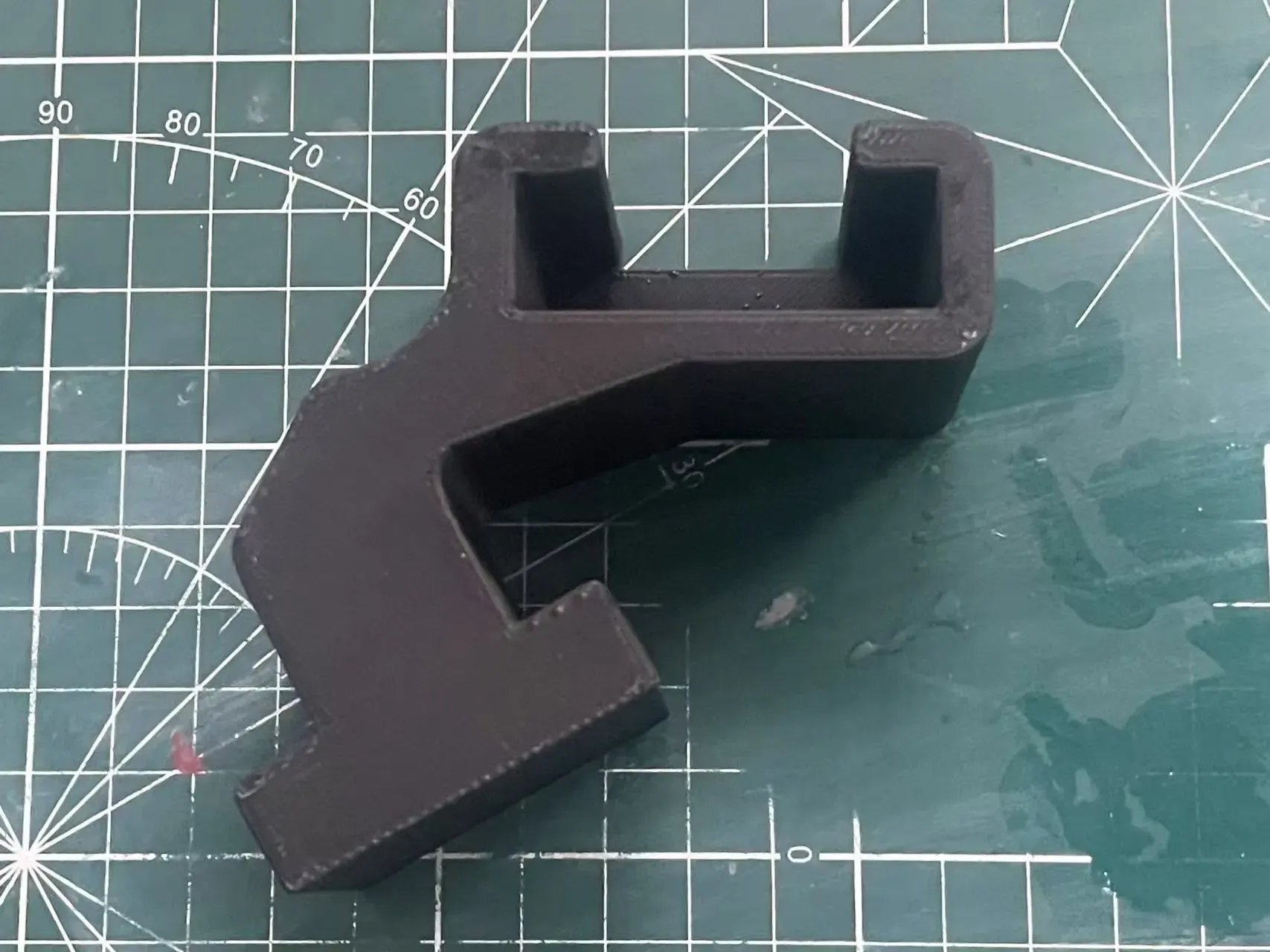

You can print the logo in two colors, or print it in a single color as one piece the logo is not a simple letter

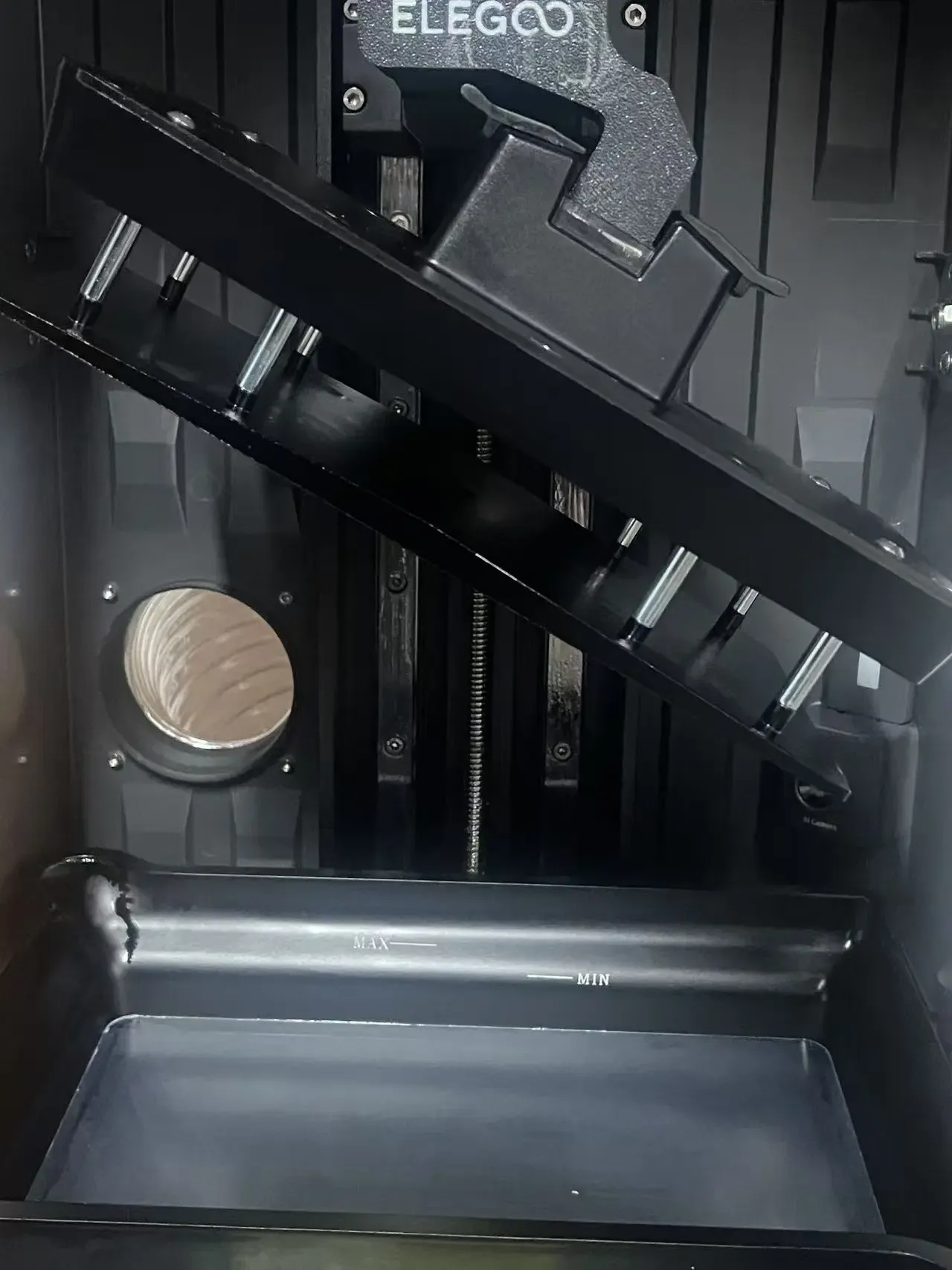

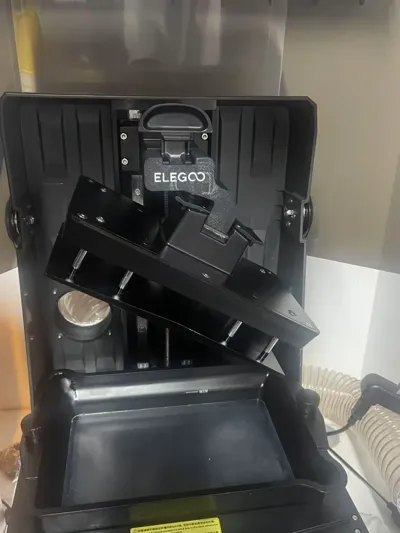

The tilted angle is carefully designed to allow resin to drip back into the vat more quickly without overflowing

ATTENTION

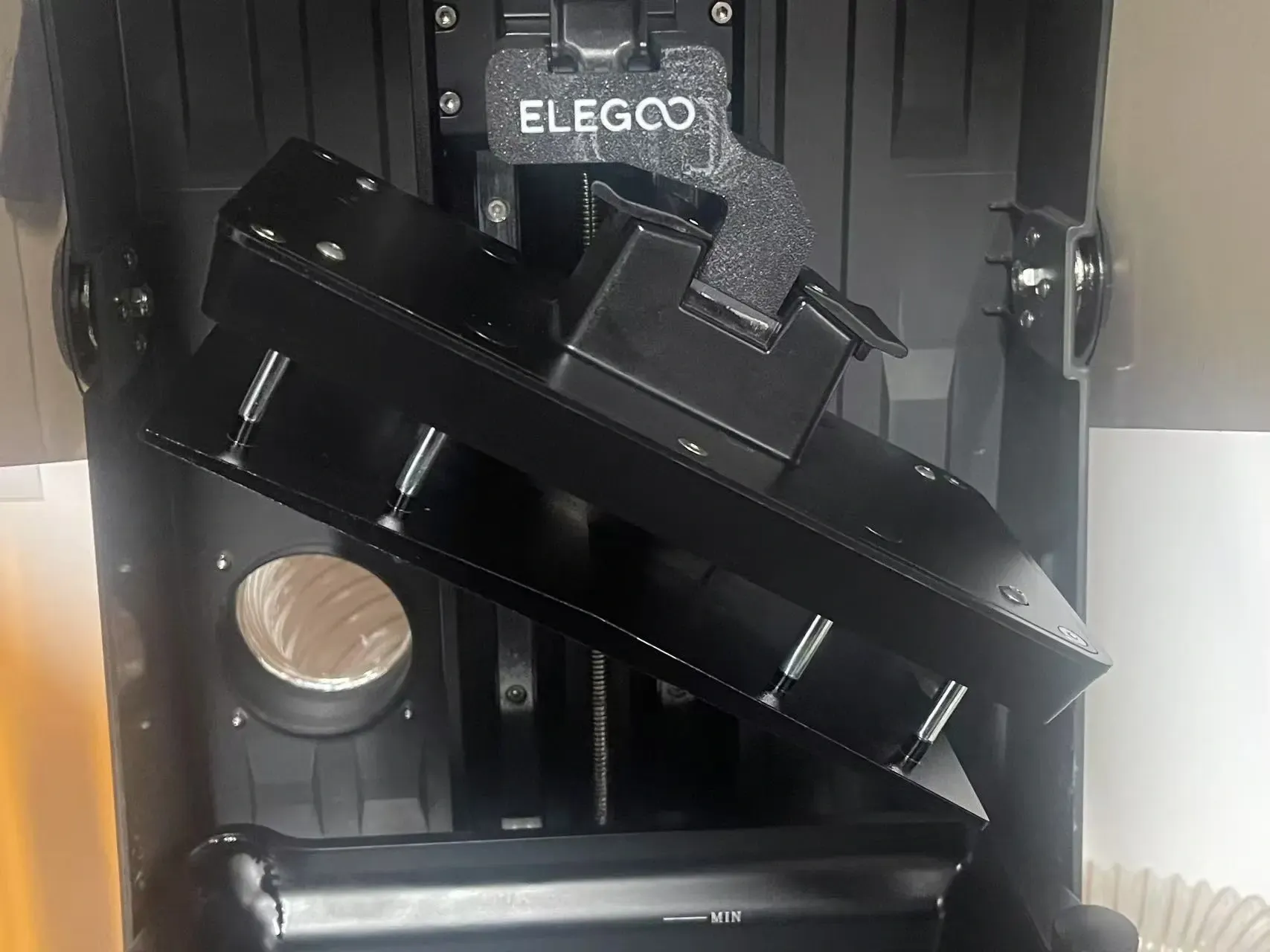

1. When in use, the upper part of this product can be locked by the printer's build plate buckle, but the lower slot has no buckle. When using, first insert this drip rack into the printer and lock it with the buckle, then fully insert the build plate to prevent damage to the screen or release film from falling
2. If the Z-axis height is too low after printing, making it difficult to insert the build plate after adding this drip rack, please manually raise the Z-axis before inserting the build plate into this drip rack
3. This drip rack is not suitable for models that are too tall and whose highest point is on the left side of the build plate. If the left side of the model extends beyond the resin vat vertically after insertion, please do not use this drip rack
4. The insertion direction of this drip rack can be adjusted according to the hole position of the model, making it easier for resin inside the holes to drip. It should be noted that if inserting from inside out, please be very careful. It is best to combine the resin vat and this drip rack first, then insert them both into the printer. Place carefully and ensure there is no risk of the build plate falling

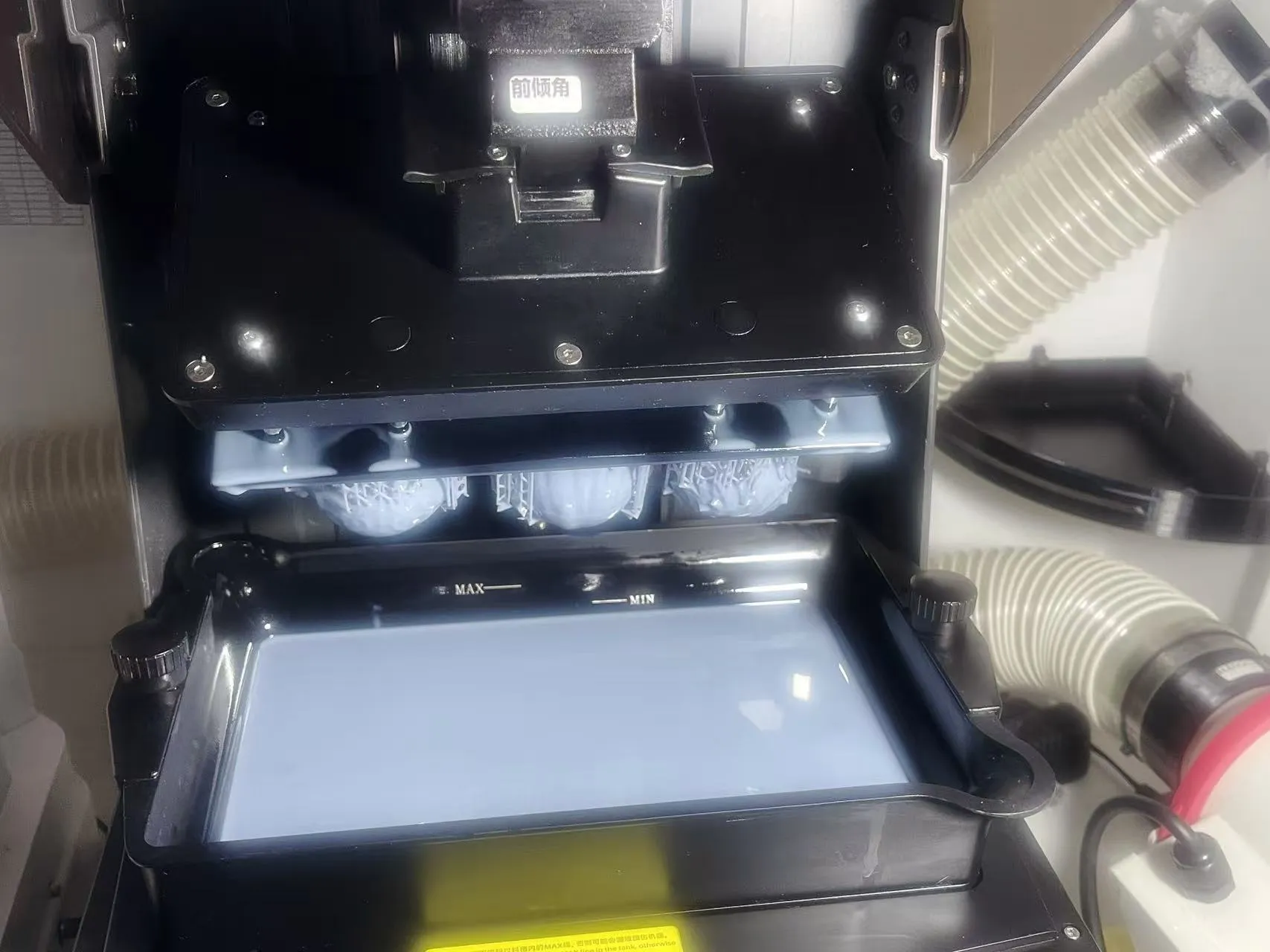

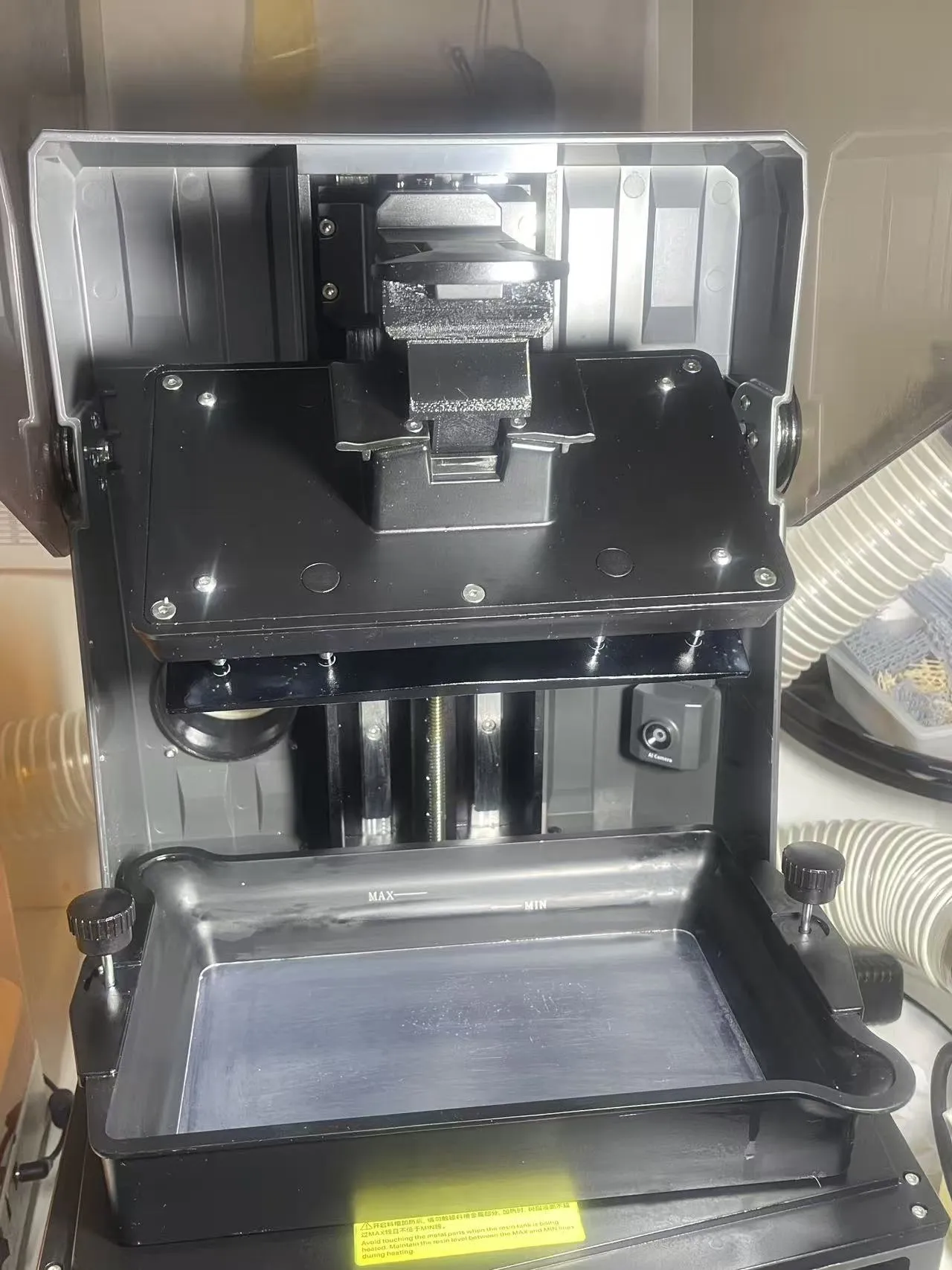

Additionally, a version with a forward-tilting angle has been designed

This is suitable for models with holes at the front from which resin needs to drip

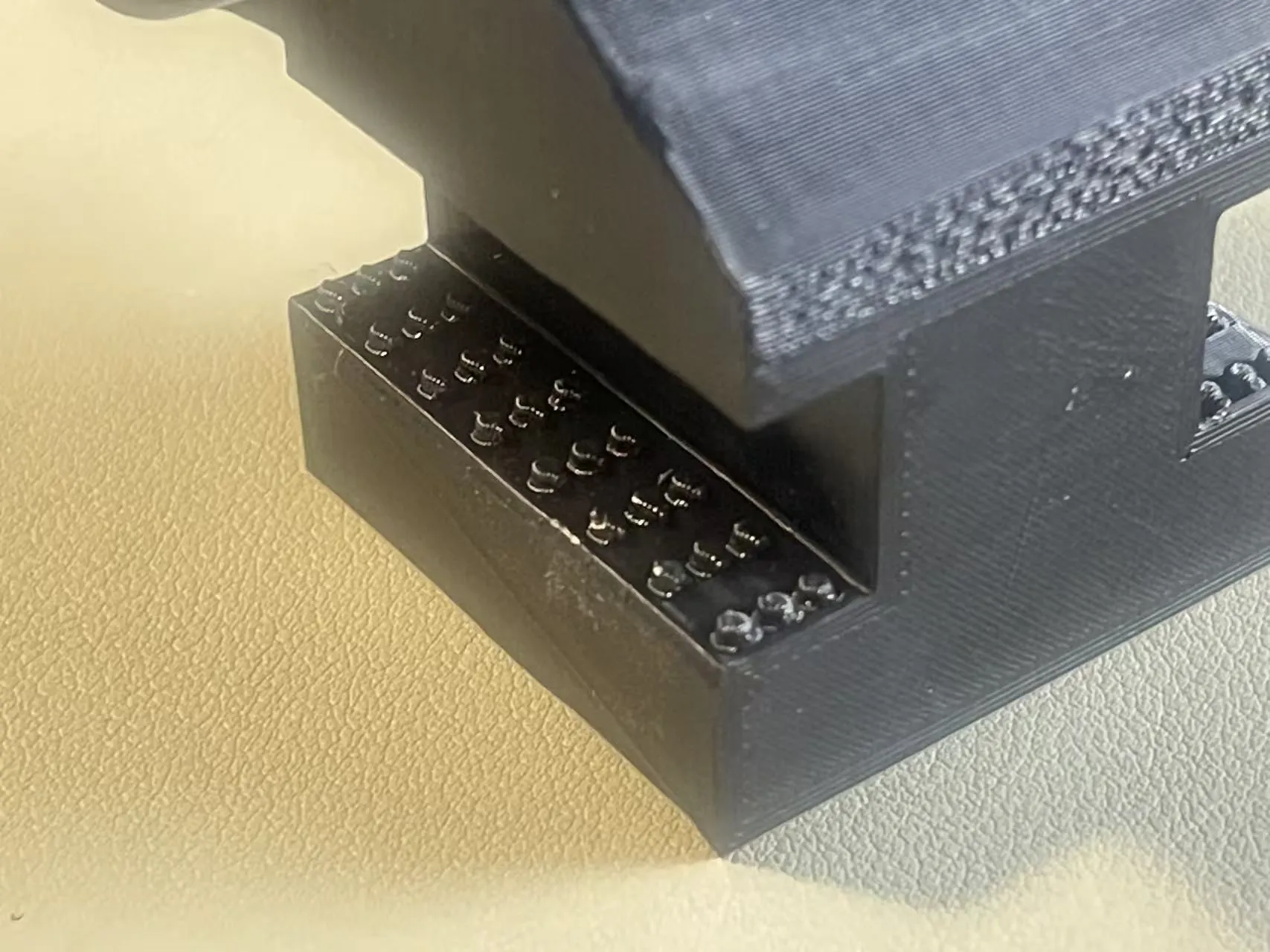

This version carries a risk of sliding and falling. We have designed anti-slip pins, but please make sure to repeatedly test during use to ensure the build plate does not slide

Of course, you can also push the build plate in reverse. If both the angle and distance allow, this can prevent the risk of falling

Generally speaking, when the build plate is inserted, it can form an automatic interlock with the drip rack, allowing for safe use

However, always ensure the build plate is fully pushed in, with the largest possible area contacting the contact surface

In short, if it can tilt right, it can tilt left; if it can tilt forward, it can tilt backward. As long as the model height is suitable and the angle is right for installation, any configuration is possible
