90° connector for 18mm thick boards case/box/shelf
Print Profile(1)
0.2mm layer, 4 walls, 35% infill
Designer
2 h
1 plate
Open in Bambu Studio
Boost
54
135
3
2
42
18
Released
Description

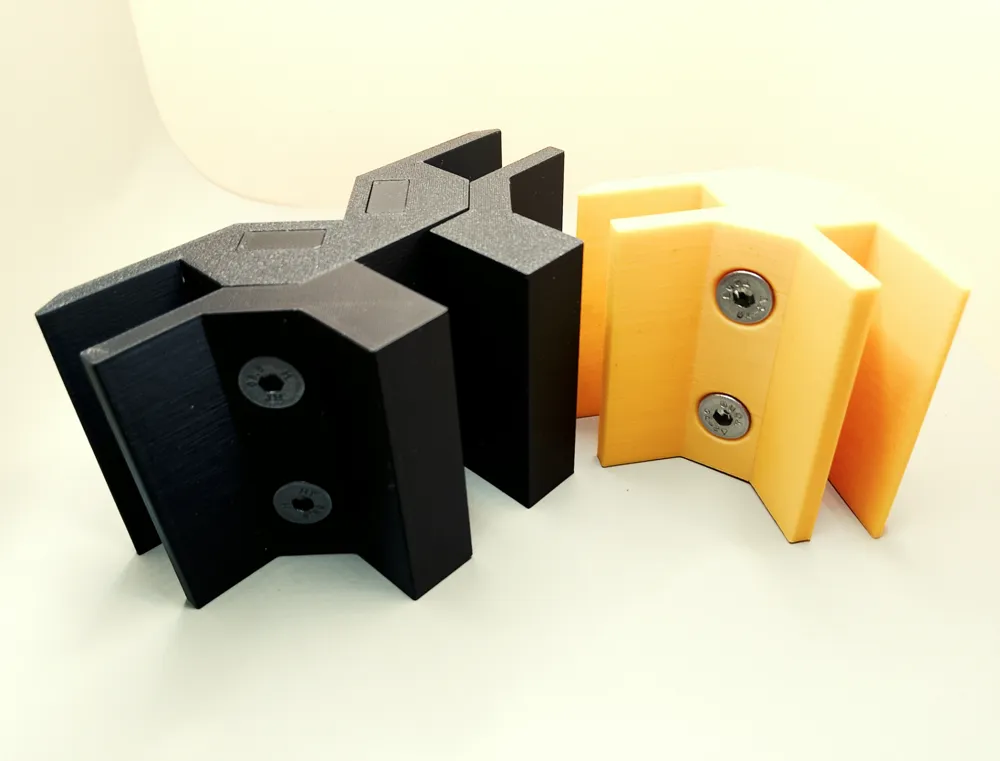

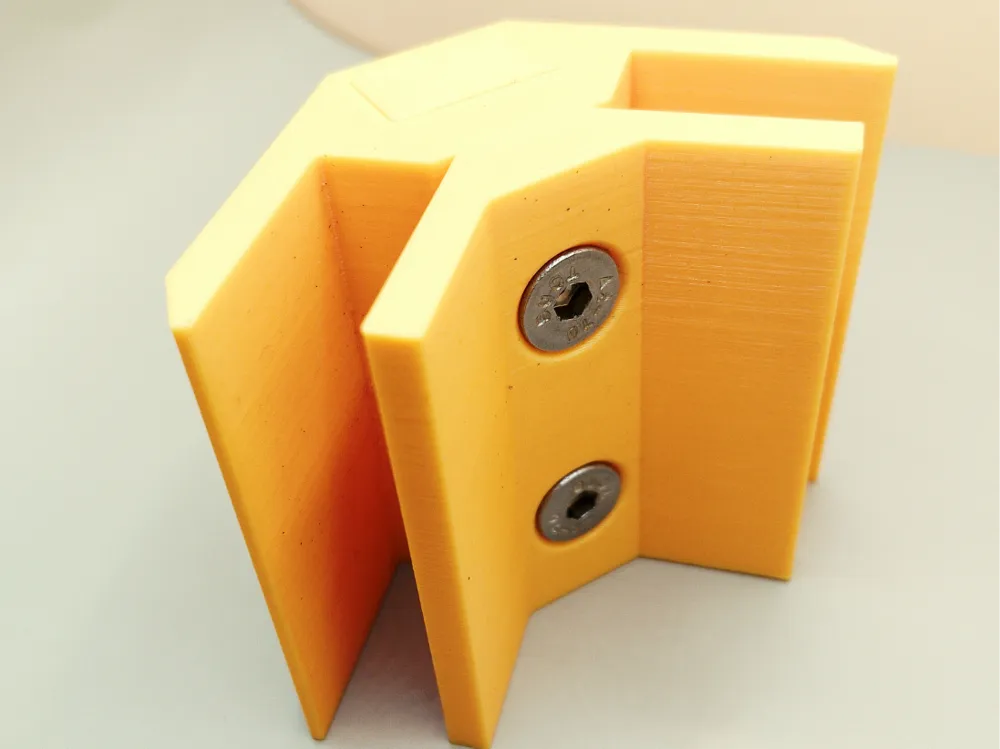

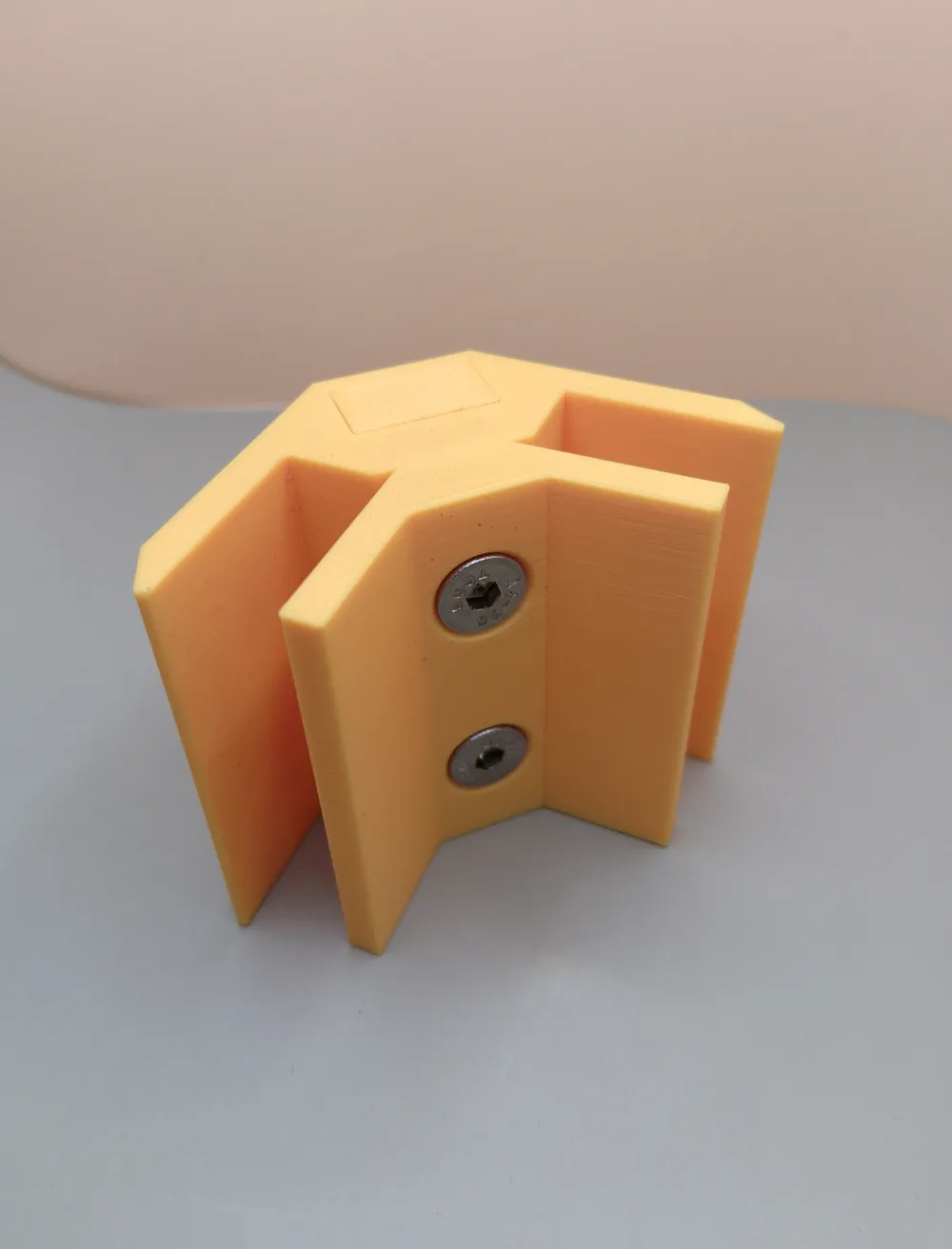

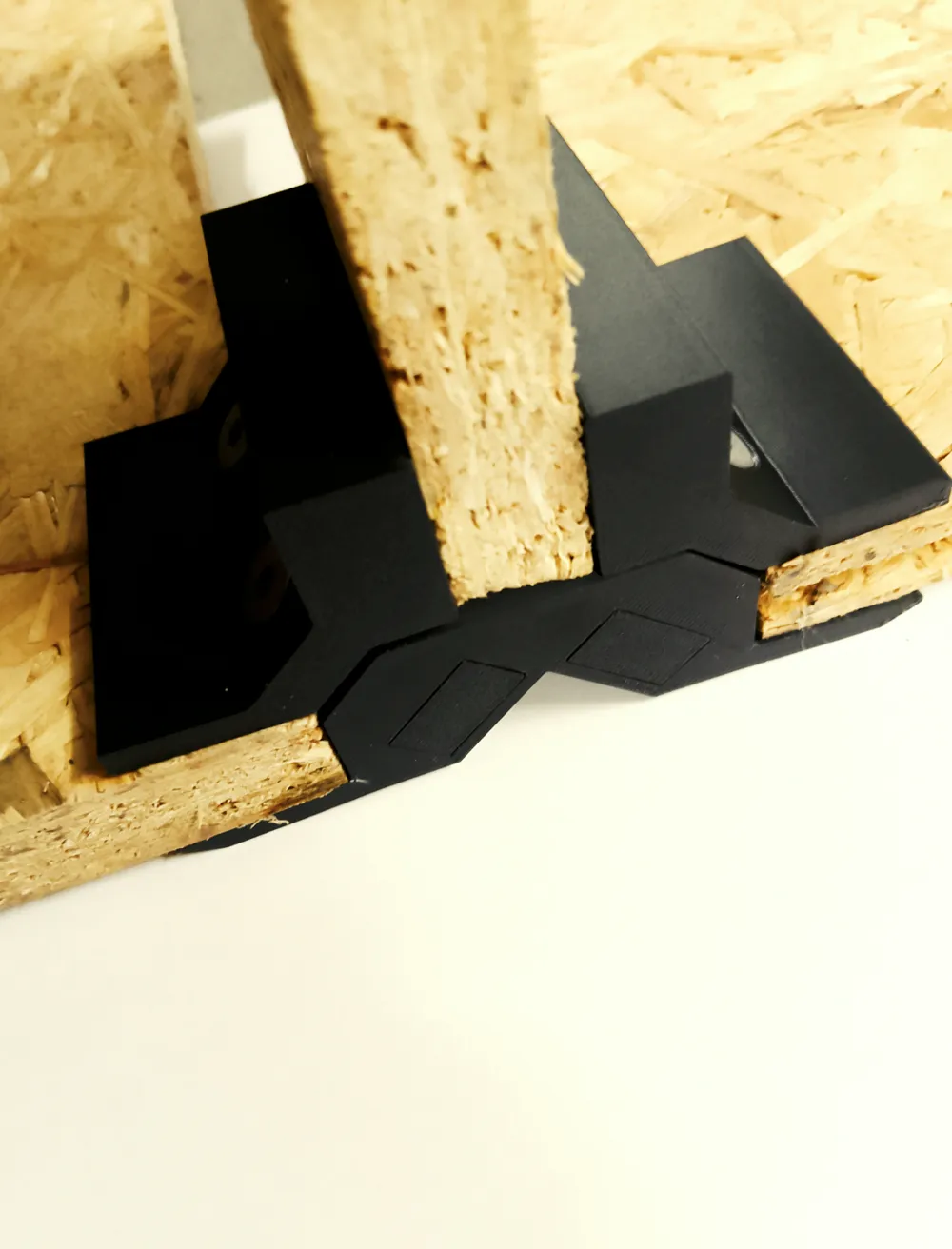

90° connector for 15 and 18 mm thick boards (for cabinet/shelf construction)

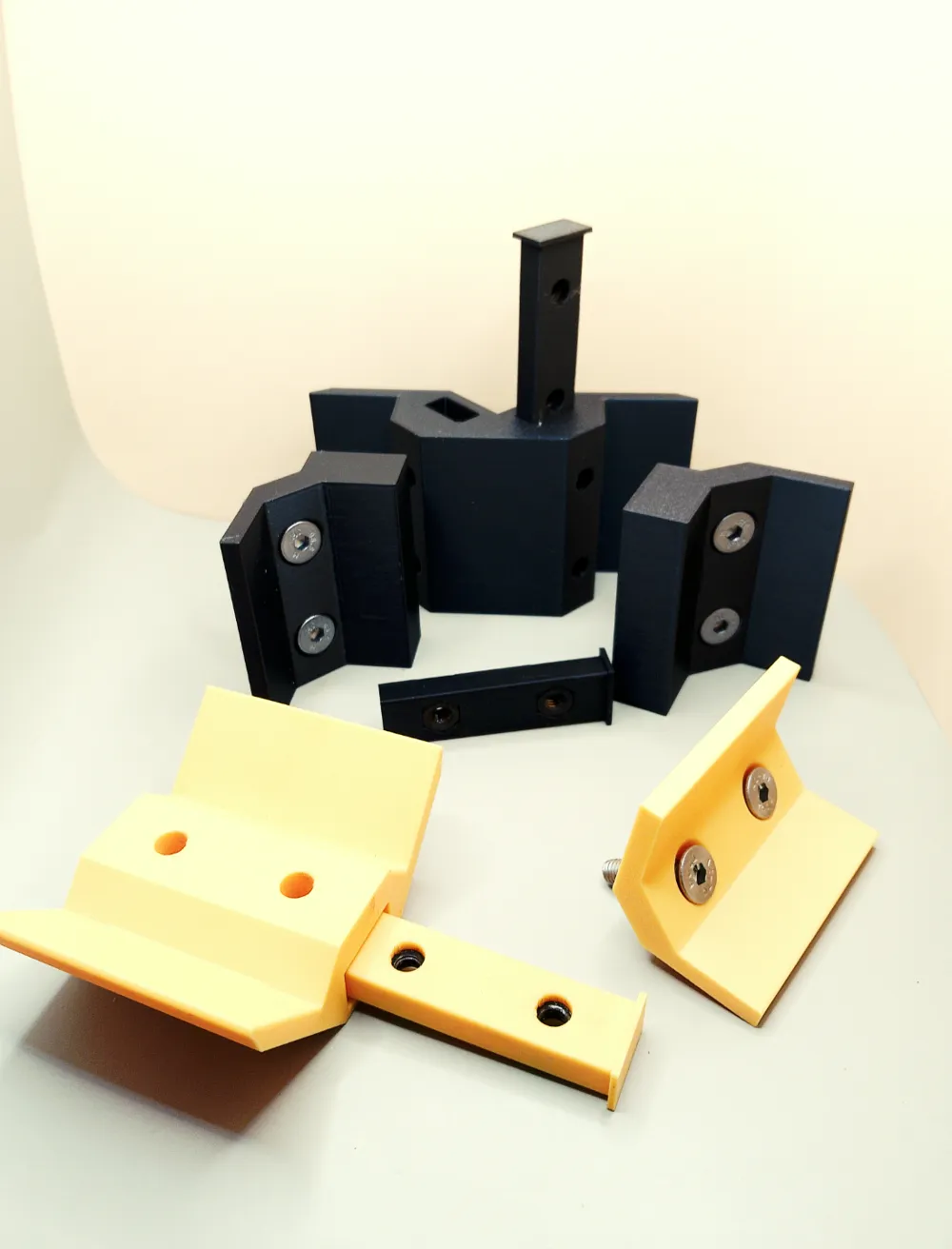

Three-part connector:
Internal corner and M6 nut holder common to both thicknesses
Specific external corner: 15 or 18 mm
Fixed with M6 countersunk head screws (25 mm for 15 mm thickness / 30 mm for 18 mm thickness)
