DITV-01 body parts rear wheel arch (313mm wheelbase)
Print Profile(1)
Description
Boost Me (for free)

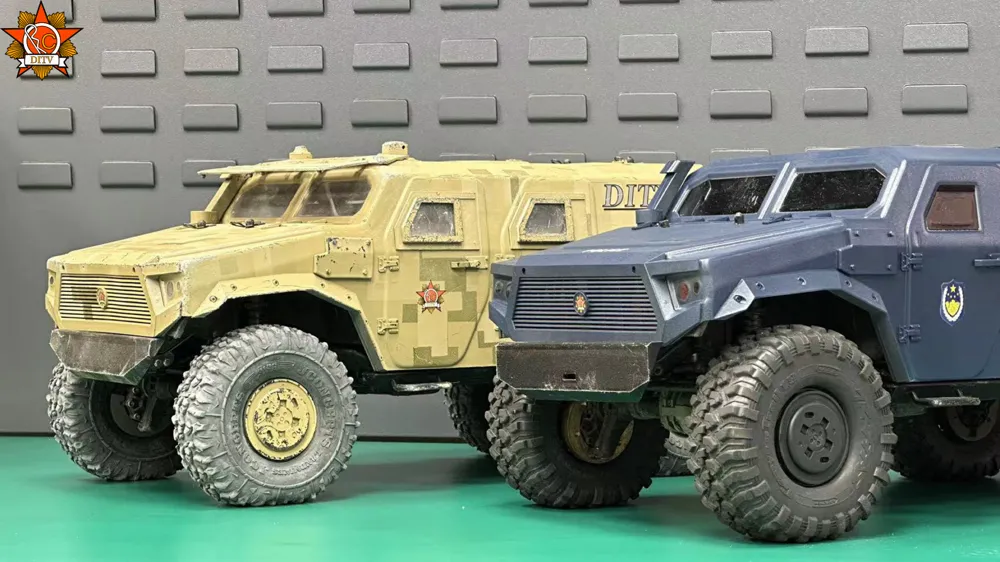

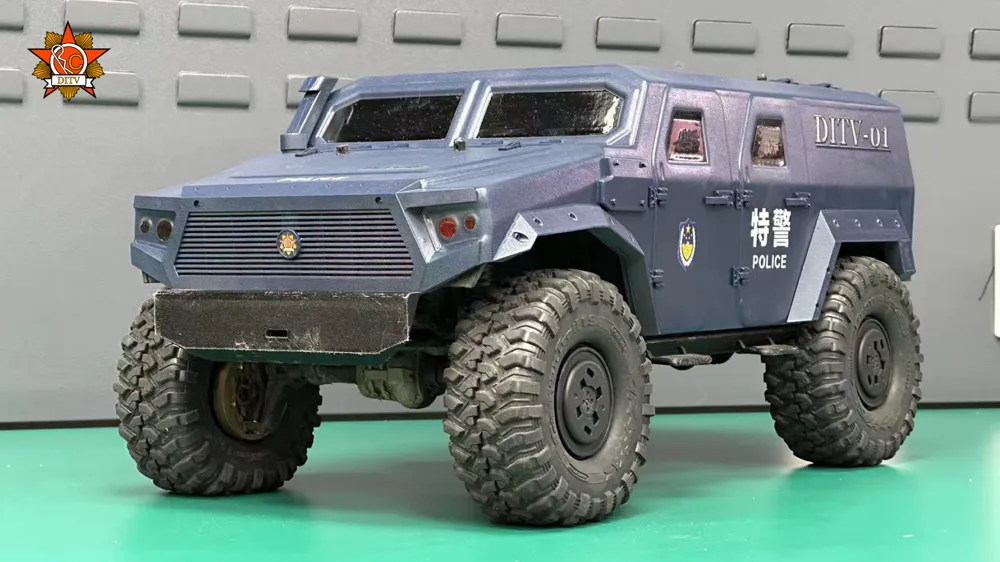

Hello everyone, I'm an RC remote control car + military model enthusiast! There has always been a lack of a professional RC crawler car on the market that is both durable and has a military style, so I pulled my fellow model enthusiasts together and designed and developed it ourselves! Our DITV-01 is a 1/10 tactical style PC soft shell, specially adapted for the Trx-4 chassis, and we've also made universal matching parts~ All parts use the original screw hole positions, no need for violent modification, you can restore it to Trx4 at any time, and other chassis with a 324mm wheelbase can also be used! The car shell + adapter parts have been open-sourced on MakerWorld, and I am also making exclusive chassis. We will continue to update compatible parts in the future. Welcome everyone to optimize and modify!
DITV-01车壳的313mm轴距专用轮眉
DITV-01 Body Shell Special Fender Flares for 313mm Wheelbase
注意：该轮眉是退而求其次的选择，如果追求协调的外观比例请优先选择324mm轴距轮眉
Note: These fender flares are a compromise option. If you prefer a well-proportioned look, please choose the 324mm wheelbase fender flares first.
以下为安装步奏：
Installation steps:

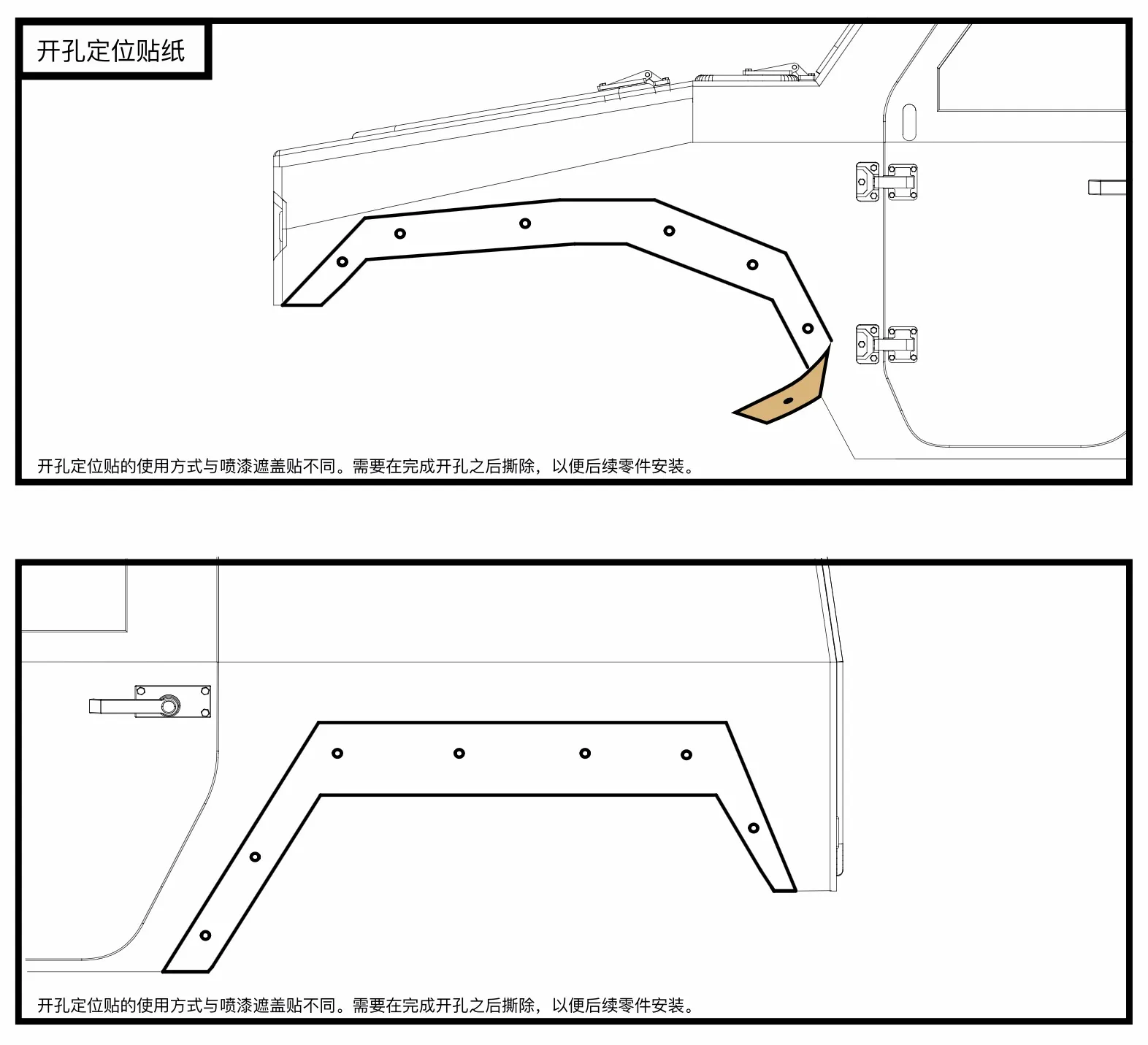

- 先用贴好开孔定位贴纸 First apply the pre-drilled positioning sticker
- 使用开孔器开孔 Drill holes using a hole saw

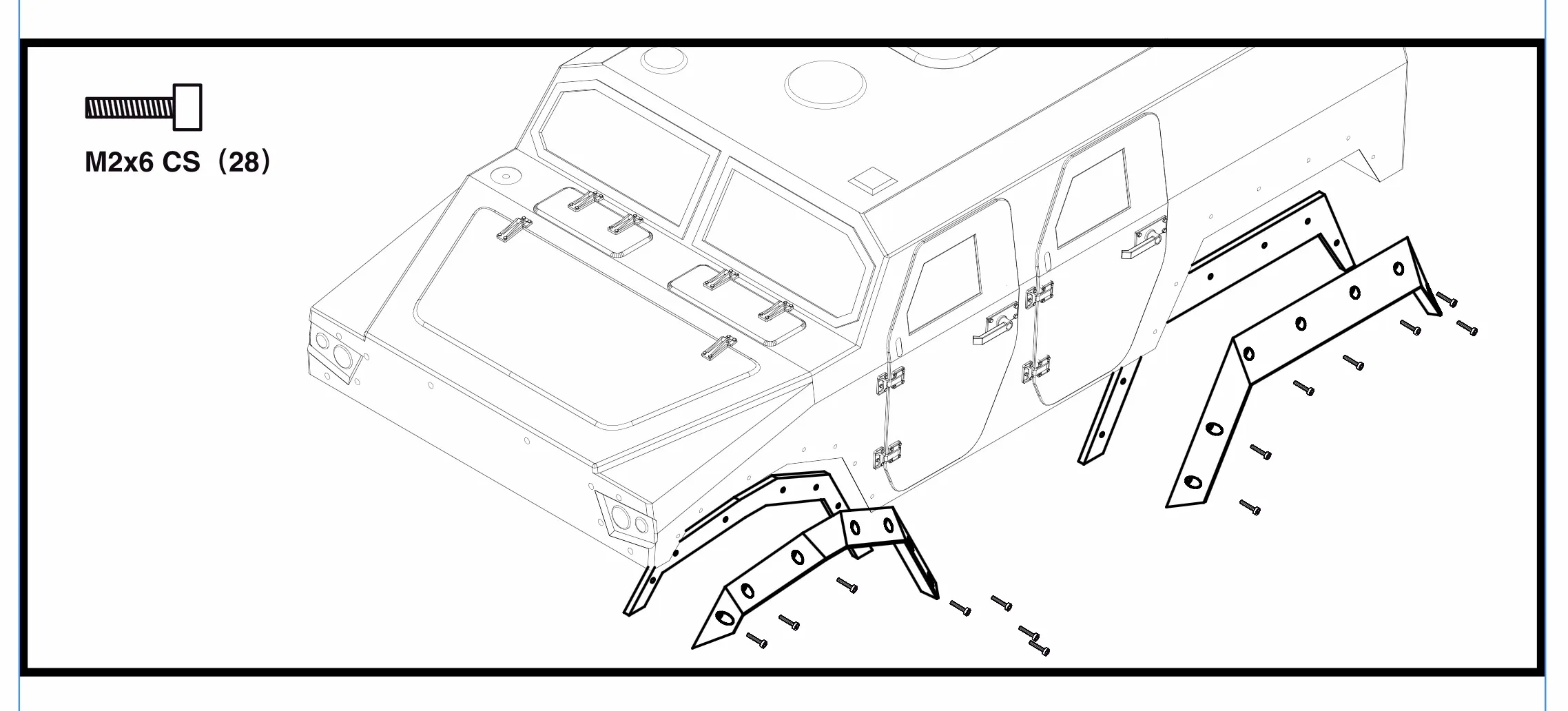

- 使用M2*6 CS螺丝固定 Secure with M2*6 CS screws
打印材料可使用PLA/PETG/偏硬的TPU
Printable materials include PLA, PETG, or rigid TPU.
该轮眉的外形是我根据下面视频情况改良而来的，大家放心使用。
The shape of these fender flares was refined based on the video shown below. You can use them with confidence.
Note: The main body of the body shell can be found on Amazon(Amazon.com: Hobbypark RC Crawler Body Shell Military Truck Style for 313mm 324mm Wheelbase Compatible with Traxxas TRX4 Axial SCX10 1/10 Scale (Clear Body Pro) : Toys & Games).
Boost Me (for free)
时隔半年终于登回账号，有问题留言，3天内必回！ 亚马逊可买车壳，中国玩家B站、小红书能找到，后续也会上架TikTok～ Finally back on this account after 6 months, drop your questions below – I’ll reply within 3 days! Grab the body on Amazon, Chinese fans find it on Bilibili & Xiaohongshu, coming to TikTok soon!
