Metric tolerance measuring tool
IP Report
Print Profile(4)
A1 mini, without AMS 0.2mm layer, 6 walls, 25% infill
Designer
9.3 h
3 plates
X1C with AMS 0.2mm layer, 2 walls, 15% infill
Designer
5.6 h
3 plates
A1 mini, with AMS, 0.2mm layer, 2 walls, 15% infill
Designer
6.4 h
3 plates
X1C without AMS, 0.2mm layer, 2 walls, 15% infill
Designer
5.5 h
3 plates
Open in Bambu Studio
Boost
20
92
5
6
74
47
Released
Description

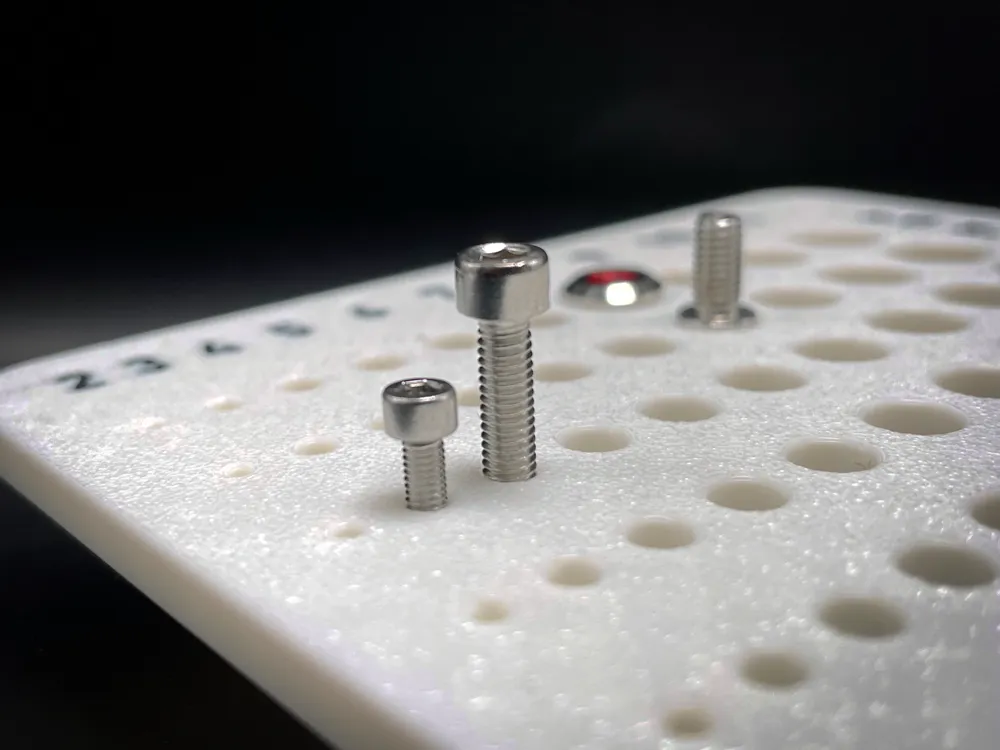

Ever struggled with 3D-printed holes that just don’t fit?
I’ve been there! After countless test prints where the screw just wouldn’t fit into the hole, I designed a template to check my printer’s hole dimensions and that’s how this handy tool was born.
With this measuring tool, you can determine the ideal diameters for holes, cutouts, nut inserts, and other fastenings. This ensures that screws and nuts fit perfectly, without the need for time-consuming and material-wasting test prints.
The model consists of

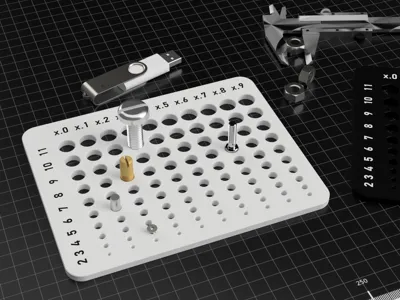

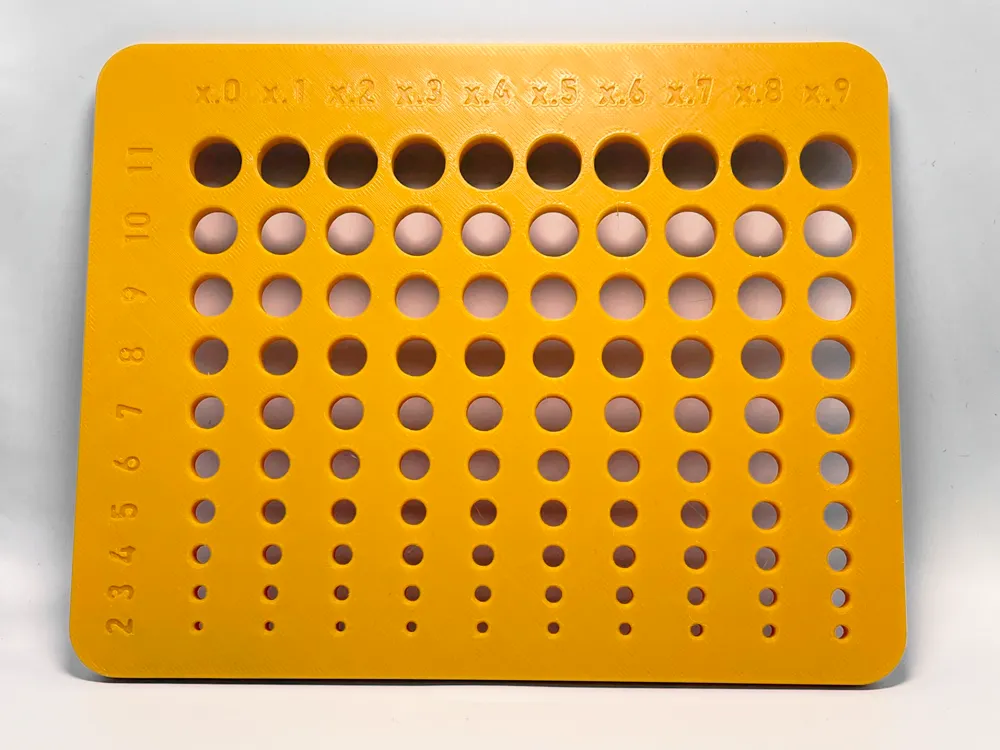

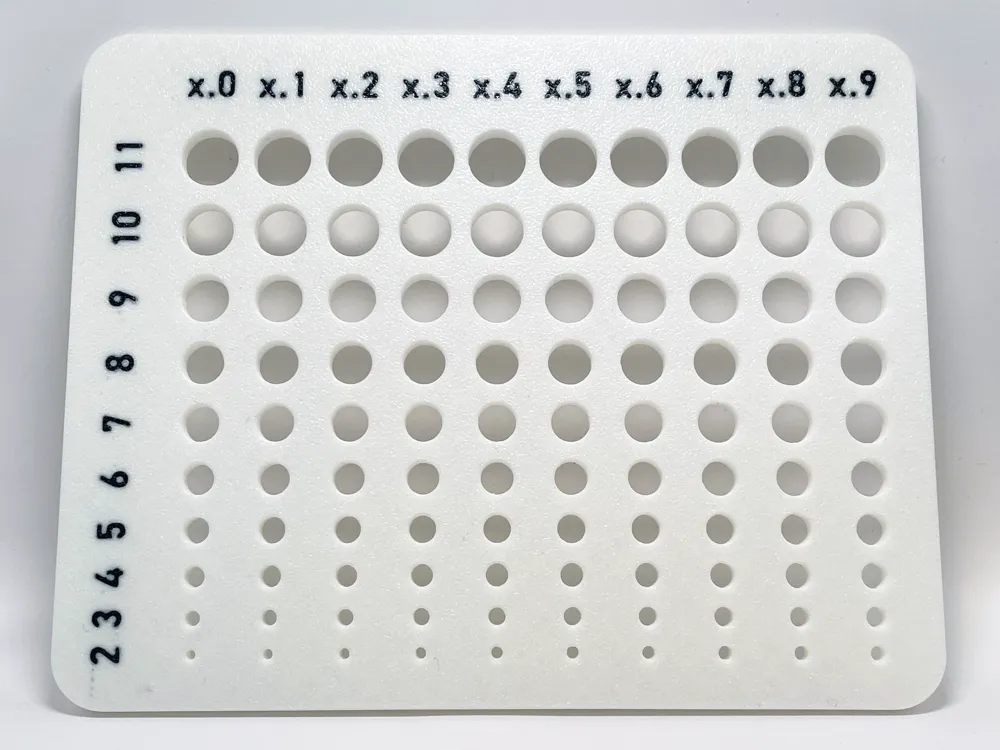

- a plate for round holes 2 to 11 mm (+0.1 ... 0.9 mm)

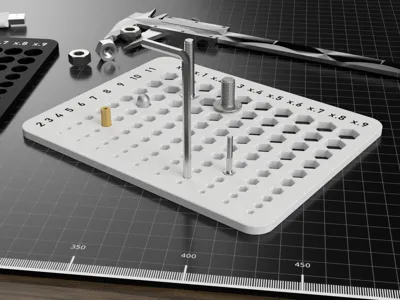

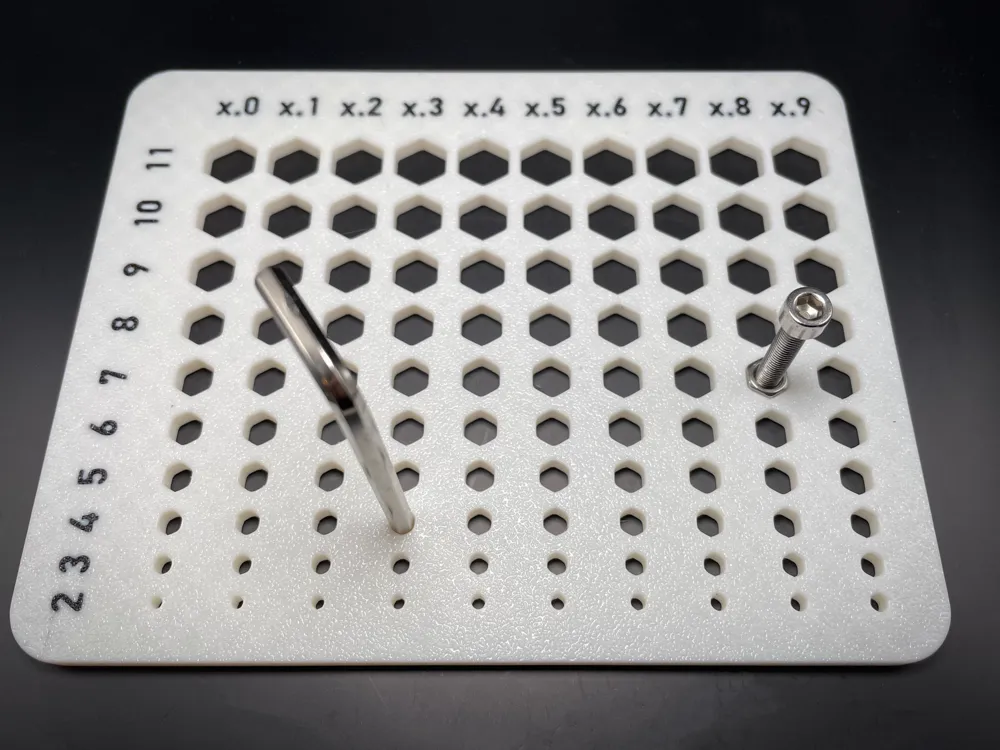

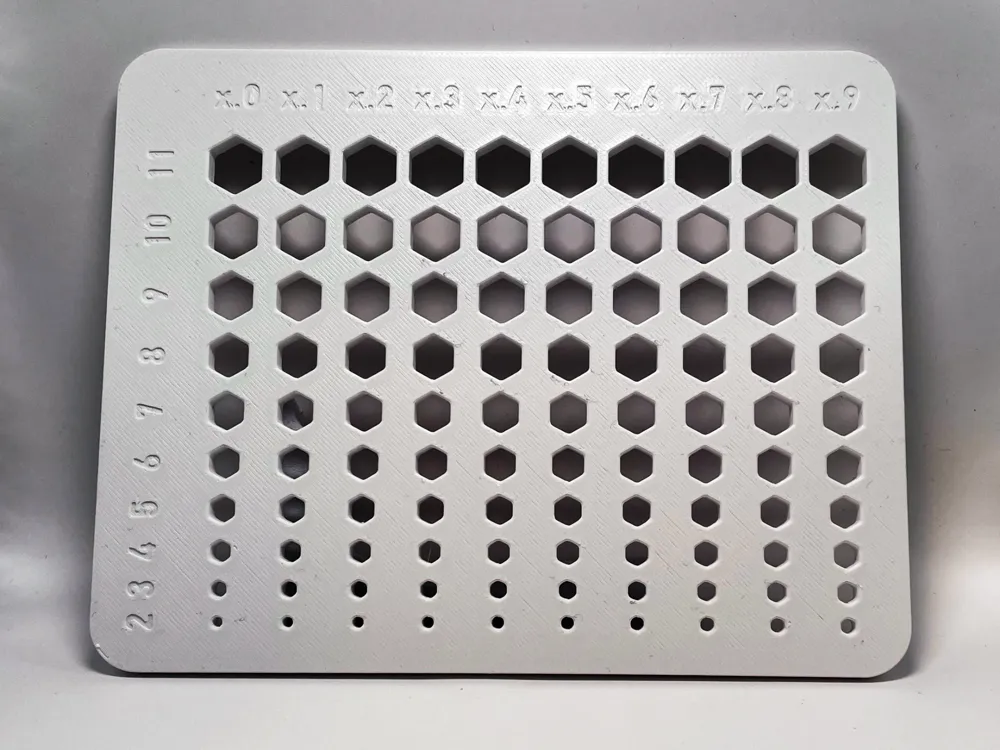

- a plate for hexagonal holes (+0.1 ... 0.9 mm)

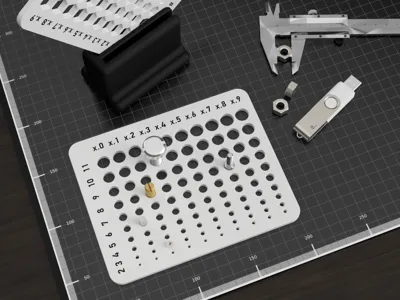

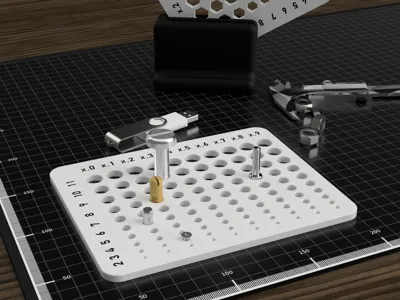

- Holder for two plates

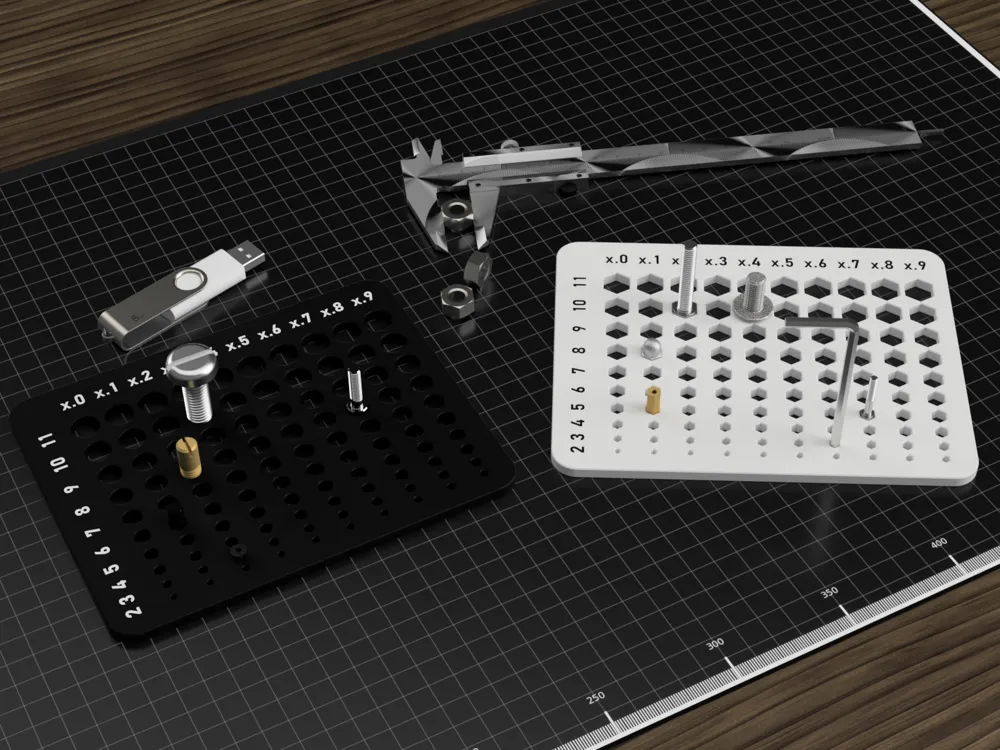

There are two versions, one for AMS with colored inscription and one without AMS with embossed inscription.
