Samsung Galaxy s25 tpu case

IP Report

Print Profile(2)

All
X1 Carbon
X1E
A1 mini
P1S
P1P
X1
A1
H2D
H2D Pro
H2S
P2S
H2C
X2D
A2L

0.2mm - 0.1 adaptive layer, 2 walls, 15% infill
0.2mm - 0.1 adaptive layer, 2 walls, 15% infill
Designer
5.9 h
2 plates
5.0(91)

Customizable infill pattern
Customizable infill pattern
6 h
2 plates

Open in Bambu Studio
Boost
431
841
133
49
2 k
1.1 k
Released

Description

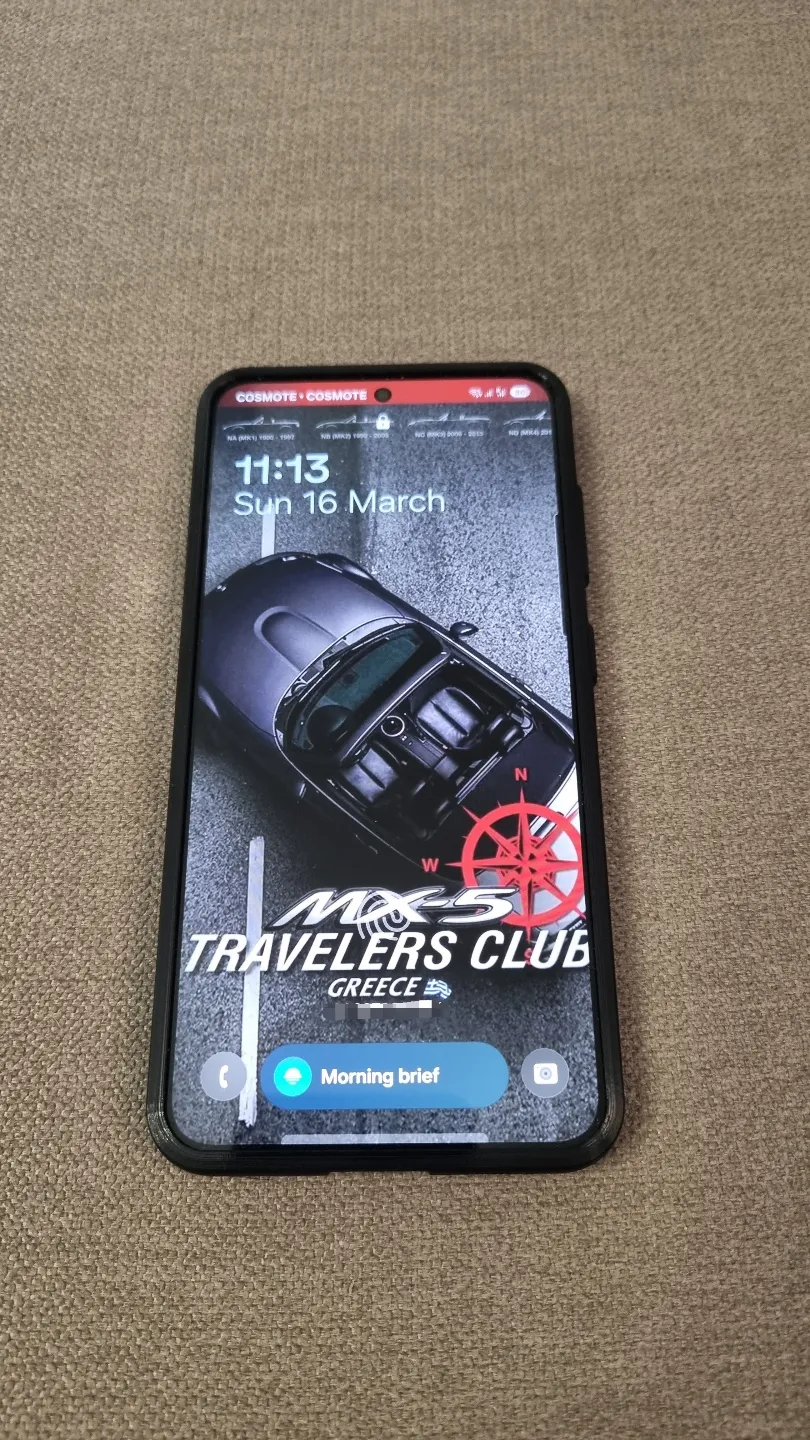

Samsung Galaxy s25 TPU phone case.

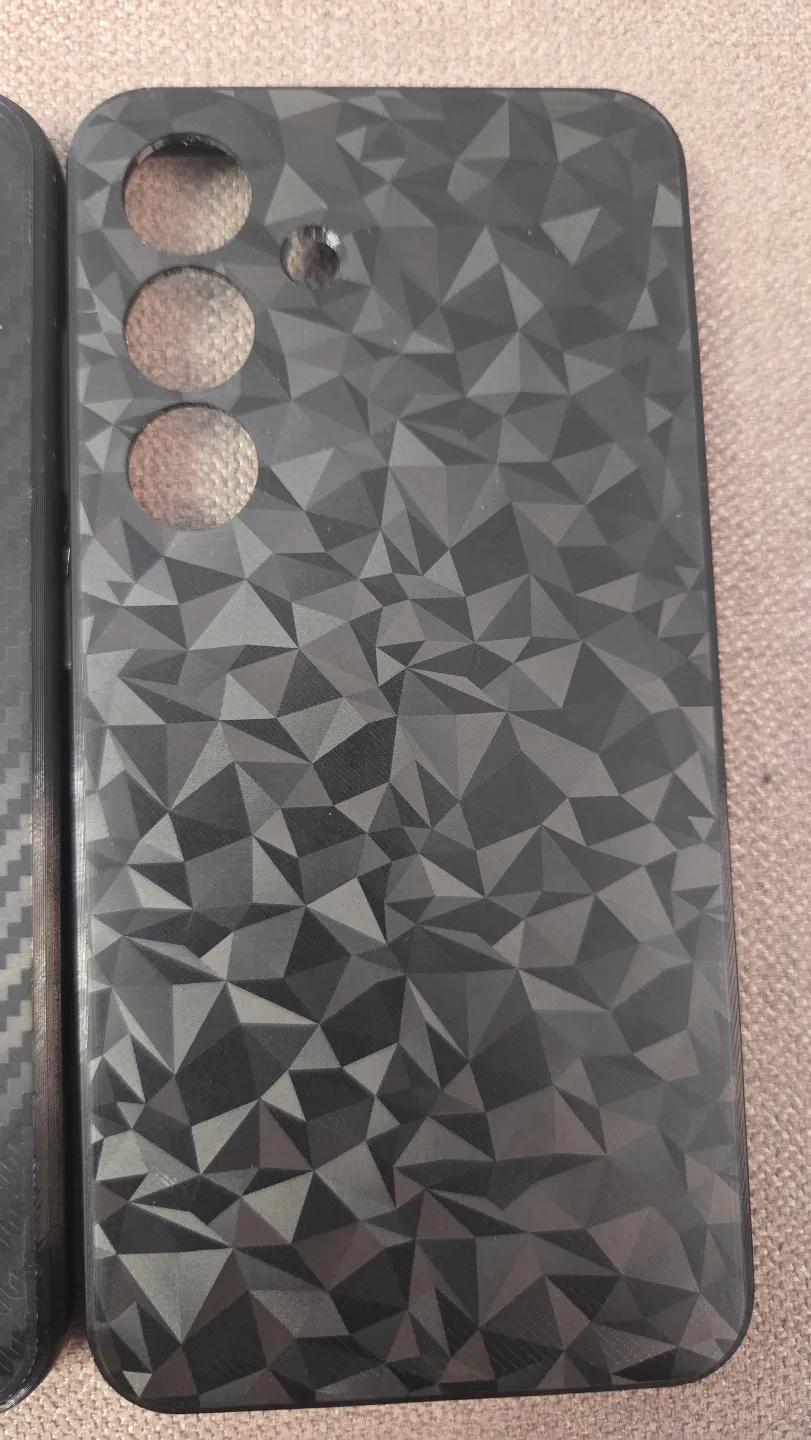

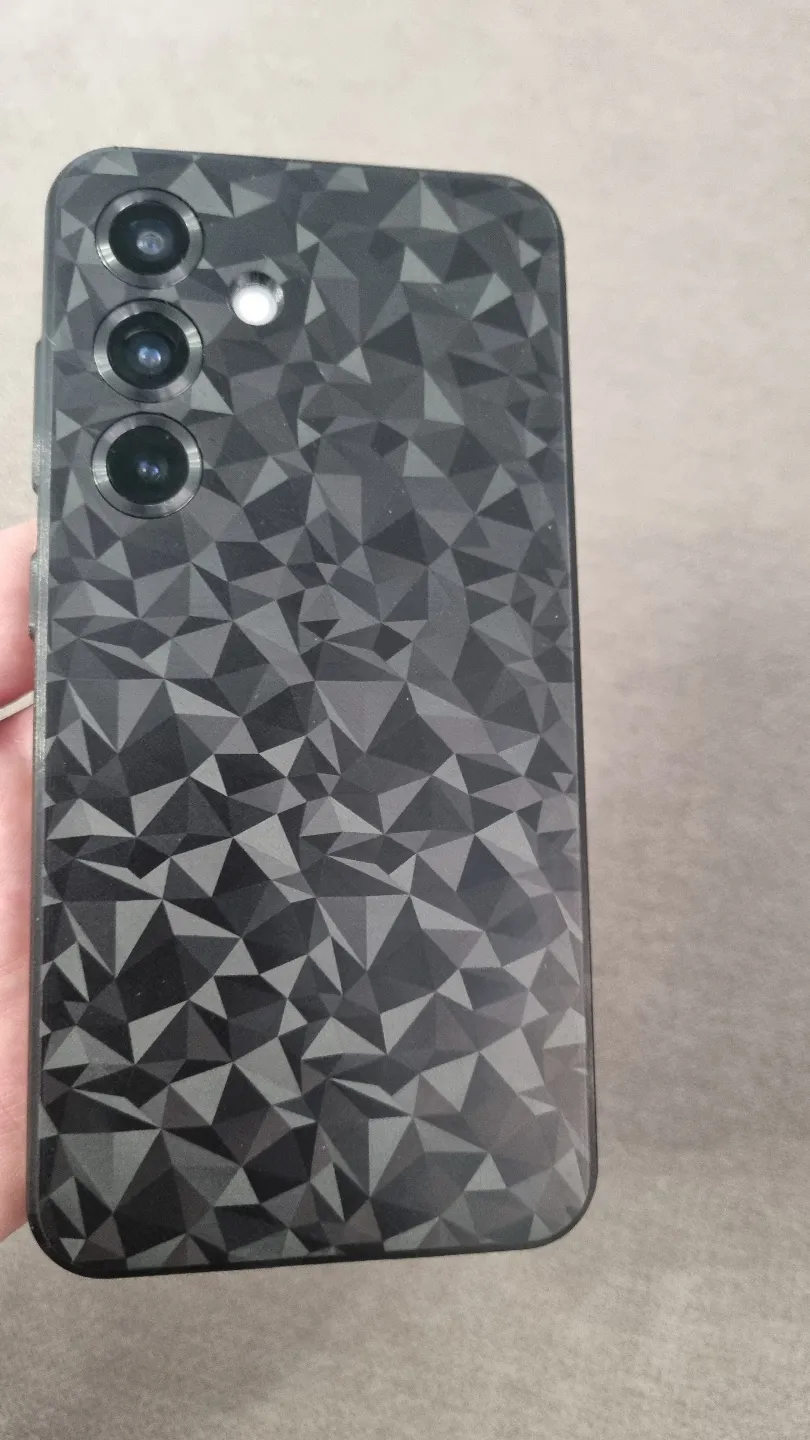

Designed for bed plates with patterns in order for the pattern to be transferred onto the phone case.


Boost Me (for free)

Please boost if you like the design and post your requests for me to try to implement


*Only to be used with the small galaxy s25 (at the moment i dont have a version for the plus or ultra model. if you need one i might be able to design one but you will have to do the fit testing as i only own the small s25)


Features:

  • All the holes of the case are in the correct position and aligned with the actual holes of the phone.
  • Improved side wall rigidness comparing to other s25 cases where the sides are too soft and move out with the movements of your fingers leaving the top unprotected in case of a drop.
  • Round side walls for nicer feel and more side rigidness

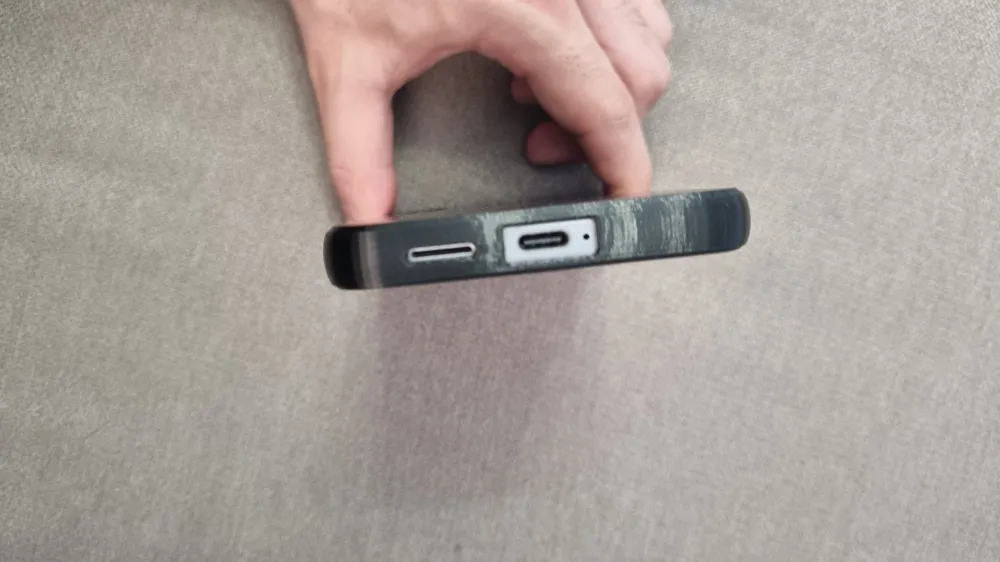

  • The usb cutout is large in order to fit all kinds of usb cables

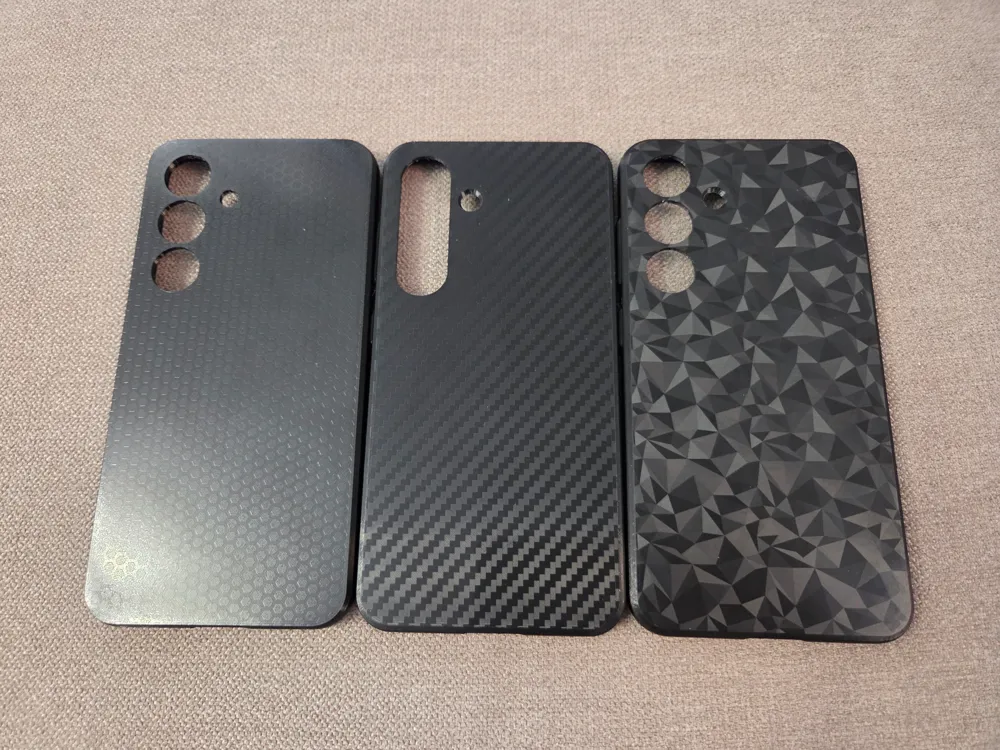

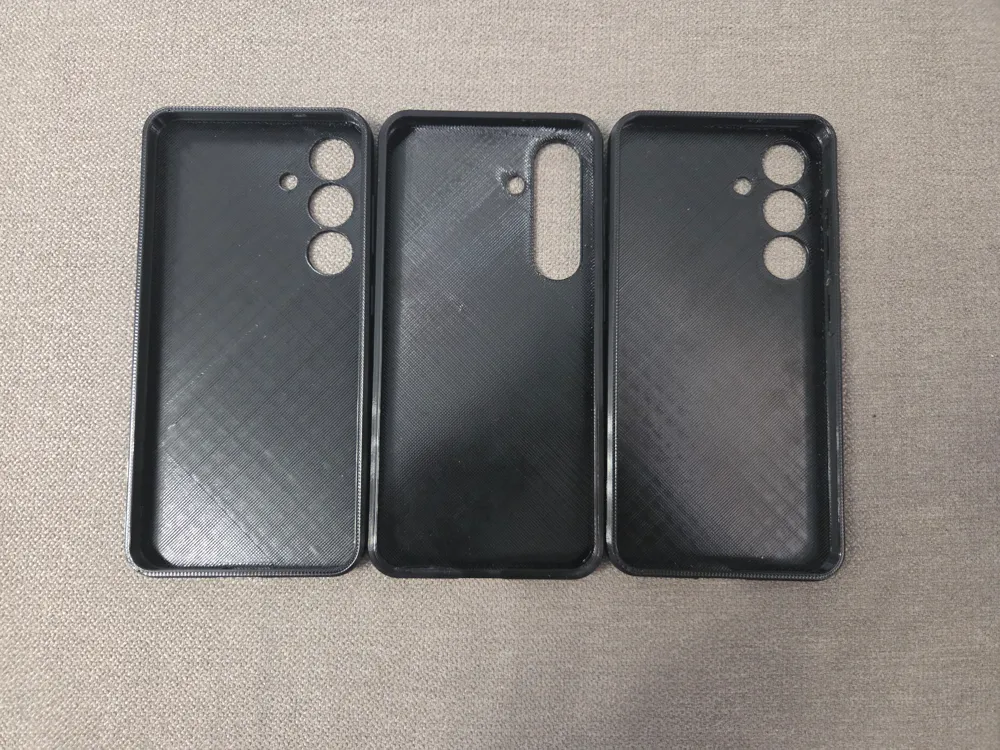

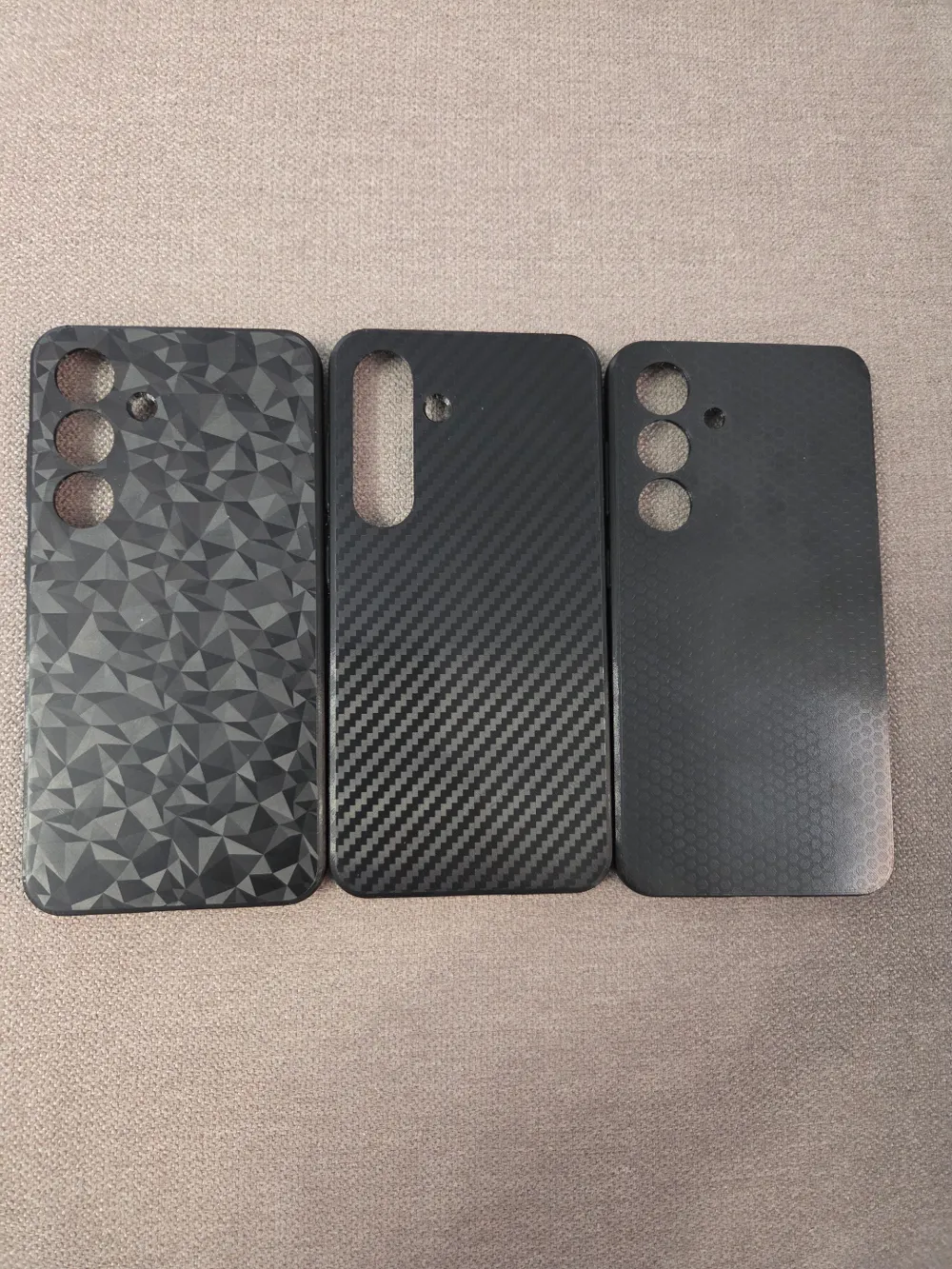

  • 2 different models to select from (a model with a big cutout for the cameras in order to install camera lens protectors / a model with seperate camera cutouts if you dont plan to use lens protectors)



The print profile has custom supports painted and enabled.

the supports get removed easily if you start pushing them away from the bottom part of the USB cutout.

Push the bottom of the support from the outside of the case towards the center of the case and when the support detaches just grab it and pull until all of it is out.
The bottom support clearance is 0.5mm so the supports come out easily and dont leave any serious marks on the case.

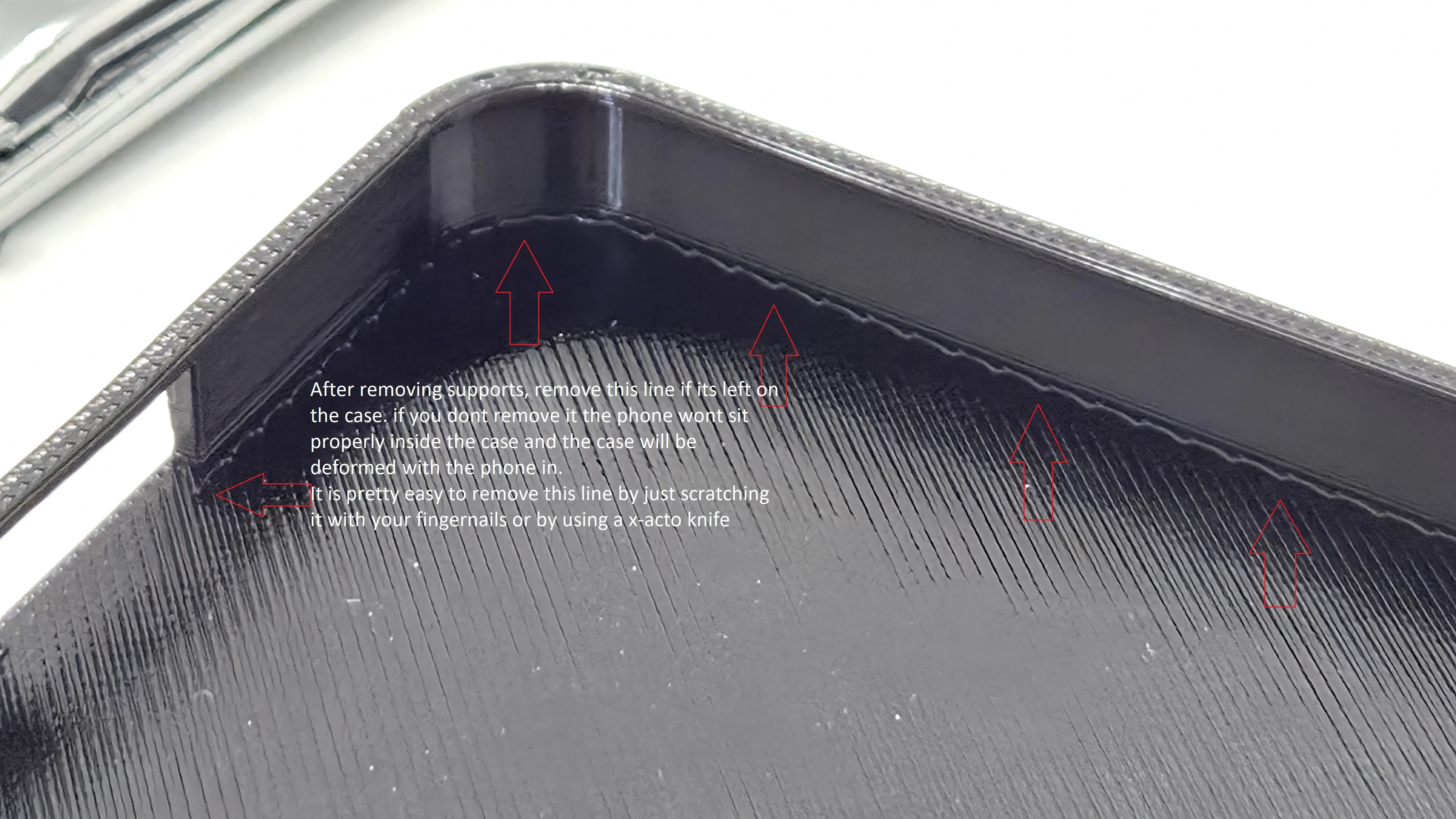

Once you remove the supports make sure to check properly the top solid layer of the case where the supports previously sit on as most of the times the first layer of the support stays on the case.


you have to remove it before putting the phone in as the phone wont sit properly if you dont remove it, and the case will be slightly deformed.
the line gets removed easily by scratching it with your fingernails and pulling out or by sliding a X-acto knife under it.
