Description
Content has been automatically translated.
Lure Type: Glide bait, primarily designed for pike fishing.
Lure Length: 250mm
Lure Weight:
- 200g slow sinking
- 210g fast sinking
Material: PLA 3D printed and sealed with epoxy resin.
Weighting:
- 10g lead spheres (Cheburashka weights, available online).
- Slow sinking configuration: 5 lead spheres.
- Fast sinking configuration: 6 lead spheres.
Internal Reinforcement: 1mm stainless steel wire.
Hooks: size 3/0

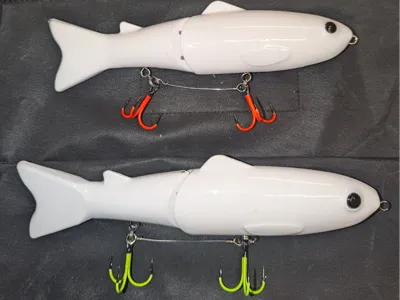

As visible in the image, the lure is rigged similarly to a soft bait, as the tail hook is not directly connected to the through-wire. This precaution prevents the risk of losing the fish in case of lure breakage.
I chose this configuration to ensure maximum safety for both the angler and the fish, without compromising its swimming action or fishing effectiveness.
