PTFE Tube AMS Supports
Print Profile(1)
Description

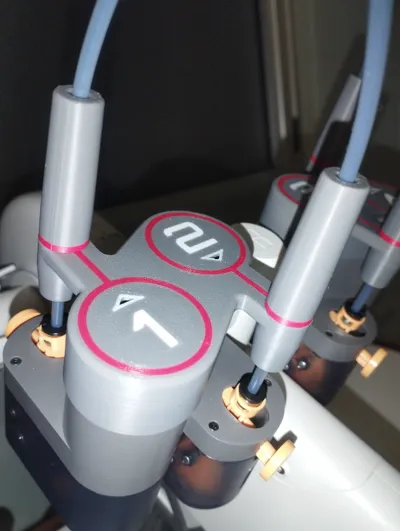

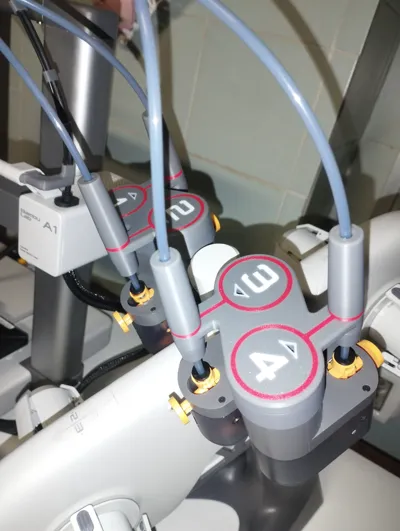

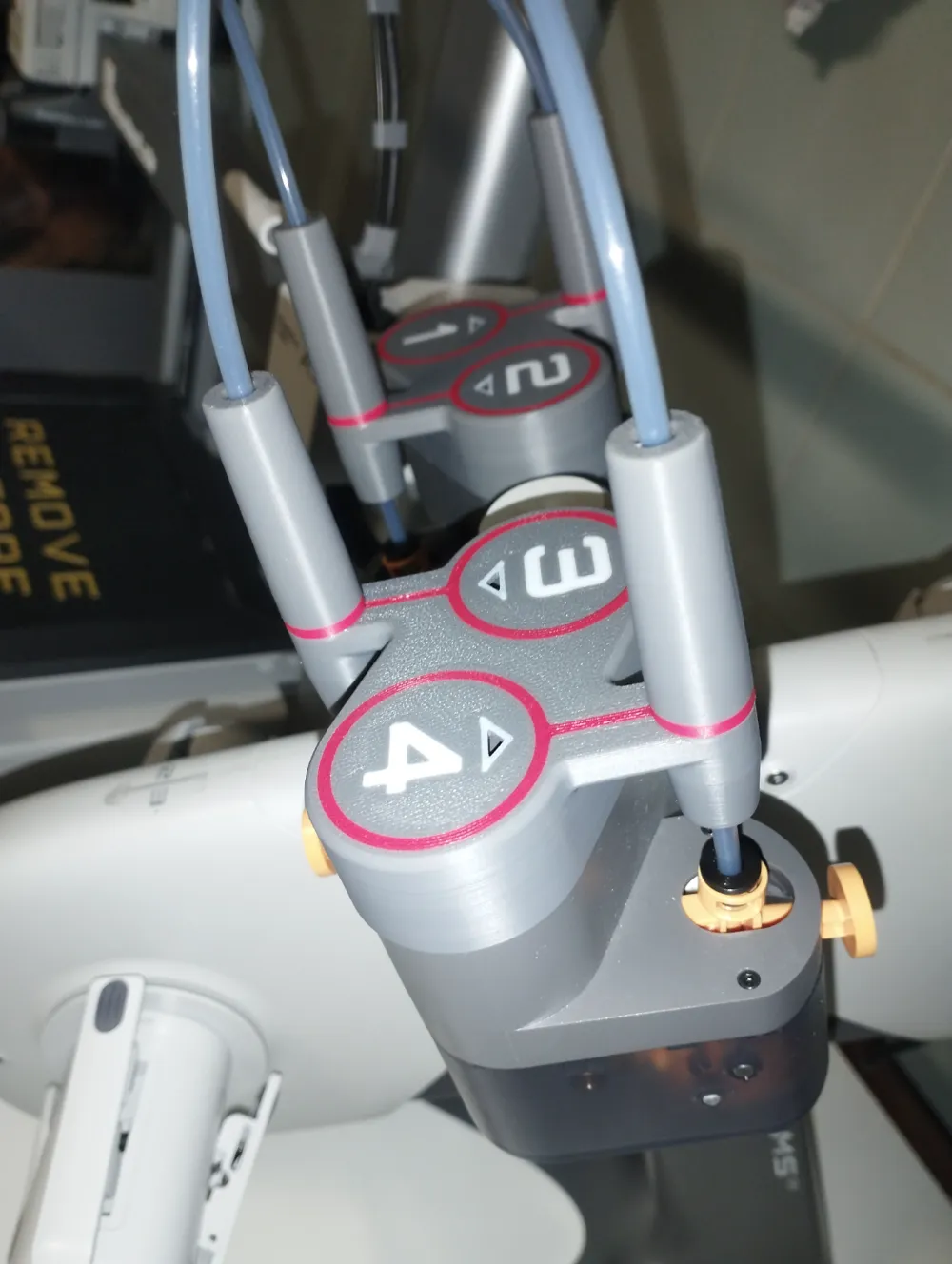

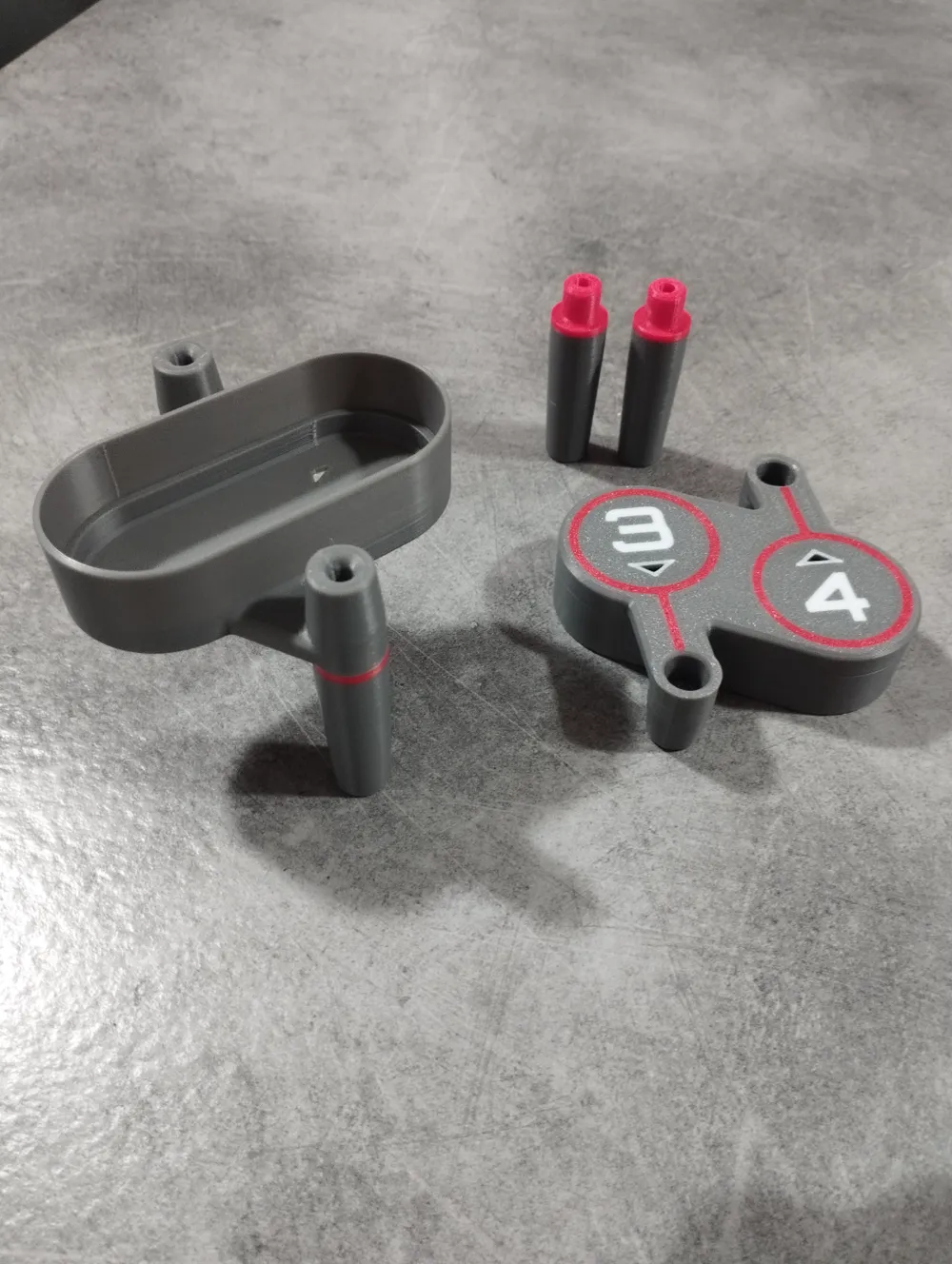

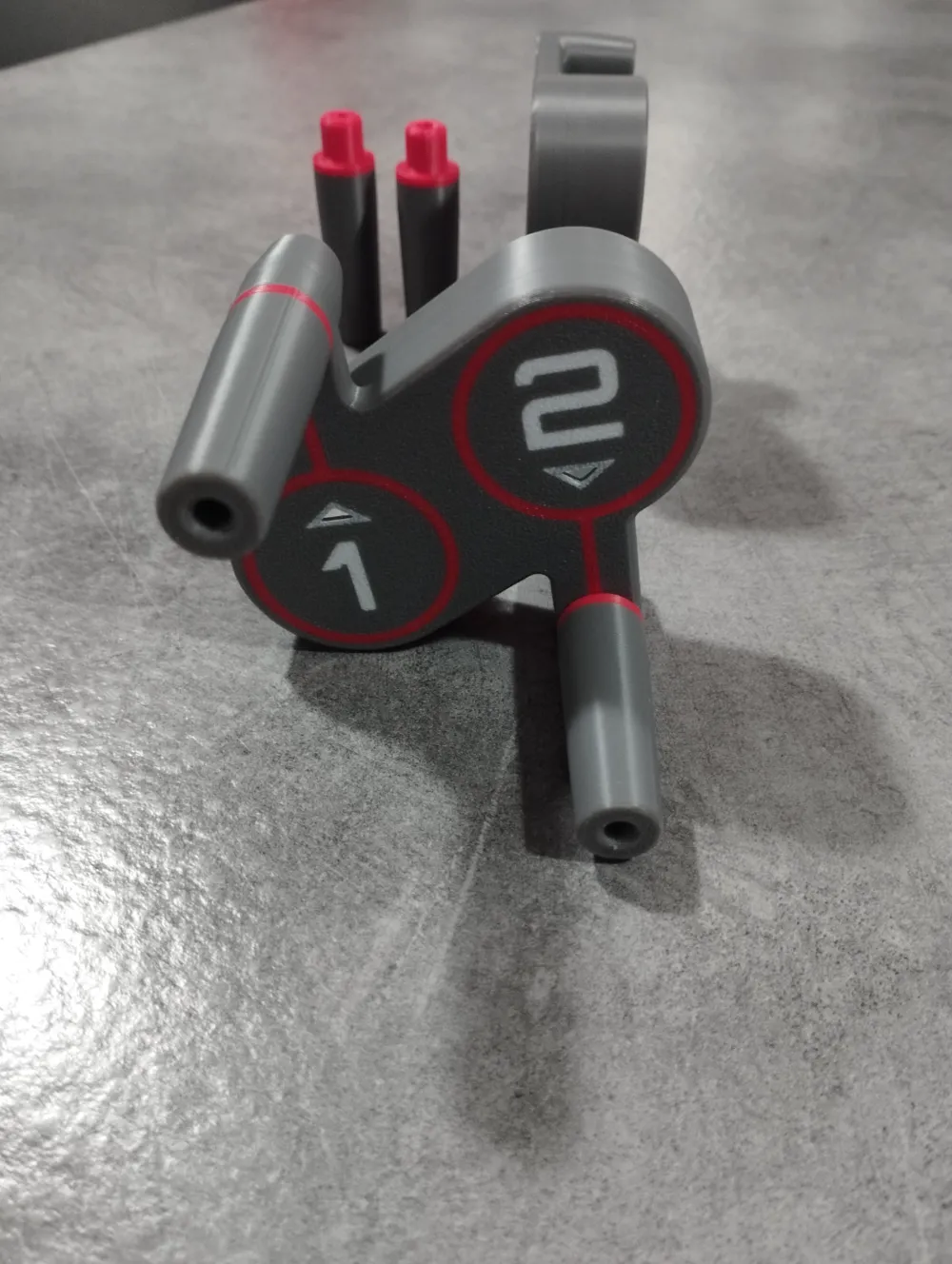

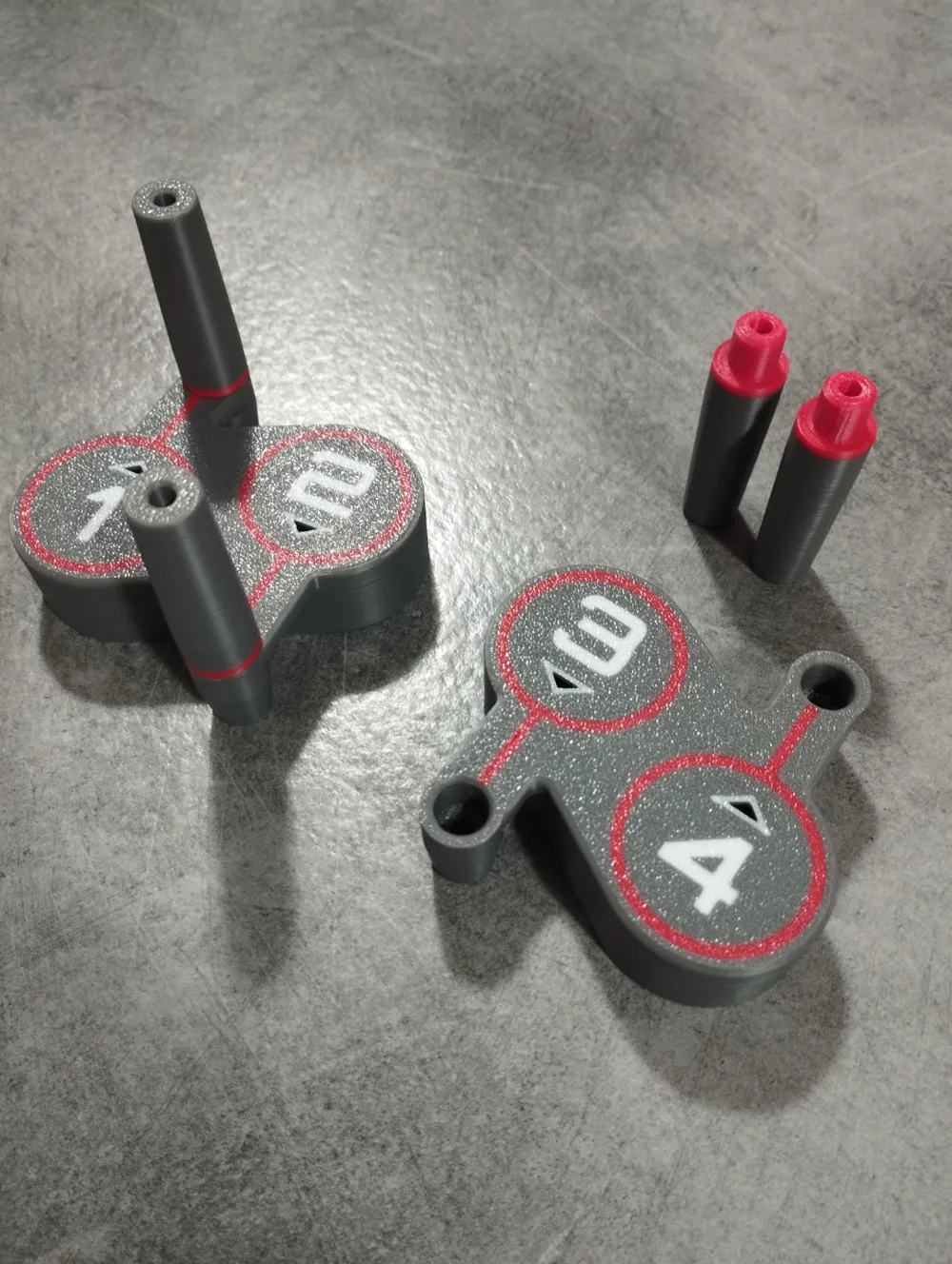

PTFE Tube AMS Supports, printed in PLA with 15% infill, assembled from 3 components per copy.

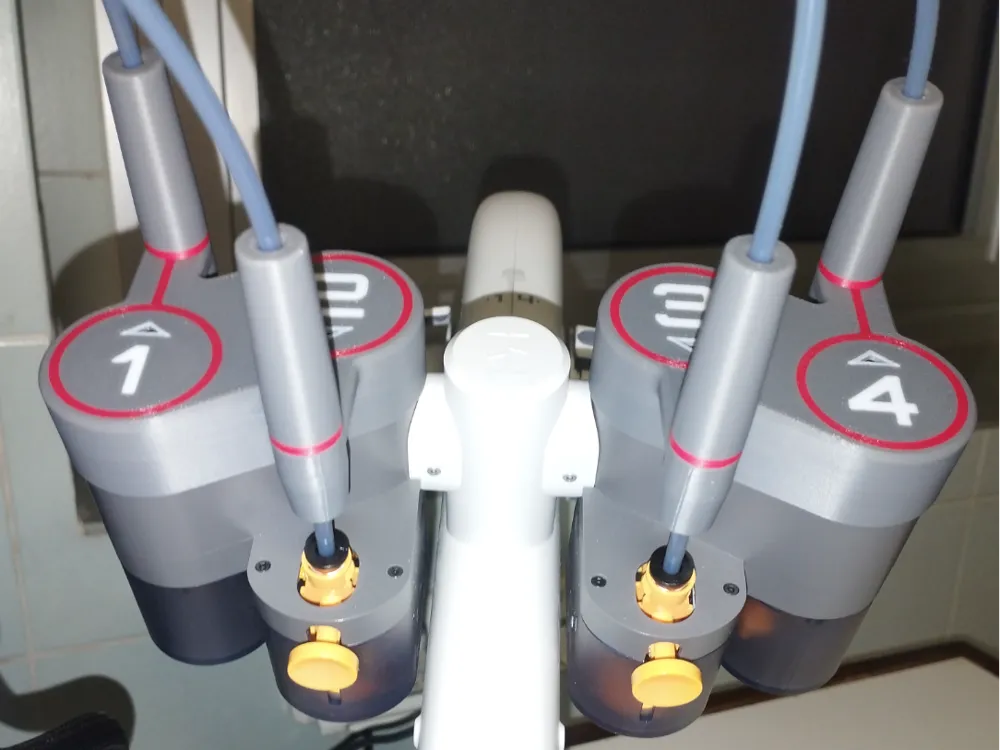

With cutouts for AMS lights, after printing allow to dry well, and see the photos to understand the assembly.

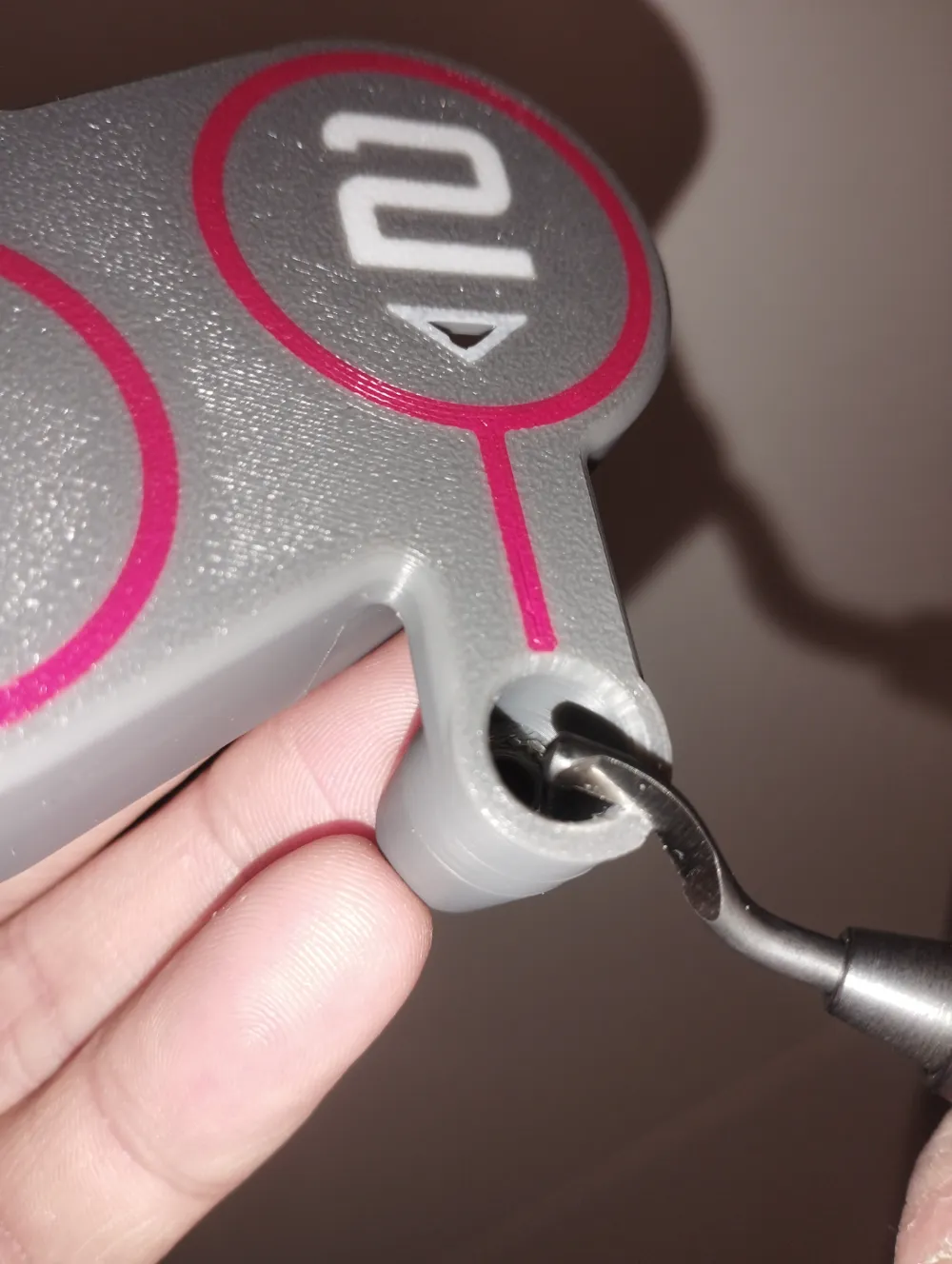

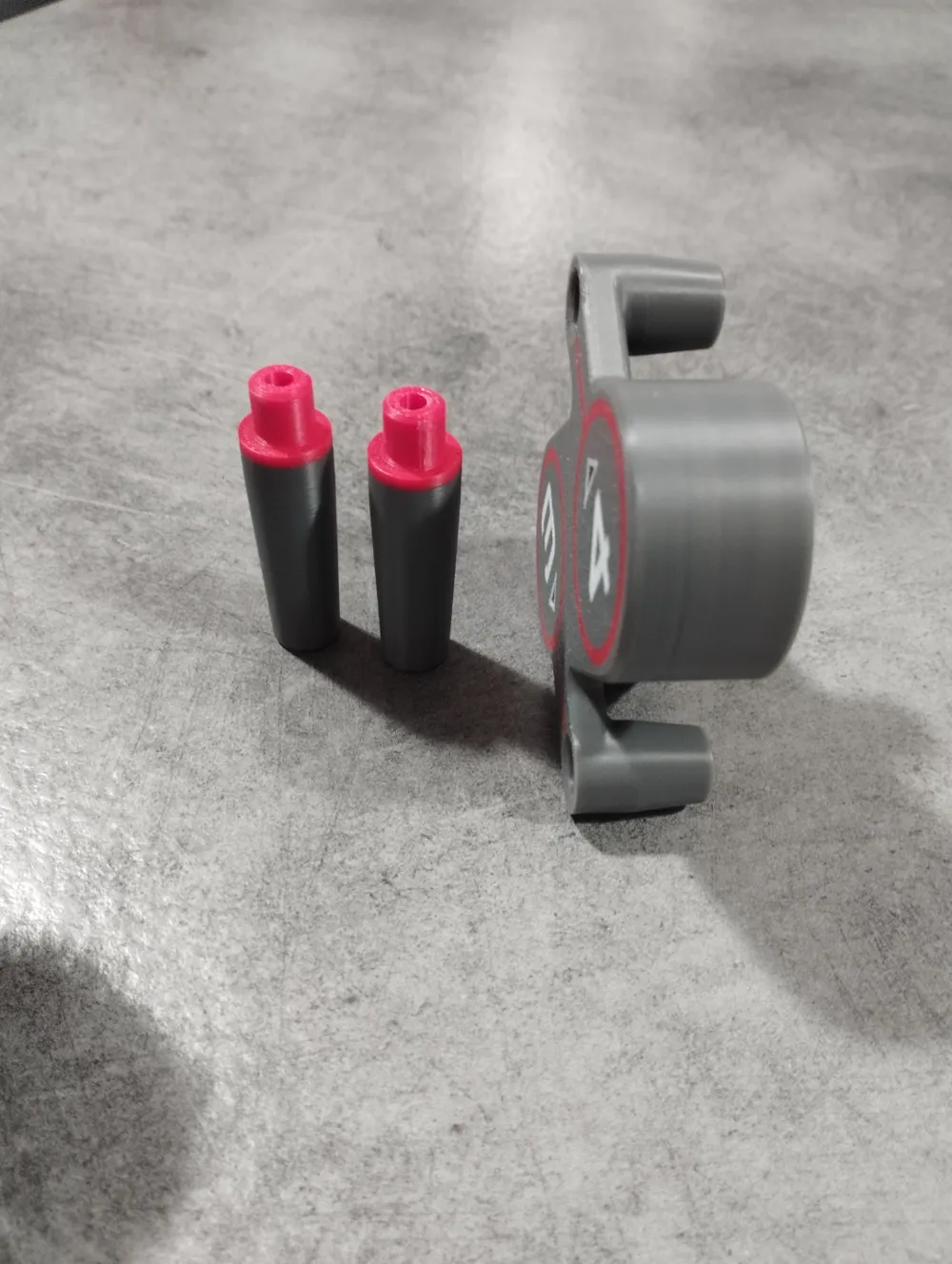

The edges of the holes in the main body were refined with a deburring tool, because the tubes that fit into the red part have a 1mm radius, reworking with the deburring tool ensures a perfect fit.

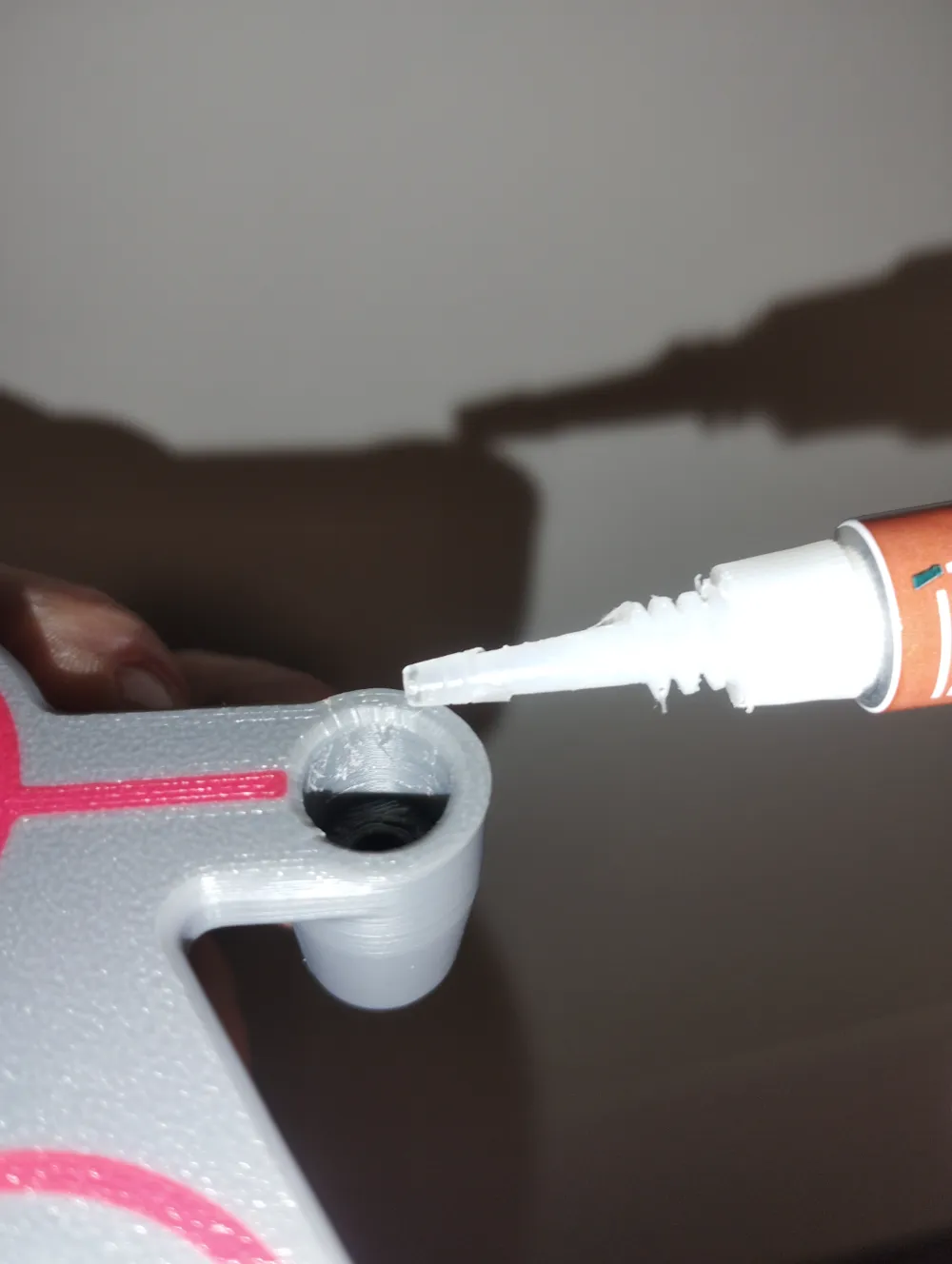

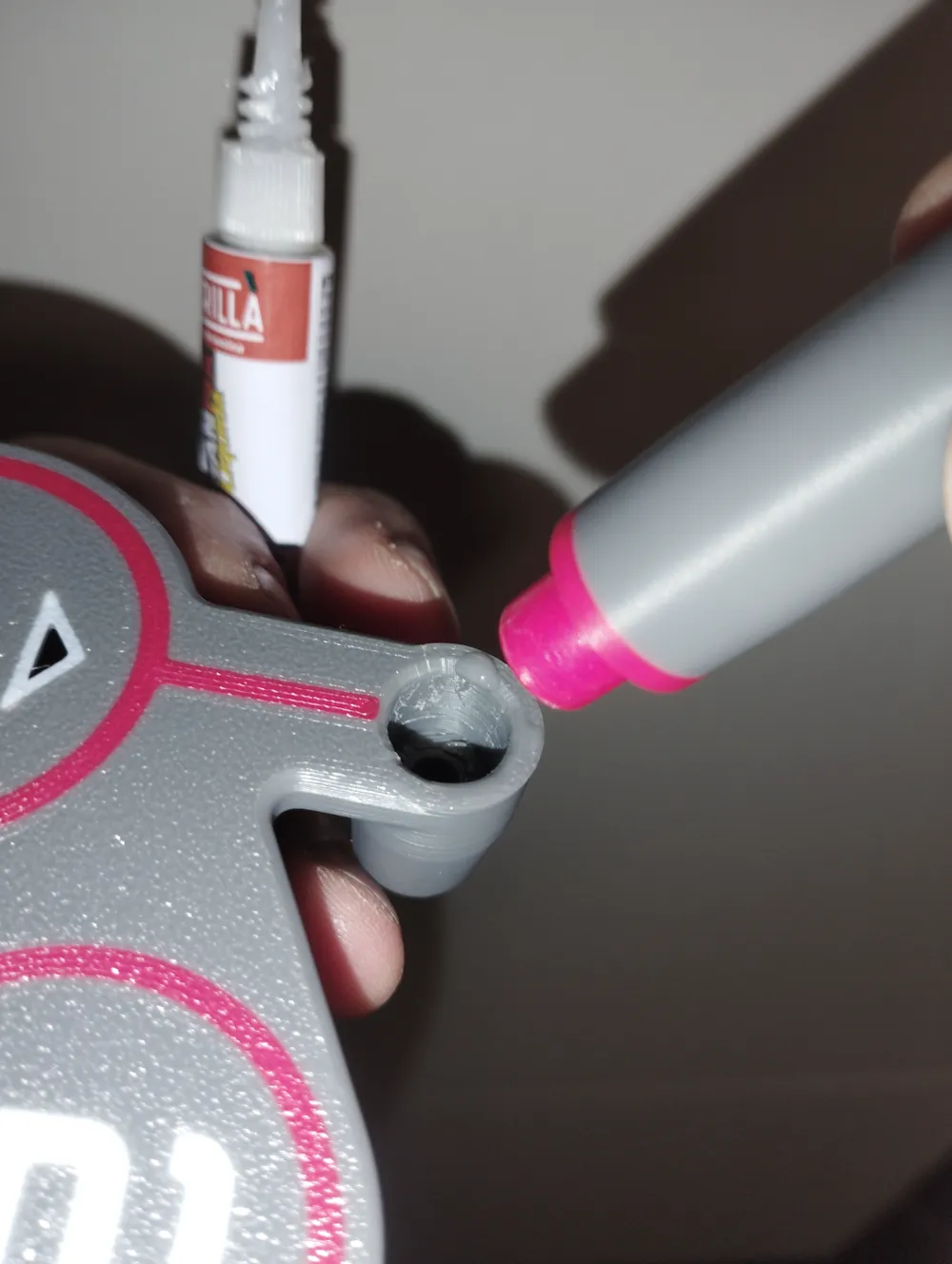

Once assembled, use a few drops of glue to secure the parts.

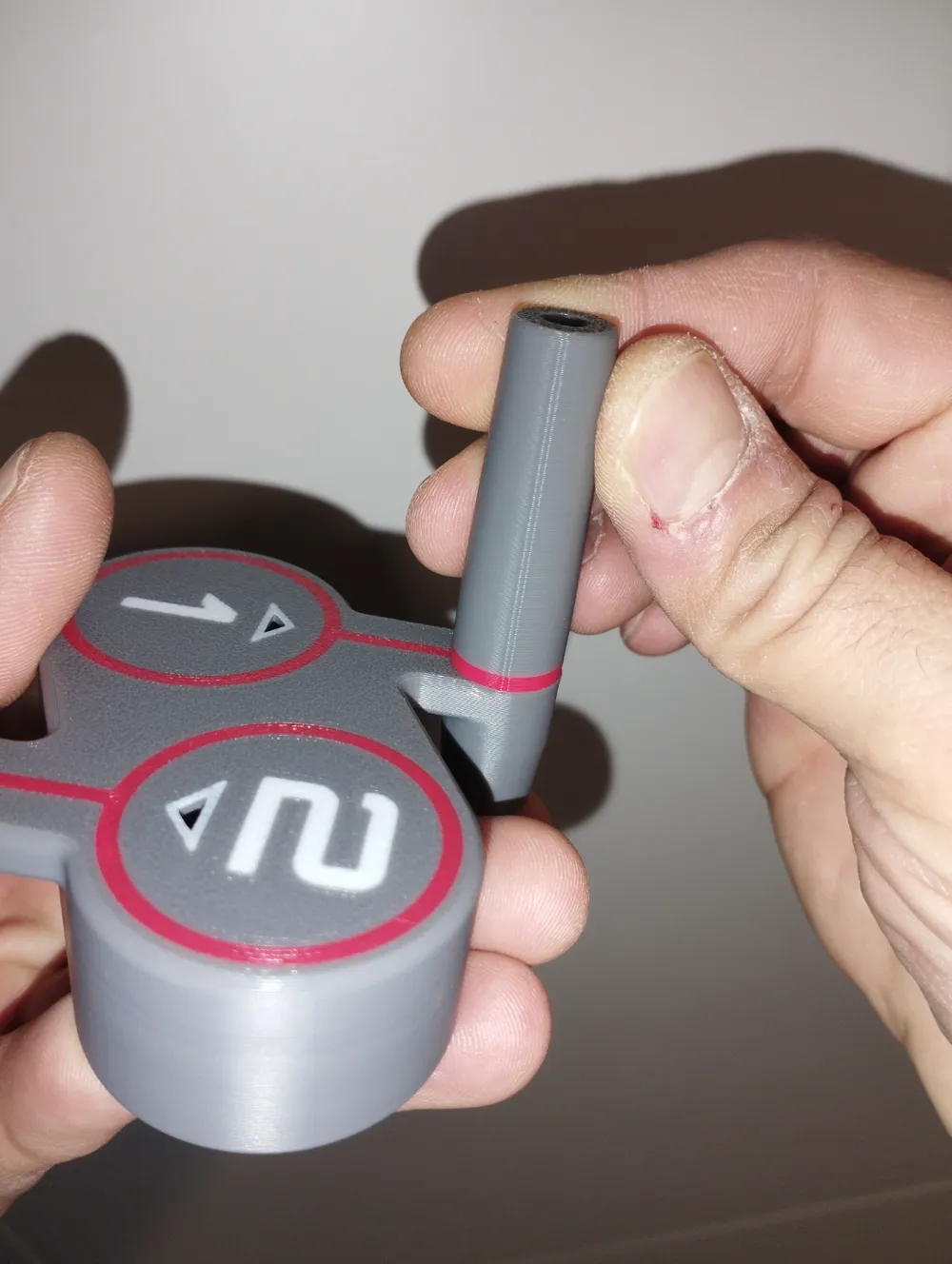

The supports for the bicolor tubes are very delicate, be careful… when inserting them, using a single color improves robustness.
If you have any suggestions, doubts or concerns… feel free to ask.
Supports enabled in the main bodies, and quality set to 0.16, but 0.2 also works well.
