CMT Inclinometer Support for Tubes

If you liked my model and are interested in my projects, contribute to the development of my activity by continuing to follow my work on Instagram.

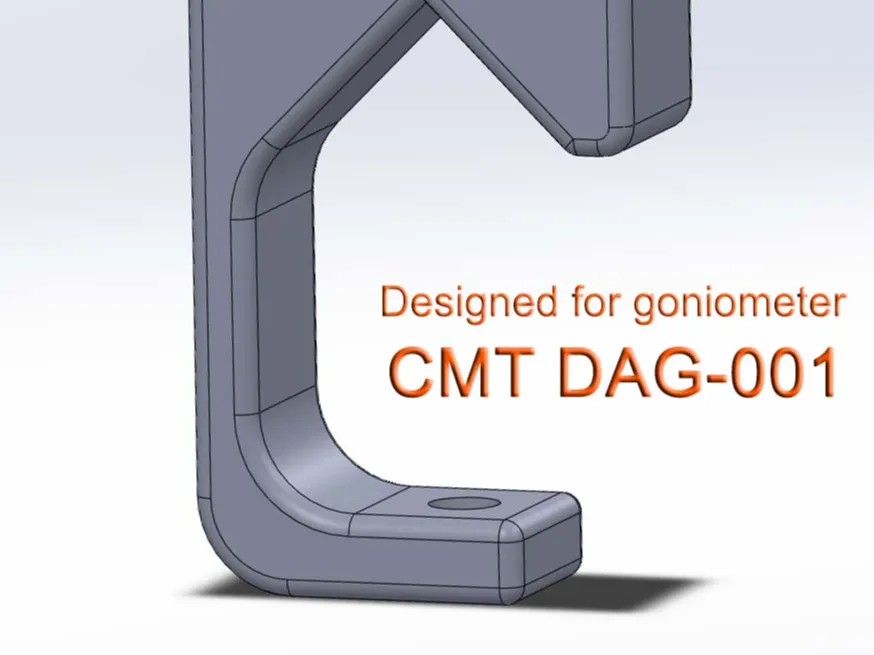

CMT Dag - 001 goniometer support for carpentry use on tubes ranging from 35 to 50 mm in diameter.
Jig designed for inclinometer adaptation on pipe benders, where securing the goniometer's position during various bending stages is necessary.
Insert a 13 mm hexagonal nut with an M8 threaded screw into the print to create an adjustable clamping point on the tube.

CMT Dag - 001 goniometer support for carpentry use on pipes from 35 to 50 mm in diameter.
Jig made for inclinometer adaptation on pipe benders, where required to fix the position of the goniometer in the various bending phases.
Insert a 13 mm hexagonal nut with M8 threaded screw inside the print to create an adjustable clamping point on the pipe.
