AMS lite enclosure, framework mortise and tenon, no aluminum profiles needed! Panel fastening requires only bolts and 3 nuts! Side quick release!
Print Profile(2)
Description
Boost Me (for free)
Boost me!

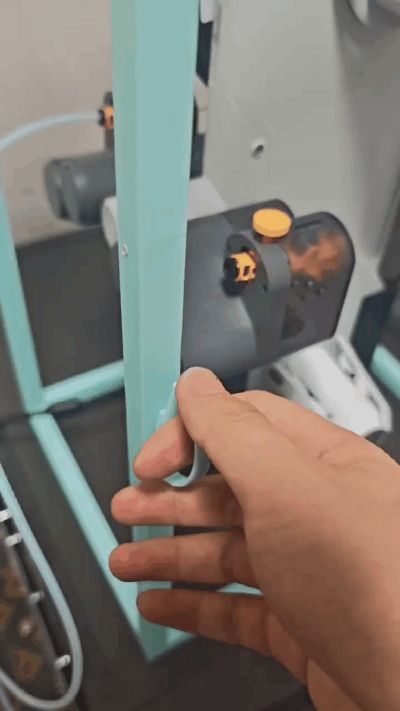

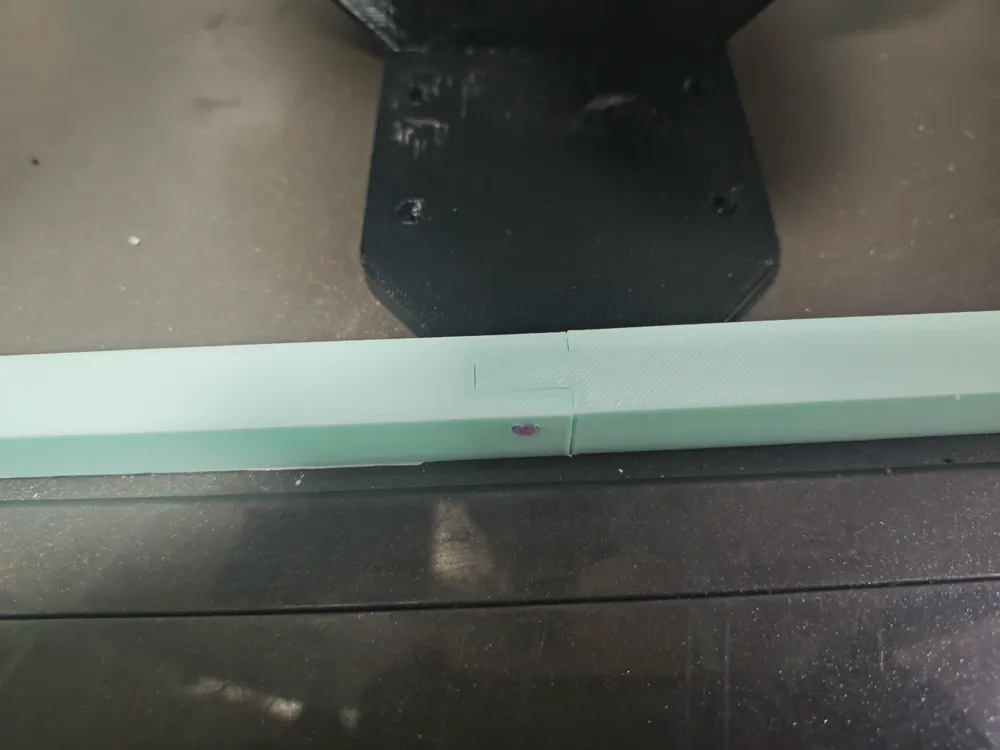

Exciting update alert – this is the most vital upgrade for this model! As frame size needs vary and one-size-fits-all isn’t feasible, we’re introducing the all-new combinatorial frame. This printable frame enables custom lengths above 200mm (all multiples of 10), e.g., 210mm, 320mm, 430mm, 550mm, 660mm – you decide the exact length.
Principle: The set {10, 20, 50} covers all multiples of 10 within 100 (10, 20, ..., 100) via pure addition. Specific combinations:
10 = 10
20 = 20 / 10+10
30 = 10+20
40 = 20+20 / 10+10+20
50 = 50 / 10×5 / 20+20+10
60 = 50+10 / 20×3
70 = 50+20 / 50+10+10
80 = 50+20+10 / 20×4
90 = 50+20+20 / 50+10×4
100 = 50+50 / 50+20+20+10

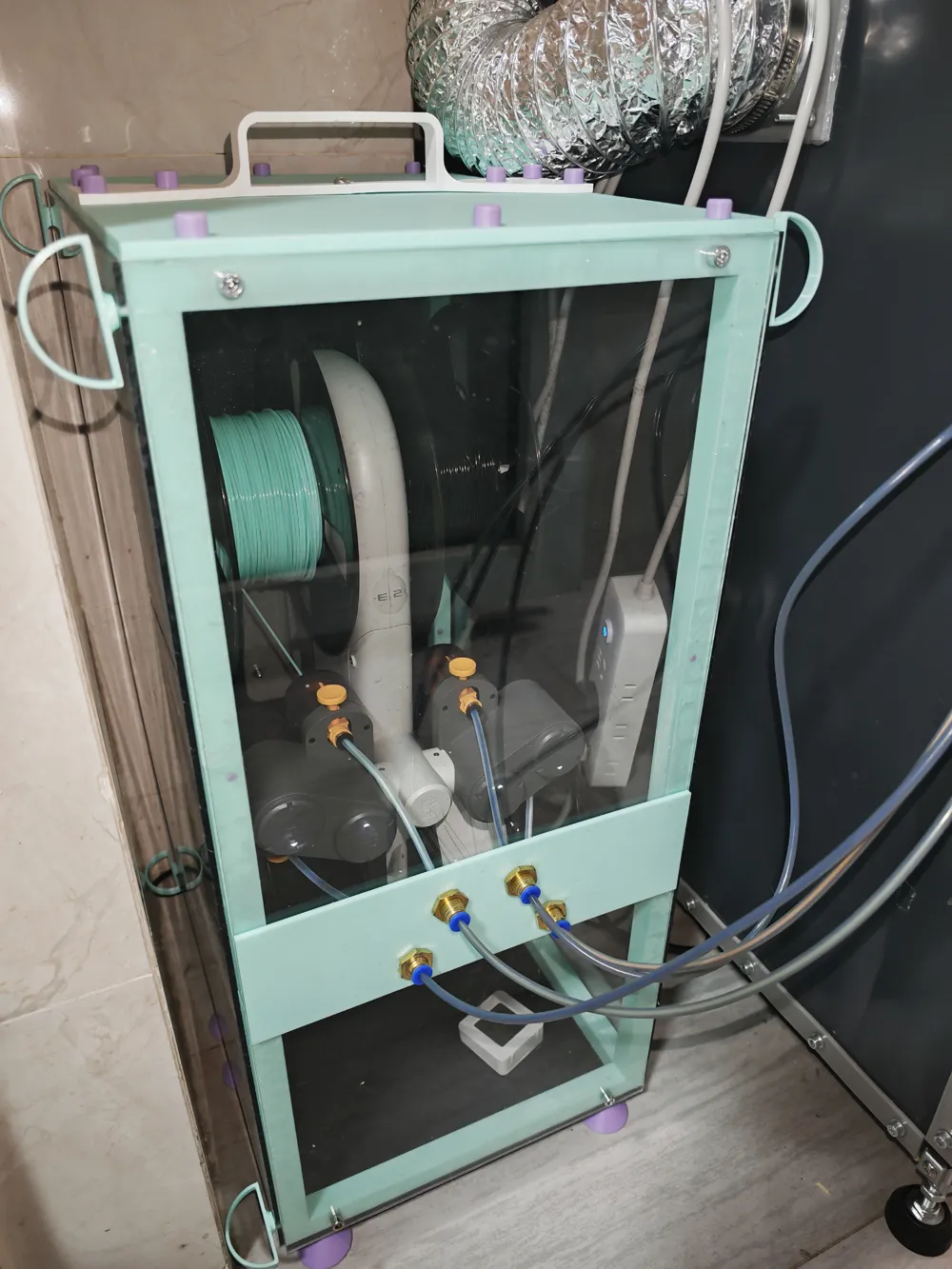

AMS lite enclosure frame with mortise and tenon joints, no aluminum profiles needed! Panel fixing only requires bolts and 3 nuts! Side quick release!! Easy material change.

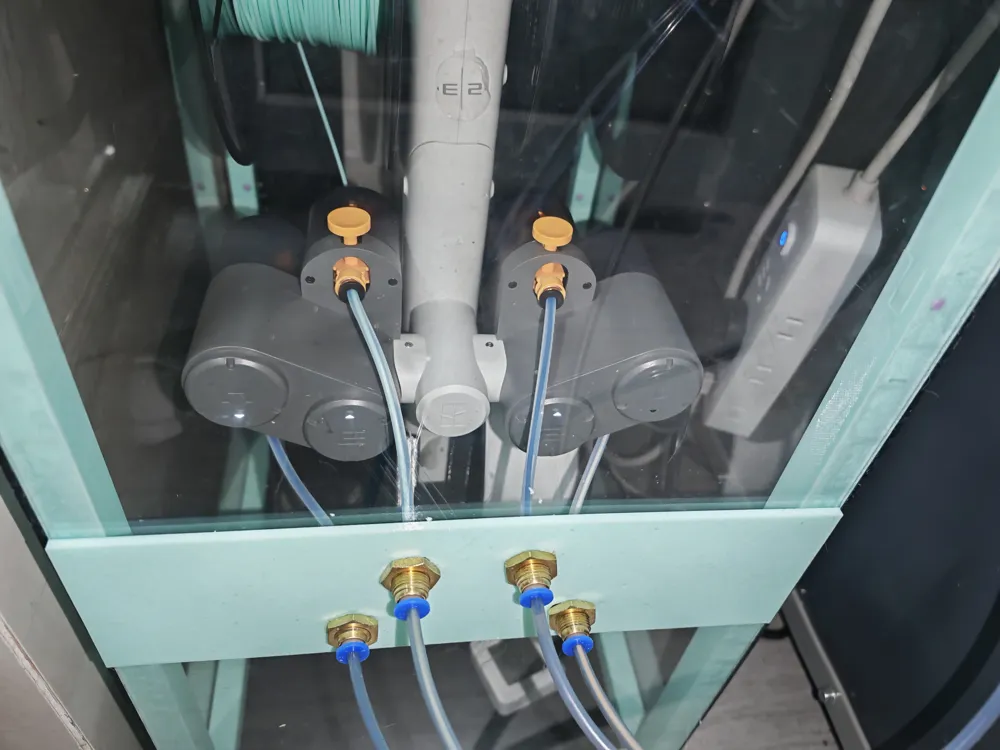

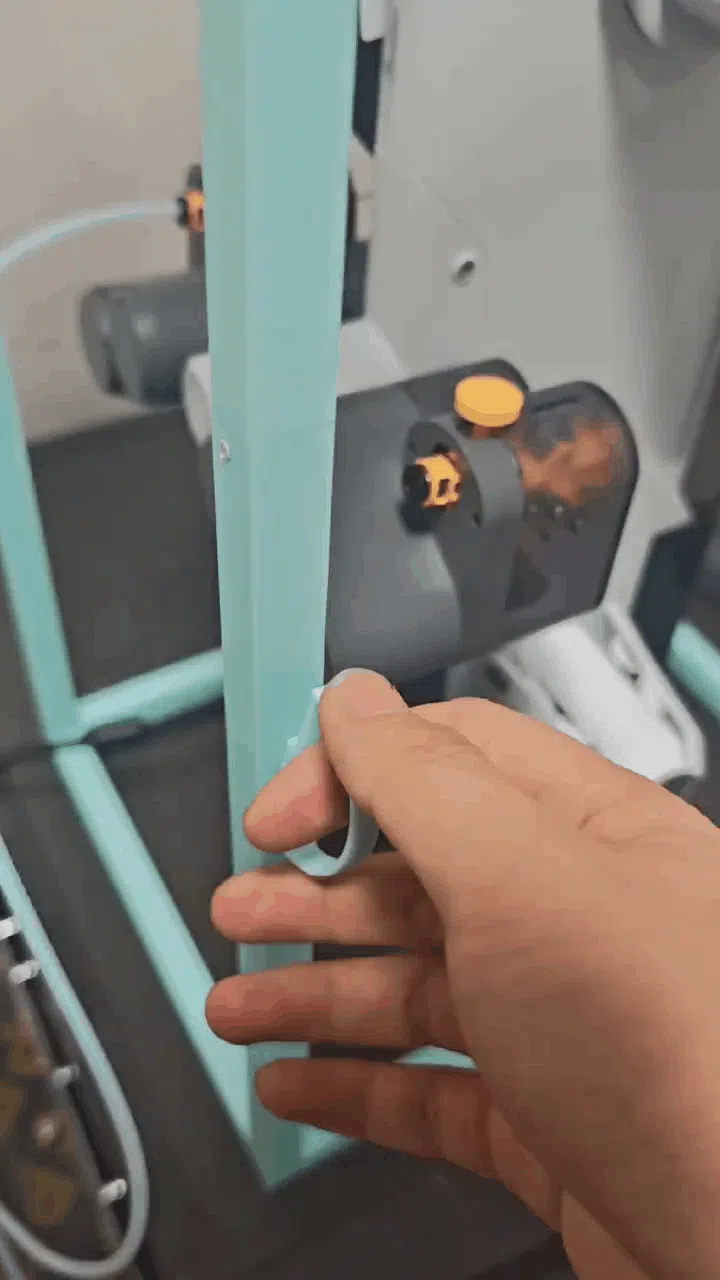

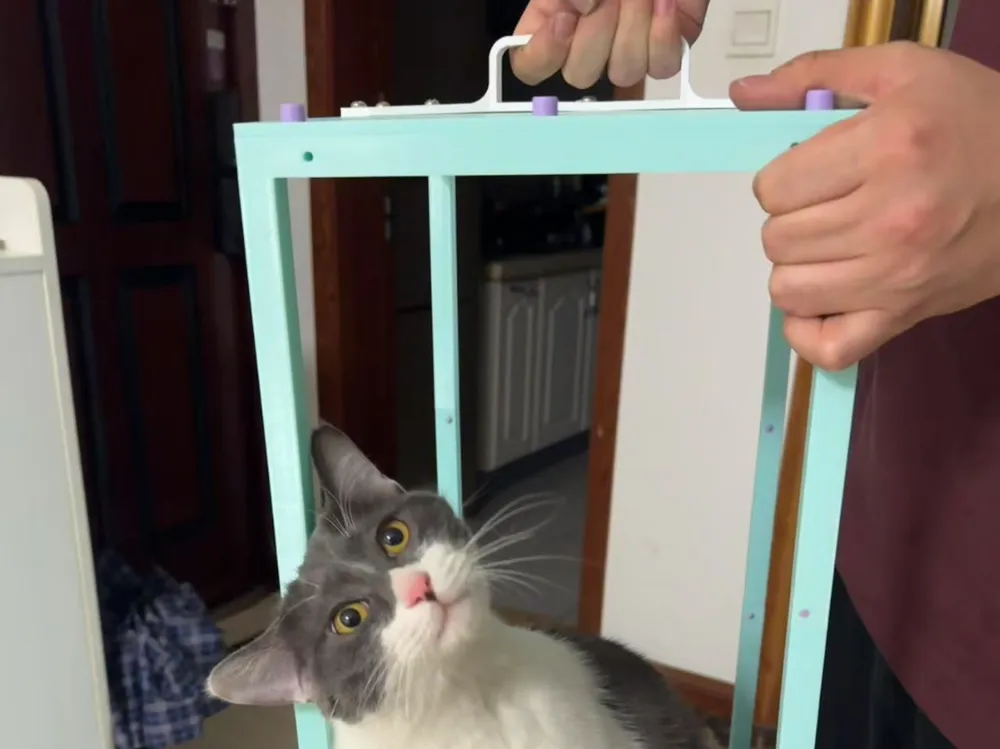

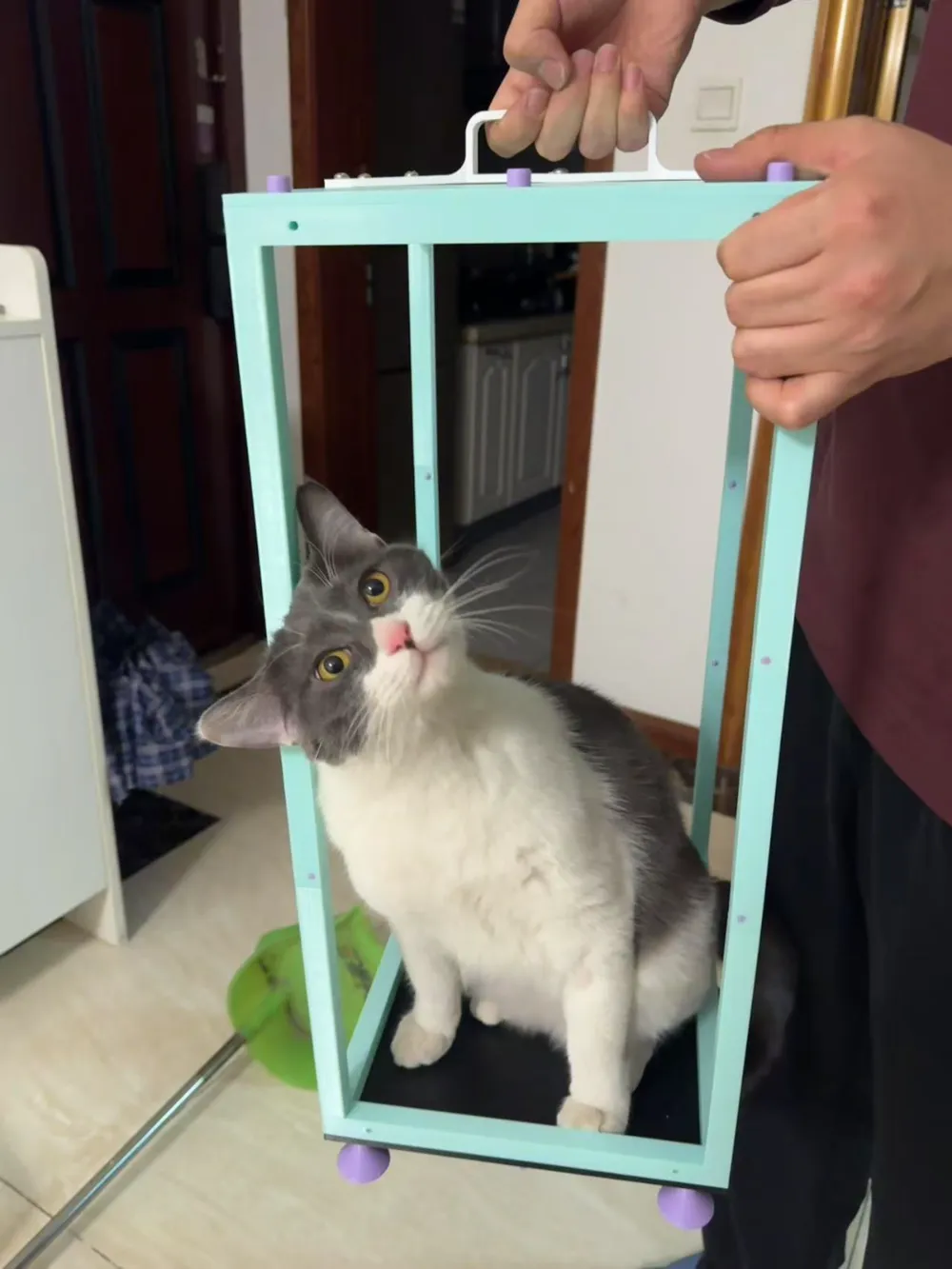

MAX load capacity! Easily handles a 9-jin (approx. 4.5kg) load, see picture!
Enclosure dimensions:

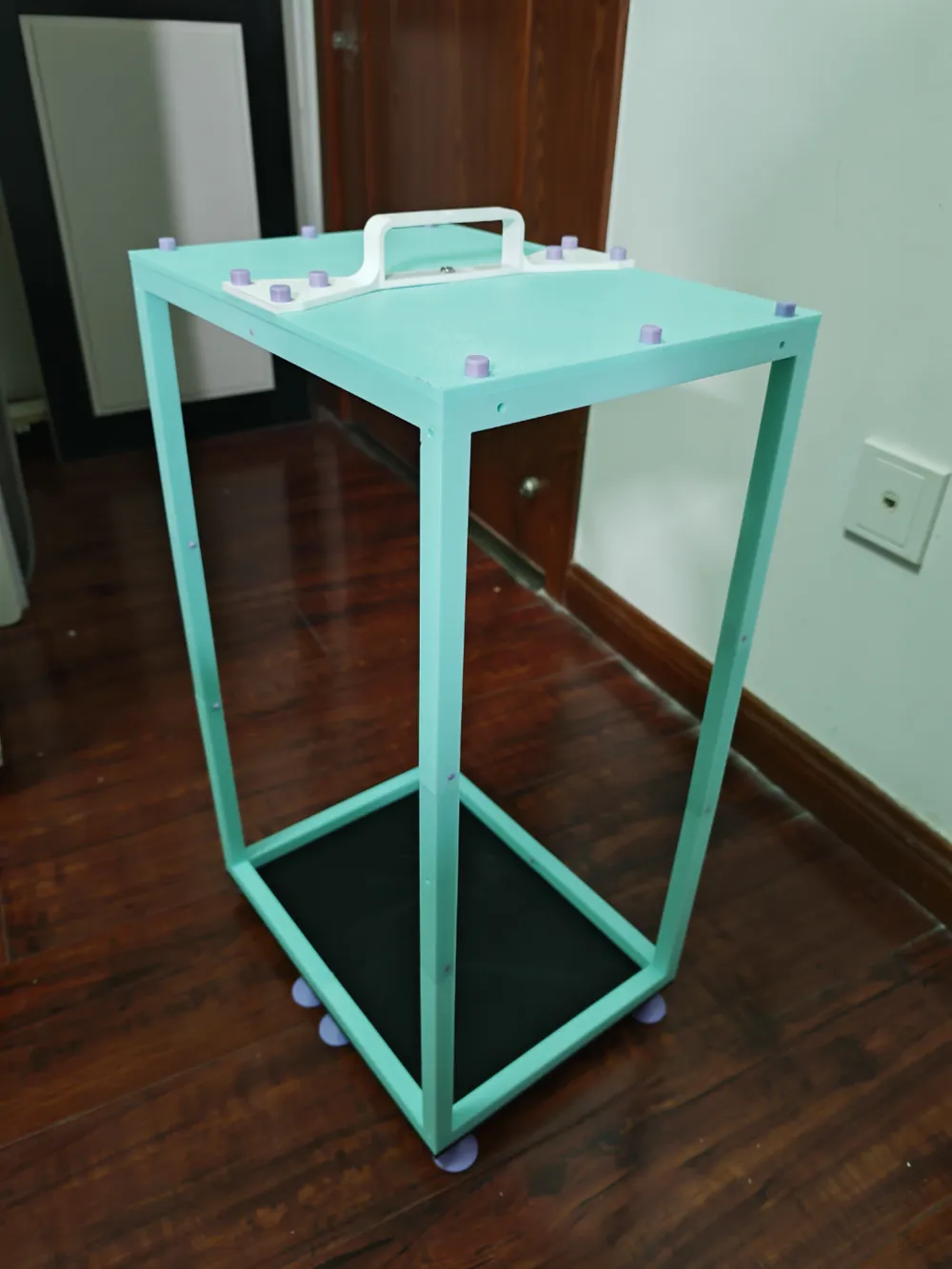

Frame dimensions 24.5X33X53cm
Internal dimensions 21.5X30X50cm
Bolt dimensions and quantity:
M5X15 7 pieces
M5X10 16 pieces
Note bolt head diameter 7.8, head thickness 4.6
If purchasing acrylic panels for the enclosure, refer to the frame dimensions.

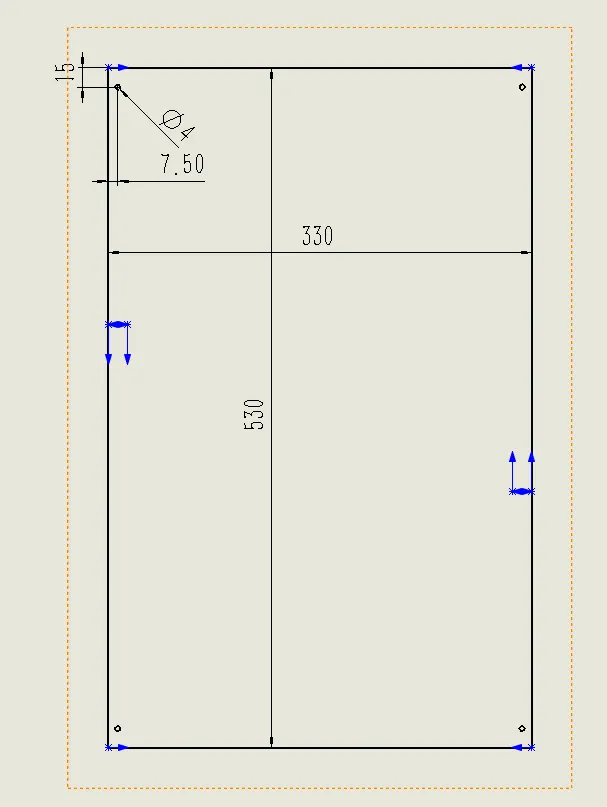

Specific acrylic panel dimensions and hole positions, see picture.
If you need the STEP model, private message me after boosting, I can also help with modifications.
