KR1BBT Fat EFrogHW v4 End Fed Half Wave Winder
IP Report
Print Profile(1)
0.2mm layer, 6 walls, 25% infill
Designer
4.6 h
2 plates
Open in Bambu Studio
Boost
9
10
1
0
10
4
Released
Description

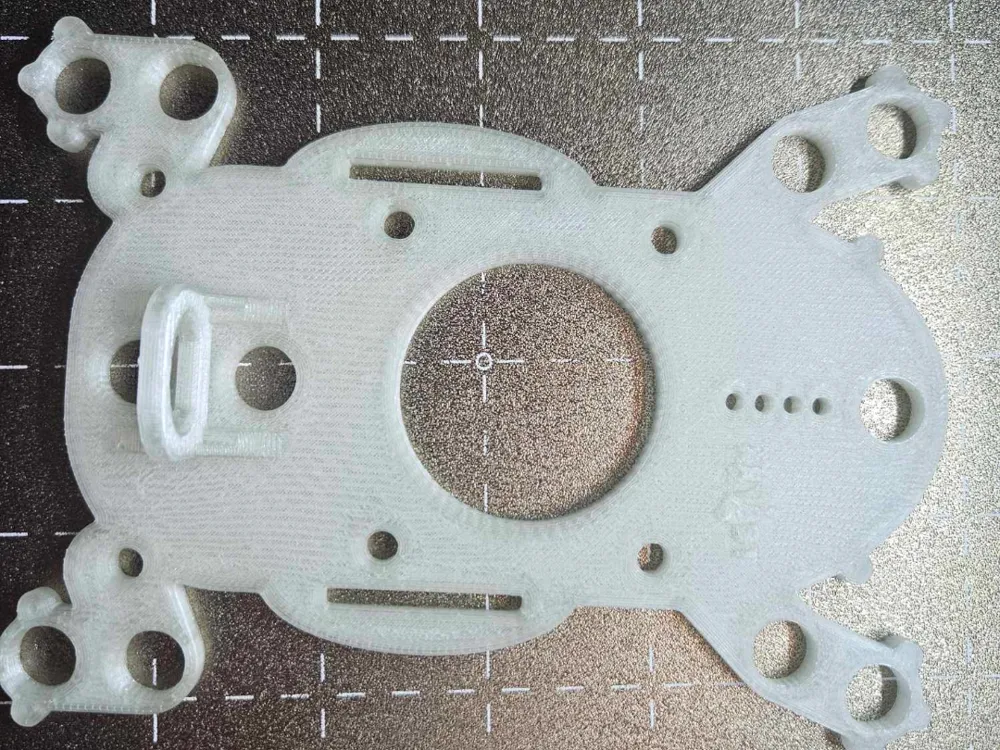

New updated model of my Fat EFrogHW winder. Adjusted it to be more friendly to using heat shrink tubing and added some different connector types

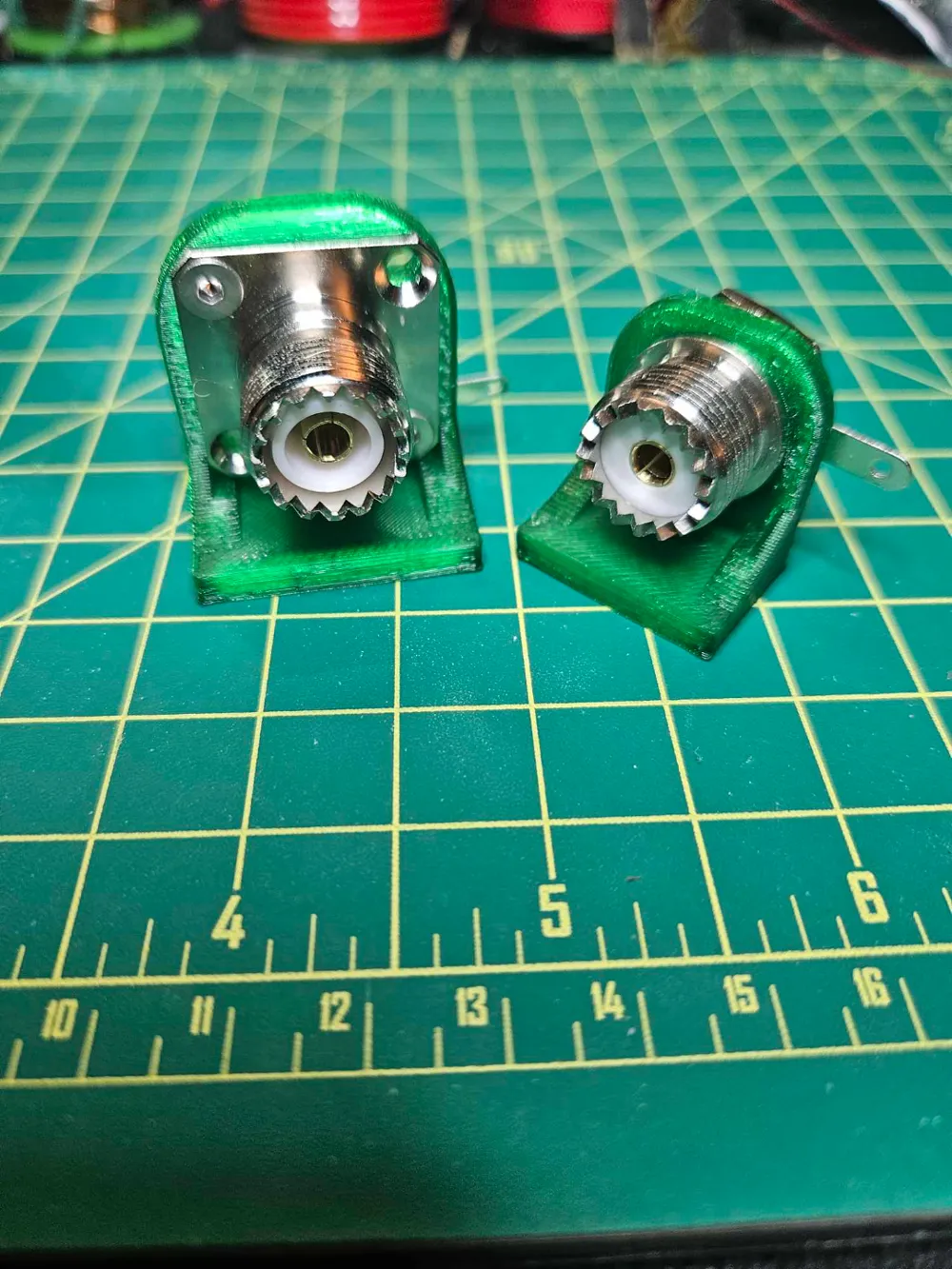

SO230 Bulkhead and Panel Mounts.
Holes are sized for 5mm, and 3mm hardware
1 inch strap holes.

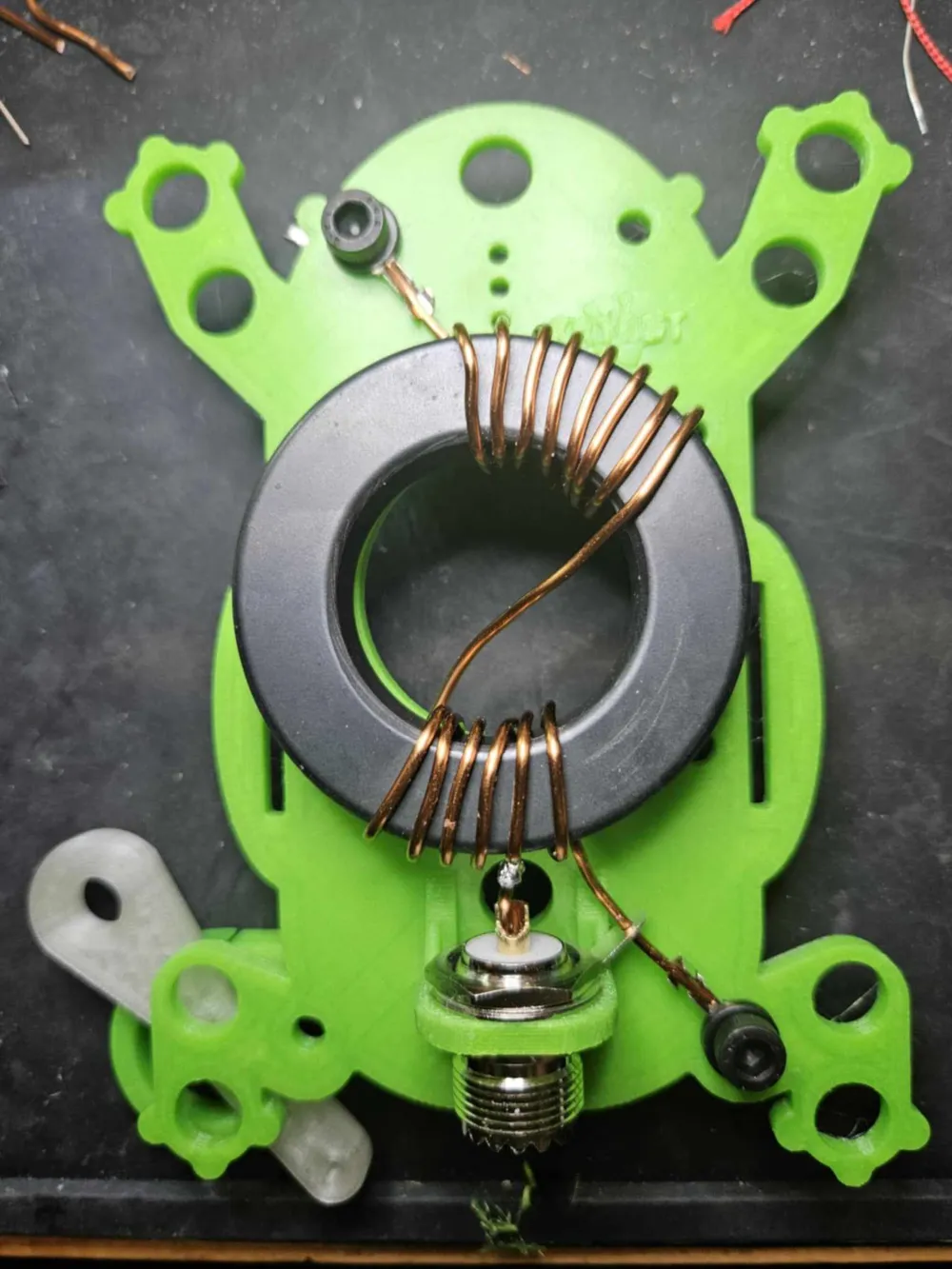

This version is sized for FT240 toroids

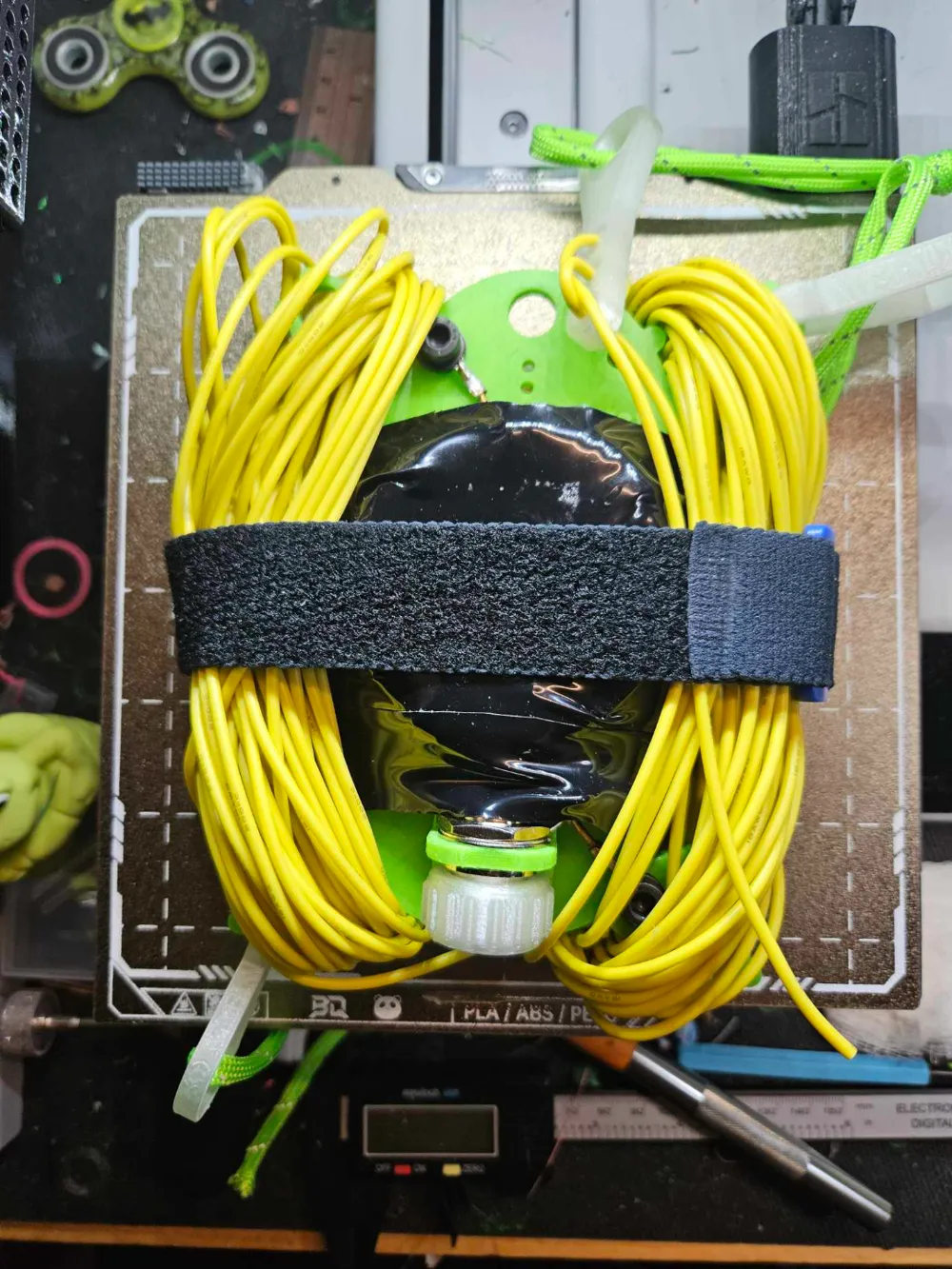

Using 18awg wire for the antenna and 14awg wrap wire.
