A1 mini enclosure accessories
Print Profile(3)
Description
Boost Me (for free)
If you like it, please support me!
Combining 3D printing and wood makes woodworking as simple as building with bricks!
Constructing the enclosure frame using wooden squares is both economical and aesthetically pleasing.
Materials requiring separate purchase:
①12 pieces of 3x3 cm wooden squares, 50cm long (precise dimensions required)
②5 sheets of 50x50 cm, 3mm thick acrylic plates
③6m of 2mm thick, 3cm wide sealing foam strips
Wiring holes need to be drilled on the back panel. If you want to install an exhaust fan, you should also pre-drill holes.

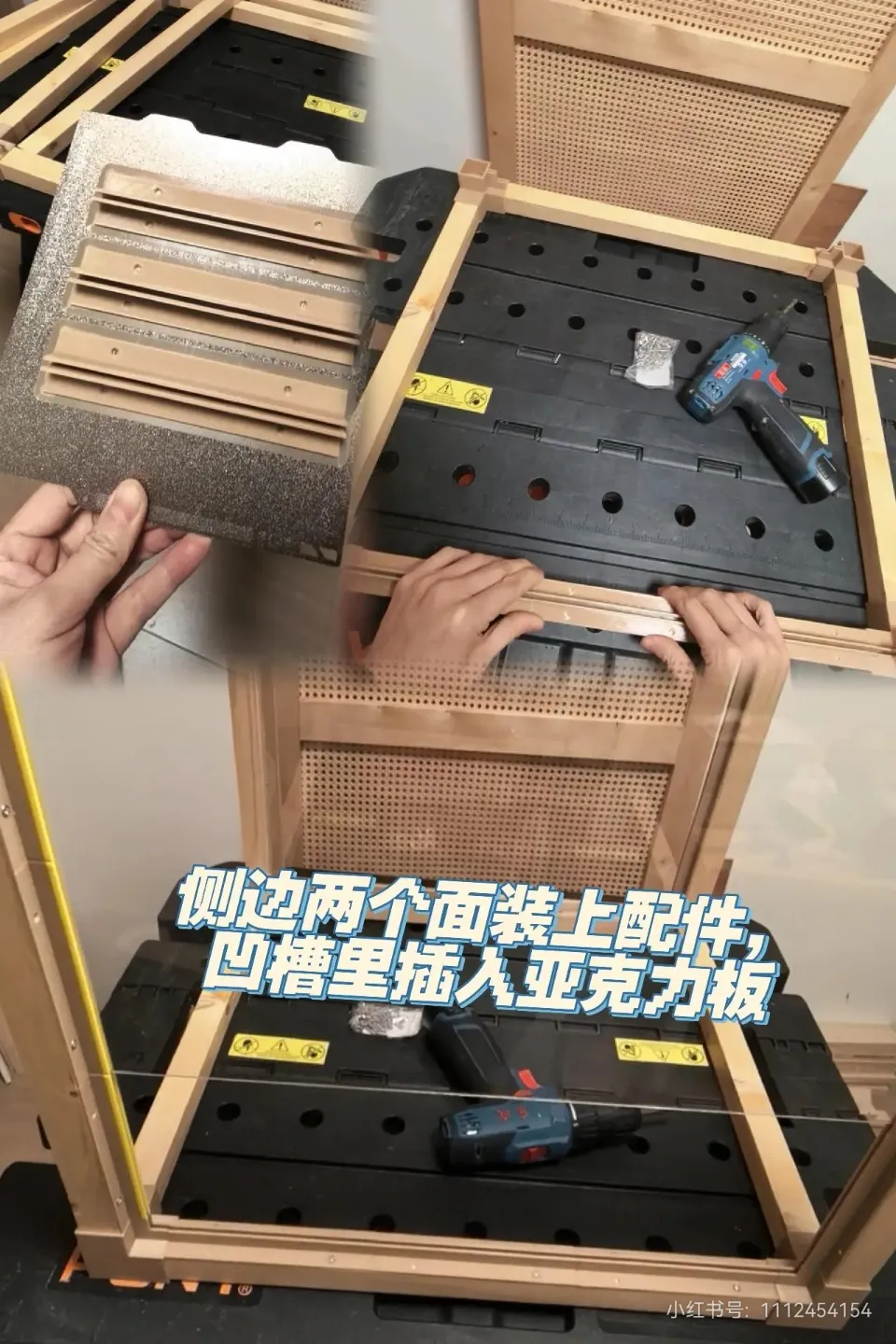

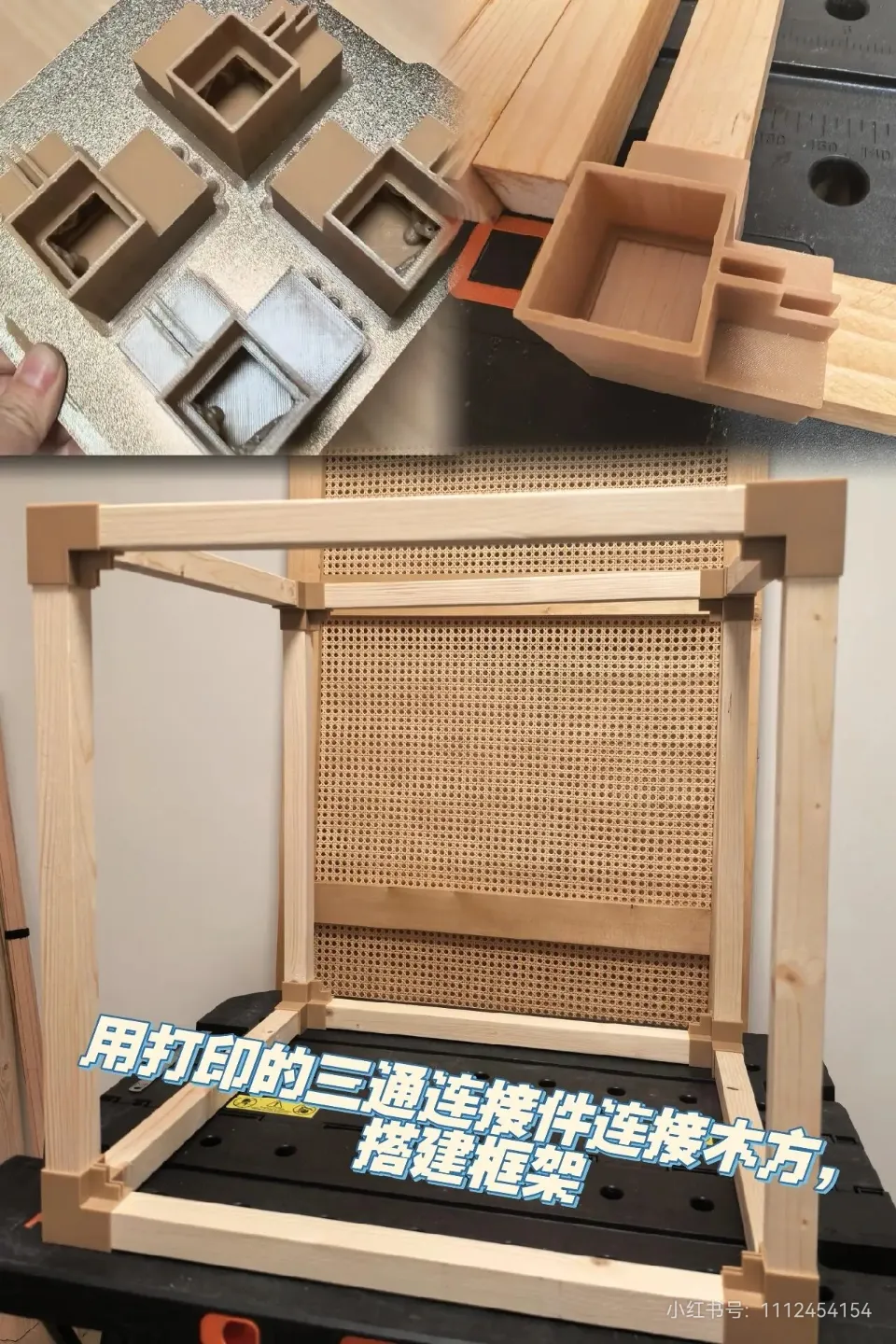

Installation Note: One of the square holes in the three-way fitting goes all the way through. The horizontal wooden squares on the front, top, and back must be inserted completely to allow the acrylic plates to be inserted into the side slots.
Magnetic Exhaust Vent: https://makerworld.com.cn/en/models/1057247-mian-kai-chuang-ci-xi-chu-feng-kou-jie-tou#profileId-1094997

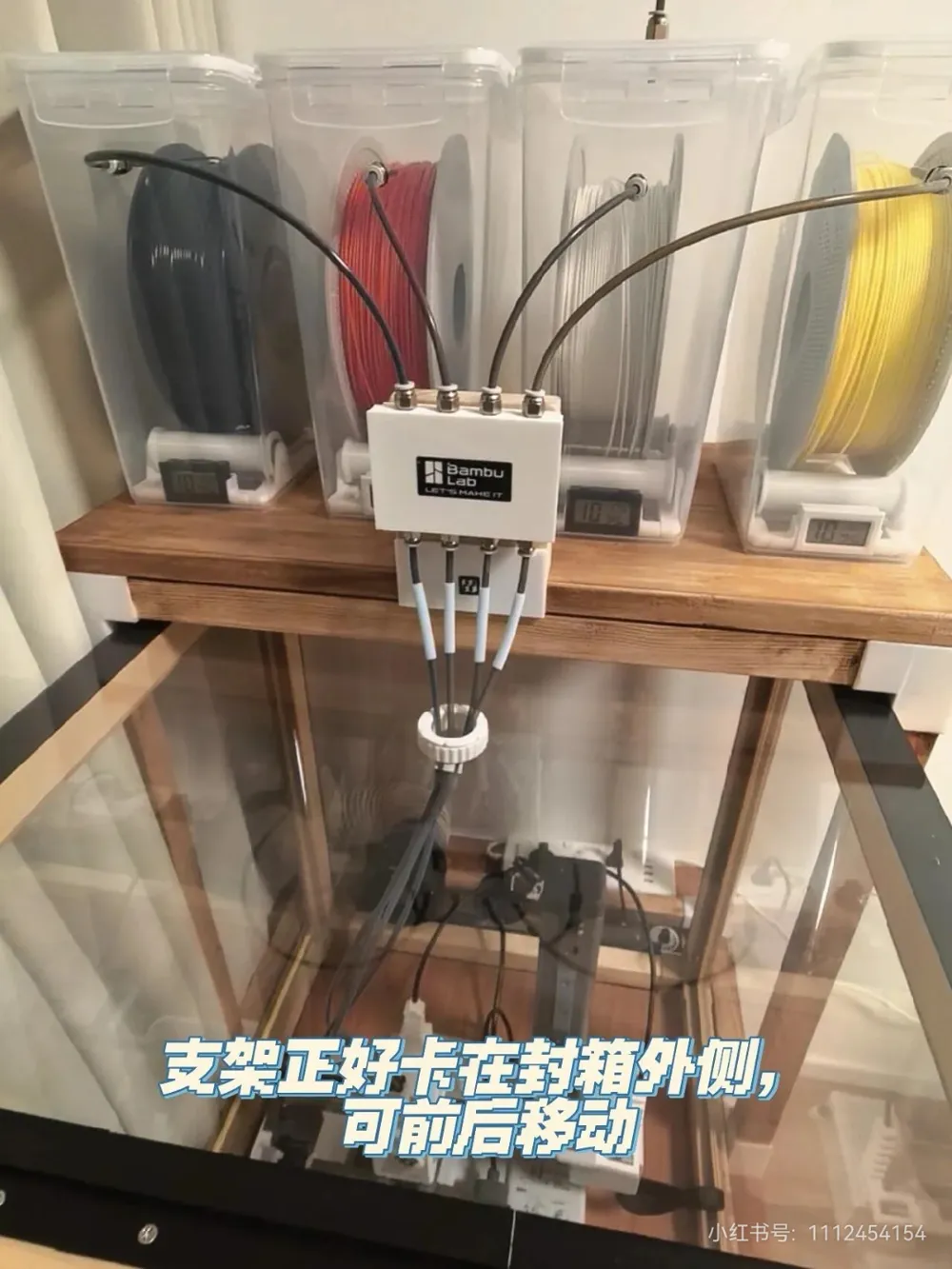

Filament Holder: https://makerworld.com.cn/en/models/1057692-hao-cai-zhi-jia-lian-jie-jian#profileId-1095547
