For my tight Ball Blast Gates I have designed additional multiple connectors

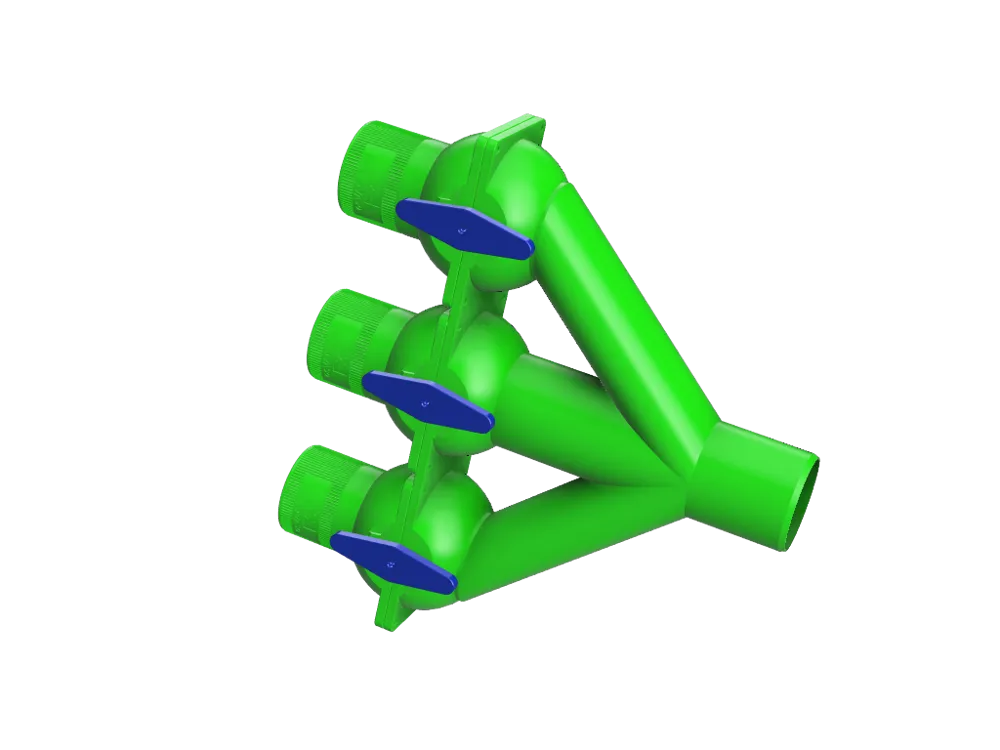

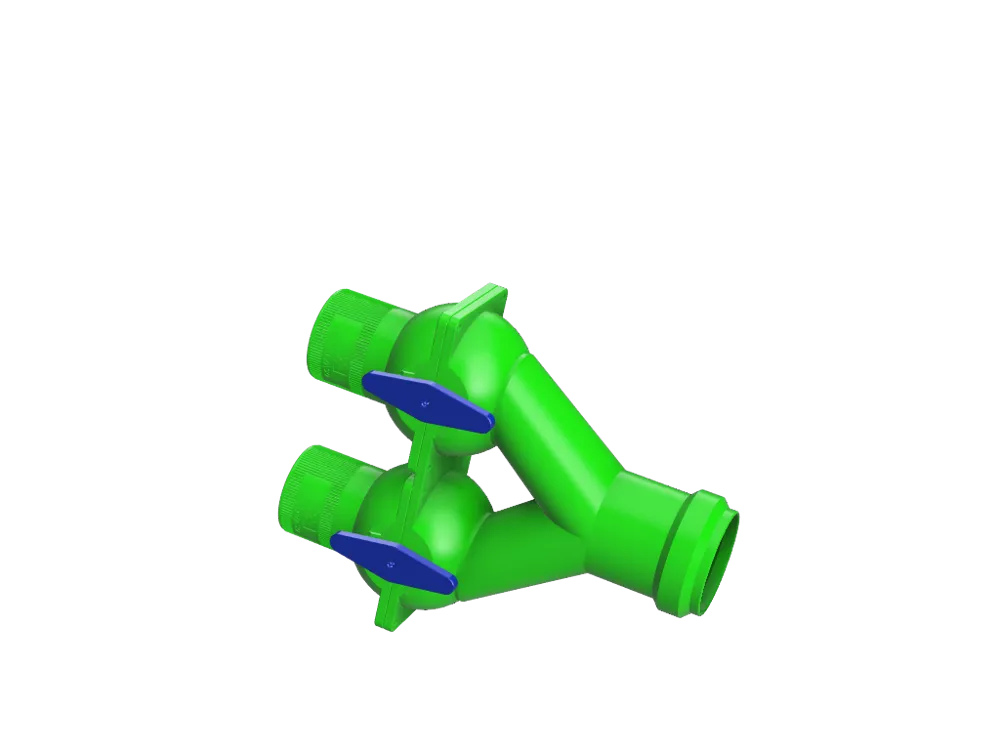

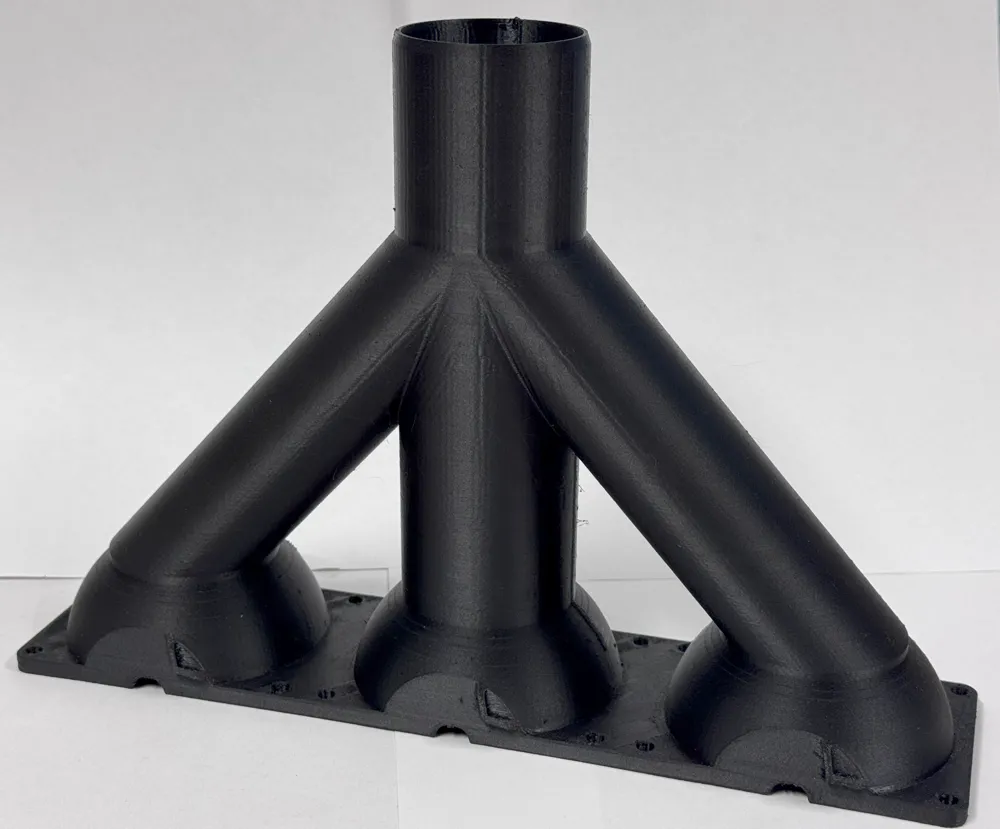

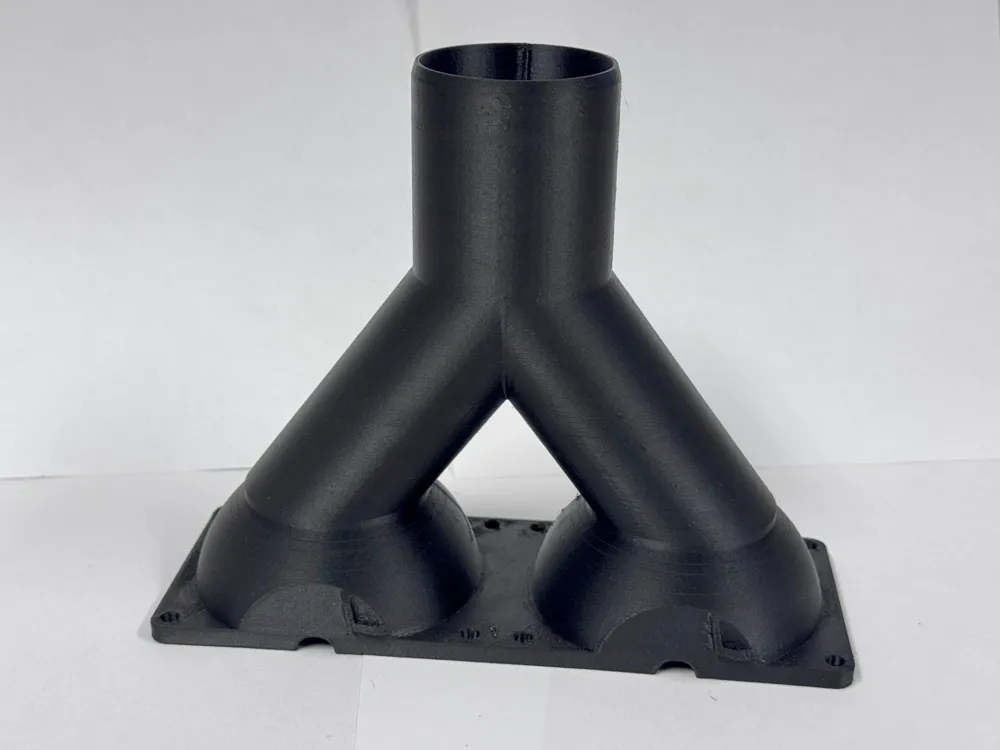

Here you will find a dual and triple version suitable for HT pipe DN50. The socket version can be equipped with an original HT sealing ring DN50, as found in any hardware store
Only the multiple connectors can be found here. The different inlets for the simple Blast Gates (here) can be found either as a print profile or in the downloads. Only the corresponding inlets and all common parts need to be printed from the original
The multiple connectors are only compatible with version 2 components of the Blast Gate
The assembly instructions and the material list can also be found with the original. The latter must be multiplied by the number of connections accordingly
As with the original, there is also a version with Zigbee sensors for monitoring the closed state
