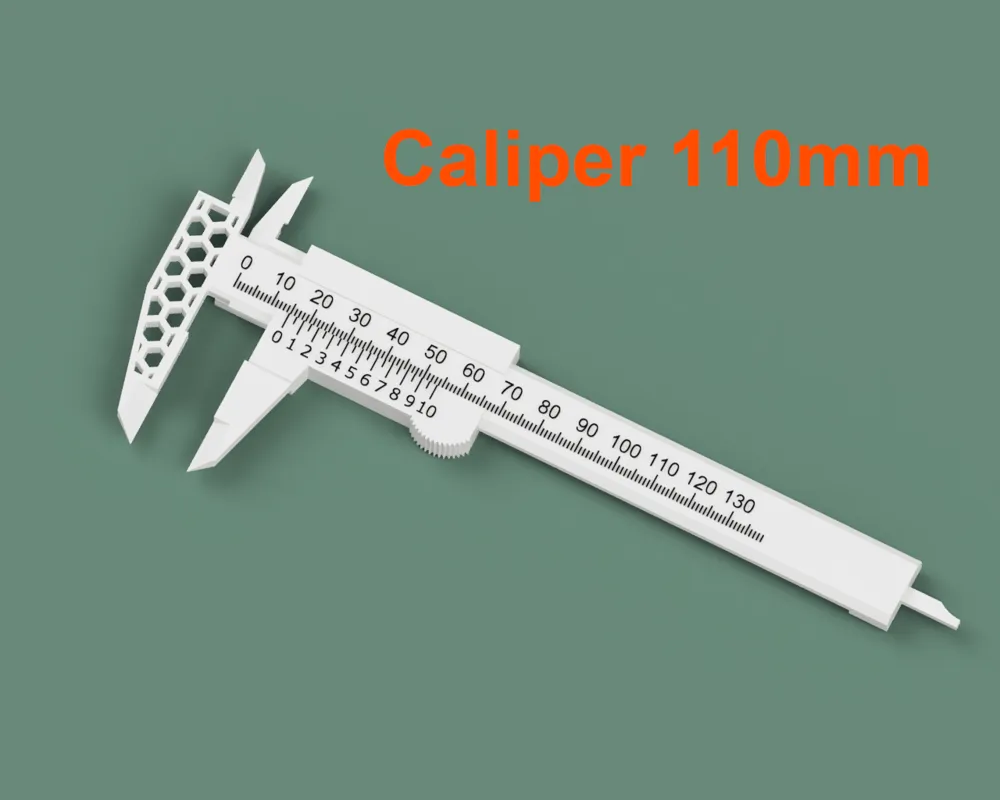

Caliper - 110mm

Update 28.10.25

Problem: Numbers were not printed correctly

Status: Fixed

Hey,

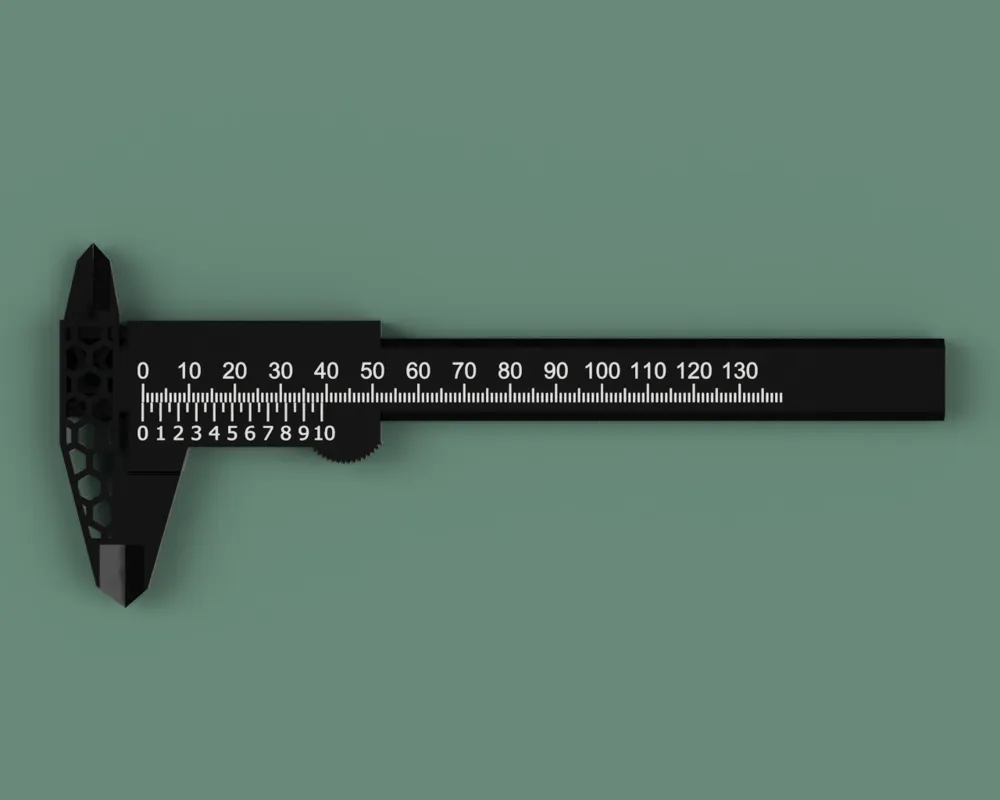

this is an caliper which can messure a maximum of 110mm.

To be clear right from the start, you shouldn't expect the highest precision from a 3D-printed caliper.

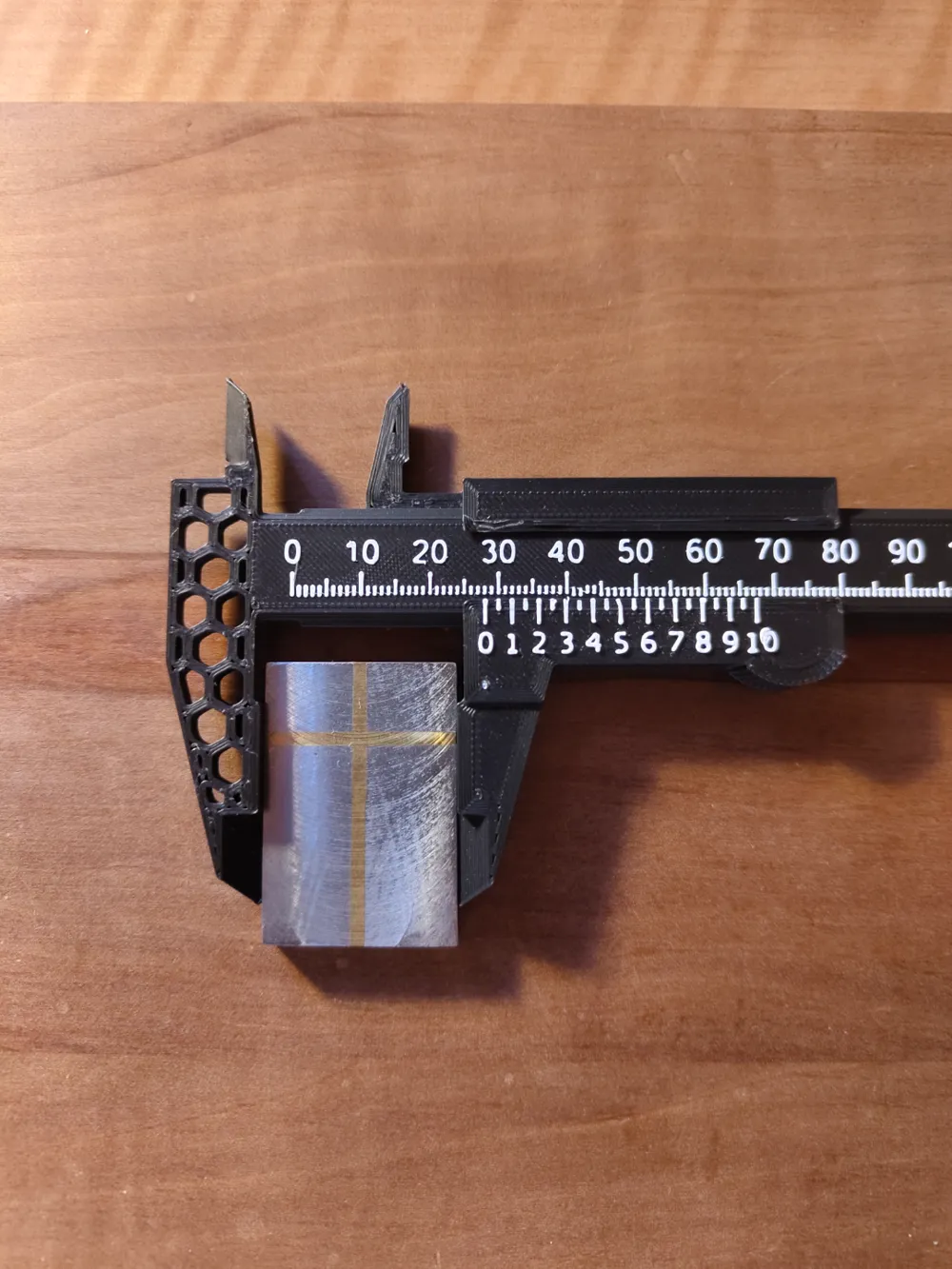

You can measure well with it, and I would say the measurement result is accurate to within +- 0.2 mm. It also depends on the person how hard they press or pull when measuring, because the caliper is made out of plastic and not out of metall.

Print Settings:

Material: PLA (Elegoo) (I didnt tried other Materials)

Nozzle: 0,2mm - 0,4mm

Layer height: 0,25mm

Infill: 100%

Supports: Only for Caliper Vernier Scale (I recommend tree strukures)

If want to make changes or remix my model I have added the Inventor Files.

I hope the caliper is useful for you ;)
