IPistBit 8" Screen 3U Bracket for 10-inch Rack

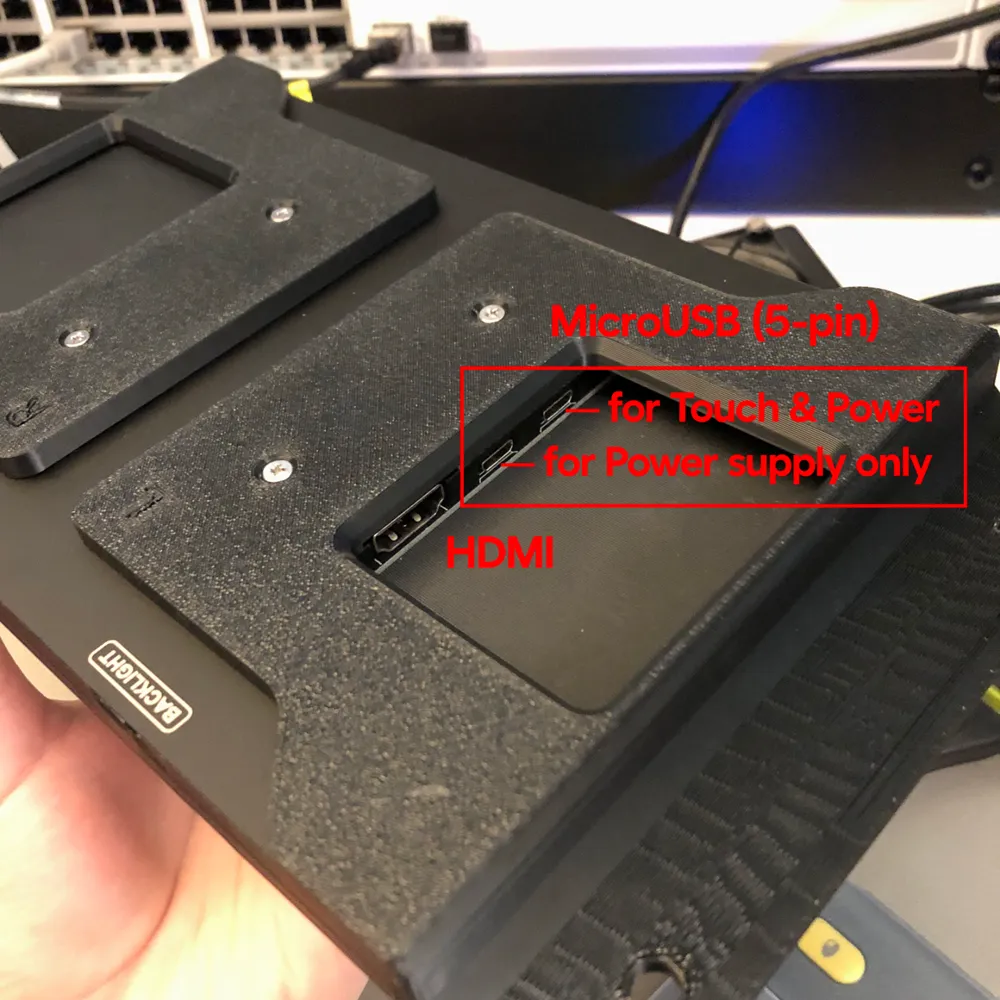

10" Rack Bracket for IPistBit 8" HDMI Display (HDMI + USB Touchscreen Interface)

Applies to the following products:

• IPistBit 8" 1280×800 IPS HDMI Portable Touchscreen Monitor

  • Amazon
    • https://www.amazon.com/ELECROW-Touchscreen-Portable-Compatible-Raspberry/dp/B0D44TSG79
    • https://www.amazon.com/iUoyoMon-Touchscreen-Portable-Raspberry-Consoles/dp/B0FCRXLQGK?th=1
    • https://www.amazon.com/iPistBit-Raspberry-1280%C3%97800-Touchscreen-Drive-Free/dp/B0CJJ92FYP

  • Aliexpress
    • https://www.aliexpress.com/item/1005006371478553.html
    • https://www.aliexpress.com/item/1005006368010056.html

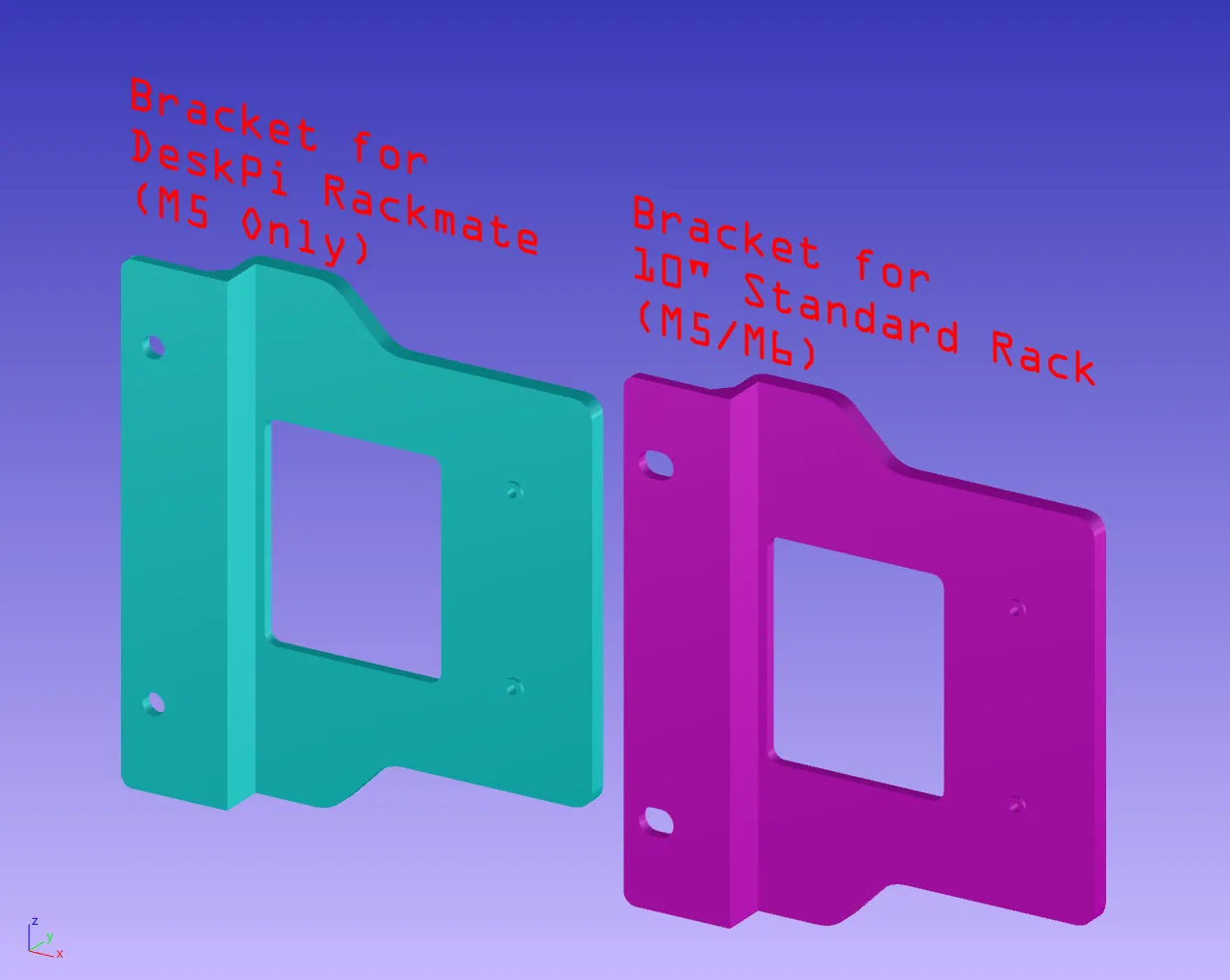

Two types of profiles are available:

• DeskPi RackMate (M5)
• 10" standard mini rack (M5/M6 and detachable Nut)

The following parts are required:

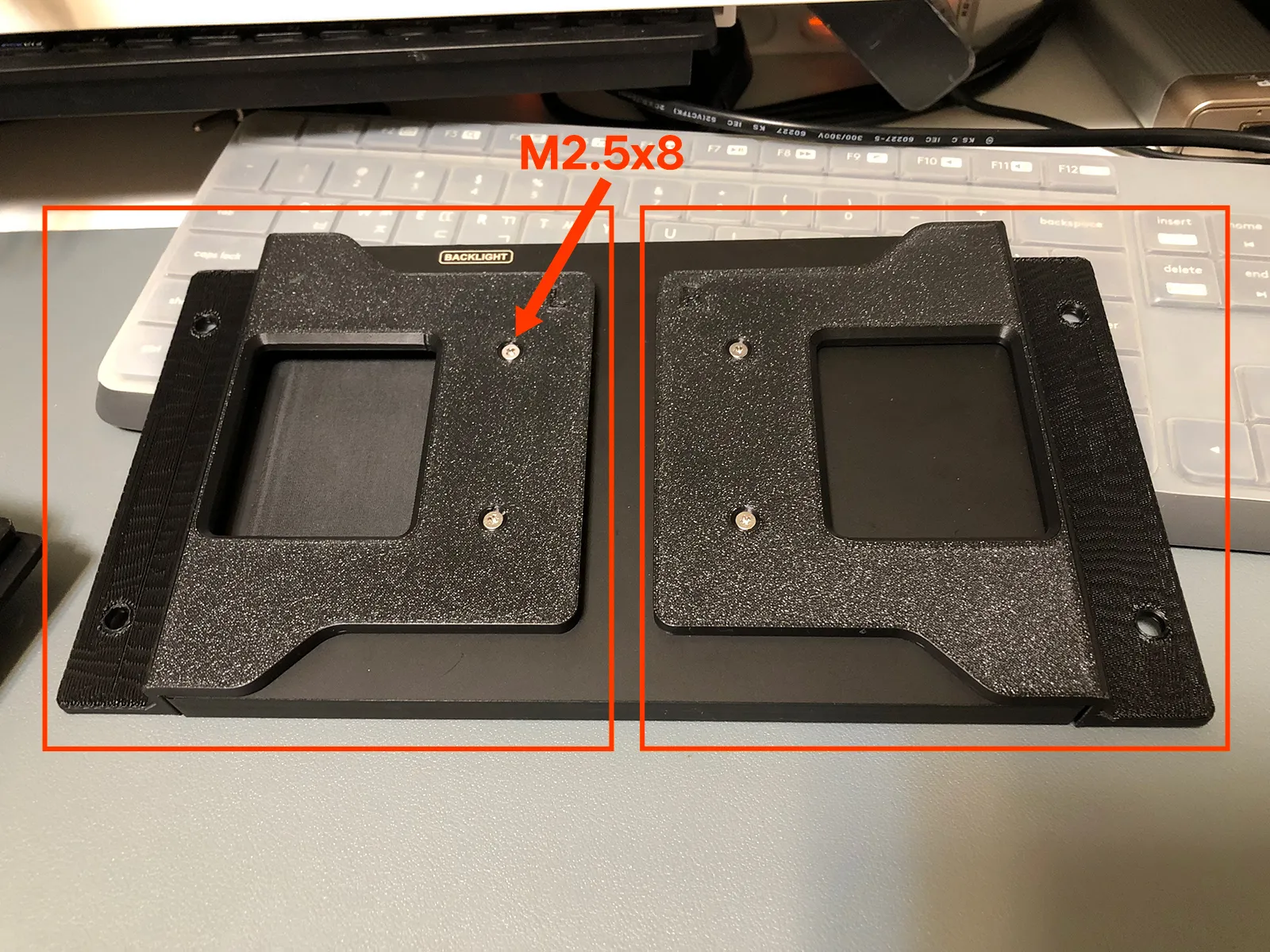

• 4 x [M2.5x8] Flat Head screws
  • You can buy a cheap M2.5 screw kit from Amazon or AliExpress.
  • IPistBit bundle screws have too small heads and short lengths, making them unsuitable for fixing brackets; flat head screws must be used.

Notice :

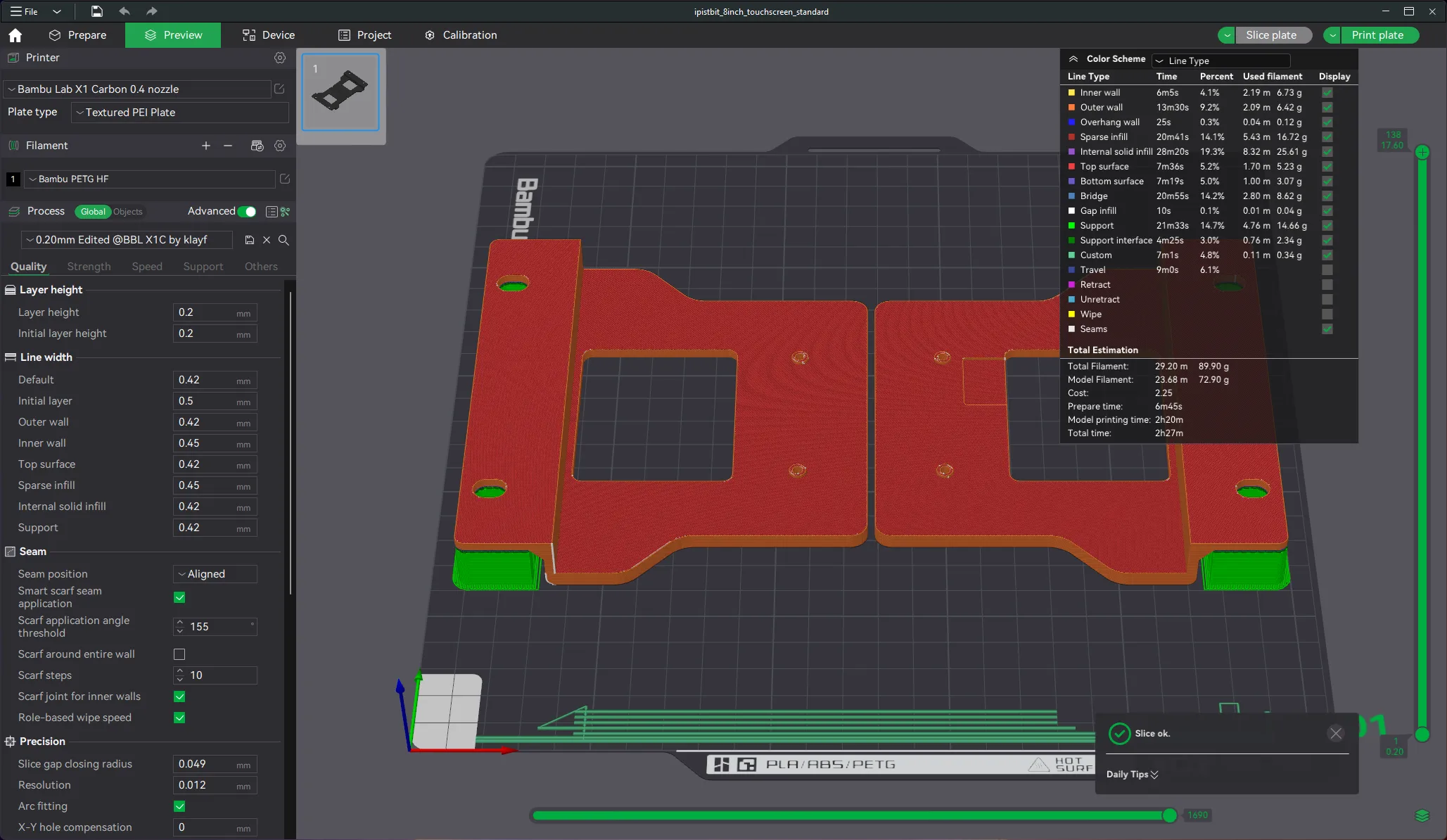

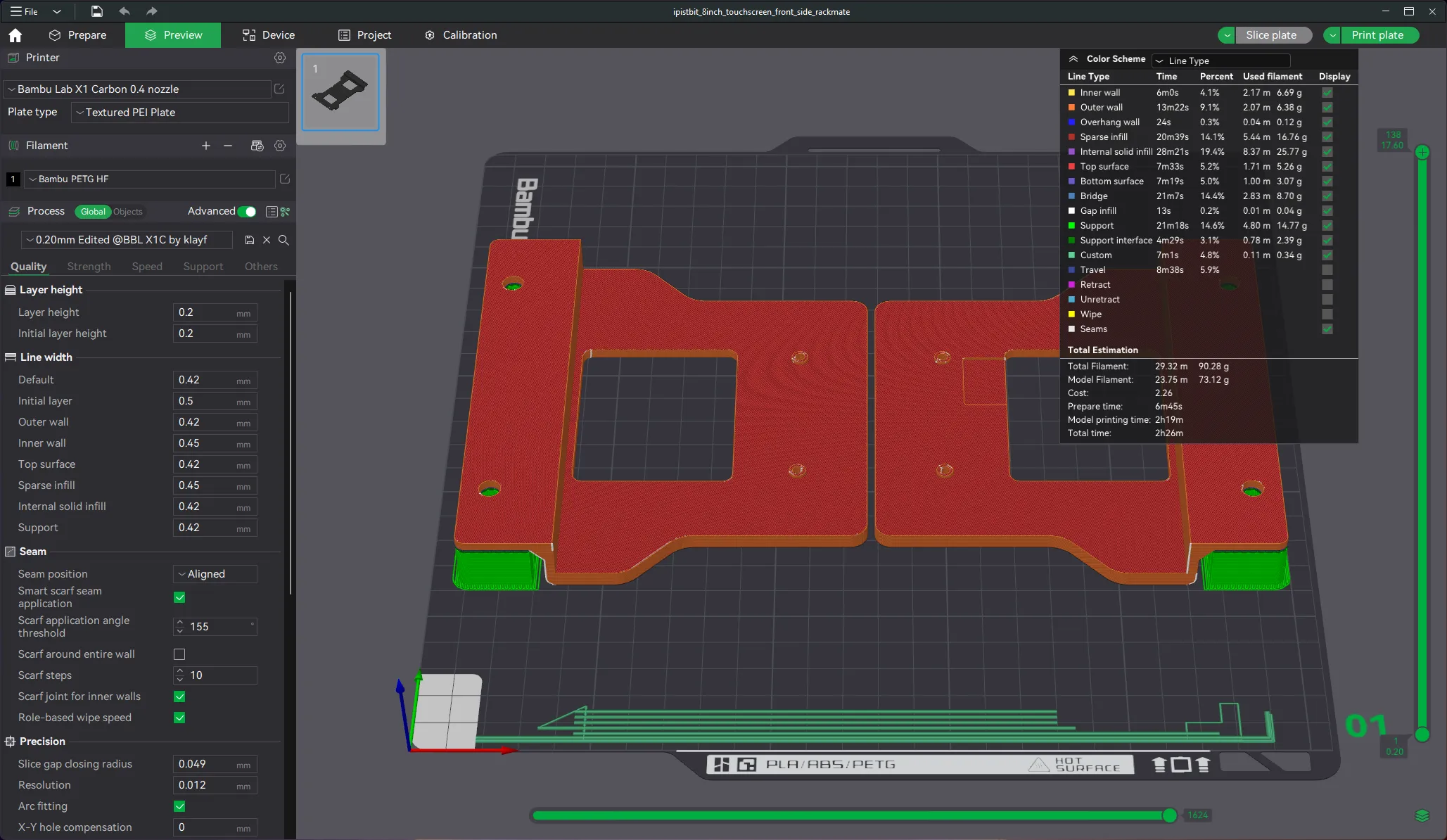

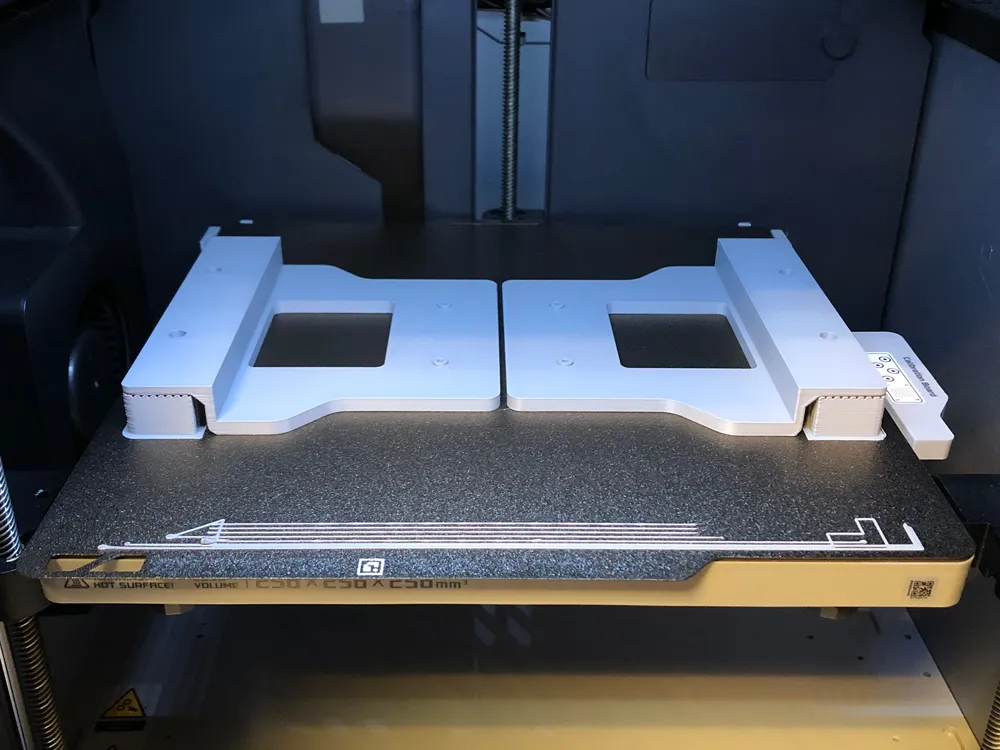

On Bambu Lab A1 mini, each bracket needs to be printed one by one.

To reduce the use of support, the surface that is visible from the outside will be the top surface. If you want a smooth surface, use Ironing (Topmost Surface).

If you want to apply bed texture to the surface, rotate the model 180 degrees. However, many filaments are used as support.

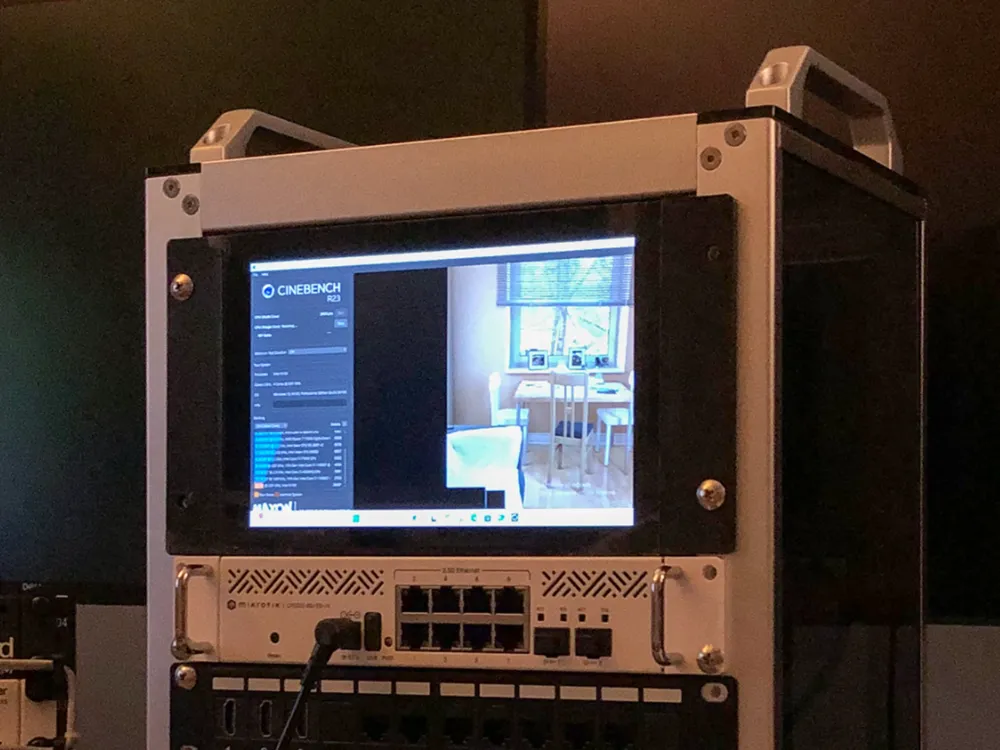

Preview :

for Rackmate

for 10" Standard

ⓒ 2025 klayf (HONG-SIK WON) / contact@klayf.com

For non-commercial and personal / Internal use only.

Models and prints may not be sold or used for commercial purposes.
