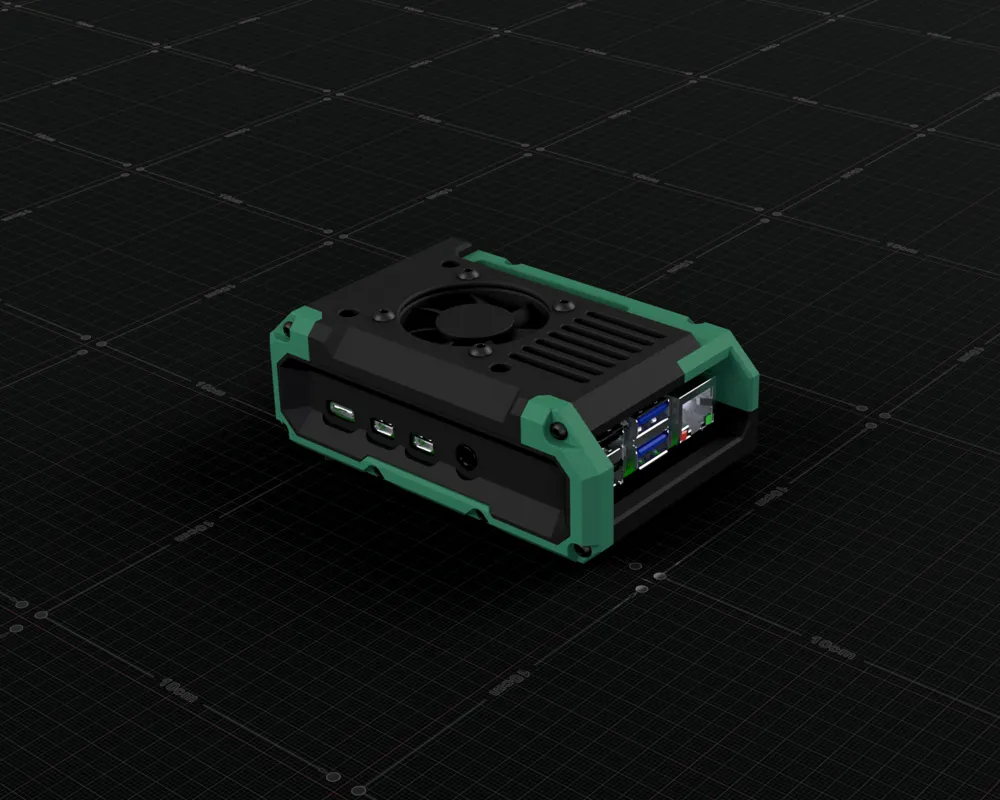

Raspberry Pi 4 Case (UPDATED)
IP Report
Print Profile(1)
Based on authors original profile 0.2 layer,4 walls,15% fill
3.3 h
2 plates
Open in Bambu Studio
Boost
126
289
47
20
601
222
Released
Description
Made some updates to my Raspberry pi 4 case.
The updates include:
- micro-SD card access panel, requires x1 M2.5x6-10
- Extended the Case housing to give clearance for the SD Card when removing PI
- Removed material on the Pi mount making the installation/removal easier
- Case mounting holes now spaced 20mm apart
Removed material around the front cable port access
U will need:
- Case - M2.5x10 self-tapping screws X13
- Pi - M2.5x6-8 self-tapping screws X4
- Mounting Case - M3x10-12 BHCS or SHCS X2-4
- 4010 Fan - M3x12 BHCS X4 + M3 Heat-set inserts X4
No supports are needed for this design.
