Stronger Frame

Designer

1.2 h

1 plate

4.5(2)

0.16mm layer, 7 walls, 15% infill

Designer

1.1 h

1 plate

Open in Bambu Studio

Boost

159

Released

Bill of Materials

List other parts

BetaFPV_AIR_FC x 1: https://betafpv.com/products/air-brushless-flight-controller
BetaFPV_0702II x 1: https://betafpv.com/products/0702-ii-brushless-motors
BetaFPV_LAVA_450mAh x 1: https://betafpv.com/products/lava-1s-450mah-75c-battery-4pcs
BetaFP_C03 x 1: https://betafpv.com/collections/camera-vtx/products/c03-fpv-micro-camera
BetaFPV_Air_Canopy x 1: https://betafpv.com/products/air-canopy
Gemfan_1219S_Tri-Blade_Propellers x 1: https://www.amazon.com/BETAFPV-Propellers-Compatible-Brushless-Quadcopter/dp/B0D9Q78H45

Description

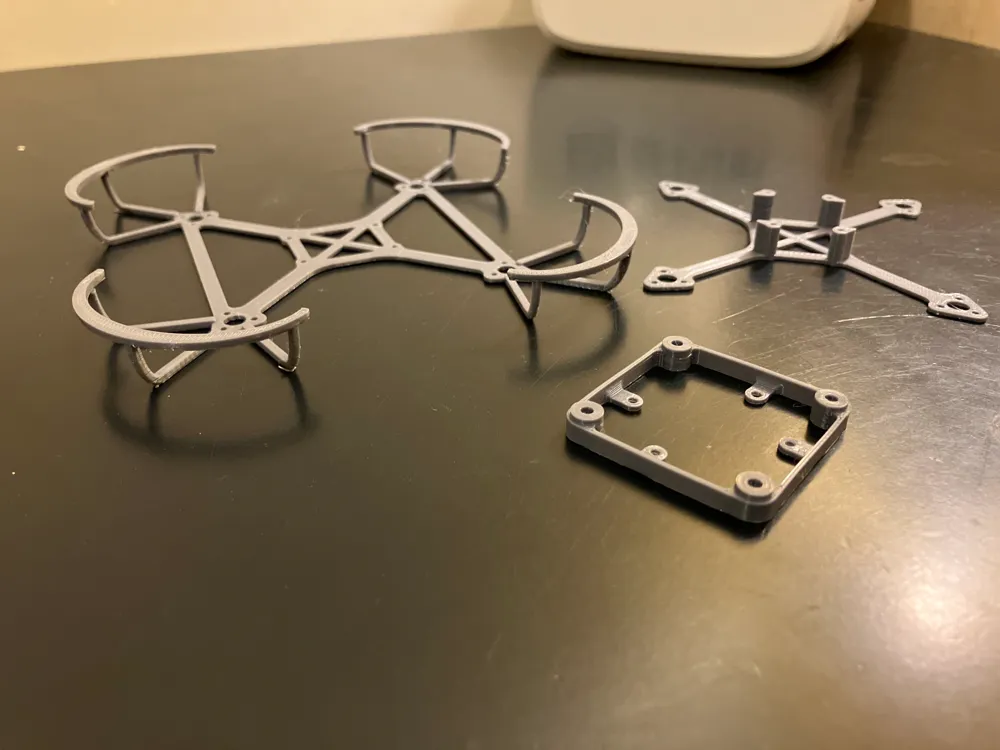

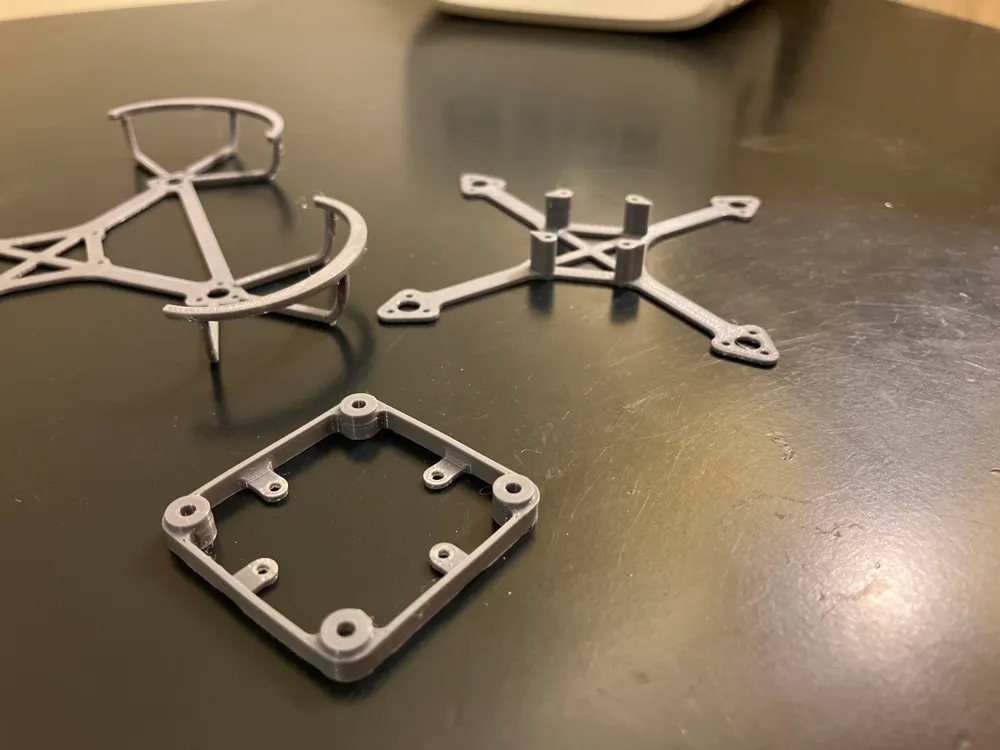

This Model is A remix of A Frame but it Includes built in propeller guards to protect from crashes

*I WAS GRANTED FULL PERMISSION TO RE-POST THIS MODEL*

ALL CREDIT TO: https://makerworld.com/en/models/1016319-75mm-3d-printed-prestress-fpv-frame?from=search#profileId-1263279

Here Is A list Of Parts As Well As A Built Tutorial And Video (Soon To Be Posted)

BetaFPV Air FC 5-in-1:

BetaFPV 0702 II Motors: or BetaFPV 0802 SE 23000KV

BetaFPV C03

Boost Me (for free)

I spent a lot of time to design and perfect the propeller guards so it would be much appreciated if you boost my post :)

BetaFPV Air Canopy

BetaFPV LAVA 450mAh or Any other compatible BT2.0 battery

BetaFPV 6 Port 1S Charger or Any other BT2.0 Charger

Gemfan 1210S Tri-Blade Props Or Gemfan 1219S Tri-Blade Props

Fatshark Echo, Scout or Eachine 800D Goggles (Any 5.8Ghz Analog headset is fine)

SpeedyBee SMA Antenna (Optional)

Of Course You Could Use Any Parts That Will Fit On A 75mm Frame But This Is Just A List To Help You With Your Build:)
