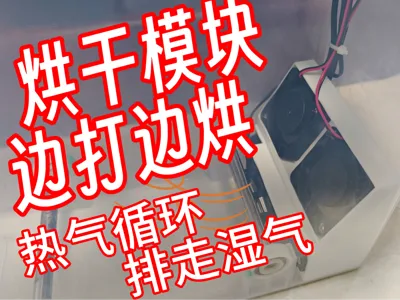

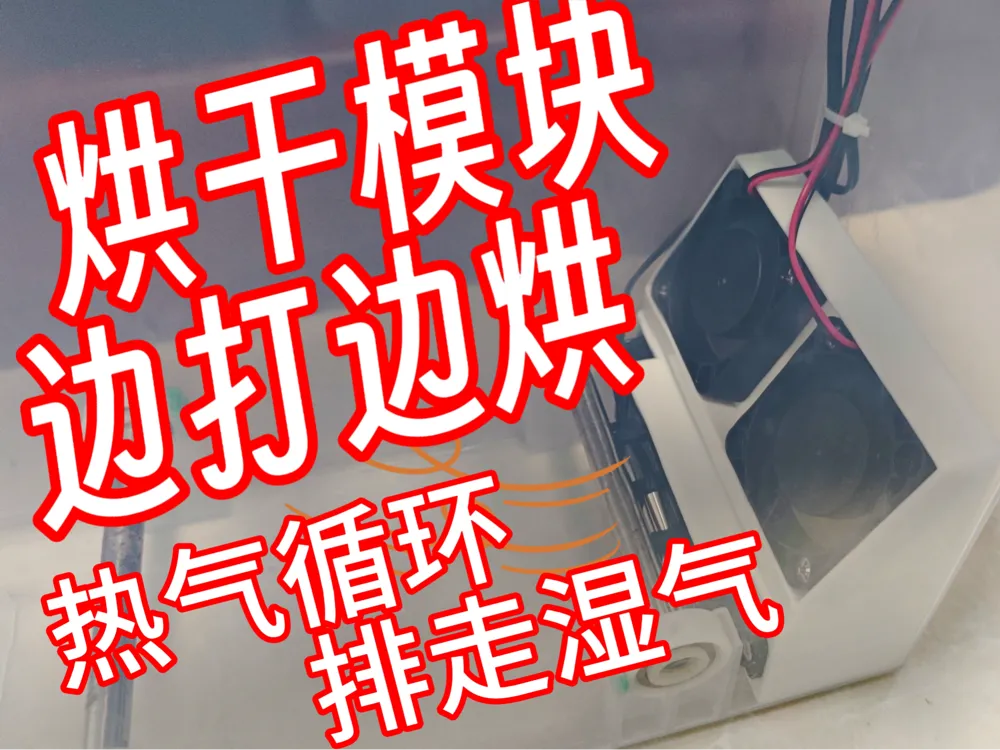

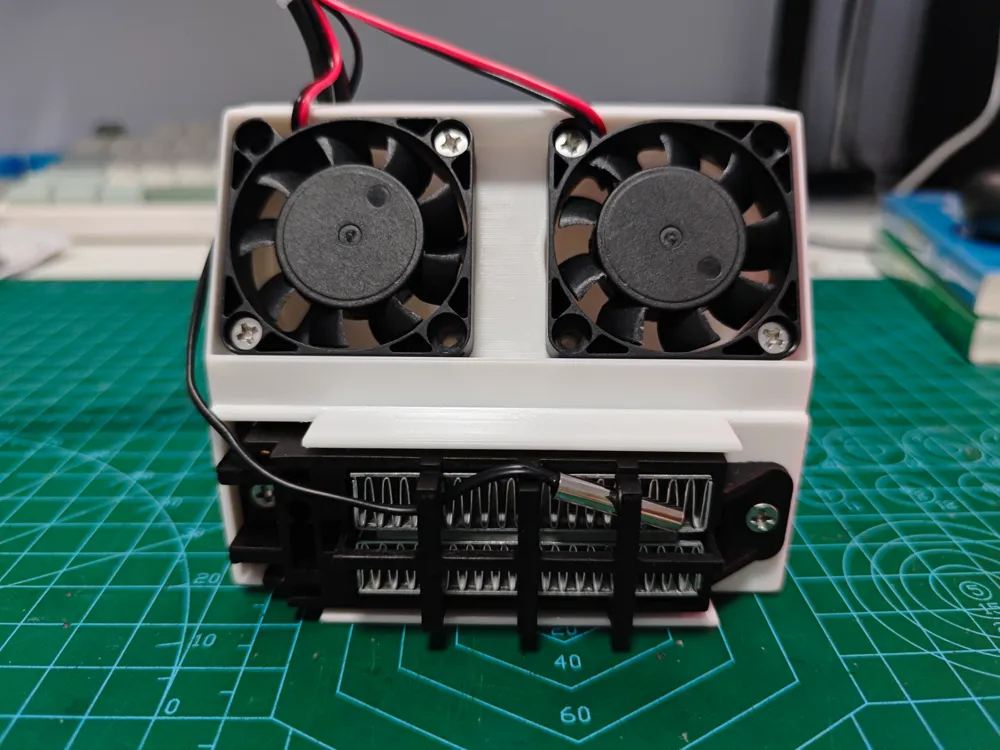

A filament drying module costing around 30 yuan
Print Profile(1)
Description

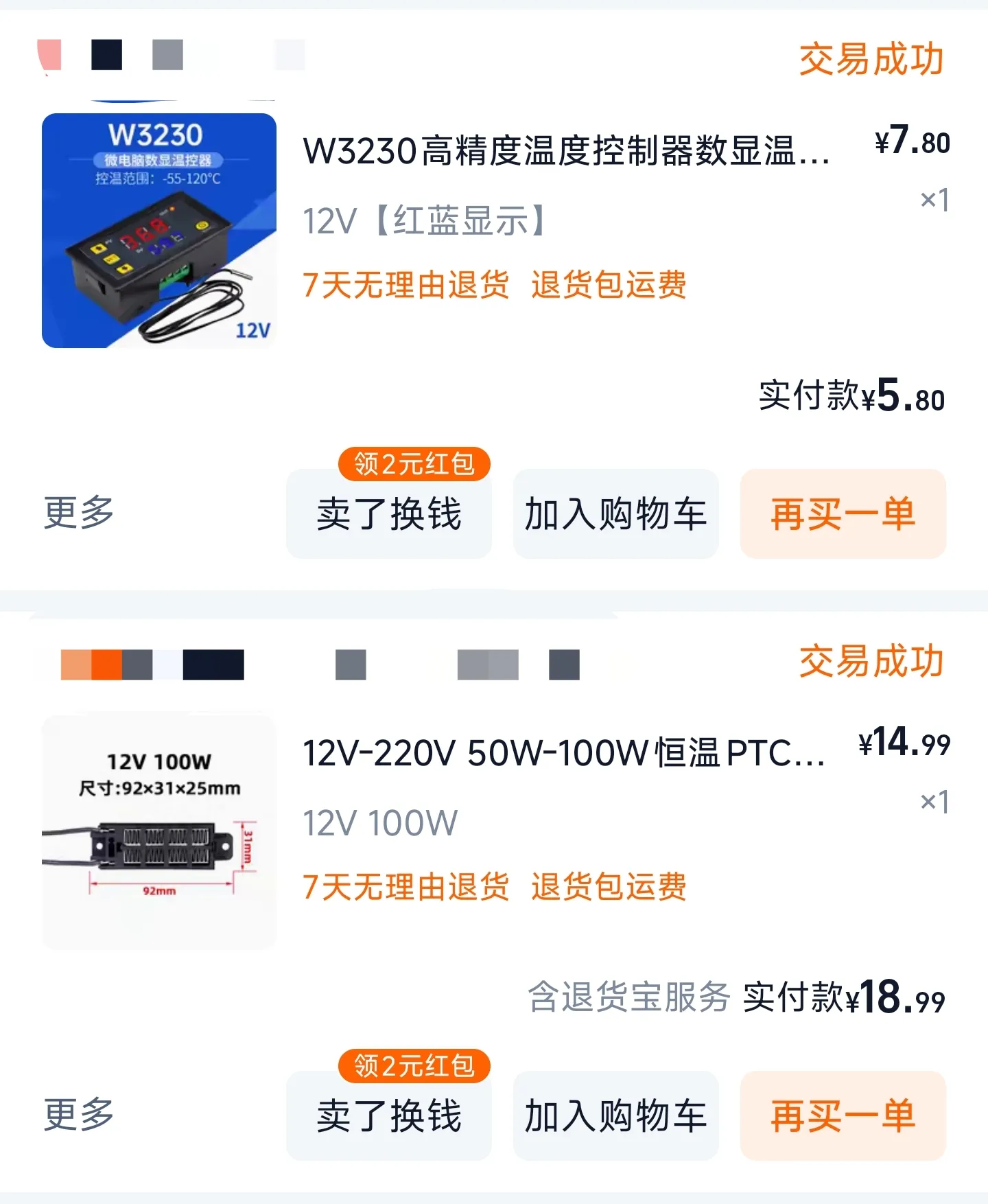

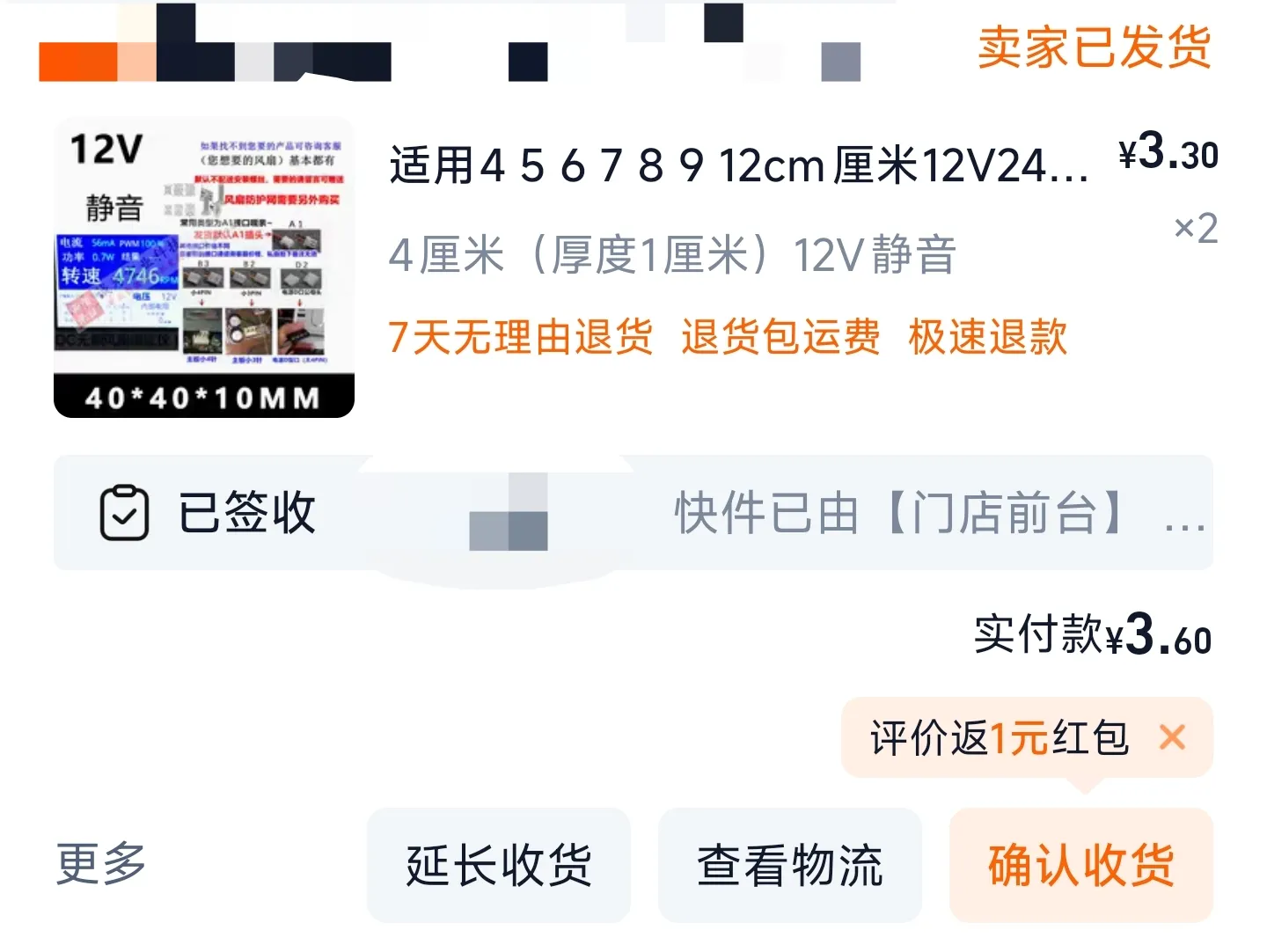

This is a highly versatile, temperature-controlled drying module. The primary components required are as follows:
Additionally, some heavy-duty wiring and a power supply capable of delivering approximately 12V 10A are needed.

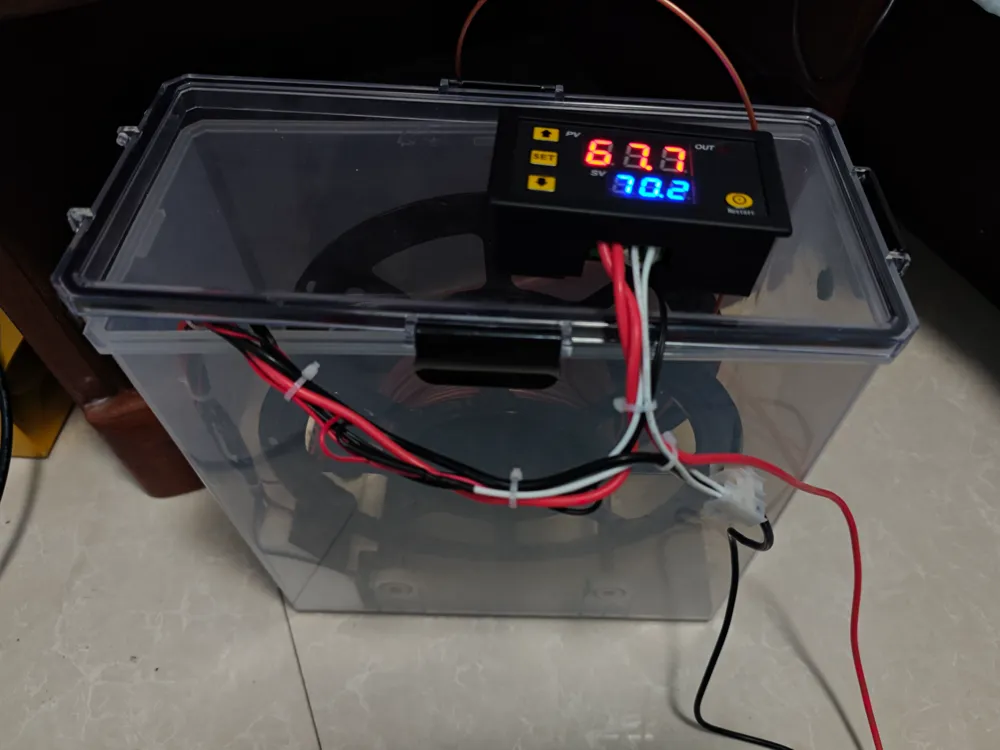

During use, routing the wires can lift the drying chamber lid to facilitate moisture expulsion; alternatively, for a sealed unit, you may drill holes for the wires

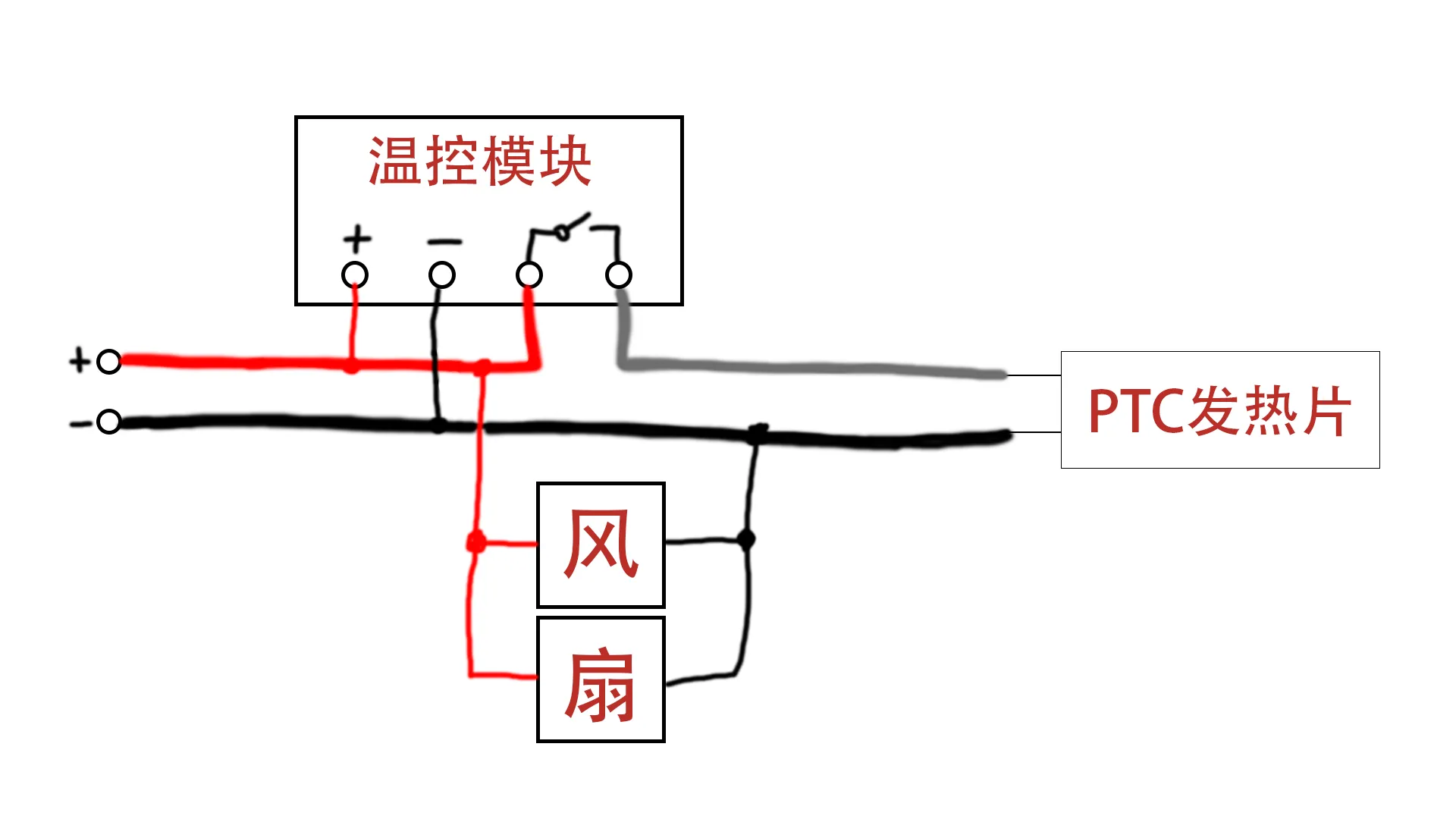

Wiring diagram; the required wire gauge is indicated
